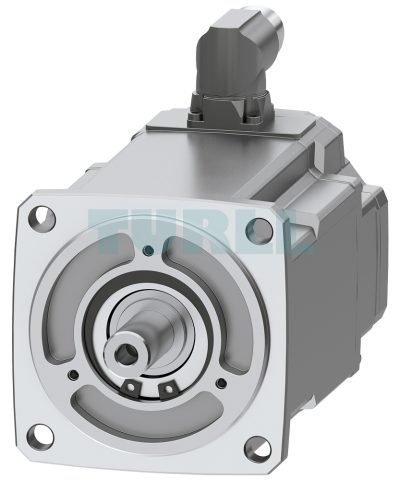

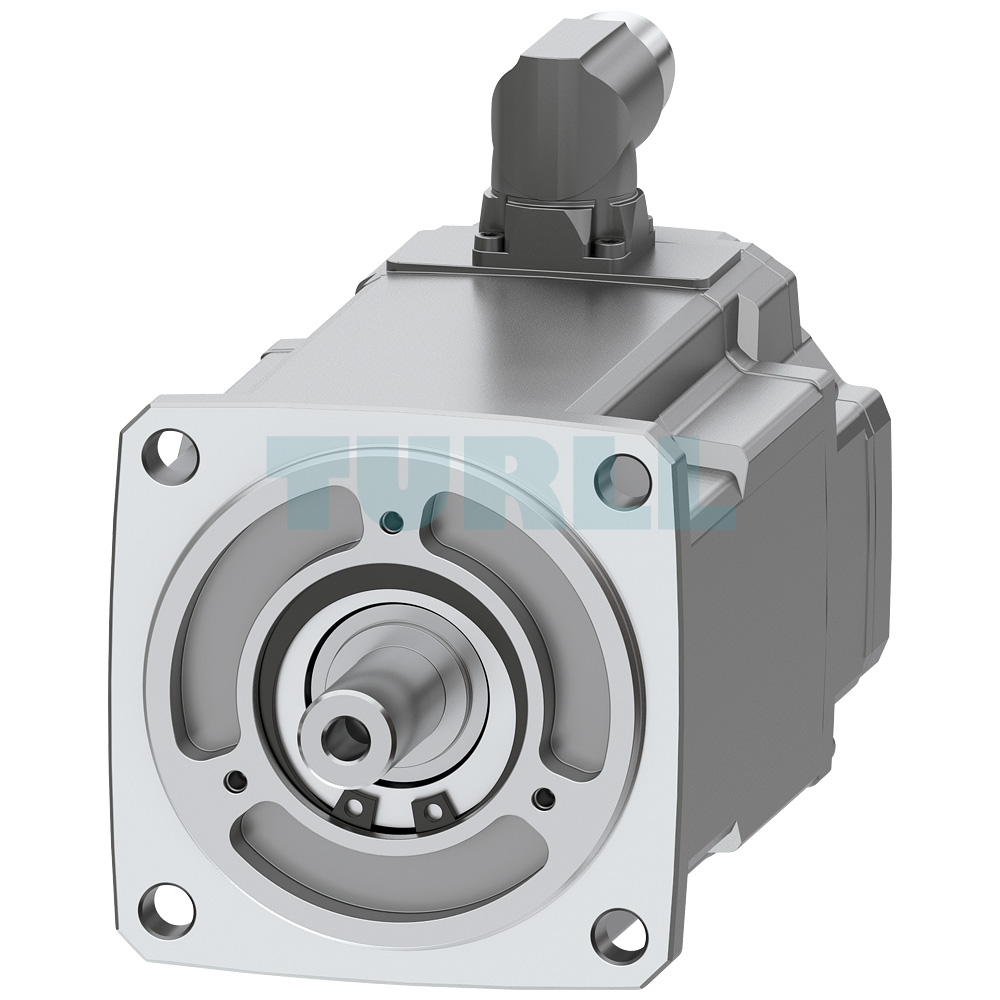

1FK2104-5AK01-1SA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New
$625.62
SIEMENS SIMOTICS S-1FK2 High Dynamic servo motor with 2.4 Nm torque, 1.07 kW output, IP65 protection, encoder AS22DQC, and OCC interface.
1FK2104-5AK01-1SA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New
The SIEMENS 1FK2104-5AK01-1SA0 SIMOTICS S-1FK2 High Dynamic servo motor is a compact and robust synchronous motor designed for precise and dynamic motion in industrial applications. Delivering a rated torque of 2.4 Nm, with a power output of 1.07 kW at 6000 rpm (380–480 V) and 0.75 kW at 3000 rpm (200–240 V), this unit combines performance, durability, and efficiency in a single, versatile solution. Its IP65 degree of protection ensures resilience in harsh industrial environments, while the 19×40 mm shaft with feather key enhances mechanical reliability. With an absolute single-turn 22-bit encoder (AS22DQC), OCC interface, and rotatable M17 plug, this motor ensures seamless integration into advanced automation systems.
The high power density and overload capacity make this servo motor ideal for applications requiring precision and stability, such as robotics, packaging machinery, conveyor systems, and machine tools. Its modular structure and compact size allow easy installation and integration with the SINAMICS S210 drive system, enabling optimized motion control with minimal complexity.
Overview
The SIMOTICS S-1FK2 series is designed to address the demanding challenges of servo drive technology. These motors provide high performance with simplified selection and configuration, making them a reliable choice for a wide range of automation requirements. Their high dynamic response, achieved through low inertia, allows for exceptional performance in fast-moving, low-mass applications. For tasks requiring stable and precise control with medium inertia, the Compact variants of the SIMOTICS S-1FK2 deliver optimal results.
The broader portfolio, including the SIMOTICS 1FT2 family, extends the available options with more detailed speed gradations and torque levels, ensuring that even the most demanding environments can be handled effectively.
Product Code: 1FK2104-5AK01-1SA0
More Siemens products at Turll.com
| Weight | 2.85 kg |
|---|---|
| Dimensions | 452 × 250 × 267 mm |
