1FK2104-6AF01-1MA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

1FK2104-6AF01-1MA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

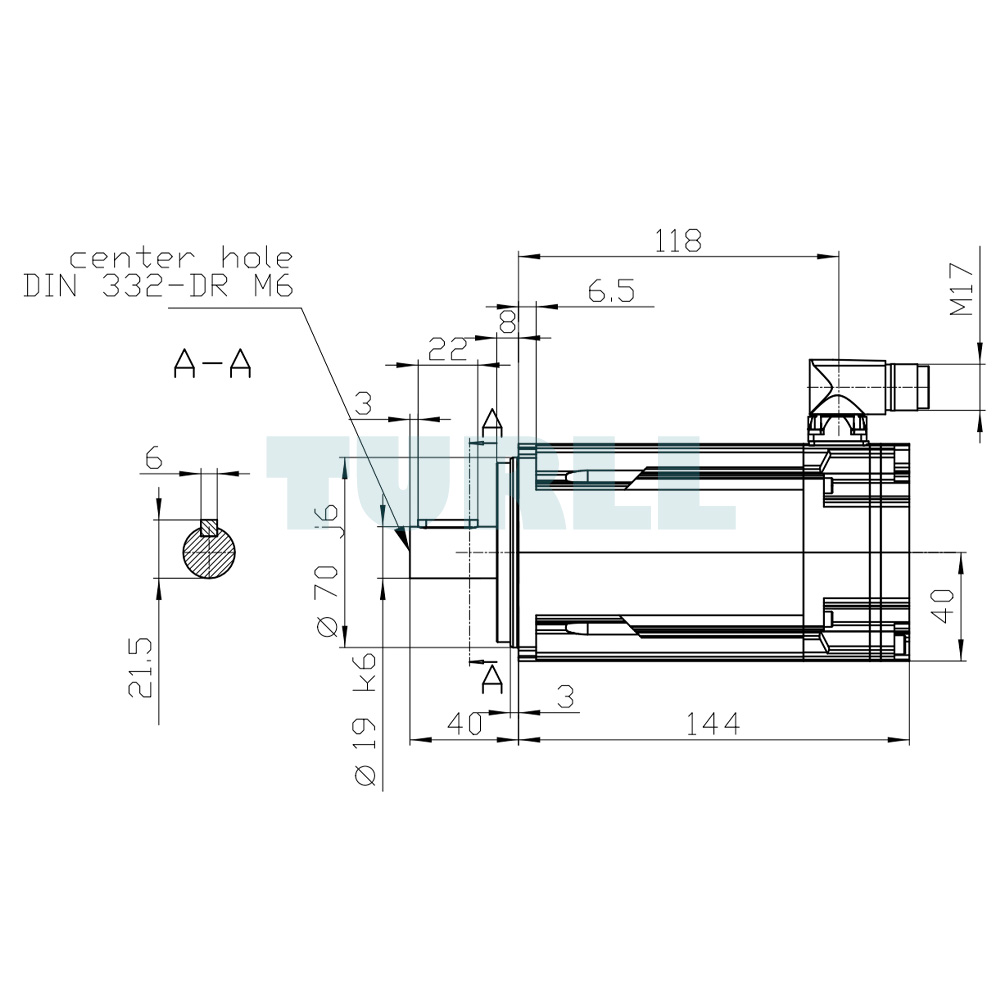

The SIEMENS 1FK2104-6AF01-1MA0 SIMOTICS S-1FK2 High Dynamic servo motor is a compact, efficient, and reliable solution designed to meet the demanding requirements of modern automation systems. Delivering a rated torque of 3.2 Nm with a power output of 1 kW at 3000 rpm (380–480 V) and 0.5 kW at 1500 rpm (200–240 V), this synchronous motor ensures stable operation across diverse applications. With an IP65 protection rating and a robust 19x40 mm shaft equipped with a feather key, the motor is built for durability in industrial environments that require both performance and resilience.

Equipped with a high-resolution absolute encoder (AM22DQC, 22-bit + 12-bit multiturn) and a flexible OCC interface, the motor enables precise positioning and smooth integration with SINAMICS drive systems. Its rotatable M17 plug connection enhances installation flexibility, making it well-suited for space-constrained systems. The strong balance of power density, overload capability, and mechanical stability ensures consistent reliability in continuous operation.

Overview

The SIMOTICS S-1FK2 series is engineered for a wide range of industrial environments where compact design, dynamic motion control, and efficient operation are essential. These motors form the core of the SINAMICS S210 servo drive system and are tailored for applications demanding high precision and repeatability. With the extension of the 1FT2 motor portfolio, additional options such as refined speed ranges and torque levels allow even more flexibility for challenging automation tasks. Whether in robotics, packaging, or precision machinery, the 1FK2 and 1FT2 families provide scalable solutions for modern drive technology.

Download

Data Sheet (PDF)

Product Code: 1FK2104-6AF01-1MA0
