1FK2104-6AF01-1SA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

1FK2104-6AF01-1SA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

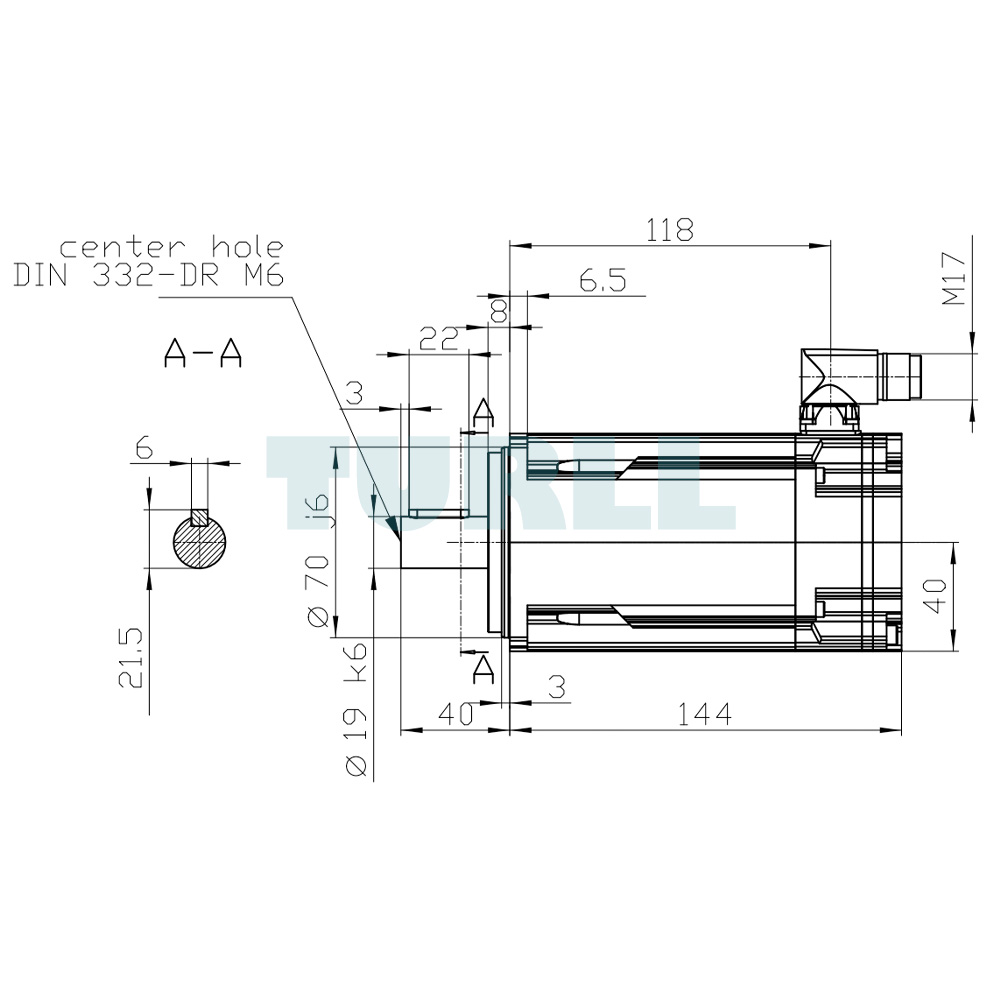

The SIEMENS 1FK2104-6AF01-1SA0 SIMOTICS S-1FK2 High Dynamic servo motor is a powerful and compact synchronous motor engineered for precision, durability, and performance. Delivering a torque of 3.2 Nm, this model provides 1 kW at 3000 rpm (380–480 V) and 0.5 kW at 1500 rpm (200–240 V), making it versatile for a broad range of industrial automation applications. With IP65 protection, a D19x40 mm shaft with feather key, and a rotatable M17 plug, it is built to withstand challenging environments while maintaining ease of installation and reliable operation.

The integrated single-turn 22-bit absolute encoder (AS22DQC) with OCC interface ensures high-resolution feedback, enabling seamless integration into SINAMICS drive systems. This makes the 1FK2 servo motors a dependable choice for robotics, machine tools, packaging systems, and automation processes where accuracy and repeatability are critical.

Overview

The SIMOTICS S-1FK2 portfolio combines compact construction, dynamic response, and overload capability, making it the backbone of servo drive technology within the SINAMICS S210 system. With a streamlined range of options, users benefit from simplified selection while ensuring reliable performance across diverse tasks.

The 1FT2 series expands this portfolio by offering finer gradations of rated speeds, additional torque variations, and more configuration options. This makes it possible to meet even the most demanding challenges in complex industrial environments with precision and efficiency.

Whether configured for highly dynamic applications requiring low inertia or for systems with medium inertial loads demanding stable control, SIMOTICS S-1FK2 motors provide proven reliability and consistent results.

Download

Data Sheet (PDF)

Product Code: 1FK2104-6AF01-1SA0
