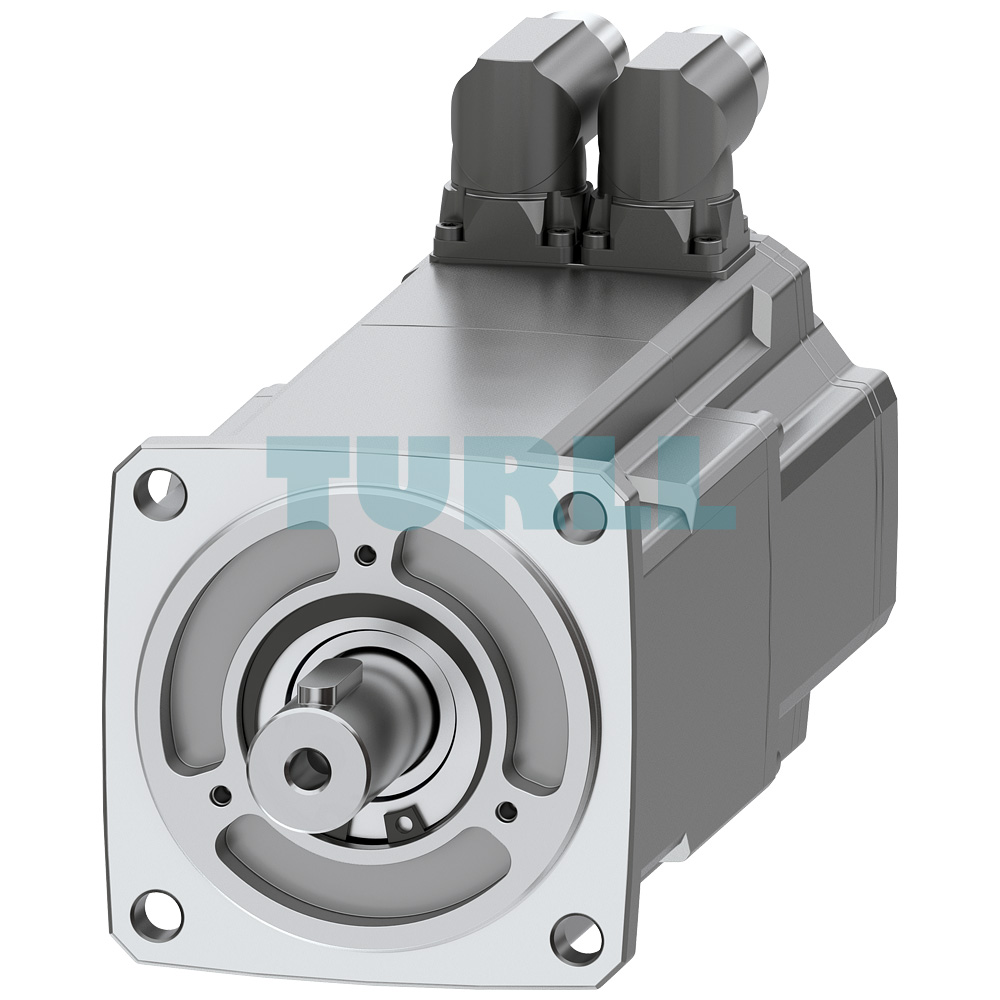

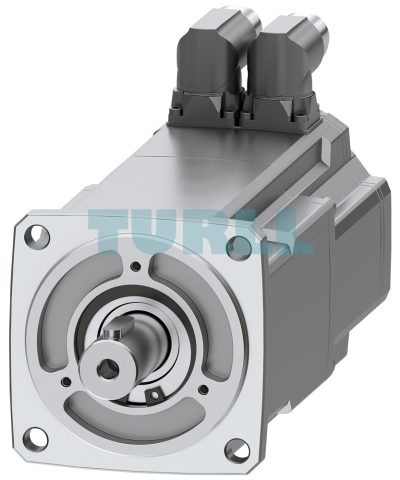

1FK2104-6AF01-1SB0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

1FK2104-6AF01-1SB0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

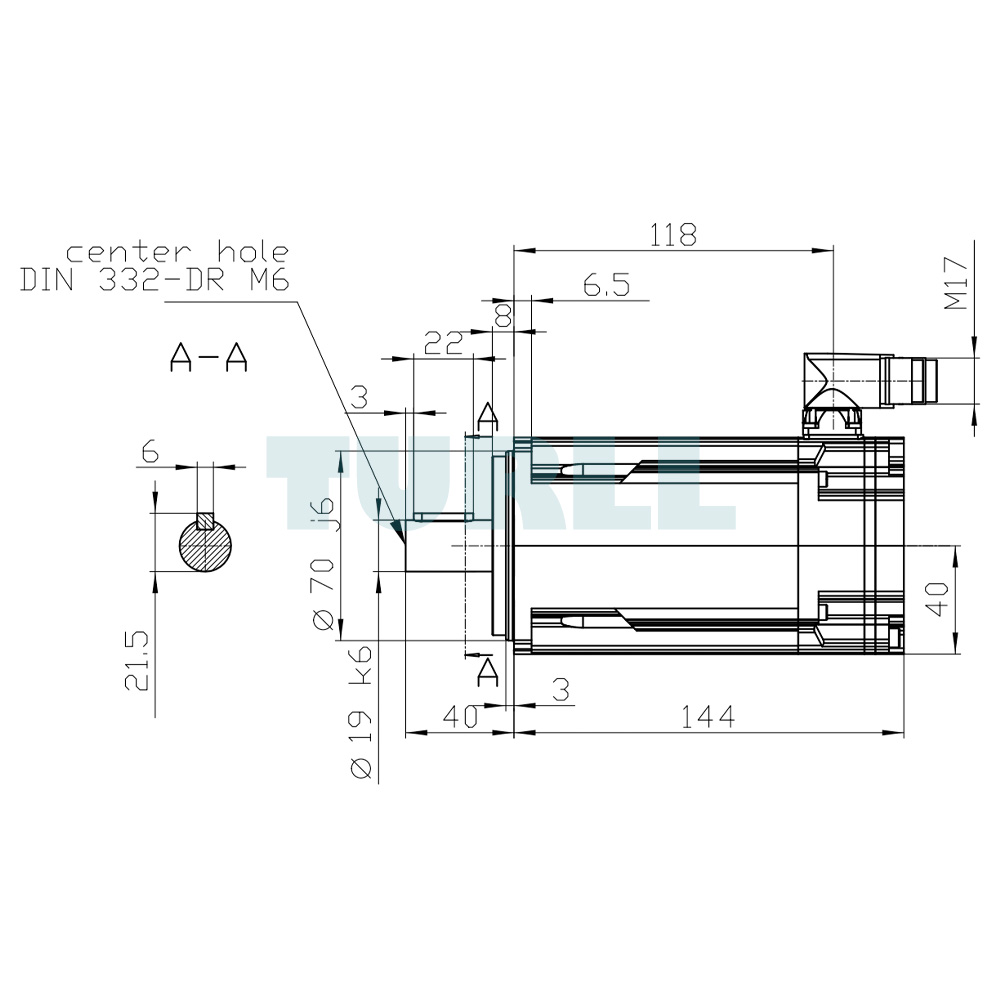

The SIEMENS 1FK2104-6AF01-1SB0 SIMOTICS S-1FK2 High Dynamic servo motor is designed for industrial automation environments where precision, reliability, and performance are essential. Delivering a rated torque of 3.2 Nm with a nominal power of 1 kW at 3000 rpm (380–480 V) or 0.5 kW at 1500 rpm (200–240 V), this motor provides a versatile solution for a wide range of machine tasks. With protection class IP65, a robust 19x40 mm shaft with feather key, and an integrated 22-bit single-turn absolute encoder (AS22DQC), the motor ensures durability and accuracy even in demanding conditions.

Thanks to the DRIVE-CLiQ M17 interface and matching power connector, the motor integrates seamlessly with SINAMICS servo drive systems. Its compact design and high power density make it particularly effective for robotics, machine tools, packaging machinery, and other applications where responsive motion and stable control are required. By combining high performance with reliable overload capability, this unit represents a balanced choice between precision and strength.

Overview

The SIMOTICS S-1FK2 family combines compact design with high dynamic performance, ensuring optimized operation across various industrial sectors. Featuring simplified configuration with fewer variants and options, the 1FK2 portfolio makes motor selection efficient and straightforward. These motors form the foundation of the SINAMICS S210 servo drive system, tailored to provide flexibility for both small and large automation projects.

For extended requirements, the 1FT2 portfolio expands the motor range with finer speed gradations, additional torque levels, and a greater selection of variations. This allows users to tackle demanding applications, including those in challenging operating environments, with confidence and precision.

Download

Data Sheet (PDF)

Product Code: 1FK2104-6AF01-1SB0
