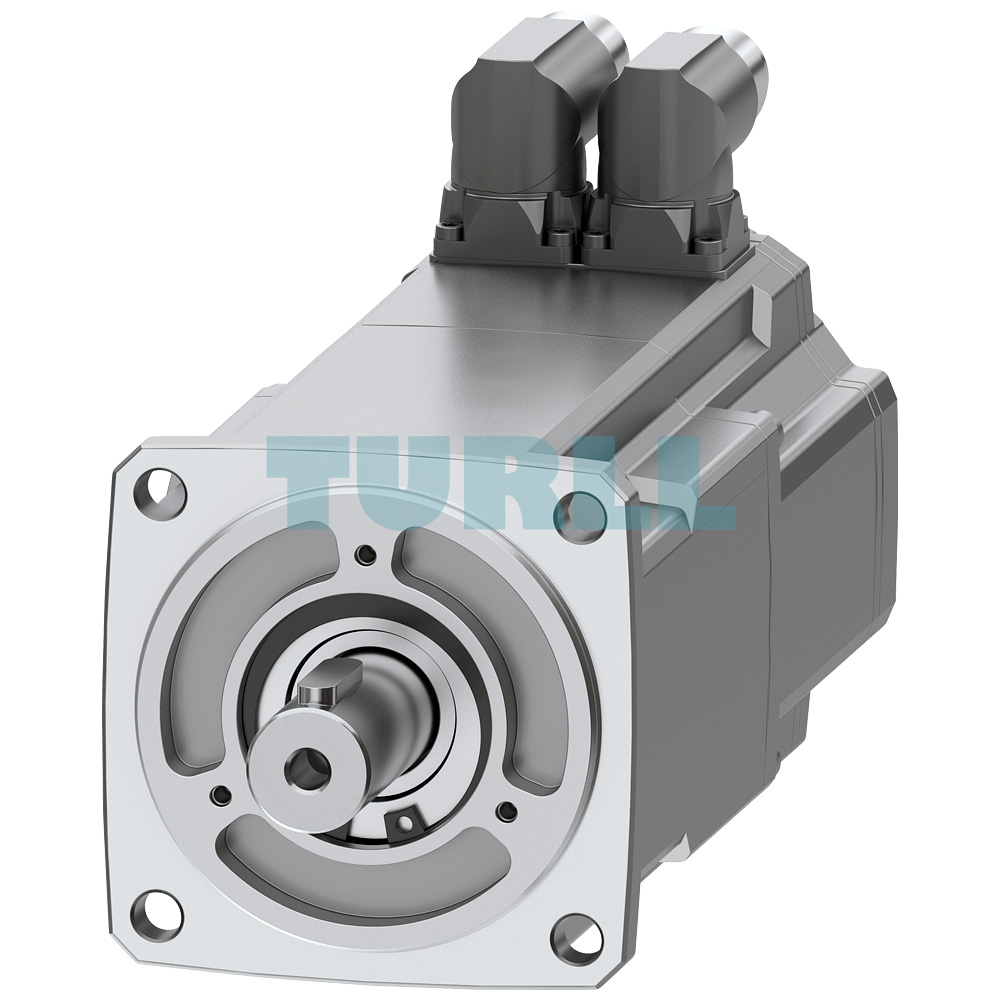

1FK2104-6AF10-1SB0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

1FK2104-6AF10-1SB0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

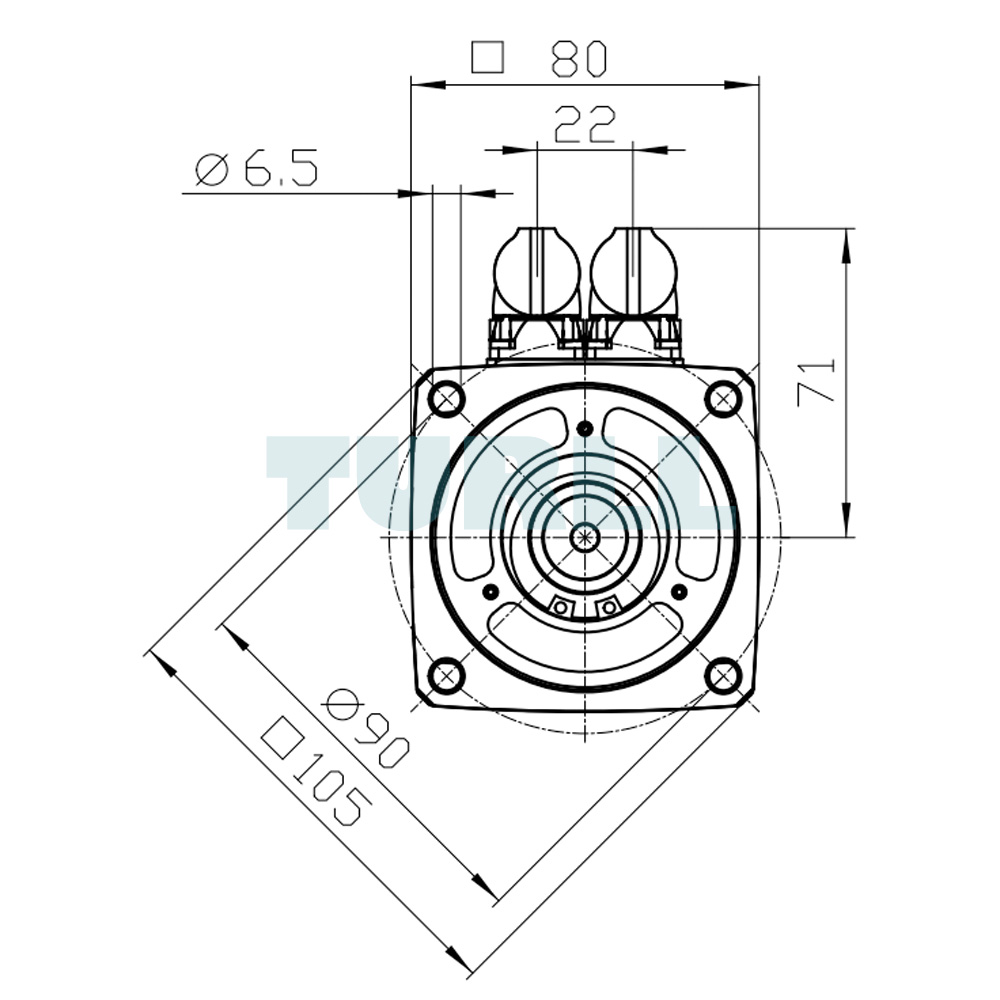

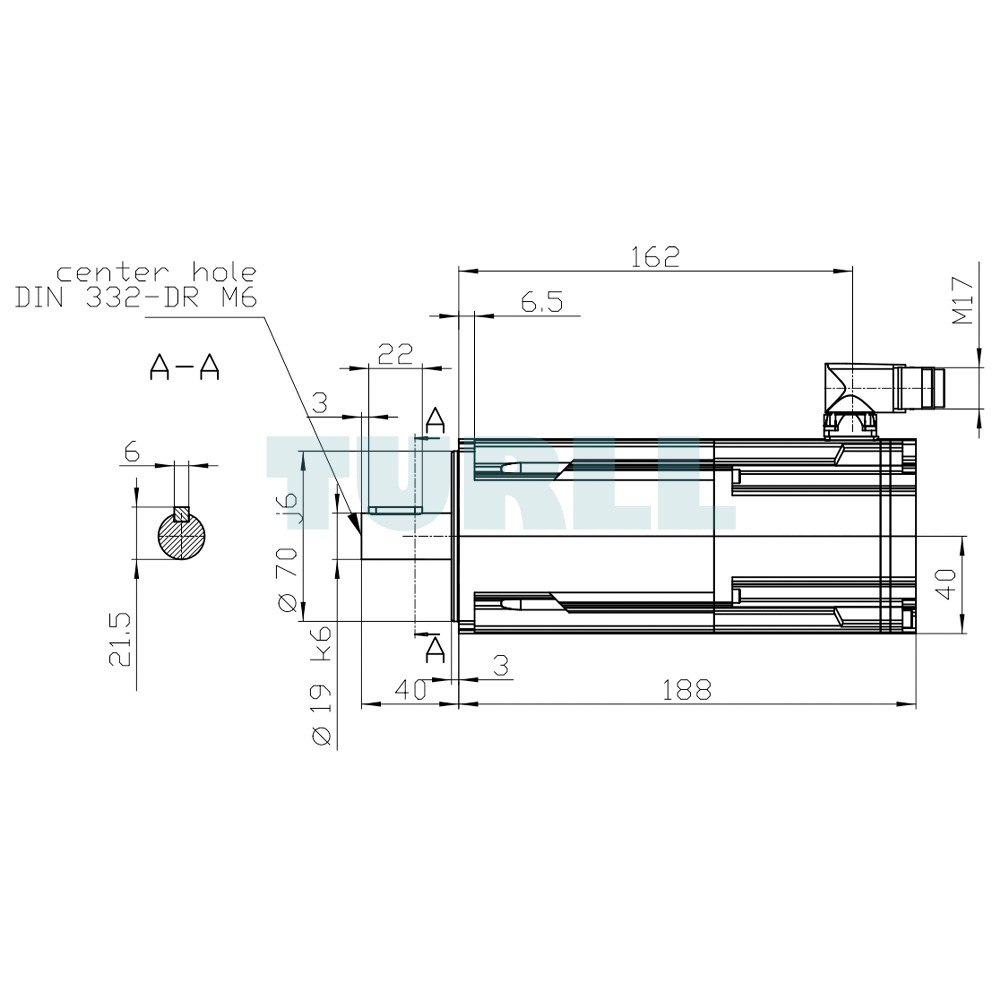

The SIEMENS 1FK2104-6AF10-1SB0 SIMOTICS S-1FK2 High Dynamic servo motor is a high-performance synchronous motor built to meet the most demanding requirements in industrial automation. With a rated torque of 3.2 Nm, this motor delivers 1 kW power output at 3000 rpm (380–480 V) and 0.5 kW at 1500 rpm (200–240 V). Designed with an integrated holding brake, IP64 degree of protection, and a shaft dimension of 19x40 mm with a feather key, it combines strength, reliability, and long-term durability. The built-in absolute encoder (AS22DQC, single-turn 22-bit) provides precise feedback and seamless integration into advanced drive systems, while the DRIVE-CLiQ M17 interface ensures efficient communication.

The compact size and optimized power density of this servo motor make it suitable for machine tools, packaging machinery, robotics, and motion control applications where speed, precision, and stability are critical. Its rugged construction allows operation in challenging industrial environments without compromising efficiency or accuracy.

Overview

The SIMOTICS S-1FK2 series has been developed to provide dynamic performance and a straightforward selection process for diverse applications. This motor family represents the core of the SINAMICS S210 servo drive system, offering reliable operation with high overload capacity and energy efficiency. For extended requirements, the 1FT2 series complements the portfolio with additional torque levels, finer speed gradations, and broader configuration options, ensuring flexibility for advanced automation solutions.

With variants optimized for both high-dynamic and compact performance, the SIMOTICS S-1FK2 motors allow users to achieve precise and stable motion control across a wide range of industrial systems. Whether for lightweight dynamic applications or medium inertia operations, the 1FK2104-6AF10-1SB0 provides a future-proof solution for modern drive technology.

Download

Data Sheet (PDF)

Product Code: 1FK2104-6AF10-1SB0
