SIEMENS SIMOTICS S-1FK2 High Dynamic servo motor with 3.2 Nm torque, 1 kW power, IP65 protection, AS22DQC encoder, OCC interface, and cylindrical shaft.

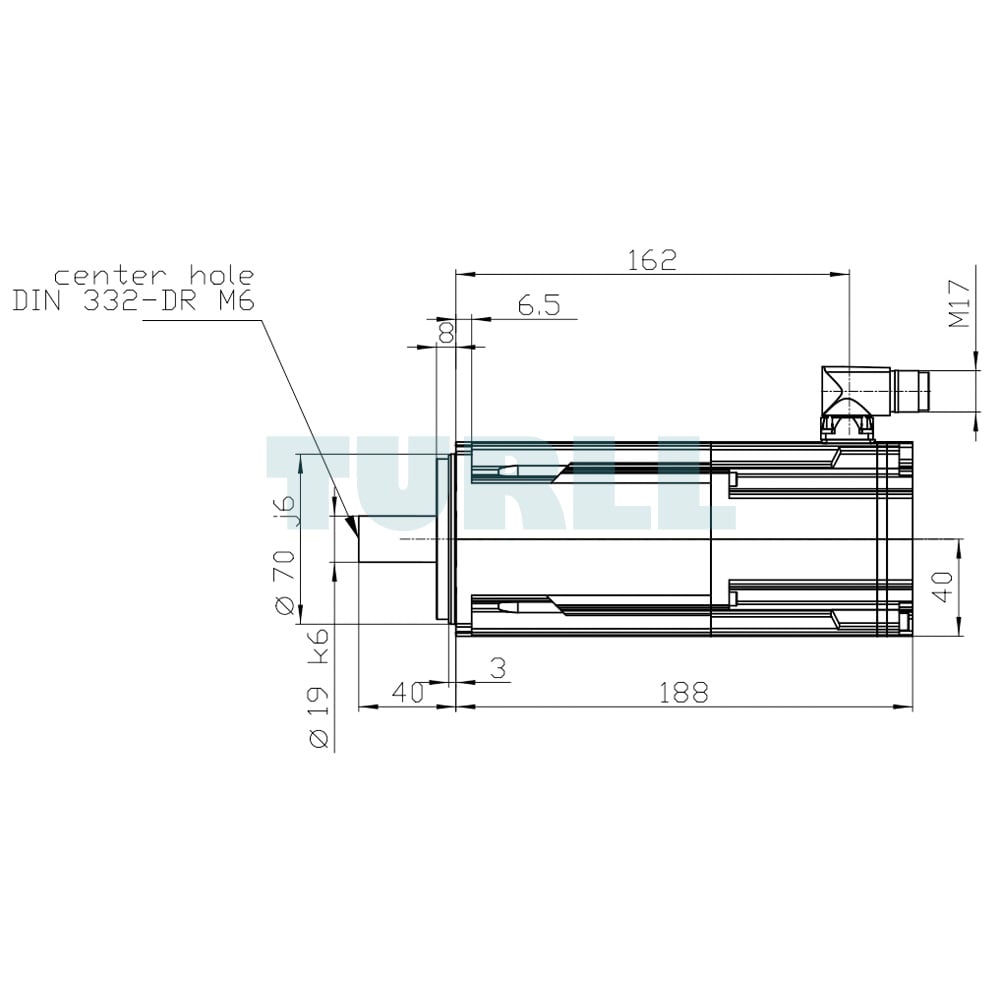

The SIEMENS 1FK2104-6AF11-0SA0 SIMOTICS S-1FK2 High Dynamic servo motor is an advanced synchronous motor designed to deliver excellent performance, compact dimensions, and superior reliability in industrial environments. With a rated torque of 3.2 Nm and nominal power of 1 kW at 3000 rpm (380–480 V) or 0.5 kW at 1500 rpm (200–240 V), it offers versatile power options for various motion control requirements. Featuring an integrated holding brake, IP65 degree of protection, and a robust cylindrical shaft (19x40 mm), this motor ensures consistent operation even under demanding conditions.
Engineered with a single-turn 22-bit absolute encoder (AS22DQC) and equipped with an OCC interface, the motor guarantees high-resolution feedback and precise synchronization with automation systems. Its M17 rotatable connector design makes installation and maintenance straightforward, while maintaining flexibility for different configurations. This combination of performance, compact size, and durability makes it a preferred solution for machine tools, packaging systems, robotics, and other industrial applications requiring fast and reliable servo performance.
The SIMOTICS S-1FK2 series represents a highly dynamic generation of synchronous motors characterized by their high power density, overload capacity, and robust construction. Designed as the core range for SINAMICS S210 servo drive systems, these motors simplify the selection process while delivering reliable and efficient performance across a wide range of applications.
The extended SIMOTICS S-1FT2 portfolio further enhances the flexibility of the range by providing additional torque levels, finely graded speed options, and expanded configurations. This allows users to address complex motion control challenges with precision, even in environments where higher demands are placed on drive technology. Whether for high-dynamic tasks with low inertia or stable control with heavier moving masses, the 1FK2 family ensures reliable results with advanced motion capabilities.
Product Code: 1FK2104-6AF11-0SA0
More Siemens products at Turll.com
| SKU / Model | 1FK2104-6AF11-0SA0 |
|---|---|
| Weight | 4.25 kg |
| Dimensions | 452 × 250 × 267 mm |
