1FK2105-4AF01-1MA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

1FK2105-4AF01-1MA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

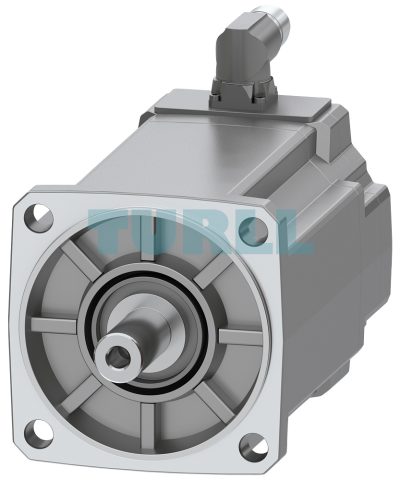

The SIEMENS 1FK2105-4AF01-1MA0 SIMOTICS S-1FK2 High Dynamic servo motor is designed to provide reliable performance and flexibility for a wide variety of industrial applications. With a rated torque of 5 Nm and a nominal power output of 1.45 kW at 3000 rpm (380–480 V), or 0.79 kW at 1500 rpm (200–240 V), this motor offers an excellent balance between dynamic response and operational efficiency. Featuring IP65 protection, a 19x40 mm shaft with feather key, and an integrated encoder system, it ensures long-term durability under demanding conditions.

The built-in absolute multiturn encoder (22-bit + 12-bit AM22DQC) provides precise position detection and advanced feedback capabilities, making it well-suited for high-accuracy motion control tasks. The OCC interface, combined with a rotatable M17 connector system, allows easy installation and seamless integration into SINAMICS drive solutions. This combination of precision, resilience, and adaptability makes the motor an excellent choice for machine tools, packaging equipment, material handling, and robotics.

Overview

The SIMOTICS S-1FK2 series is engineered to deliver compact design, high dynamic response, and overload capacity, making it a cornerstone of the SINAMICS S210 servo drive system. With limited but optimized options, the product line simplifies selection while ensuring consistent quality and performance across different use cases.

For applications requiring extended capabilities, the 1FT2 motor family builds on the 1FK2 platform, offering more finely graded speeds, additional torque classes, and expanded configuration options. This scalability provides users with the ability to address both straightforward and highly demanding automation challenges with confidence.

Product Code: 1FK2105-4AF01-1MA0
