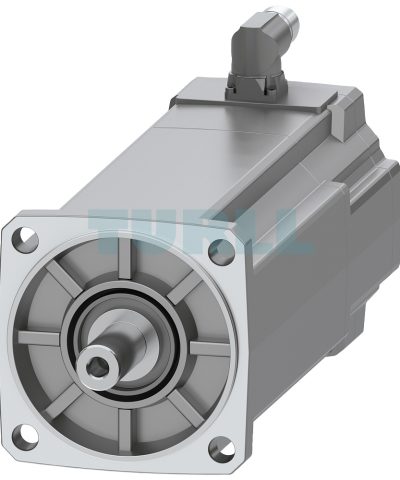

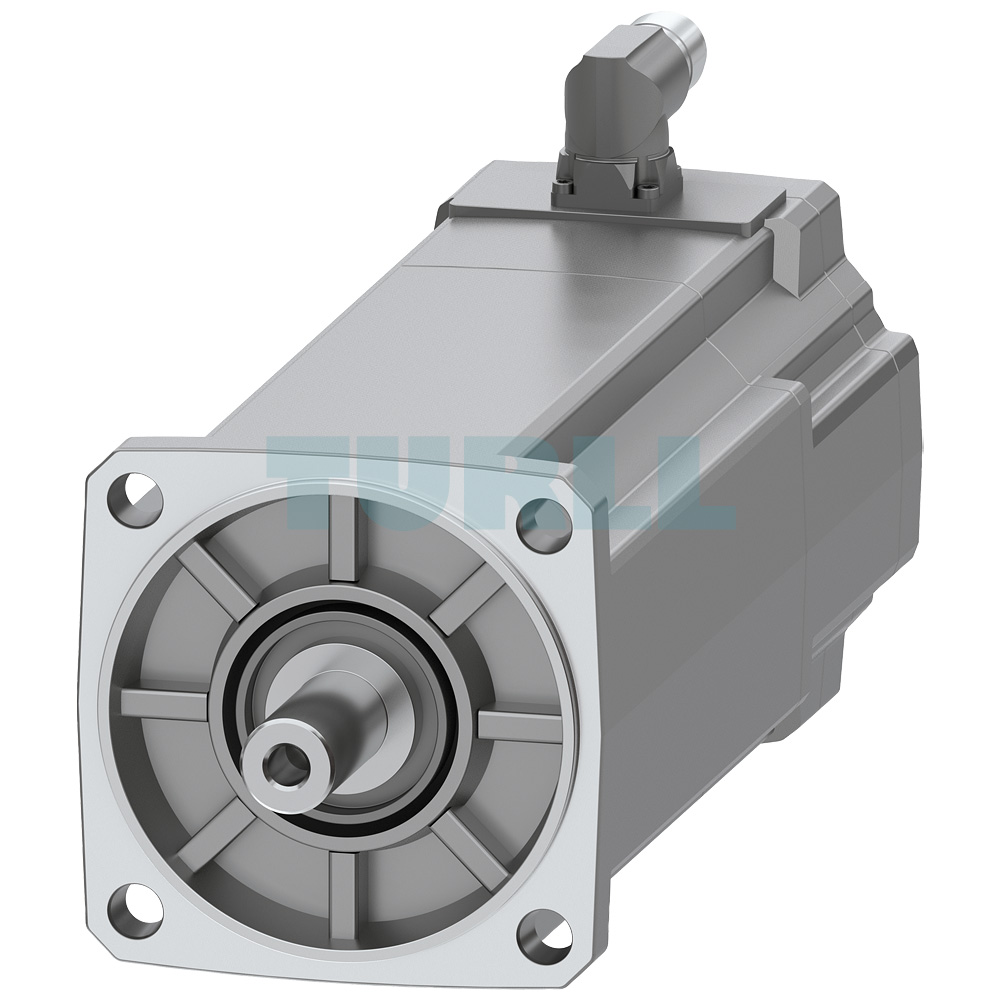

1FK2105-6AF11-1SA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

1FK2105-6AF11-1SA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

The SIEMENS 1FK2105-6AF11-1SA0 SIMOTICS S-1FK2 High Dynamic servo motor is a powerful and reliable solution for modern automation requirements. With a rated torque of 8 Nm, it provides consistent performance across various operating ranges. The motor delivers 2.1 kW at 3000 rpm when supplied with 380–480 V and 1.26 kW at 1500 rpm with a 200–240 V supply, making it adaptable to diverse voltage environments. This synchronous motor is engineered with an integrated holding brake and a robust IP65 protection rating, ensuring dependable operation even in demanding industrial conditions.

The motor features a precision shaft with dimensions of 19x40 mm and a feather key, along with a high-resolution 22-bit absolute encoder (AS22DQC). Equipped with an OCC interface and rotatable M17 plug connector, the design provides flexibility in installation and integration. These attributes make the unit well suited for applications in robotics, packaging systems, handling technology, and other high-precision machinery where dynamic control and stable performance are critical.

Overview

The SIMOTICS S-1FK2 motor family is recognized for its compact design, high power density, and overload capability. This series simplifies motor selection by offering a limited yet versatile range of variants tailored for the SINAMICS S210 servo drive system. The result is reduced complexity in choosing the right drive components while ensuring performance reliability.

For extended requirements, the complementary 1FT2 series expands on the S-1FK2 range with additional torque levels, finely graded speed options, and broader application coverage. Together, these product families enable precise and efficient solutions for both straightforward and highly demanding motion control tasks.

Product Code: 1FK2105-6AF11-1SA0
