1FK2106-3AF11-1MA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New
$1,270.83
SIEMENS SIMOTICS S-1FK2 servo motor with 9 Nm torque, 2.3 kW power at 3000 rpm, IP65 protection, encoder AM22DQC, OCC interface, and rotatable M23 plug.
1FK2106-3AF11-1MA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

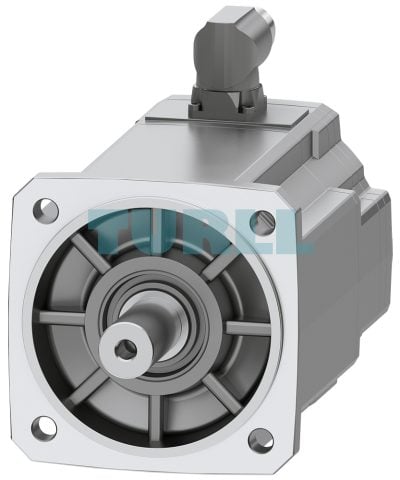

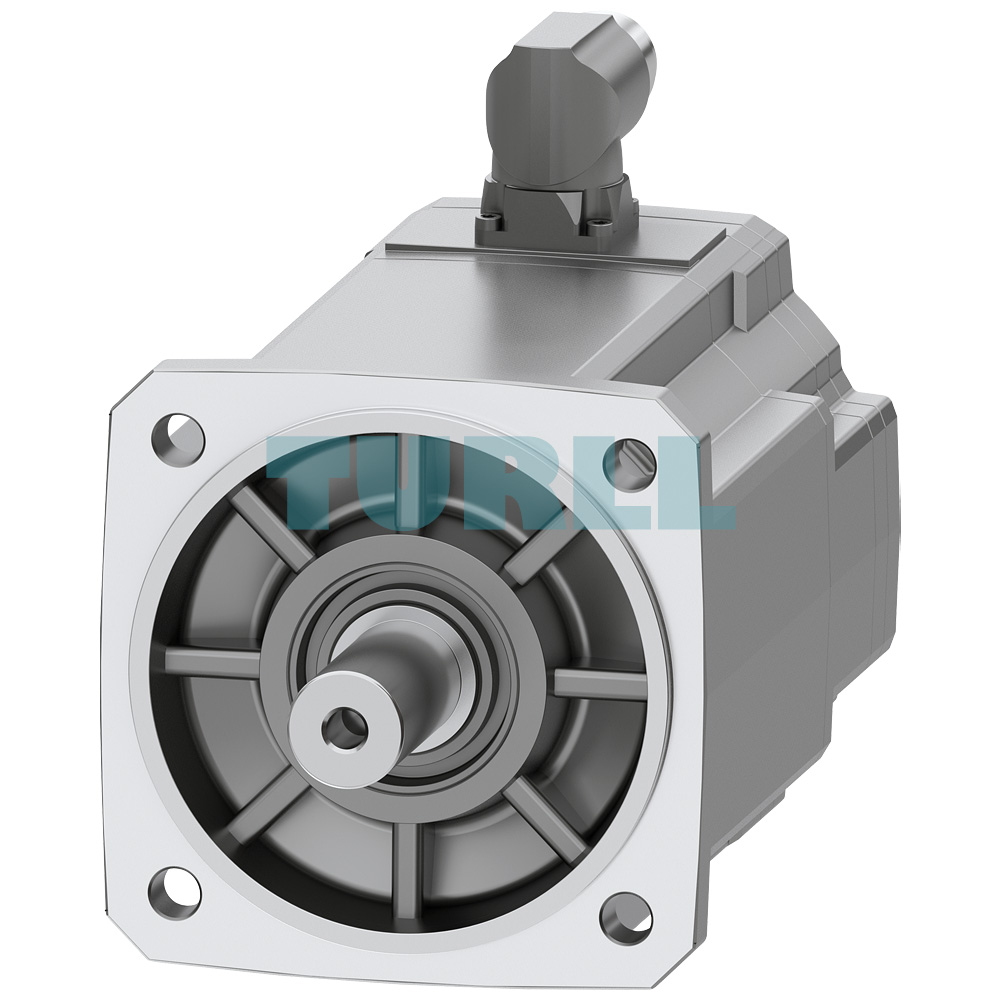

The SIEMENS 1FK2106-3AF11-1MA0 SIMOTICS S-1FK2 High Dynamic servo motor is a robust and versatile synchronous motor designed for precision, efficiency, and reliability in industrial automation. Delivering a rated torque of 9 Nm, the unit offers 2.3 kW output at 3000 rpm with a supply of 380–480 V, or 1.3 kW at 1500 rpm when operated on 200–240 V. Equipped with an integrated holding brake and a shaft dimension of 24×50 mm with a feather key, the motor ensures dependable operation across demanding environments. Its IP65 protection rating safeguards the system from dust and water ingress, enabling consistent performance in challenging industrial conditions.
The advanced absolute encoder (AM22DQC) provides 22-bit single-turn resolution and 12-bit multiturn capability, ensuring precise feedback for complex motion control tasks. With the OCC interface and a rotatable M23 plug connection, the unit combines flexibility with secure connectivity, making integration straightforward within SINAMICS servo drive systems. Applications range from robotics and packaging machinery to CNC machine tools and other equipment requiring highly dynamic and controlled movement.
Overview
The SIMOTICS S-1FK2 family represents compact and dynamic synchronous motors tailored to industrial requirements. Known for their high power density, excellent overload capability, and efficient performance, they are the foundation of the SINAMICS S210 drive ecosystem. With limited variants and simplified configuration, the product line supports quick selection and effective implementation.
For extended capabilities, the complementary 1FT2 range offers additional torque levels, refined speed gradations, and more customization, making it possible to address complex challenges in modern drive technology. Together, the 1FK2 and 1FT2 series provide scalable solutions for everything from high-speed positioning to stable load handling in diverse environments.
Product Code: 1FK2106-3AF11-1MA0
More Siemens products at Turll.com
| Weight | 9 kg |
|---|---|
| Dimensions | 460 × 265 × 285 mm |
