1FK2204-5AF01-0MA0 SIEMENS Exclusive SIMOTICS S-1FK2 CT Servo Motor Original Brand New

1FK2204-5AF01-0MA0 SIEMENS Exclusive SIMOTICS S-1FK2 CT Servo Motor Original Brand New

The SIEMENS SIMOTICS S-1FK2 CT servo motor with product code 1FK2204-5AF01-0MA0 is an advanced synchronous motor engineered to deliver precise, reliable, and efficient performance in modern automation systems. Designed for industrial environments, this compact motor combines high dynamic response with robust construction, offering outstanding operational stability even in demanding applications. With a rated torque of 2.4 Nm and a power rating of 0.75 kW at 3000 rpm (380–480 V), it provides an ideal balance of performance and efficiency for motion control tasks. At 1500 rpm under 200–240 V operation, it achieves 0.375 kW, making it suitable for a wide range of load conditions.

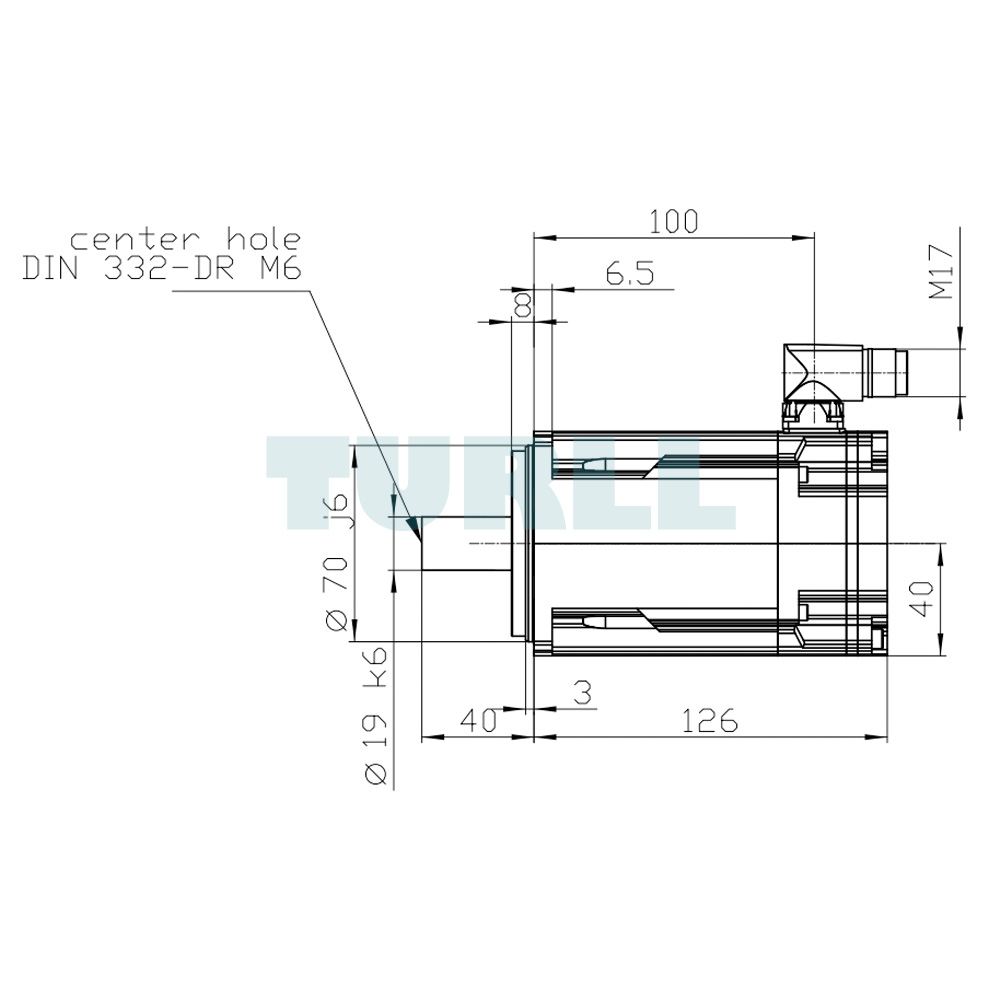

The motor features IP65 protection, ensuring resistance against dust and water, and is built with a durable cylindrical shaft measuring 19×40 mm. It incorporates an absolute encoder with 22-bit single-turn and 12-bit multi-turn resolution (AM22DQC), enabling precise position detection and smooth motion control. The OCC interface and rotatable M17 plug connector further simplify integration into existing systems, enhancing flexibility during installation and maintenance.

As part of the SIMOTICS S-1FK2 series, this motor is designed to meet the evolving needs of servo drive technology. It offers high power density, overload capability, and versatile adaptability, making it a cornerstone for the SINAMICS S210 servo drive system. For applications that demand fast acceleration, high precision, and consistent performance, this exclusive SIEMENS servo motor provides a dependable solution.

Overview

The SIMOTICS S-1FK2 series combines compact construction with high dynamic characteristics, allowing its use in diverse industrial applications. These motors are engineered to handle essential servo drive challenges while simplifying product selection through a streamlined range of variants. The related SIMOTICS S-1FT2 motors extend the portfolio by offering additional torque levels, wider rated speed options, and greater flexibility, allowing more precise adaptation to complex drive requirements.

SIMOTICS S-1FK2 High Dynamic Motors

With low inertia, these motors deliver exceptional acceleration, making them ideal for applications with small moving masses and demanding cycle times.

SIMOTICS S-1FK2 Compact Motors

These motors provide stable and precise control for medium to large load masses. With their optimized moment of inertia, they deliver smooth operation and accurate positioning in continuous industrial processes.

Download

Data Sheet (PDF)

Product Code: 1FK2204-5AF01-0MA0
