1FK2204-5AF01-0SA0 SIEMENS Exclusive SIMOTICS S-1FK2 CT Servo Motor Original Brand New

1FK2204-5AF01-0SA0 SIEMENS Exclusive SIMOTICS S-1FK2 CT Servo Motor Original Brand New

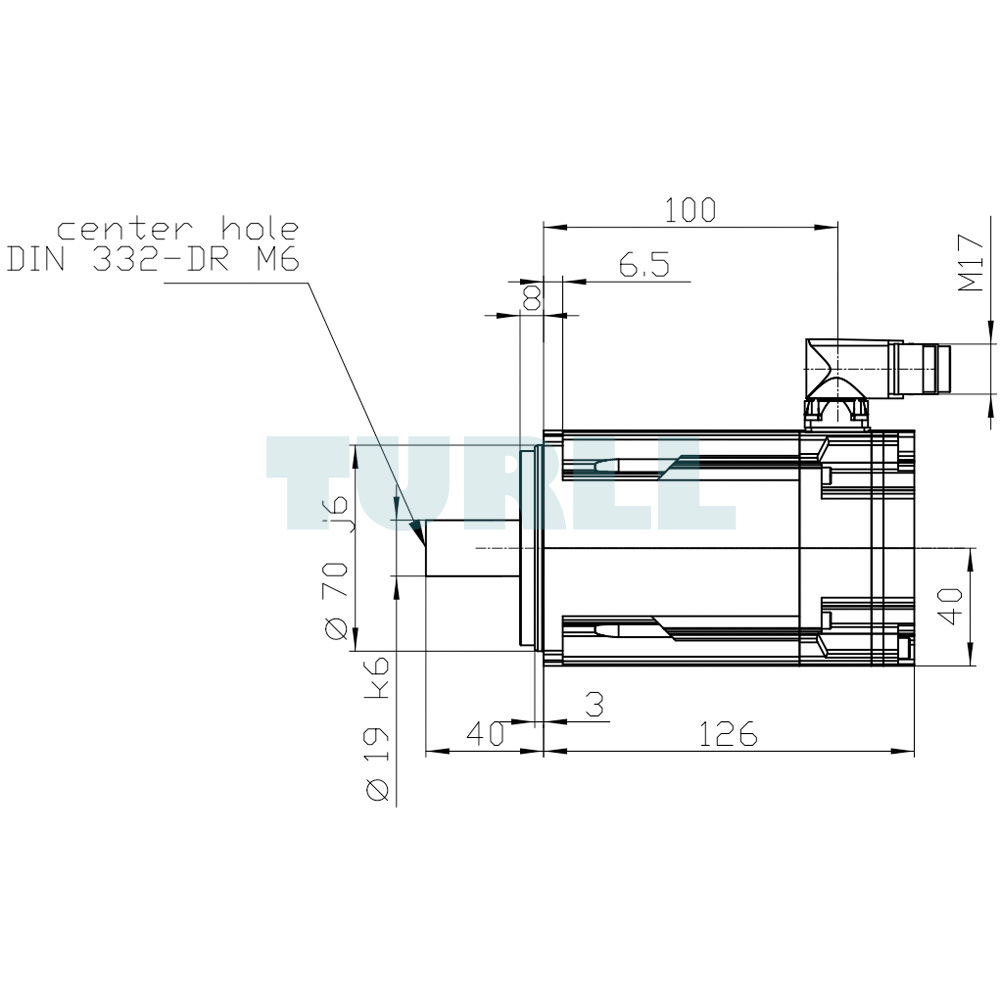

The SIEMENS SIMOTICS S-1FK2 CT servo motor with product code 1FK2204-5AF01-0SA0 is a powerful, compact, and highly reliable synchronous motor developed for industrial automation. Designed for maximum precision and flexibility, this motor provides a rated torque of 2.4 Nm with a rated power output of 0.75 kW at 3000 rpm under 380-480 V, and 0.375 kW at 1500 rpm under 200-240 V. It is built with an IP65 degree of protection, ensuring dependable operation even in harsh industrial conditions. Featuring a cylindrical shaft of 19×40 mm, an absolute single-turn 22-bit encoder (AS22DQC), and a rotatable OCC interface with M17 plug size, this model guarantees accurate feedback, adaptability, and long-term durability.

The SIMOTICS S-1FK2 series is recognized for its compact construction, high power density, and exceptional dynamic performance. Motors from this range are optimized for demanding servo drive applications, offering both overload capability and stable operation under diverse loads. With streamlined variants, the 1FK2 family allows simplified configuration, forming the core of the SINAMICS S210 servo drive system. This ensures seamless integration into existing automation infrastructures, reducing installation effort and enabling consistent results in motion control systems.

Beyond the standard 1FK2 range, SIEMENS also offers 1FT2 servomotors as an extended portfolio. These provide finely graded speed options, broader torque levels, and enhanced flexibility, enabling even more complex drive solutions. For highly dynamic tasks, the S-1FK2 High Dynamic motors offer rapid response with low inertia, while Compact motors in the series deliver precise control for applications involving medium to heavy moving masses. Together, these features make the 1FK2204-5AF01-0SA0 an outstanding choice for industries requiring efficiency, accuracy, and adaptability in motion control.

Overview

The SIMOTICS S-1FK2 motors are designed to address the essential challenges of servo drive technology. With superior reliability, high overload capacity, and robust protection, these motors are perfectly suited for automation environments. Their ability to combine precise motion control with compact design ensures long service life and minimal downtime.

Download

Data Sheet (PDF)

Product Code: 1FK2204-5AF01-0SA0
