1FK2204-5AK00-2MA0 SIEMENS Exclusive SIMOTICS S-1FK2 CT Servo Motor Original Brand New

1FK2204-5AK00-2MA0 SIEMENS Exclusive SIMOTICS S-1FK2 CT Servo Motor Original Brand New

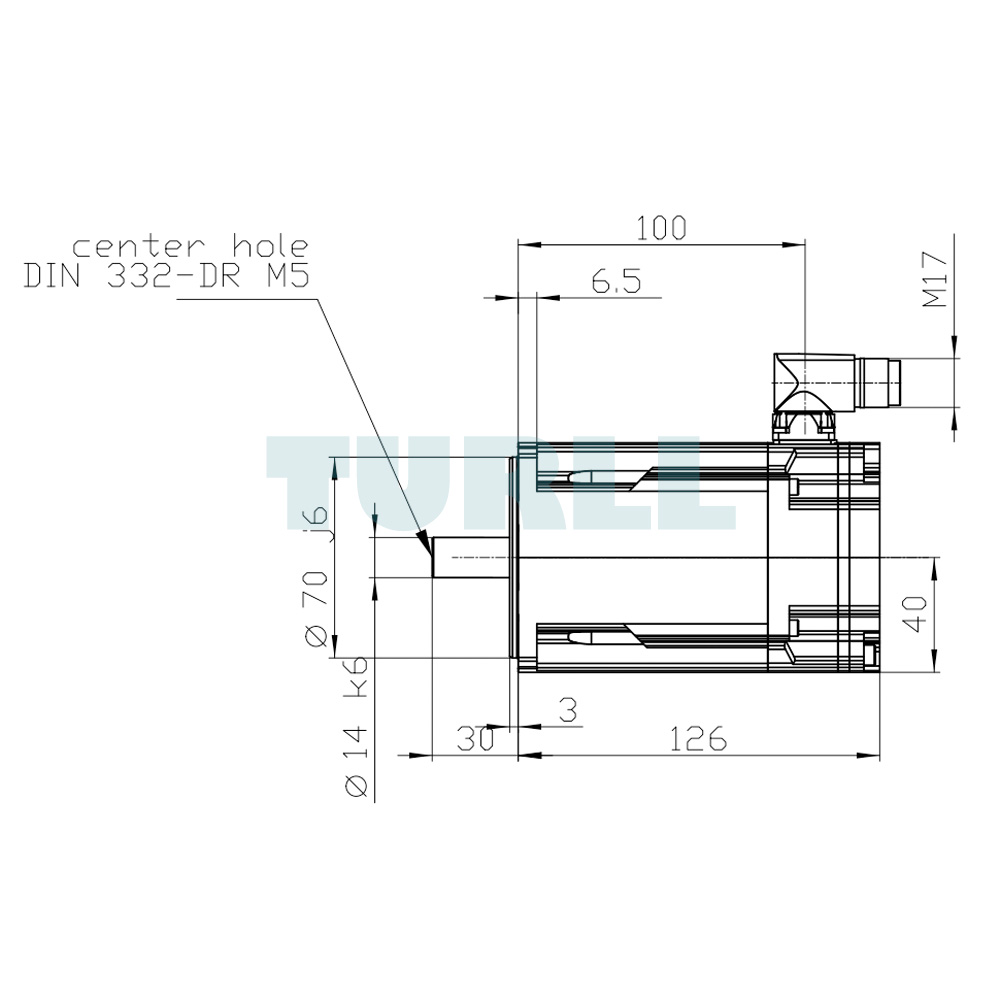

The SIEMENS SIMOTICS S-1FK2 CT servo motor, product code 1FK2204-5AK00-2MA0, is a high-performance synchronous motor engineered for precision, durability, and efficiency. With a torque rating of 2.4 Nm and rated power of 0.57 kW at 6000 rpm (380–480 V) or 0.75 kW at 3000 rpm (200–240 V), this motor offers outstanding flexibility in a compact form. The robust IP64 protection, cylindrical shaft (D14 x 30 mm), and integrated absolute encoder AM22DQC ensure accurate positioning and long-term reliability, even in demanding industrial environments.

Built for dynamic industrial applications, the motor features OCC interface connectivity, a rotatable M17 plug, and exceptional overload capability. Its compact size combined with high power density makes it an ideal choice for industries that require both speed and precision. Whether integrated into modern automation systems or paired with SINAMICS S210 drives, this motor guarantees smooth operation with precise control and long service life.

Overview

The SIMOTICS S-1FK2 family is renowned for combining compact construction with high dynamic response. Designed for servo drive technology, these motors are optimized for industrial applications where accuracy, responsiveness, and consistent performance are critical. The carefully selected range of variants simplifies configuration and allows easy adaptation to diverse requirements.

In addition to the core 1FK2 series, SIEMENS also offers the extended 1FT2 portfolio for more advanced applications, featuring additional torque classes, finely graded speeds, and enhanced environmental resilience. Together, these motor series provide comprehensive solutions for automation challenges across multiple sectors.

SIMOTICS S-1FK2 Motor Variants

• High Dynamic: Designed with low inertia for applications requiring maximum responsiveness and rapid acceleration of lighter load masses.
• Compact: Built for medium to high load masses with stable, precise control and a balanced inertia ratio.

Download

Data Sheet (PDF)

Product Code: 1FK2204-5AK00-2MA0
