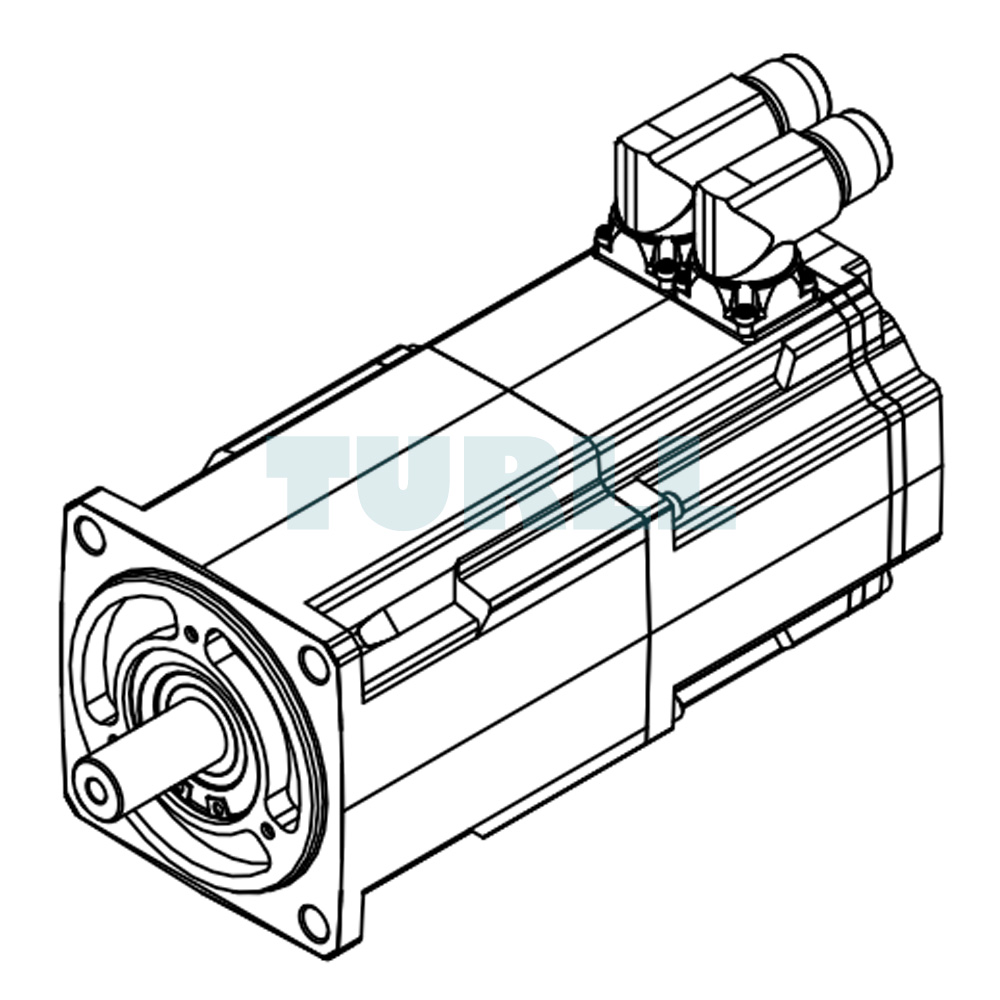

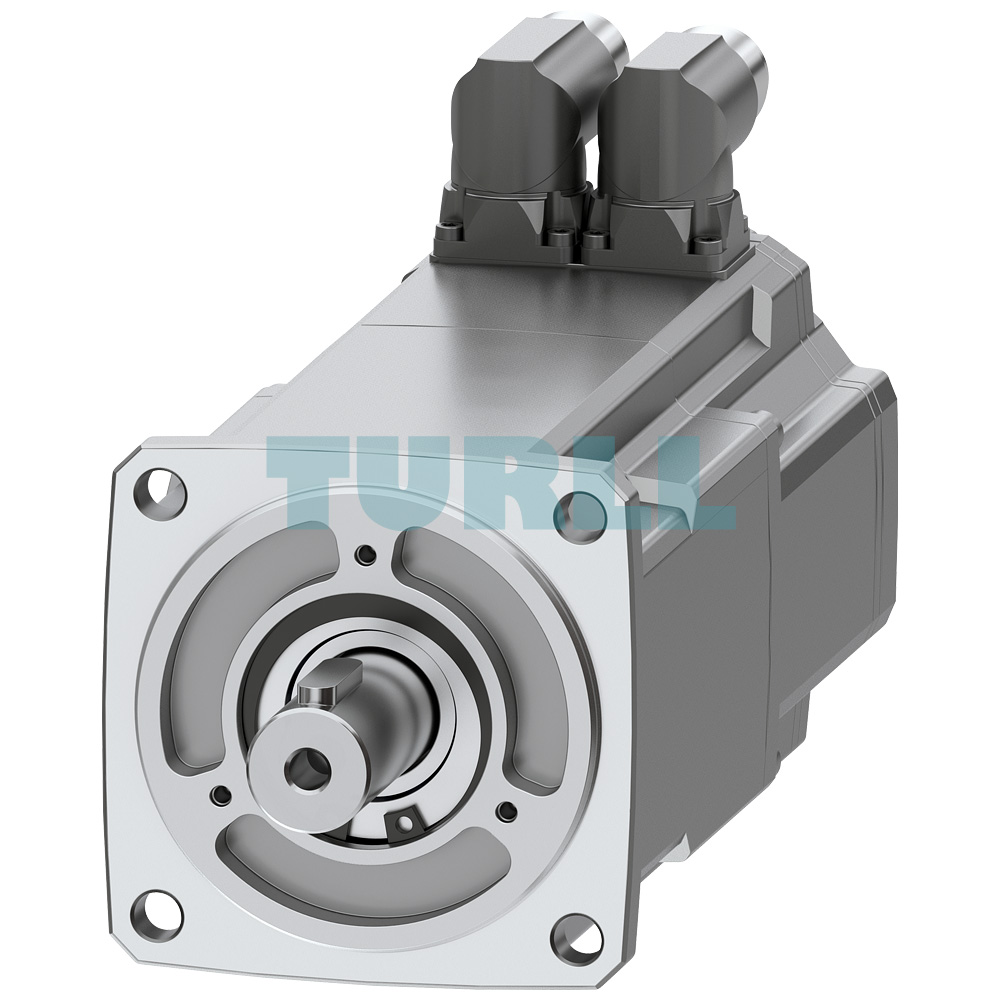

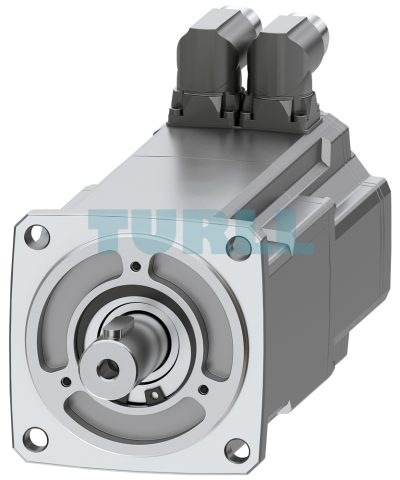

1FK2204-5AK10-2MB0 SIEMENS Exclusive SIMOTICS S-1FK2 CT Servo Motor Original Brand New

1FK2204-5AK10-2MB0 SIEMENS Exclusive SIMOTICS S-1FK2 CT Servo Motor Original Brand New

The SIEMENS SIMOTICS S-1FK2 CT servo motor with product code 1FK2204-5AK10-2MB0 is a compact, high-performance motor designed for demanding industrial applications. Featuring a rated torque of 2.4 Nm and a nominal power of 0.57 kW at 6000 rpm (380–480 V), this servo motor ensures precise and stable motion control. For lower speeds (200–240 V), it delivers 0.75 kW at 3000 rpm, providing versatility for a wide range of tasks. The motor includes a holding brake and is protected to IP64 standards, making it suitable for environments where dust and water resistance are essential.

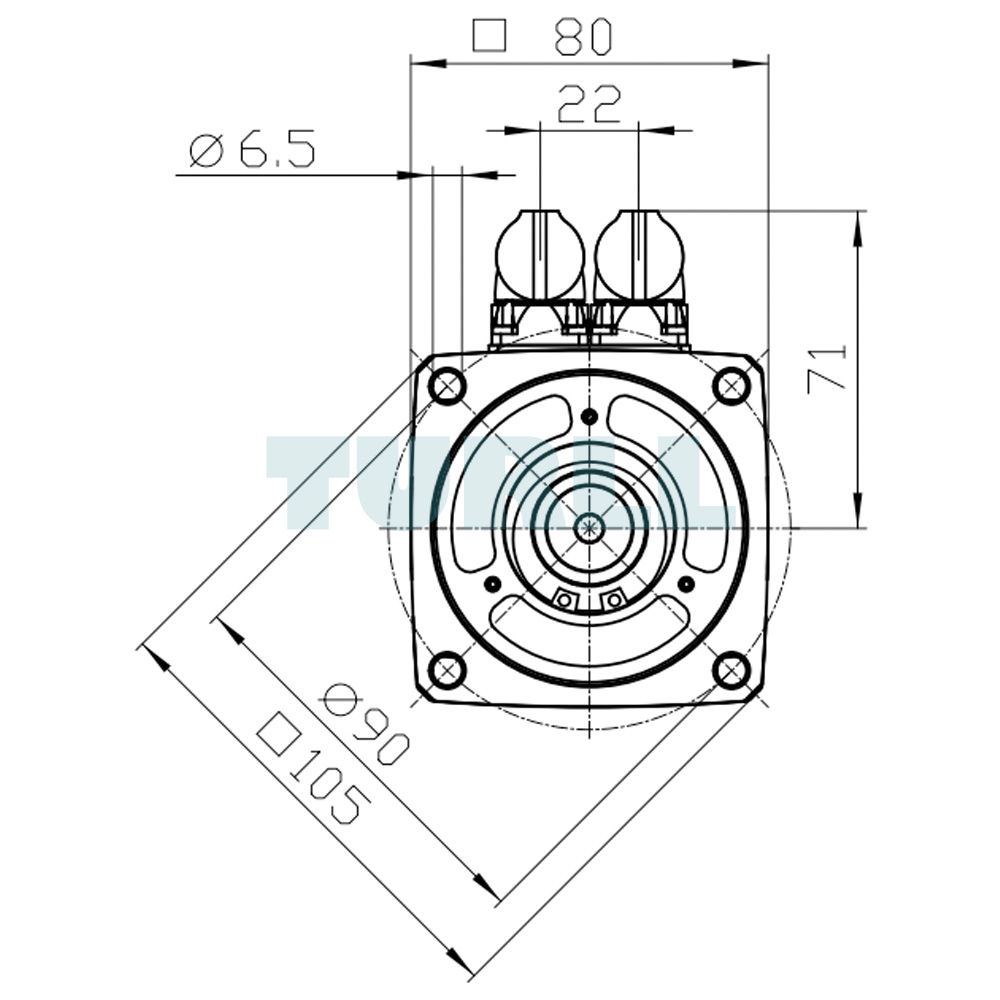

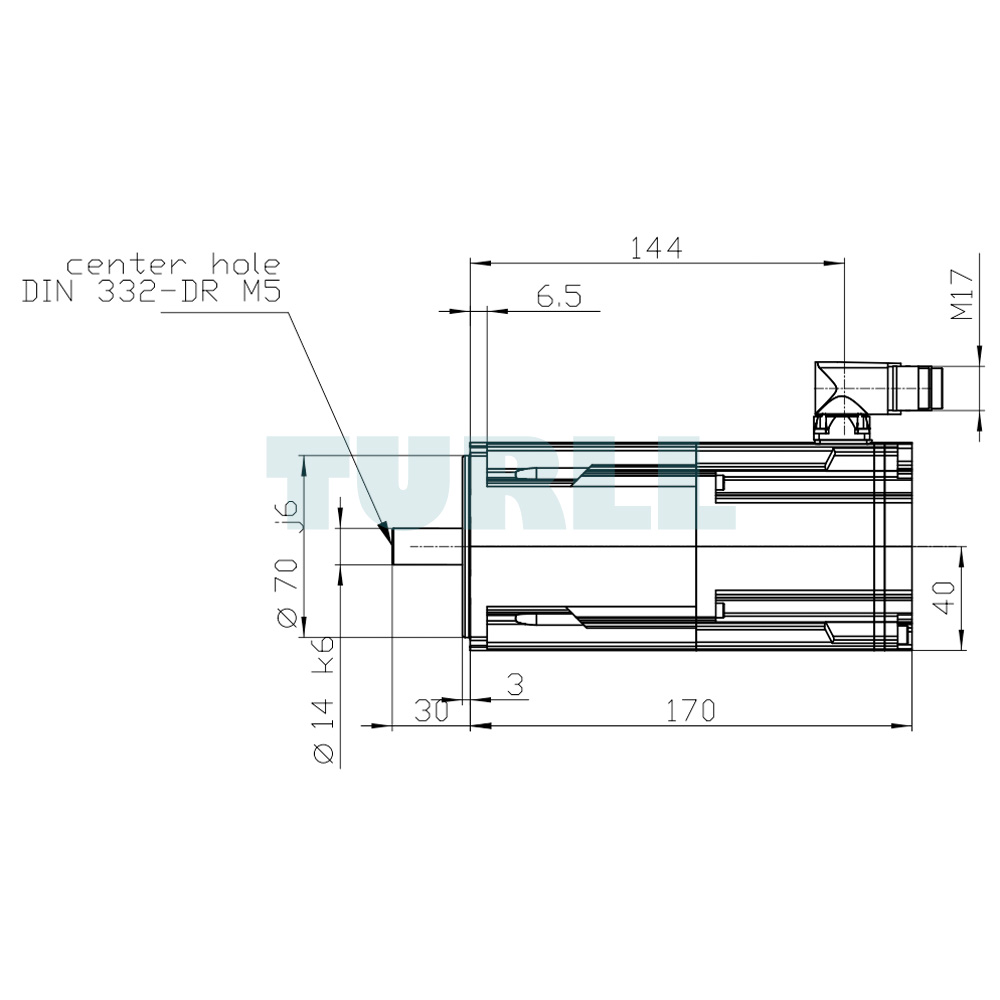

This motor comes with a cylindrical shaft (D14 x 30 mm), a high-resolution absolute encoder (22-bit + 12-bit multiturn AM22DQC), and a DRIVE-CLiQ plug M17 with power connector M17. It is optimized for operation at 8 kHz / 62.5 µs, ensuring fast, accurate, and repeatable positioning for automation and robotics systems. The S-1FK2 motor family is known for its excellent dynamic response, allowing precise handling of medium to high inertia loads with minimal delay, making it ideal for high-performance servo applications.

Overview

The SIMOTICS S-1FK2 series combines compact design and high dynamic performance, offering outstanding power density and overload capability. These motors are tailored to the SINAMICS S210 servo drive system, providing a streamlined selection process with a limited number of variants. The 1FK2 series is suitable for standard industrial challenges, while the extended 1FT2 series covers additional torque levels, finer speed gradations, and more options for complex applications.

SIMOTICS S-1FK2 high dynamic motors excel in applications requiring rapid acceleration and deceleration of low-mass loads. Meanwhile, the compact versions maintain precise, stable control for medium to high mass operations. These motors are engineered to provide reliable performance in demanding industrial environments, ensuring long-term efficiency, safety, and minimal maintenance. The combination of high-resolution feedback, robust protection, and flexible mounting options makes this motor a versatile solution for modern automation systems.

Download

Data Sheet (PDF)

Product Code: 1FK2204-5AK10-2MB0
