1FK2204-6AF00-0MB0 SIEMENS Exclusive SIMOTICS S-1FK2 CT Servo Motor Original Brand New

1FK2204-6AF00-0MB0 SIEMENS Exclusive SIMOTICS S-1FK2 CT Servo Motor Original Brand New

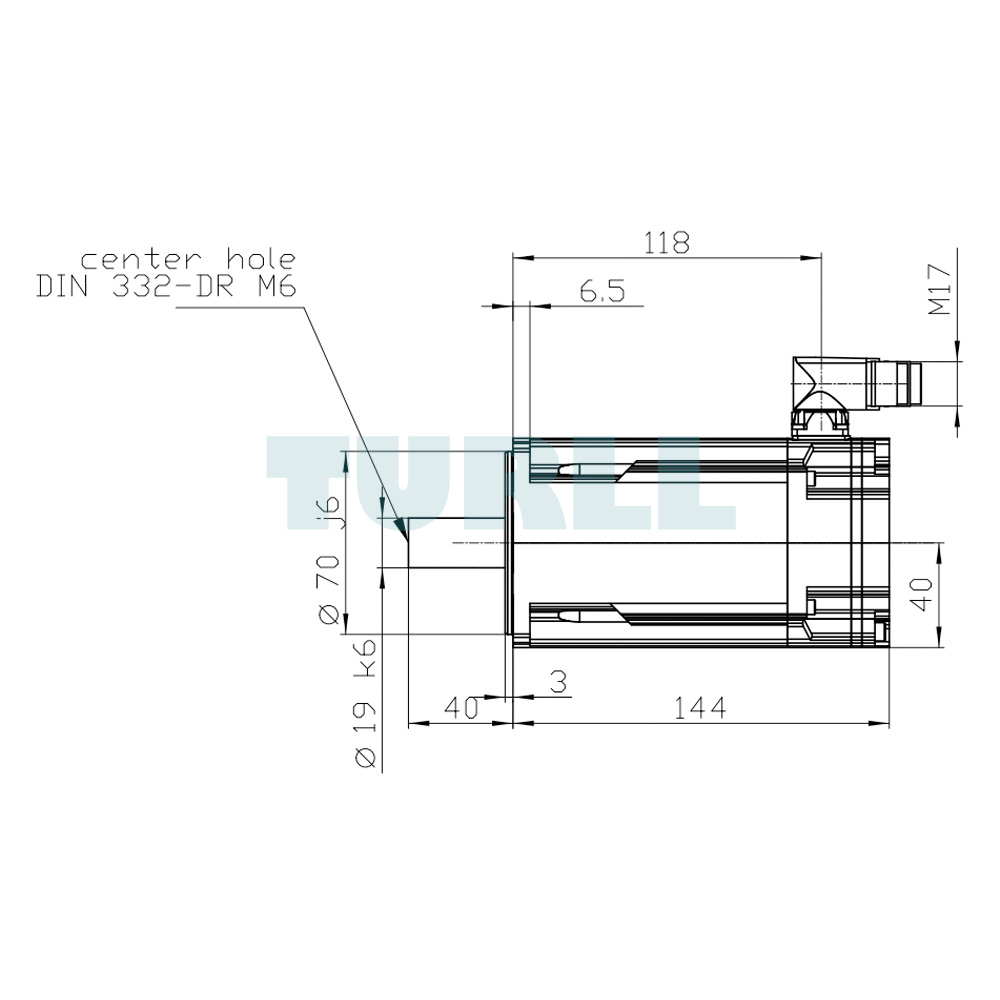

The SIEMENS SIMOTICS S-1FK2 CT servo motor with product code 1FK2204-6AF00-0MB0 is a premium and high-performance synchronous motor designed for industrial environments that require both reliability and efficiency. This exclusive model delivers a rated torque of 3.2 Nm and offers 1 kW output at 3000 rpm in the 380-480 V range, as well as 0.5 kW output at 1500 rpm in the 200-240 V range. With a robust IP64 protection class, cylindrical shaft (D19x40 mm), and integrated DRIVE-CLiQ interface, it ensures seamless operation and integration within modern drive systems.

Equipped with an absolute encoder AM22DQC featuring 22-bit single-turn and 12-bit multiturn resolution, this servo motor guarantees precise positioning, even in complex automation setups. The compact design combines high power density with durability, making it suitable for demanding applications where space-saving installation and dynamic performance are essential.

Overview

The SIMOTICS S-1FK2 servomotor family is recognized for its dynamic response, overload capability, and efficient operation across a wide variety of industrial applications. These motors address critical challenges in servo drive technology with a streamlined portfolio that simplifies product selection and integration. As a core component of the SINAMICS S210 drive system, the 1FK2 series represents an optimal balance of performance, compactness, and reliability.

Beyond the 1FK2 family, the 1FT2 servomotor range extends the capabilities of this platform by offering finely tuned speed variations, additional torque levels, and broader configuration options. This makes them well suited for specialized and demanding applications where precise control and adaptability are required.

SIMOTICS S-1FK2 High Dynamic Motors

These variants provide exceptionally fast response due to low rotor inertia, making them ideal for high-speed and low-mass applications where accuracy and reaction time are critical.

SIMOTICS S-1FK2 Compact Motors

The compact versions deliver stable and precise control for medium-to-high load applications. Their medium moment of inertia ensures reliable performance and excellent positioning, even in processes with significant mechanical demands.

Download

Data Sheet (PDF)

Product Code: 1FK2204-6AF00-0MB0
