1FK2204-6AF01-1MA0 SIEMENS Exclusive SIMOTICS S-1FK2 CT Servo Motor Original Brand New

1FK2204-6AF01-1MA0 SIEMENS Exclusive SIMOTICS S-1FK2 CT Servo Motor Original Brand New

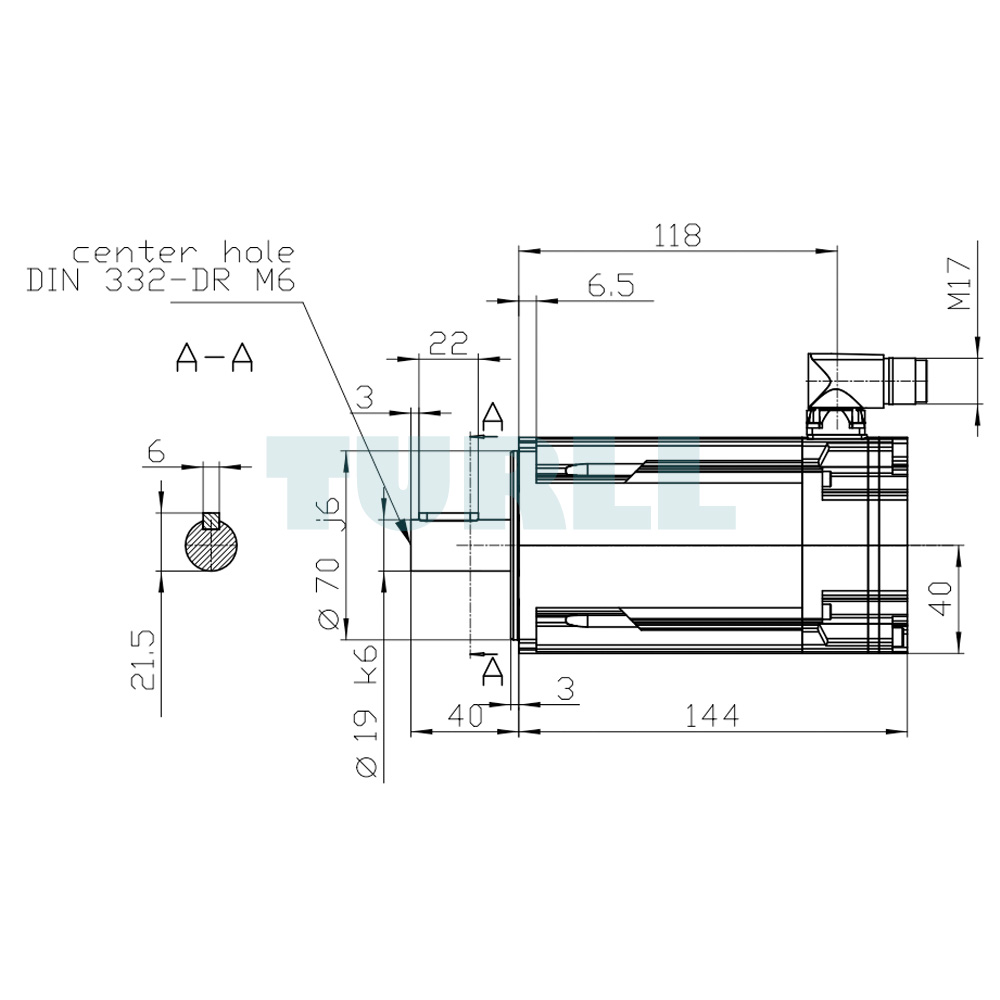

The SIEMENS 1FK2204-6AF01-1MA0 is part of the SIMOTICS S-1FK2 Compact servo motor series, engineered for precision, flexibility, and dynamic performance in industrial automation. With a rated torque of 3.2 Nm and a power output of 1 kW at 3000 rpm (380–480 V), as well as 0.5 kW at 1500 rpm (200–240 V), this model is designed to deliver reliable and efficient operation in demanding environments. It comes with a robust IP65 degree of protection, ensuring excellent resistance to dust and water, making it suitable for challenging conditions. The shaft design measures 19×40 mm with a feather key, providing stable mechanical coupling, while the integrated 22-bit + 12-bit multiturn absolute encoder guarantees precise positioning accuracy.

Equipped with an OCC interface and rotatable M17 plug connector, the motor supports flexible and user-friendly installation.

The SIMOTICS S-1FK2 range is known for its high power density, superior overload capability, and compact design, making it a preferred choice across a wide range of industrial sectors. The 1FK2 motors serve as the foundation for the SINAMICS S210 drive system, offering seamless compatibility and easy integration. Their dynamic response and reliability allow manufacturers to optimize automation processes, achieve higher productivity, and ensure long-term stability in motion control applications.

Overview

The SIMOTICS S-1FK2 servo motors are compact synchronous motors developed for dynamic industrial applications. They excel in environments where high precision, stability, and durability are required. With a balance of performance and flexibility, these motors simplify selection and integration thanks to their structured product portfolio. They are especially suitable for applications requiring fast acceleration, consistent torque, and long service life.

Additionally, the extended SIMOTICS 1FT2 family complements the 1FK2 series with more finely graded speeds, torque options, and additional variations. This makes it possible to adapt solutions for more demanding applications, ensuring both the Compact and High Dynamic motor designs can address a wide spectrum of motion control needs.

SIMOTICS S-1FK2 High Dynamic Motors

These motors provide outstanding responsiveness with low inertia, perfectly matching applications that involve lightweight moving parts and require rapid reaction times.

SIMOTICS S-1FK2 Compact Motors

Designed for stable and precise control, these motors handle medium to high loads with a medium moment of inertia, ensuring reliable operation even in continuous-duty cycles.

Download

Data Sheet (PDF)

Product Code: 1FK2204-6AF01-1MA0
