1FK2204-6AF11-0MA0 SIEMENS Exclusive SIMOTICS S-1FK2 CT Servo Motor Original Brand New

1FK2204-6AF11-0MA0 SIEMENS Exclusive SIMOTICS S-1FK2 CT Servo Motor Original Brand New

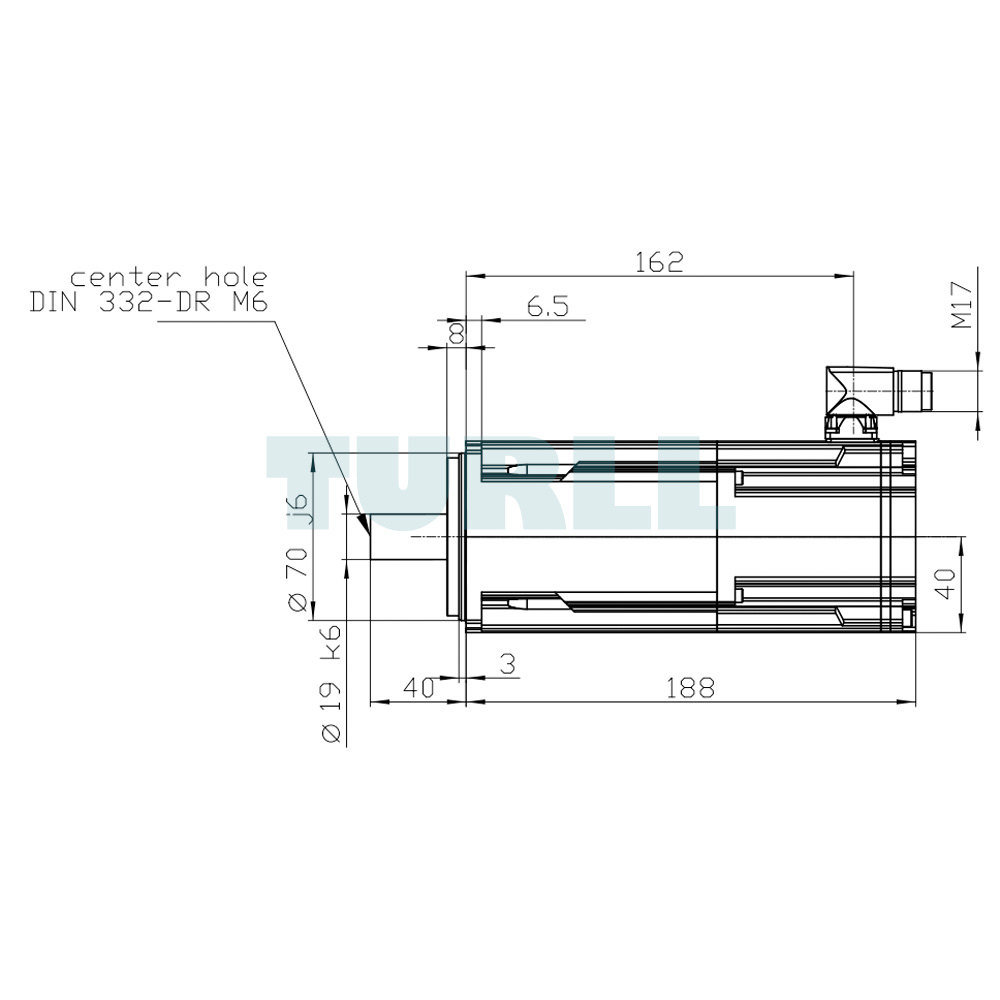

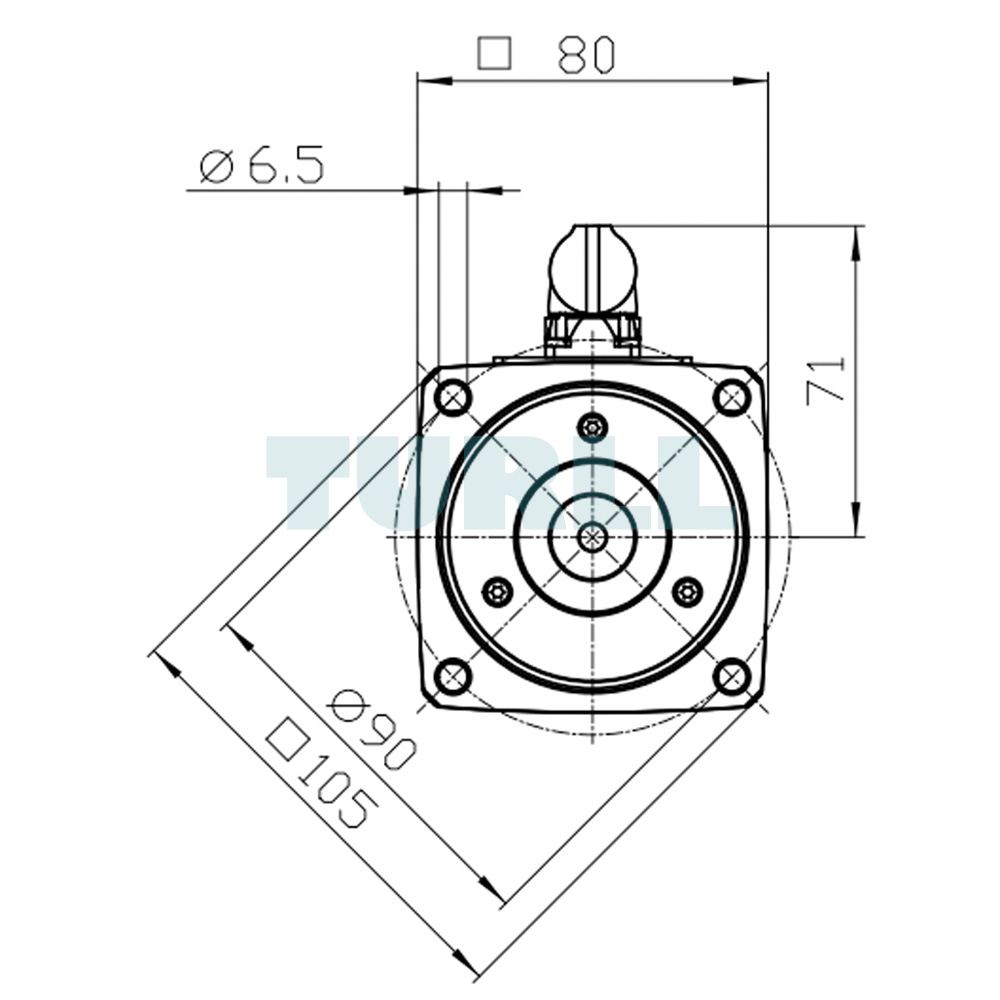

This is a high-performance synchronous motor designed for precision, durability, and efficiency. With a rated torque of 3.2 Nm and a power output of 1 kW at 3000 rpm (380–480 V), this model ensures reliable operation in diverse industrial applications. At 1500 rpm and 200–240 V, it delivers 0.5 kW, offering flexibility for different voltage ranges. This version features a holding brake, degree of protection IP65, cylindrical shaft D19x40 mm, and an advanced 22-bit + 12-bit multiturn absolute encoder (AM22DQC). It is equipped with an OCC interface and rotatable M17 plugs for simple integration and optimized connectivity.

Compact and robust, the SIMOTICS S-1FK2 CT motor is engineered to meet the requirements of modern automation systems. The combination of a rugged enclosure, high overload capability, and stable performance makes it suitable for environments where accuracy and endurance are essential. The integrated brake ensures secure operation, while the encoder delivers precise feedback, supporting complex motion control tasks with outstanding reliability.

Overview

The SIMOTICS S-1FK2 series provides compact, dynamic servomotors for a wide variety of industrial applications. These motors form the foundation of the SINAMICS S210 servo drive system, allowing simple selection and seamless integration. With high power density, broad overload capacity, and compact mechanical design, they are particularly effective in applications requiring rapid acceleration, accurate positioning, and long service life.

The extended 1FT2 portfolio adds finer gradings, additional torque levels, and further options, making it possible to address highly demanding applications. Whether used in robotics, packaging systems, or precision handling equipment, these motors deliver efficiency, adaptability, and performance consistency. From high dynamic variants with low inertia to compact types with medium inertia, the SIMOTICS S-1FK2 family provides solutions for a full range of industrial automation needs.

Download

Data Sheet (PDF)

Product Code: 1FK2204-6AF11-0MA0
