1FK2204-6AF11-1SB0 SIEMENS Exclusive SIMOTICS S-1FK2 CT Servo Motor Original Brand New

1FK2204-6AF11-1SB0 SIEMENS Exclusive SIMOTICS S-1FK2 CT Servo Motor Original Brand New

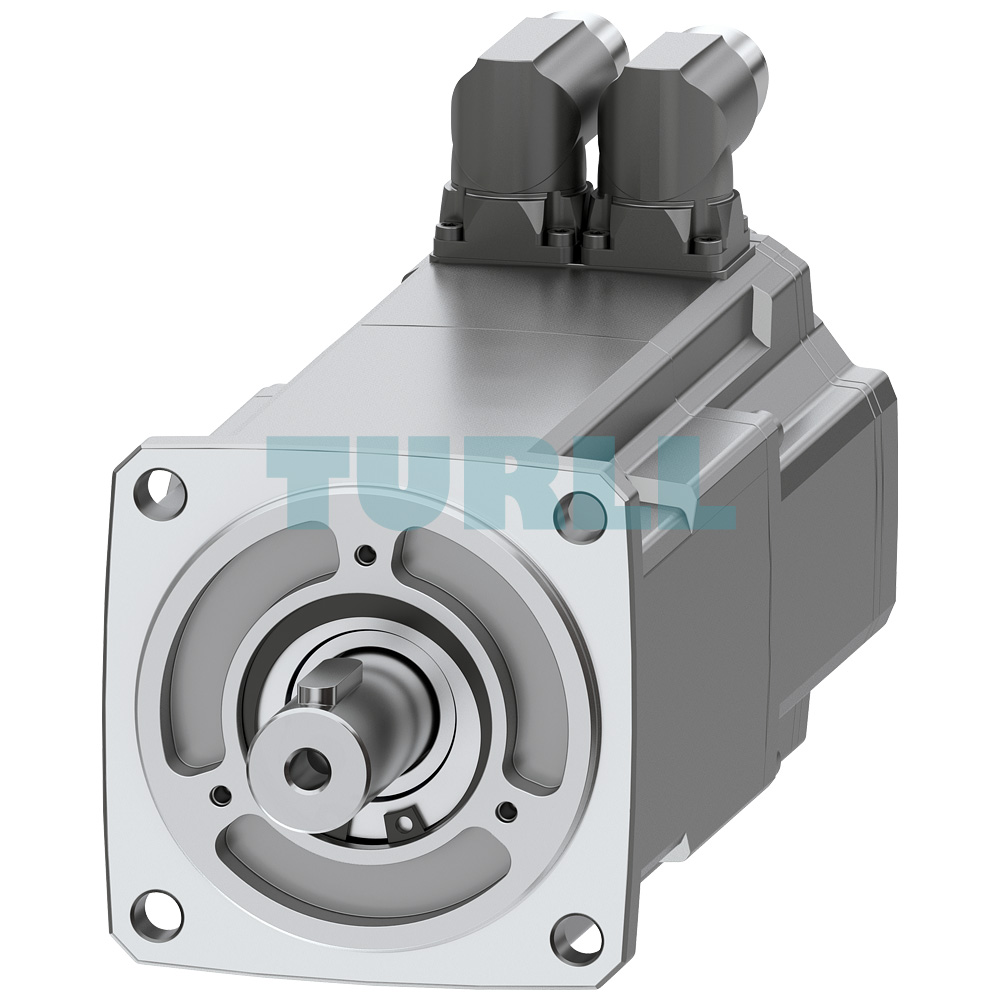

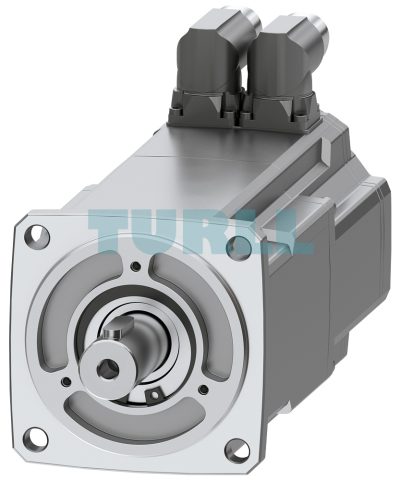

The SIEMENS 1FK2204-6AF11-1SB0 SIMOTICS S-1FK2 CT servo motor is a high-performance, compact, and reliable solution for industrial automation and motion control applications. Designed with a rated torque of 3.2 Nm and power outputs of up to 1 kW at 3000 rpm (380-480 V) or 0.5 kW at 1500 rpm (200-240 V), this servo motor provides precise motion control while ensuring optimal energy efficiency. Its integrated holding brake and IP65 protection guarantee safe and durable operation even in demanding industrial environments.

Featuring a D19x40 mm shaft with feather key and a single-turn 22-bit absolute encoder (AS22DQC), this motor offers precise positioning and excellent repeatability. The DRIVE-CLiQ M17 plug and M17 power connector enable seamless integration with SINAMICS S210 servo drives, making it ideal for a wide variety of automation tasks. Its compact design supports installation in tight spaces without compromising performance, making it suitable for robotics, packaging machinery, and other dynamic applications.

Overview

The SIMOTICS S‑1FK2 series combines high dynamic performance with compact construction to meet the challenges of modern industrial automation. These servomotors deliver fast acceleration and stable operation, even with medium to high loads. With limited variants and options, the 1FK2 series provides a simplified selection process while maintaining versatility. For applications requiring more finely graded speeds or higher torque levels, the 1FT2 extension offers additional flexibility and adaptability. Together, these motors form the core of the SINAMICS S210 servo drive system, ensuring reliable and precise motion in a wide range of industrial setups.

High dynamic response is achieved through low inertia, allowing swift movements of low-mass components, while medium-mass applications benefit from precise and stable control. With its robust construction and advanced encoder technology, the 1FK2 CT servo motor supports high precision, long-term reliability, and smooth performance under varied load conditions.

Download

Data Sheet (PDF)

Product Code: 1FK2204-6AF11-1SB0
