The SIEMENS 1FK2208-4AC01-1SB0 SIMOTICS S-1FK2 CT servo motor delivers 22 Nm torque with high efficiency, IP65 protection, precise encoder control, and compact design for industrial applications.

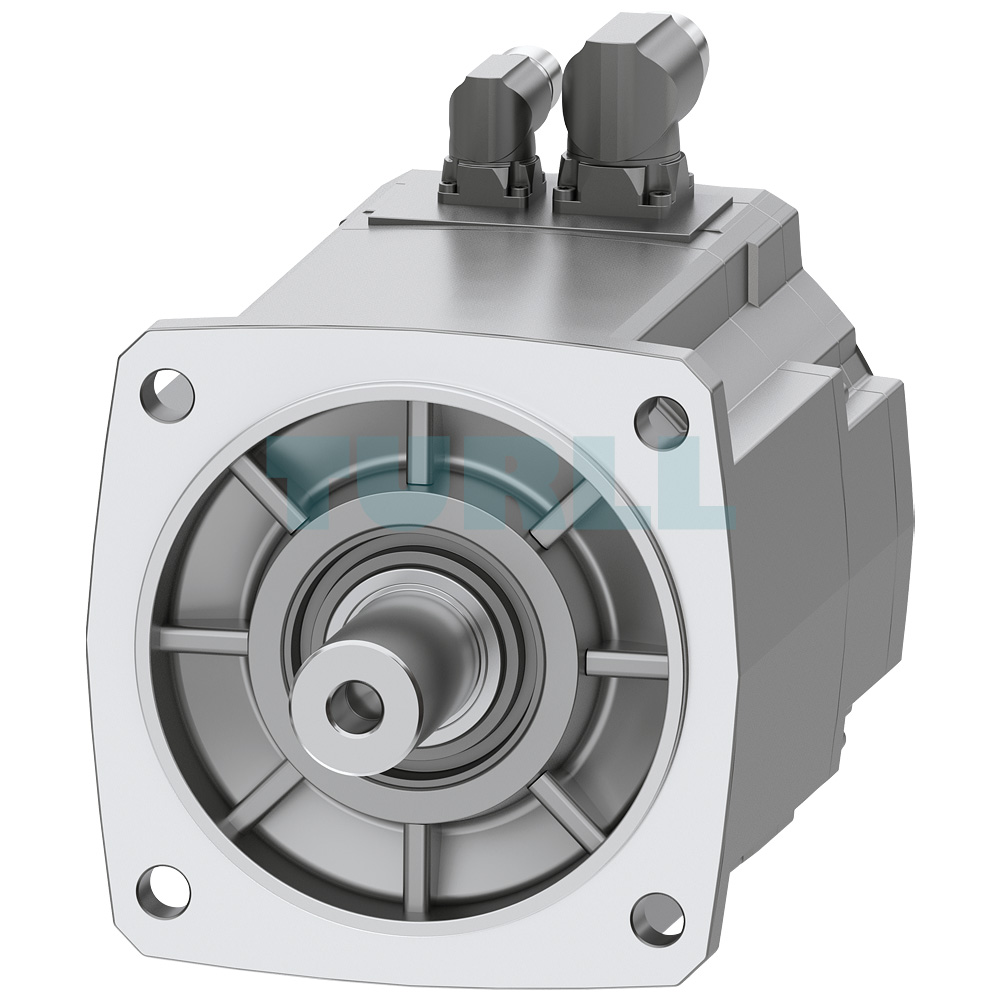

The SIEMENS 1FK2208-4AC01-1SB0 is a premium servo motor from the SIMOTICS S-1FK2 Compact series, designed to deliver reliable motion performance across demanding industrial environments. With a rated torque of 22 Nm and power output of up to 3.55 kW at 2000 rpm under 380–480 V, this unit provides a strong balance between efficiency, precision, and durability. The motor also offers 2.15 kW at 1000 rpm under 200–240 V, allowing operators to integrate it flexibly into diverse applications. Equipped with IP65 protection, a D32x58 mm shaft with feather key, and DRIVE-CLiQ connectivity, it ensures robustness, smooth integration, and reliable long-term operation.
This model includes a single-turn 22-bit absolute encoder (AS22DQC), ensuring accurate positioning and dependable control. The power connector is standardized with M23 size, allowing simple and consistent wiring in complex automation systems. Its compact mechanical design makes it particularly well suited for use in environments with limited space while maintaining outstanding performance in terms of speed control and load handling.
The SIMOTICS S-1FK2 family is recognized for compact dimensions, dynamic response, and adaptability. These motors are available in variants that address a wide spectrum of industrial drive requirements. The 1FK2 units are the core of the SINAMICS S210 servo drive system, providing seamless integration and simple configuration while meeting the latest standards for precision and control.
For extended requirements, the related 1FT2 portfolio offers additional torque levels, speed ranges, and configuration options, making it possible to fine-tune performance for challenging environments. Whether required for dynamic, high-speed applications or for more stable, medium-inertia tasks, the SIMOTICS S-1FK2 motors ensure consistent reliability. Options such as High Dynamic motors with extremely low inertia and Compact versions optimized for medium to heavy load handling give operators a wide set of solutions to meet specific system requirements.
Product Code: 1FK2208-4AC01-1SB0
More Siemens products at Turll.com
| SKU / Model | 1FK2208-4AC01-1SB0 |
|---|---|
| Weight | 14.6 kg |
| Dimensions | 452 × 250 × 267 mm |
