The SIEMENS 1FK7034-2AK71-1CG1-ZJ17 SIMOTICS S-1FK7 synchronous motor is a compact, high-precision motor engineered to deliver exceptional efficiency and control across a wide range of automation applications. This exclusive unit features a rated power of 0.63 kW and a torque output of 1.6 Nm at 6000 rpm. Operating with a DC voltage of 600V, it is naturally cooled and designed in the IMB 5 configuration, allowing installation flexibility for both vertical and horizontal setups. Its IP65 protection ensures resistance to dust and water ingress, making it suitable for demanding industrial environments.

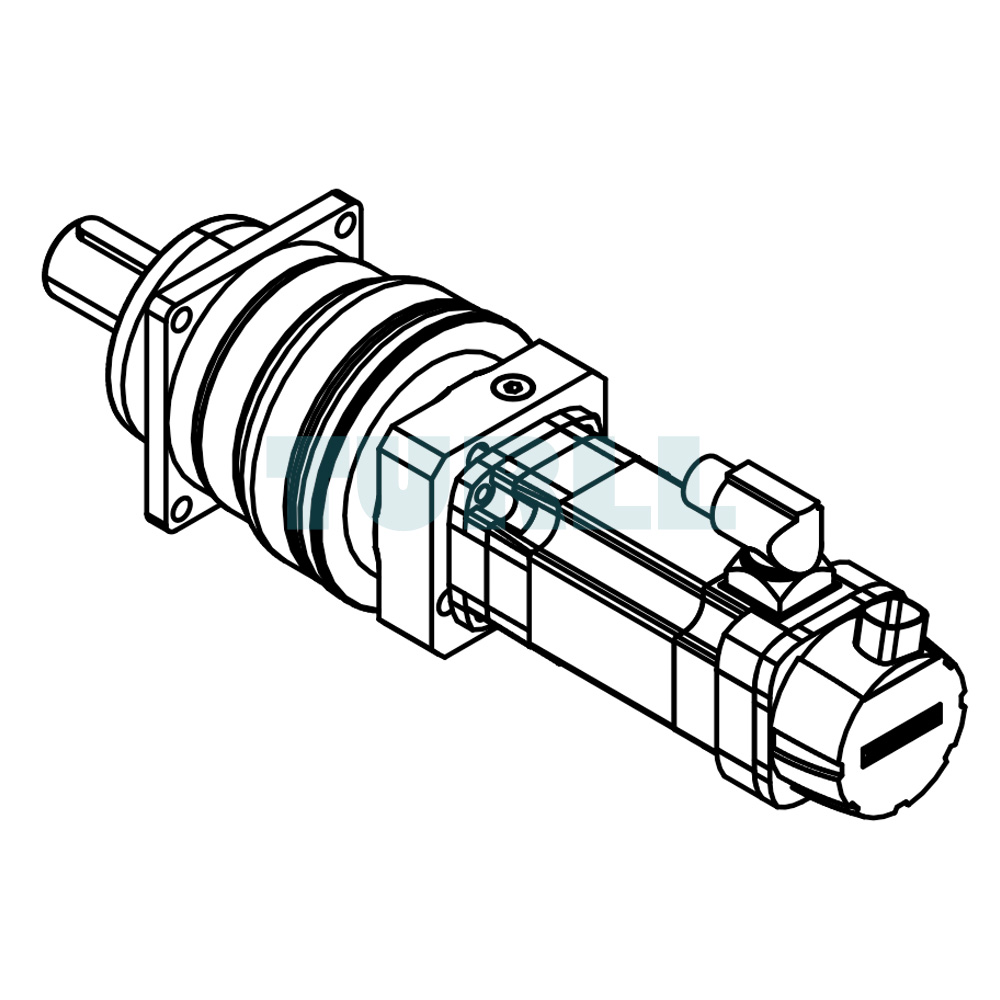

Equipped with a 24-bit absolute encoder plus a 12-bit multi-turn system through a DRIVE-CLiQ interface (encoder AM24DQI), the motor provides highly accurate feedback for speed and position control. It features a smooth shaft with tolerance N, a rotatable power connector, and no holding brake, offering optimal performance for precision-driven machinery. Additionally, this configuration includes an integrated ALPHA SP+ SP 100S-MF2 planetary gearing system with two stages and a gear ratio of 50, enhancing torque transmission and overall mechanical efficiency.

Overview

The SIMOTICS S-1FK7 series combines advanced technology with flexible design, making it ideal for modern machine generations. These permanent-magnet synchronous motors are highly adaptable, offering various encoder systems, gear options, and dynamic performance levels. Whether used as a compact, high-dynamic, or high-inertia model, each variant is optimized for superior responsiveness and long-term stability.

Benefits & Applications

• Compact structure with high power density for space-efficient installation
• Seamless compatibility with SINAMICS S120/S220 drive systems
• Available with optional gearbox and encoder variants for precise control
• Minimal commissioning effort with superior reliability and long service life
• Ideal for machine tools, robotics, packaging systems, and textile machinery
• Also suitable for applications in glass, ceramics, and printing industries

Download

Data Sheet (PDF)

Product Code: 1FK7034-2AK71-1CG1-ZJ17
