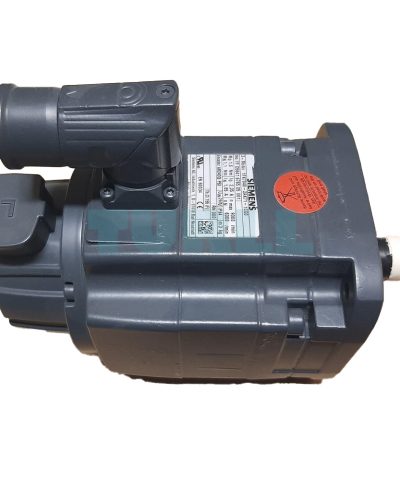

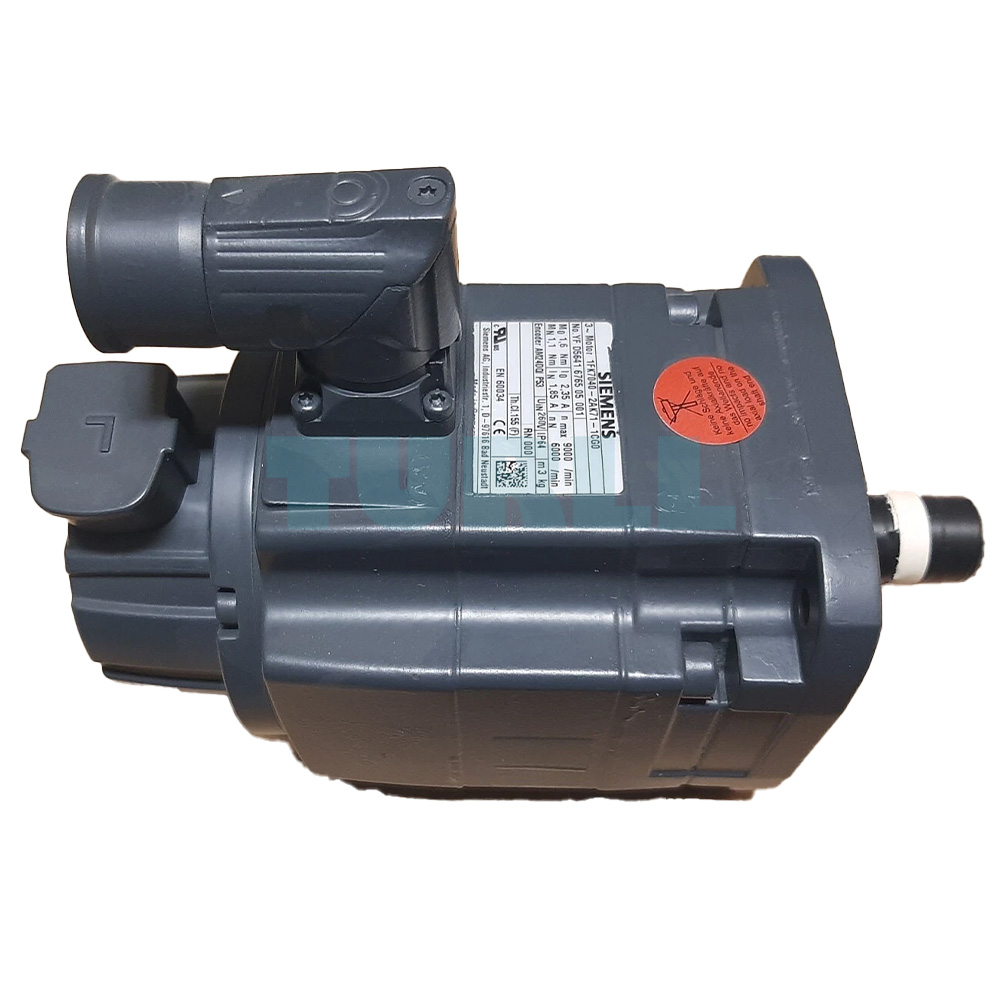

1FK7040-2AK71-1CG0 SIEMENS Exclusive SIMOTICS S Synchronous Motor Original Brand New
$1,791.99
The SIEMENS SIMOTICS S 1FK7040-2AK71-1CG0 is a compact, high-performance synchronous motor delivering 0.69 kW of power and 1.6 Nm torque. With an advanced encoder, natural cooling, and IP64 protection, it provides reliable motion control for robotics, machinery, and automation systems.
1FK7040-2AK71-1CG0 SIEMENS Exclusive SIMOTICS S Synchronous Motor Original Brand New
The SIEMENS SIMOTICS S 1FK7040-2AK71-1CG0 synchronous motor is a premium industrial-grade solution designed for high-precision motion control applications. With a rated power of 0.69 kW, a DC link voltage of 600V, and a nominal speed of 6000 rpm, this model offers exceptional torque performance of 1.6 Nm (100K). Built with natural cooling and a robust IMB5 mounting design (IM V1, IM V3), it provides reliable operation across demanding industrial environments. The smooth shaft and rotatable power connector ensure easy integration into complex systems, while the absolute encoder AM24DQI with DRIVE-CLiQ interface delivers accurate, real-time feedback for position and speed monitoring. The degree of protection IP64 further enhances resistance to dust and moisture, guaranteeing long-term performance stability.
Overview
The SIMOTICS S-1FK7 motor series is a proven line of permanent-magnet synchronous motors known for their compact size, precision, and versatility. Offering a wide range of options including various gearboxes and encoders, this series provides complete adaptability for both standard and specialized applications. When paired with SINAMICS S120 or S220 drive systems, the motor forms a seamless motion control solution characterized by efficiency, accuracy, and flexibility. The motors operate without external cooling, relying instead on efficient surface heat dissipation to maintain consistent performance even under continuous load conditions. Designed for long operational life, these motors feature high overload capacity and low maintenance requirements.
Benefits
SIMOTICS S-1FK7 Compact motors are ideal for space-constrained installations due to their high power density and universal application potential. The High Dynamic versions deliver superior responsiveness for rapid acceleration and deceleration, while High Inertia models ensure steady operation for systems with fluctuating load requirements. These attributes minimize setup time and enhance overall system stability.
Application
The 1FK7040-2AK71-1CG0 motor is widely used in machine tools, robotics, packaging, printing, and material processing industries. It is especially suited for precision-driven applications in sectors such as wood, glass, ceramics, plastics, and textiles. Thanks to its advanced design and encoder integration, it enables highly accurate positioning, repeatability, and smooth operation across complex industrial systems.
Download
Product Code: 1FK7040-2AK71-1CG0
More Siemens products at Turll.com
| Weight | 3.201 kg |
|---|
