1FK7042-2AF71-1PH1-ZJ13 SIEMENS Exclusive SIMOTICS S-1FK7 Synchronous Motor Original Brand New

1FK7042-2AF71-1PH1-ZJ13 SIEMENS Exclusive SIMOTICS S-1FK7 Synchronous Motor Original Brand New

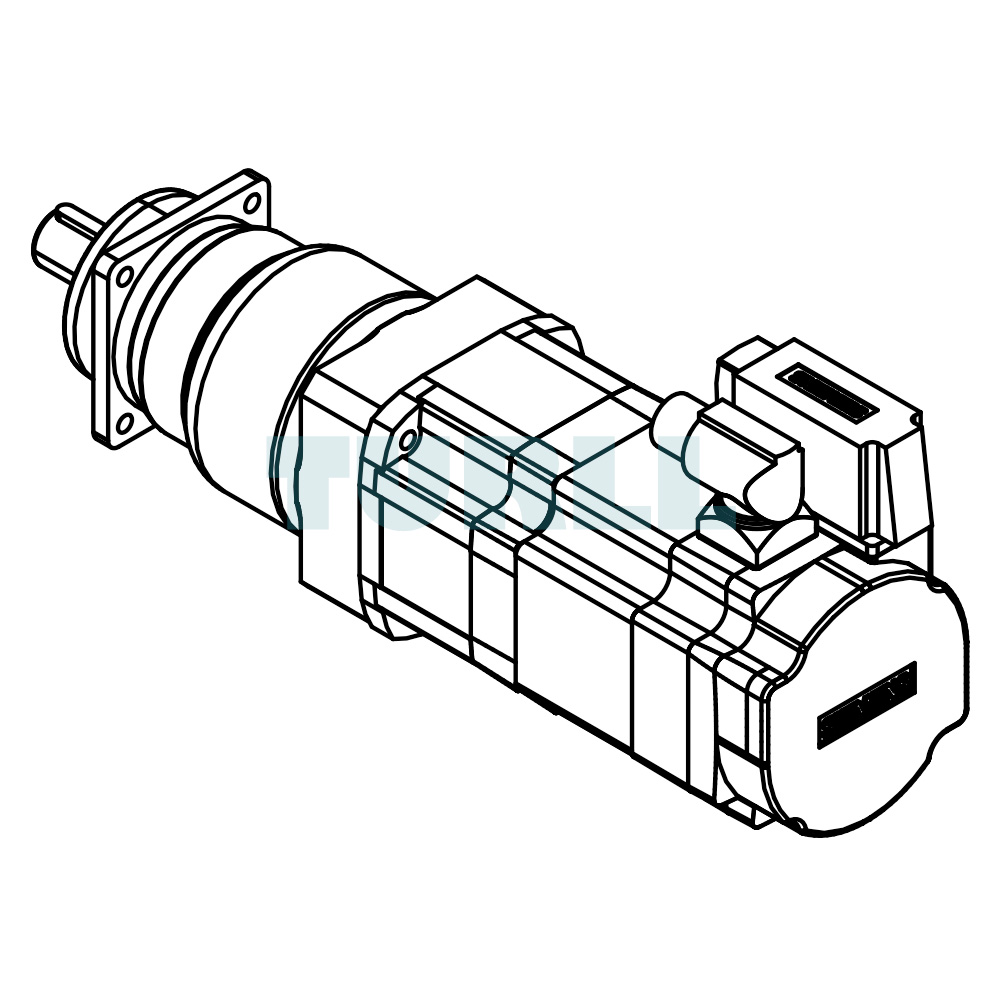

The SIEMENS SIMOTICS S-1FK7 motor with model number 1FK7042-2AF71-1PH1-ZJ13 is a high-performance permanent-magnet synchronous motor designed for precision and reliability in advanced automation systems. Delivering a rated power of 0.82 kW and a nominal speed of 3000 rpm at 600 V DC, this naturally cooled motor combines efficiency and compact design for demanding industrial applications. Its IP65 degree of protection ensures long-term operation even under harsh environmental conditions, while the smooth shaft and integrated holding brake offer precise torque control and dependable performance.

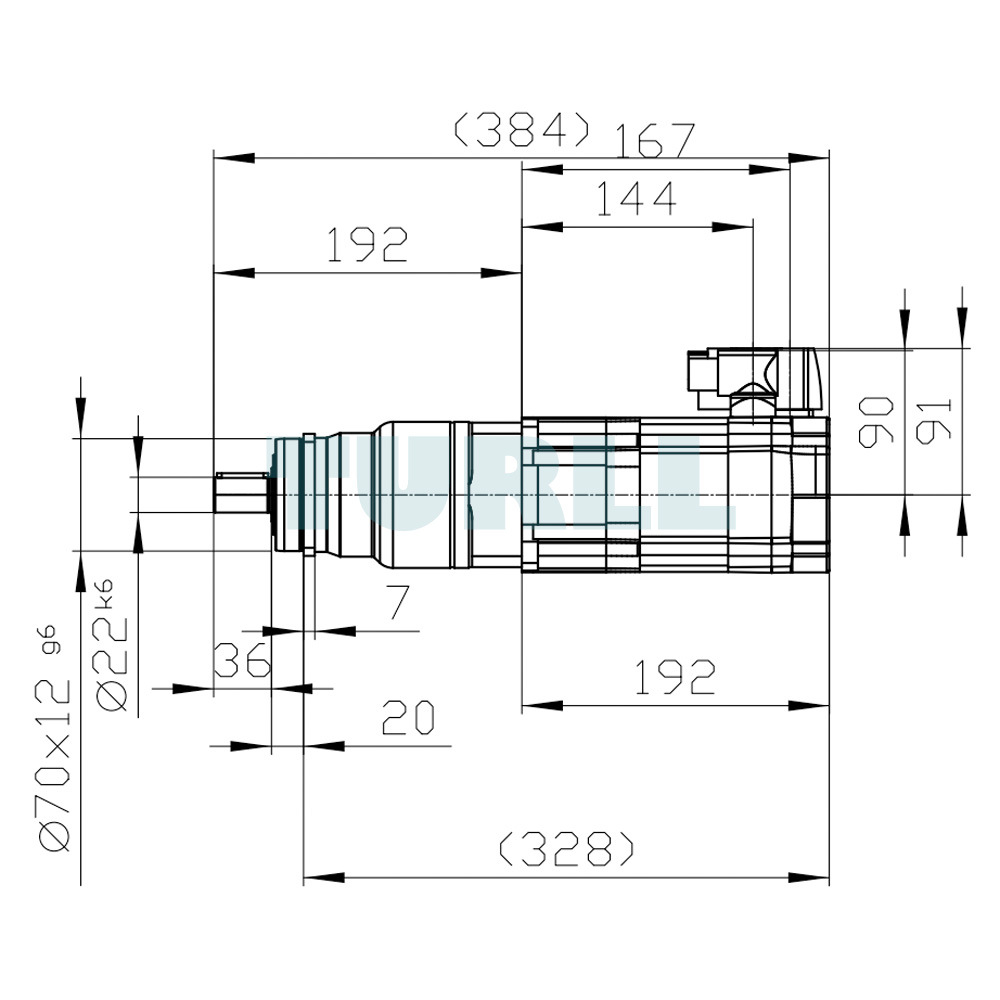

The motor is equipped with a two-pole resolver and DRIVE-CLiQ interface, enabling seamless communication and synchronization with SINAMICS S120 or S220 drive systems. This connectivity allows precise speed and position feedback, ensuring smooth motion control in automation lines, robotic systems, and high-precision machinery. The integrated ALPHA SP+ SP 075S-MF2 planetary gear unit with 20:1 reduction and feather-key shaft connection provides exceptional torque transfer and mechanical efficiency, making this motor ideal for both dynamic and continuous-duty applications.

Overview

The SIMOTICS S-1FK7 motor series represents the latest generation of compact synchronous servomotors, engineered for flexibility and system compatibility. These motors deliver high power density within a small footprint, allowing for space-saving installation and simplified integration. The available range of encoders and mechanical options enables customization for diverse industrial needs, including high-precision control, fast acceleration, and smooth operation.

When paired with the SINAMICS drive family, the 1FK7 series creates a robust servo system that meets the increasing requirements of modern automation. Each unit supports accurate speed and torque regulation, providing maximum stability even under fluctuating load conditions.

Benefits

• High power density for compact installation
• Reliable operation in demanding environments (IP65)
• Excellent dynamic response due to low-inertia rotor
• Flexible configuration with multiple gear and encoder options
• Optimized for seamless connection to SIEMENS S120/S220 systems
• Minimal commissioning time and reduced maintenance overhead

Applications

The 1FK7042-2AF71-1PH1-ZJ13 SIMOTICS S-1FK7 motor is widely used in machine tools, handling robots, packaging equipment, and material-processing systems for wood, glass, ceramics, and textiles. It also supports printing and auxiliary axes, where reliability, precision, and smooth motion are crucial. Its efficient design makes it suitable for continuous production lines that demand stable torque and responsive control.

Download

Data Sheet (PDF)

Product Code: 1FK7042-2AF71-1PH1-ZJ13
