1FK7060-2AC71-1UG0 SIEMENS Exclusive SIMOTICS S Synchronous Motor Original Brand New

1FK7060-2AC71-1UG0 SIEMENS Exclusive SIMOTICS S Synchronous Motor Original Brand New

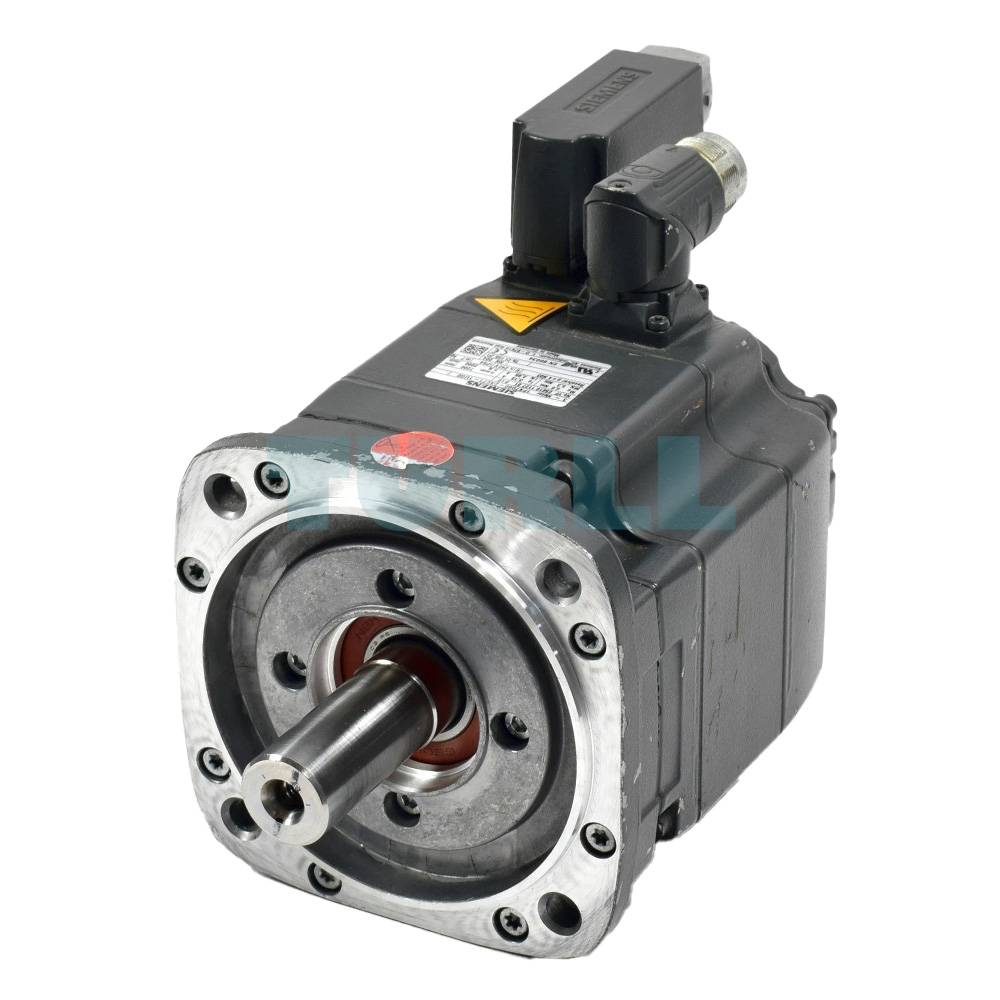

The SIEMENS 1FK7060-2AC71-1UG0 SIMOTICS S Synchronous Motor is a precision-engineered drive solution designed for demanding industrial applications that require high performance, energy efficiency, and long-term reliability. As part of the acclaimed SIMOTICS S-1FK7 series, this compact motor offers 1.1 kW power output with a torque rating of 6 Nm at 2000 rpm, operating efficiently under a 600 V DC supply. The motor is naturally cooled, constructed with IMB 5 (IM V1, IM V3) flange mounting, and equipped with a rotatable multi-pole power connector and DRIVE-CLiQ resolver interface for optimal system integration.

Its robust IP64 protection ensures durability against dust and moisture, while the smooth shaft design without holding brake provides reliable mechanical performance for high-precision motion control. This synchronous motor exemplifies the SIEMENS engineering standard — delivering accuracy, compactness, and consistent operation across automation and manufacturing environments.

Overview

The SIMOTICS S-1FK7 motors represent a new generation of high-efficiency permanent-magnet synchronous motors developed to meet modern industrial demands. Available with a wide selection of encoders, gearboxes, and feedback systems, they can be tailored to a wide range of industrial applications. When paired with the SINAMICS S120 or S220 drive systems, they create a fully synchronized solution offering precise control and exceptional motion dynamics. The design supports natural surface cooling, ensuring thermal stability and consistent torque output even in intensive duty cycles.

• Compact design with extremely high power density for space-saving installation
• High overload capability and robust operational stability
• Selectable encoder systems for enhanced control precision
• Ideal for both dynamic and high-inertia load applications

Applications

The SIMOTICS S 1FK7060-2AC71-1UG0 is widely used in industries such as machine tools, robotics, packaging, printing, and materials processing. It is also ideal for handling systems and auxiliary axes requiring precise speed and position control. Its versatility makes it suitable for machines operating in wood, glass, ceramics, and stone processing sectors. With minimal setup effort and optimized disturbance compensation, it offers smooth performance and efficient commissioning in any automation setup.

Download

Data Sheet (PDF)

Product Code: 1FK7060-2AC71-1UG0
