1FK7060-2AH71-1CH1-ZJ15X01 SIEMENS Exclusive SIMOTICS S-1FK7 Motor Original Brand New

1FK7060-2AH71-1CH1-ZJ15X01 SIEMENS Exclusive SIMOTICS S-1FK7 Motor Original Brand New

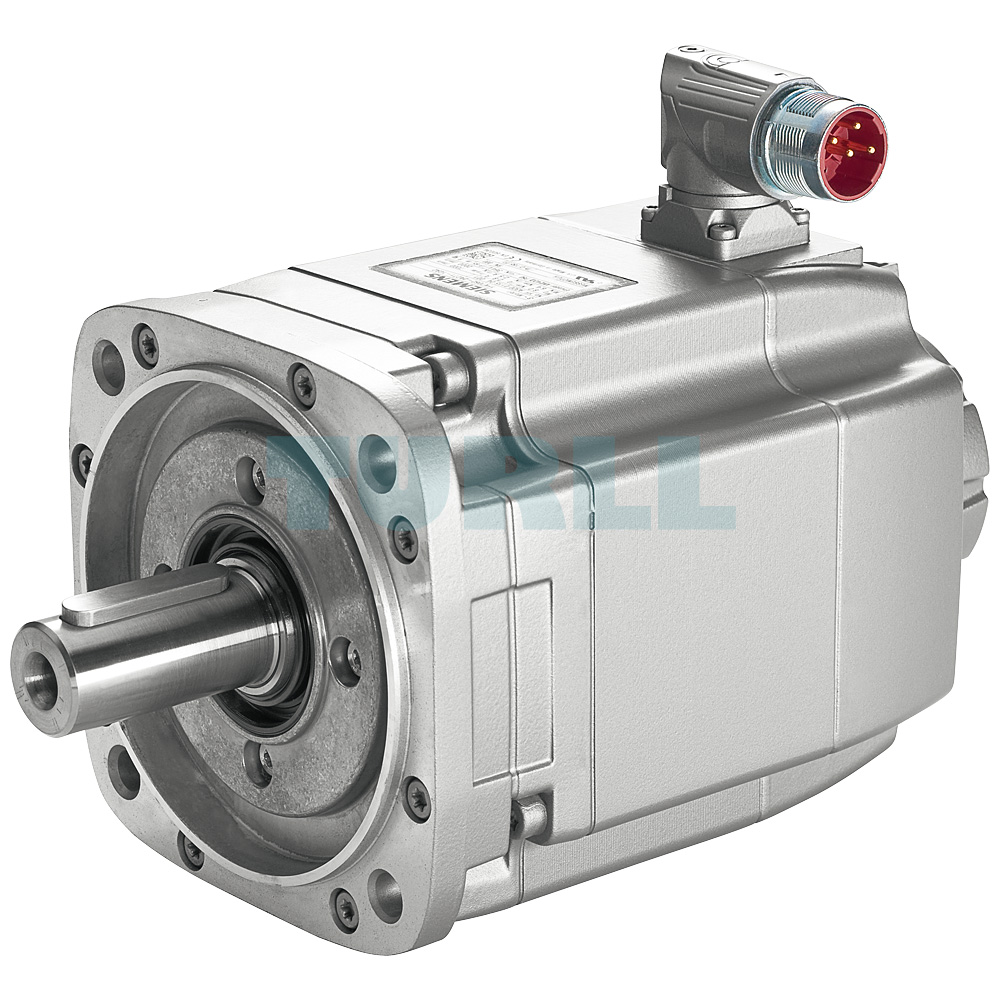

The SIEMENS 1FK7060-2AH71-1CH1-ZJ15X01 is a premium synchronous motor engineered to deliver exceptional precision, durability, and performance for demanding automation environments. As part of the SIMOTICS S-1FK7 portfolio, this model offers a compact and powerful design that seamlessly integrates into modern machinery requiring accurate motion, stable torque output, and consistent operational reliability. Designed with a naturally cooled structure, it ensures efficient heat dissipation and reduced thermal stress during continuous duty cycles. Its rated torque, high-speed capability, and smooth shaft design make it highly suitable for dynamic systems that rely on rapid response and precise actuation.

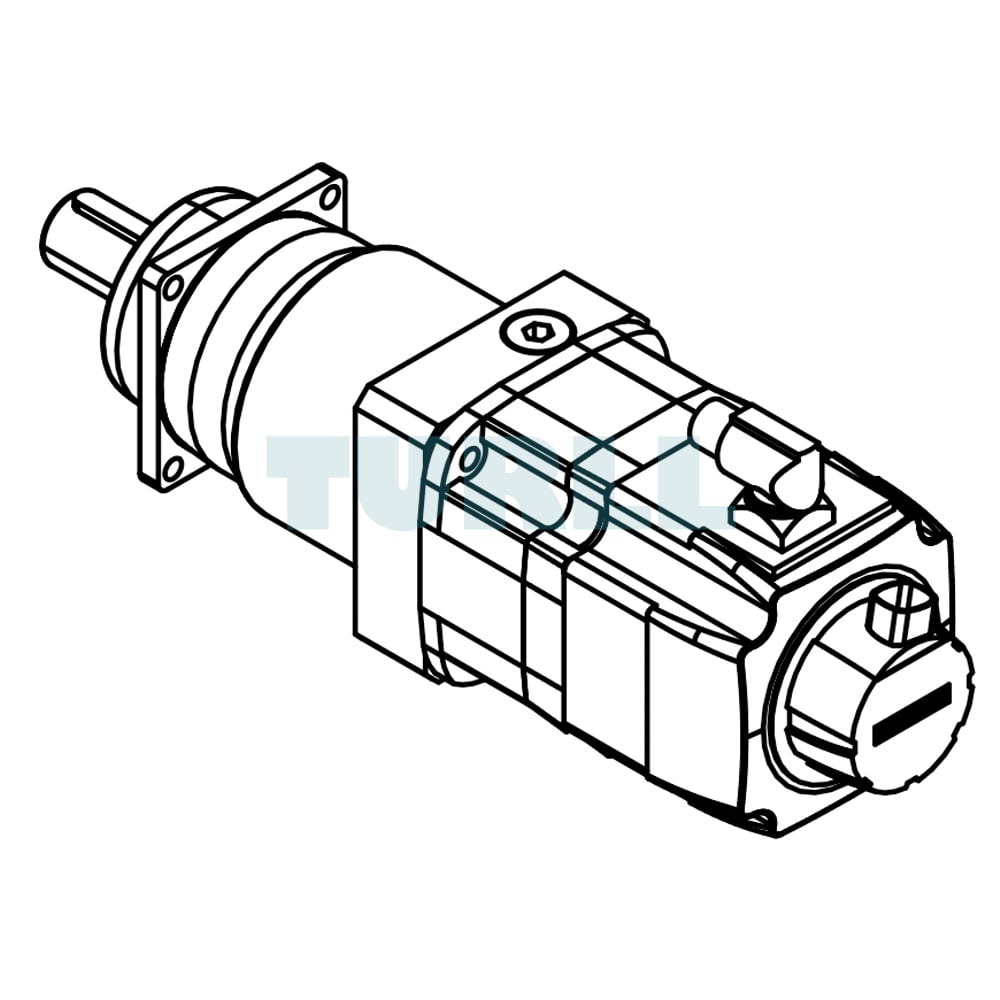

This configuration is equipped with an advanced AM24DQI DRIVE-CLiQ encoder featuring a 24-bit resolution combined with a 12-bit multi-turn system, enabling precise position control even in highly complex applications. The motor includes a rotatable power connector for flexible installation and a holding brake for stable positioning during power-off conditions. The integrated planetary gear unit, ALPHA SP+ SP 100S-MF2 with a two-stage reduction ratio of 28, enhances the overall mechanical characteristics, ensuring smooth, controlled transmission in high-load or repetitive cycles. The durable IP65 protection rating and dull black RAL9005 coating ensure long-lasting resistance against harsh industrial conditions.

Overview

SIMOTICS S-1FK7 motors are known for their compact dimensions and broad adaptability. With numerous encoder options, mechanical variants, and compatible gear systems, this motor family supports a wide range of industrial applications. When paired with SINAMICS S120 or S220 drive systems, they form a highly responsive axis solution capable of both speed control and precision positioning across various motion requirements.

Design & Benefits

The series offers excellent power density, allowing installation in restricted spaces without compromising output performance. Depending on the version, the motors are optimized for universal use, rapid acceleration, or stable operation under fluctuating load conditions. Their high overload capacity ensures consistent productivity, while the minimal commissioning effort streamlines integration into both new and existing systems.

Application

Typical fields of use include machining centers, robotics, handling systems, packaging equipment, printing lines, and material-processing machinery where accuracy and reliability are essential.

Download

Data Sheet (PDF)

Product Code: 1FK7060-2AH71-1CH1-ZJ15X01
