1FK7060-2AH71-1CH1-ZJ33 SIEMENS Exclusive SIMOTICS S Synchronous Motor Original Brand New

1FK7060-2AH71-1CH1-ZJ33 SIEMENS Exclusive SIMOTICS S Synchronous Motor Original Brand New

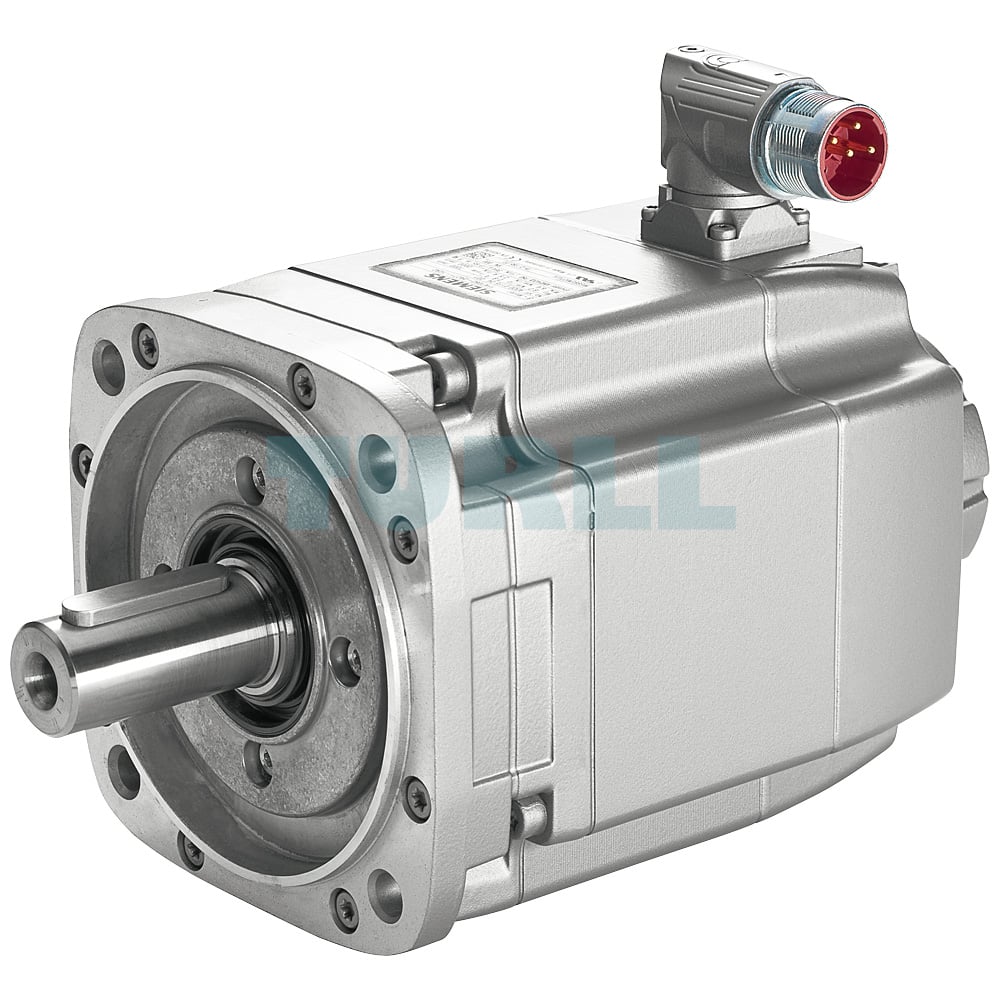

The SIEMENS 1FK7060-2AH71-1CH1-ZJ33 SIMOTICS S motor is engineered as a highly efficient drive component designed for applications that demand precision, fast response, and stable performance. This versatile unit offers a rated power of 1.7 kW, a torque rating of 6 Nm, and a nominal speed of 4500 rpm, making it well-suited for a wide spectrum of automation environments. It incorporates a naturally cooled frame in IMB 5 configuration and features a rotatable power connector for flexible wiring in compact or complex installations. Equipped with an AM24DQI absolute encoder including 24-bit single-turn and 12-bit multi-turn functionality with DRIVE-CLiQ, the motor enables enhanced positioning accuracy and reliable feedback communication throughout dynamic operations.

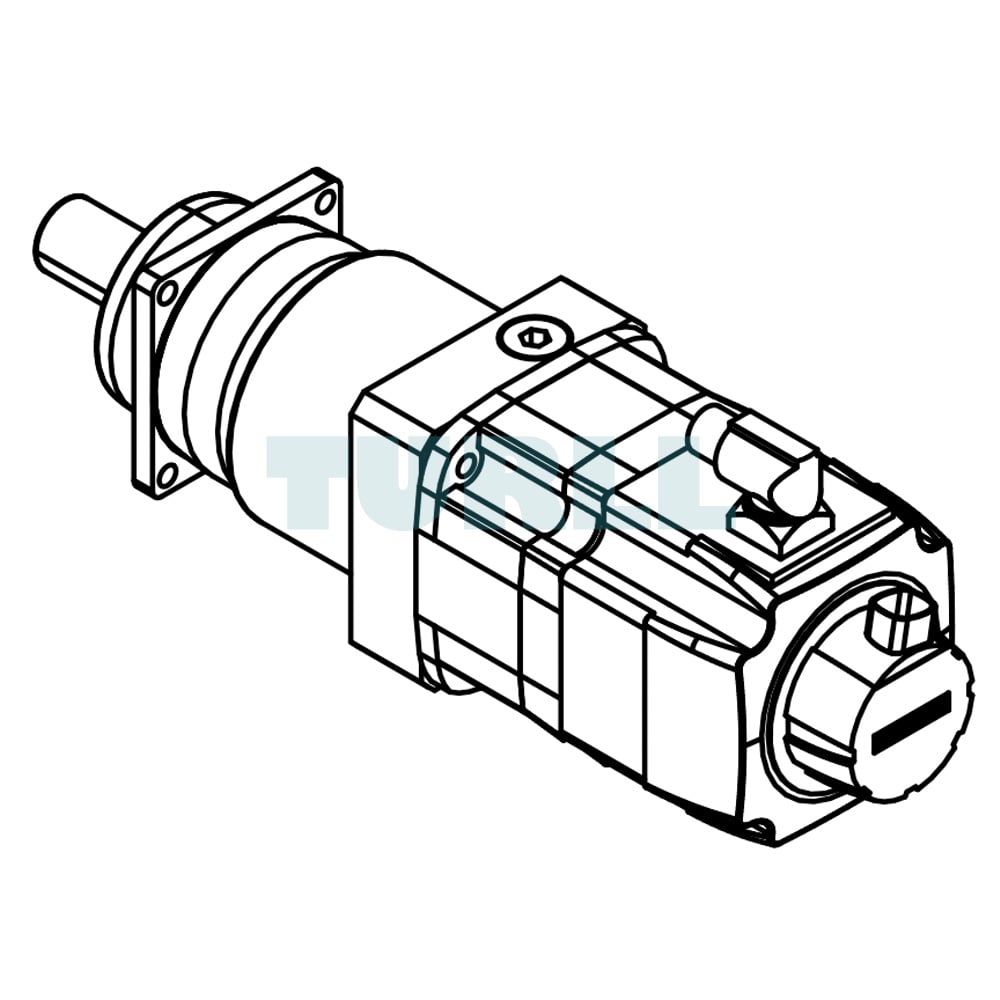

This model integrates a smooth shaft with tolerance class N and includes a holding brake for secure load handling. The build adheres to IP65 protection, providing reliable resistance against dust and moisture typically encountered in industrial spaces. The ZJ33 variant incorporates an ALPHA SP+ planetary gearbox, SP 100S-MF2, configured with two stages and a gear ratio of 20, optimized for improved torque transmission without the use of a feather key. This configuration enhances the mechanical flexibility and broadens the range of achievable motion profiles across demanding applications.

Overview

SIMOTICS S-1FK7 motors are compact permanent-magnet units available in numerous variants that allow customized adaptation to a wide range of functional requirements. When paired with SINAMICS S120 or S220 drive systems, these motors form scalable and feature-rich motion solutions capable of meeting modern automation challenges. Their integrated encoder options support precise feedback for advanced control strategies, making them ideal for environments requiring high precision and consistent performance.

Benefits

The compact line offers exceptional power density for installations where space is limited. The high-dynamic series delivers fast response characteristics due to low rotor inertia, while the high-inertia series ensures stable and robust operation when dealing with increased load or variable inertia moments. These properties reduce commissioning time and simplify optimization during machine setup.

Application

Typical uses include machine tools, robotic systems, automated handling equipment, wood and stone processing machinery, packaging lines, plastics production, textile equipment, printing systems, and numerous auxiliary axis configurations.

Download

Data Sheet (PDF)

Product Code:1FK7060-2AH71-1CH1-ZJ33
