1FK7061-4CH71-1UA2 SIEMENS Exclusive SIMOTICS S Synchronous Motor Original Brand New

1FK7061-4CH71-1UA2 SIEMENS Exclusive SIMOTICS S Synchronous Motor Original Brand New

The SIEMENS 1FK7061-4CH71-1UA2 SIMOTICS S motor is designed for precision-driven industrial environments that require fast response, reliability, and consistent motion performance. As part of the High Dynamic series within the SIMOTICS S-1FK7 family, this motor is built with a permanent-magnet rotor system engineered to support stable operation across a variety of automation tasks. With a nominal torque rating of 6.4 Nm, a speed of 4500 rpm, and a 2 kW power class, this model offers a balanced combination of power, agility, and durability. Natural cooling through the motor surface ensures dependable thermal behavior without the need for external cooling components.

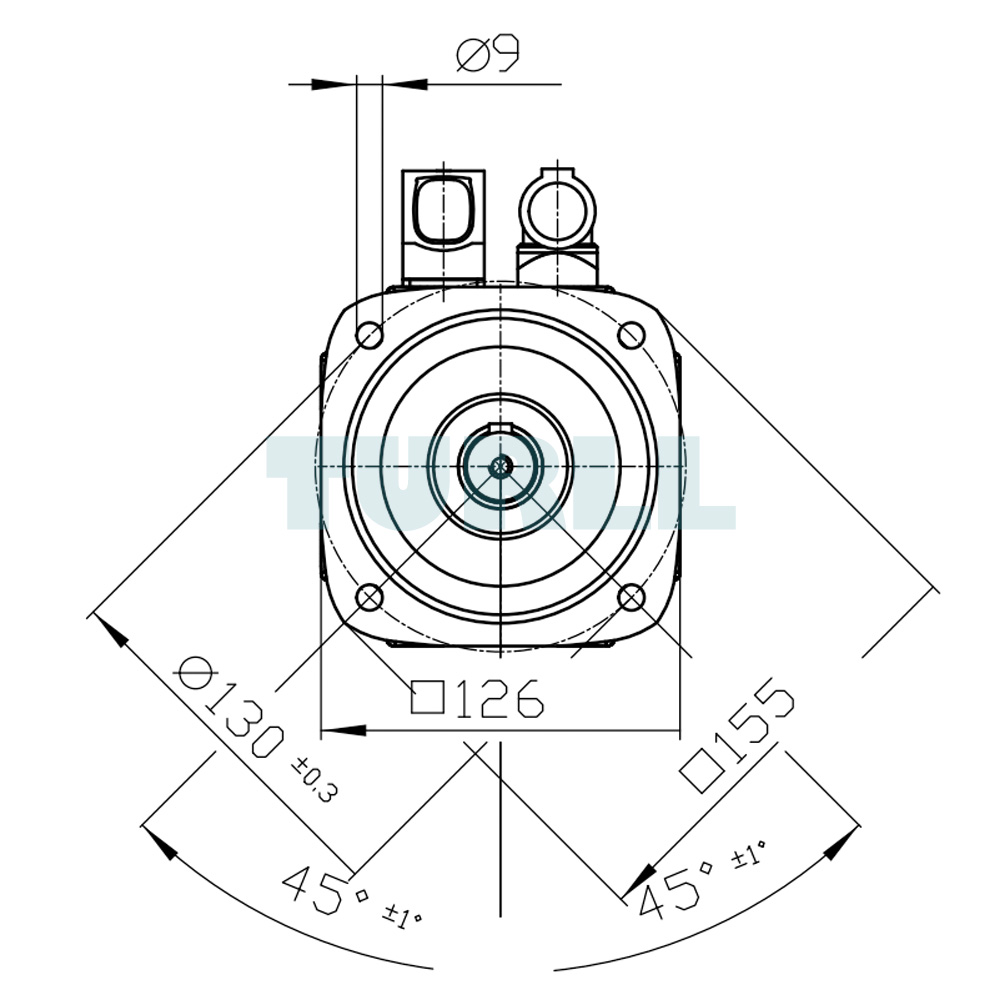

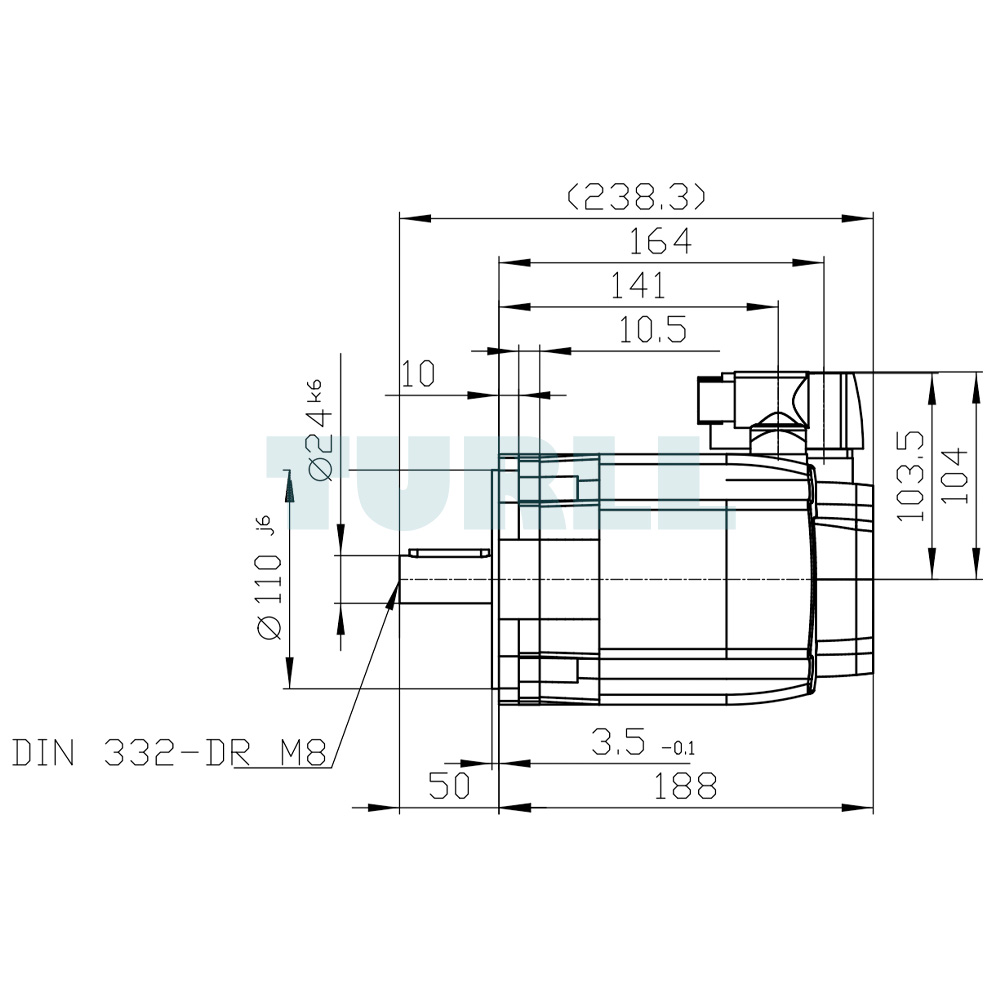

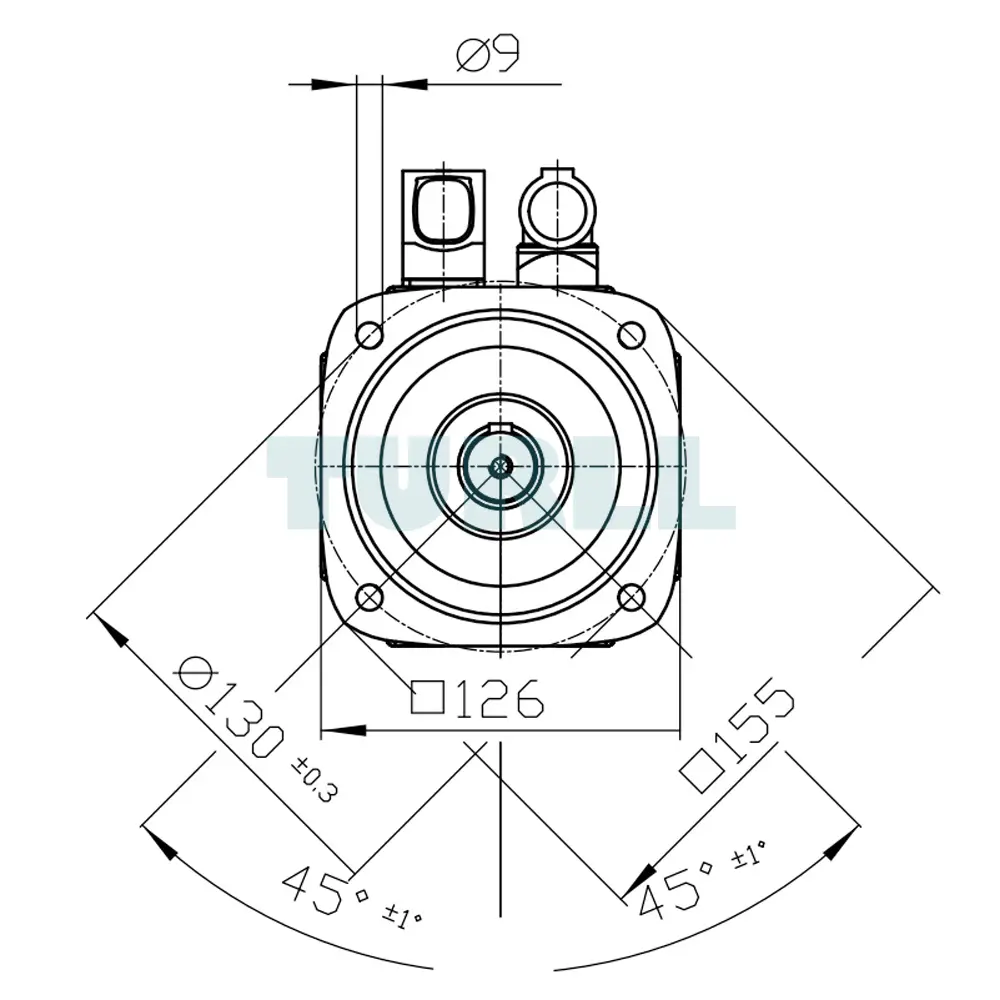

The 1FK7061-4CH71-1UA2 comes equipped with a multi-pole resolver featuring a DRIVE-CLiQ interface, enabling accurate speed control and seamless communication with compatible SIEMENS drive platforms. The rotatable power connector adds installation flexibility, while the IMB 5 mounting configuration and flange design simplify mechanical integration. Its fitted-key shaft and IP65/IP67 protection rating reinforce durability, allowing stable operation in challenging environments where dust, vibration, or moisture may be present.

Overview

SIMOTICS S-1FK7 motors are known for their high power density, compact dimensions, and strong performance across a wide spectrum of industrial machinery. This product range supports numerous encoder and gearbox options, making it adaptable to evolving machine requirements. When combined with SINAMICS S120 or S220 drive systems, these motors form a powerful automation platform suitable for dynamic positioning, coordinated motion, and precision velocity control.

Engineered for long service life and consistent motion characteristics, the SIMOTICS S-1FK7 family is widely used in diverse applications such as robotic systems, material handling equipment, metalworking machines, packaging solutions, and specialized manufacturing lines. Their robust overload capability and minimal commissioning effort allow machine builders to achieve reliable, smooth, and efficient motion control.

Design & Key Features

• Permanent-magnet synchronous motor with compact construction
• Multi-pole resolver with DRIVE-CLiQ interface
• High dynamic response for demanding motion tasks
• Rotatable power connector for flexible installation
• Fitted-key shaft with tolerance class N
• No holding brake for applications requiring free movement
• Ingress protection IP65, DE flange IP67

Download

Data Sheet (PDF)

Product Code: 1FK7061-4CH71-1UA2
