1FK7062-2AC71-1DA2 SIEMENS Exclusive SIMOTICS S Synchronous Motor Original Brand New

1FK7062-2AC71-1DA2 SIEMENS Exclusive SIMOTICS S Synchronous Motor Original Brand New

The SIEMENS 1FK7062-2AC71-1DA2 synchronous motor is a versatile and efficient solution engineered for advanced industrial applications that require smooth motion, stability, and highly accurate feedback. As part of the well-established SIMOTICS S-1FK7 series, this model offers solid performance with a rated torque of 8.5 Nm and a nominal speed of 2000 rpm. Its naturally cooled design promotes thermal consistency without the need for external cooling systems, making it suitable for installations where compactness and efficiency are essential. The rugged construction allows operation in demanding environments, supported by protection ratings of IP65 for the motor and IP67 for the flange.

This model integrates a precision 22-bit incremental encoder using the DRIVE-CLiQ interface, enabling responsive closed-loop control and excellent positioning accuracy. Its rotatable power connector eases cable orientation, while the shaft with fitted key ensures stable mechanical engagement with connected components. The absence of a holding brake makes this variant ideal for continuous-motion applications where dynamic control is prioritized. The standardized IMB 5 mounting arrangement further enhances compatibility with a wide range of modern machine configurations.

Overview

SIMOTICS S-1FK7 motors are compact permanent-magnet synchronous motors designed to meet the performance expectations of next-generation industrial systems. Their wide selection of configurations—including encoder types, mechanical sizes, and torque classes—enables tailor-made integration into diverse equipment. These motors can be combined with SINAMICS S120 or S220 drive systems, forming a powerful motion platform for high-precision automation tasks.

They deliver reliable thermal management, strong overload capability, and fast response behavior, making them suitable for both dynamic and steady-load applications. Their adaptability allows them to support tasks ranging from continuous manufacturing processes to rapid positioning operations.

Design & Key Features

• Permanent-magnet synchronous motor with compact high-density design
• Incremental 22-bit encoder (IC22DQ) with DRIVE-CLiQ connectivity
• Nominal torque 8.5 Nm and 2000 rpm operating speed

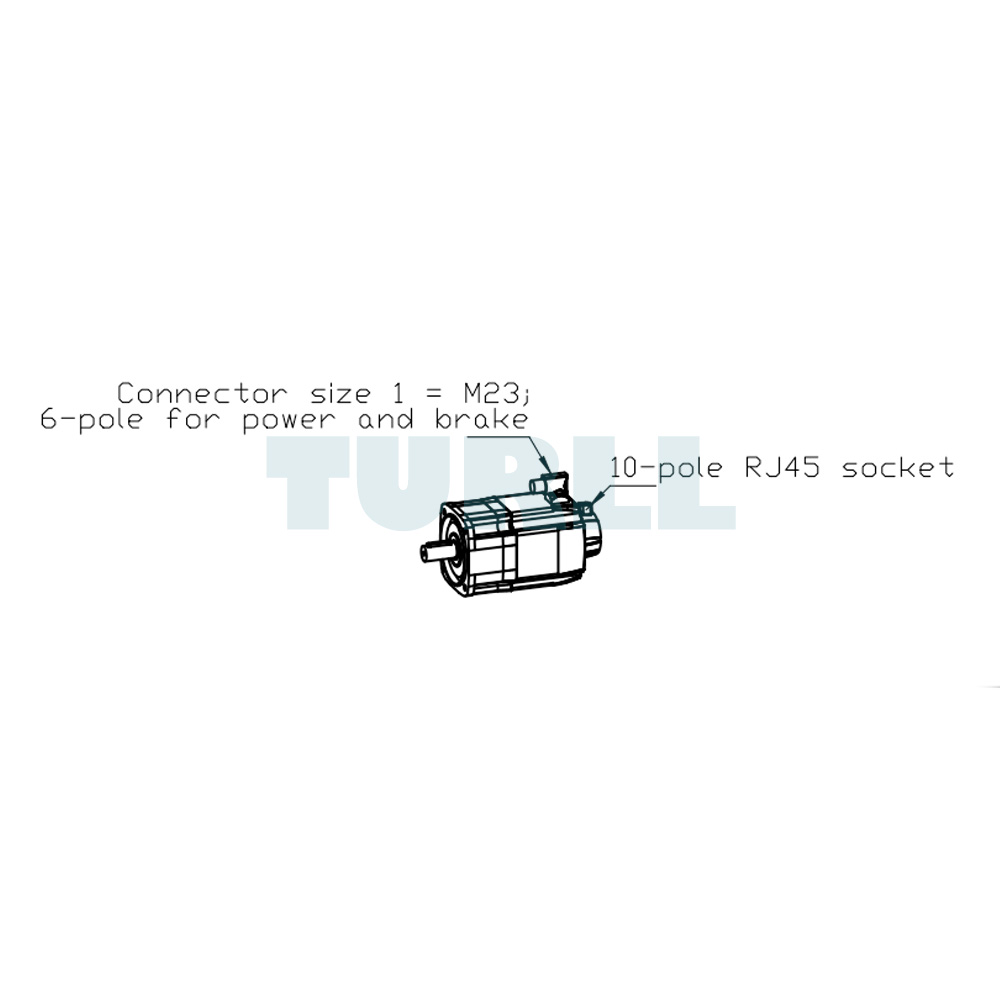

• Rotatable power connector for flexible installation
• Shaft with fitted key, tolerance class N
• Protection class IP65 with IP67 flange sealing
• Wide compatibility via IMB 5 (IM V1, IM V3) mounting

Download

Data Sheet (PDF)

Product Code: 1FK7062-2AC71-1DA2
