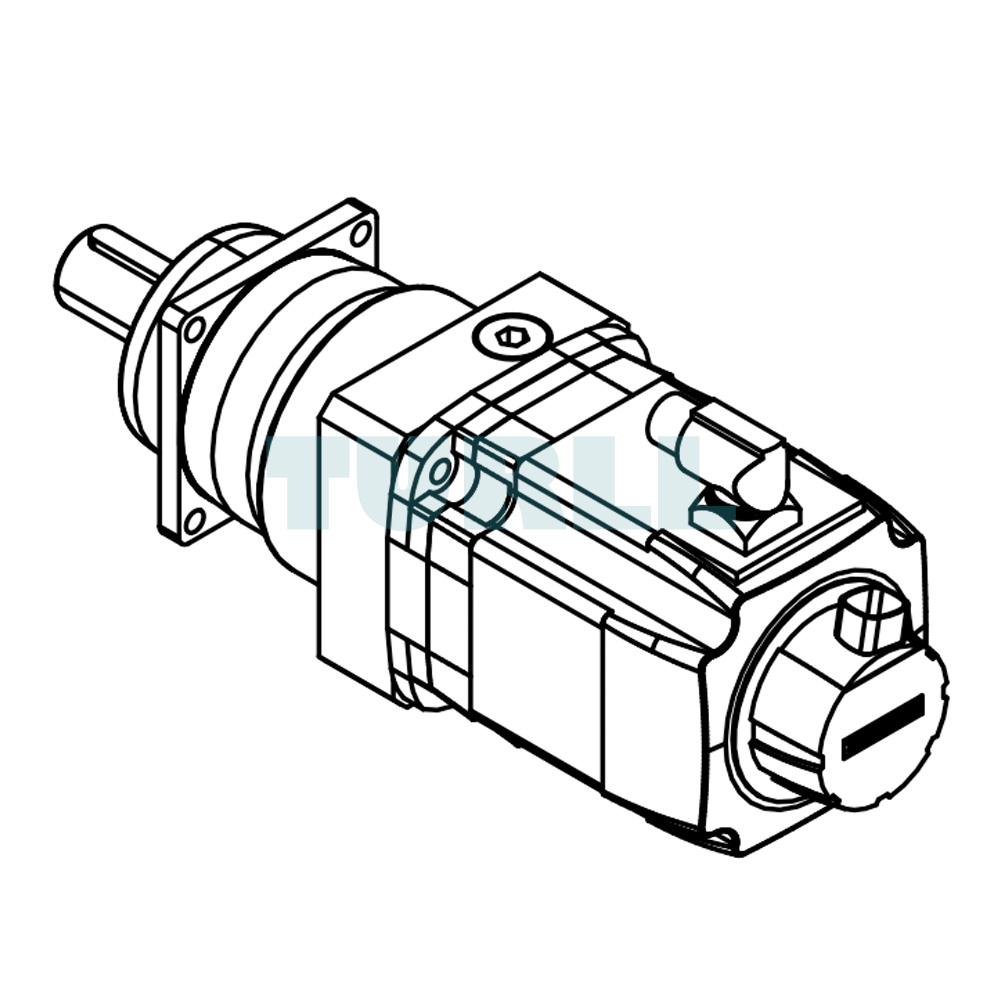

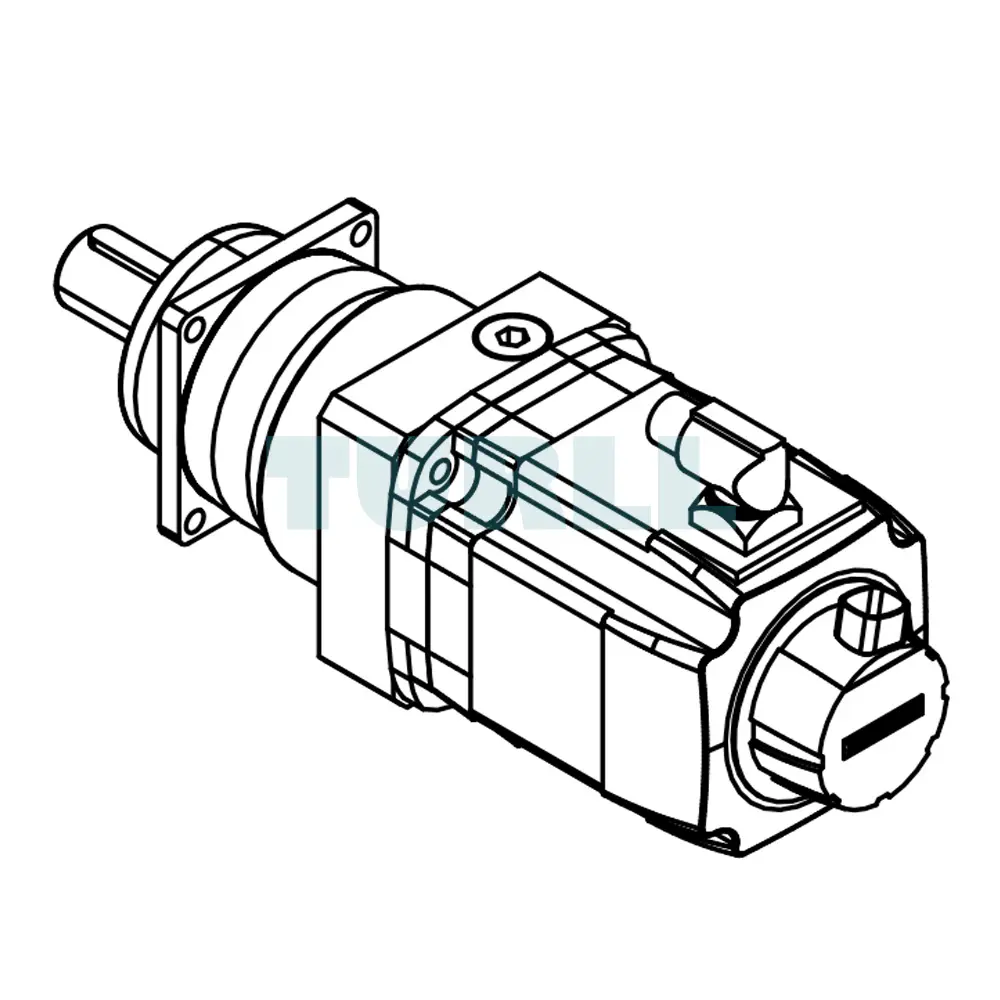

1FK7062-2AF71-1CG1-ZJ05 SIEMENS Exclusive Synchronous Motor Original Brand New

1FK7062-2AF71-1CG1-ZJ05 SIEMENS Exclusive Synchronous Motor Original Brand New

The 1FK7062-2AF71-1CG1-ZJ05 SIEMENS synchronous motor is a premium automation component belonging to the renowned SIMOTICS S-1FK7 series. Engineered for high-performance industrial environments, this model provides precise motion characteristics, stable torque delivery, and reliable operating behavior under continuous duty. With a power rating of 1.9 kW, a DC link voltage of 600 V, and a rated torque of 8.5 Nm, it supports demanding applications requiring efficient speed control and consistent dynamic response.

This model incorporates a naturally cooled IMB 5 motor design in a compact form factor that simplifies installation in various machine configurations. Heat dissipation occurs through the motor’s surface, making the unit suitable for long-term operation without external cooling devices. The integrated AM24DQI encoder provides 24-bit single-turn resolution plus a 12-bit multi-turn function via DRIVE-CLiQ, enabling precise and repeatable positioning for advanced motion systems. A smooth shaft with tolerance N enhances mechanical integration, while the IP65 protection rating supports deployment in environments exposed to dust or moisture.

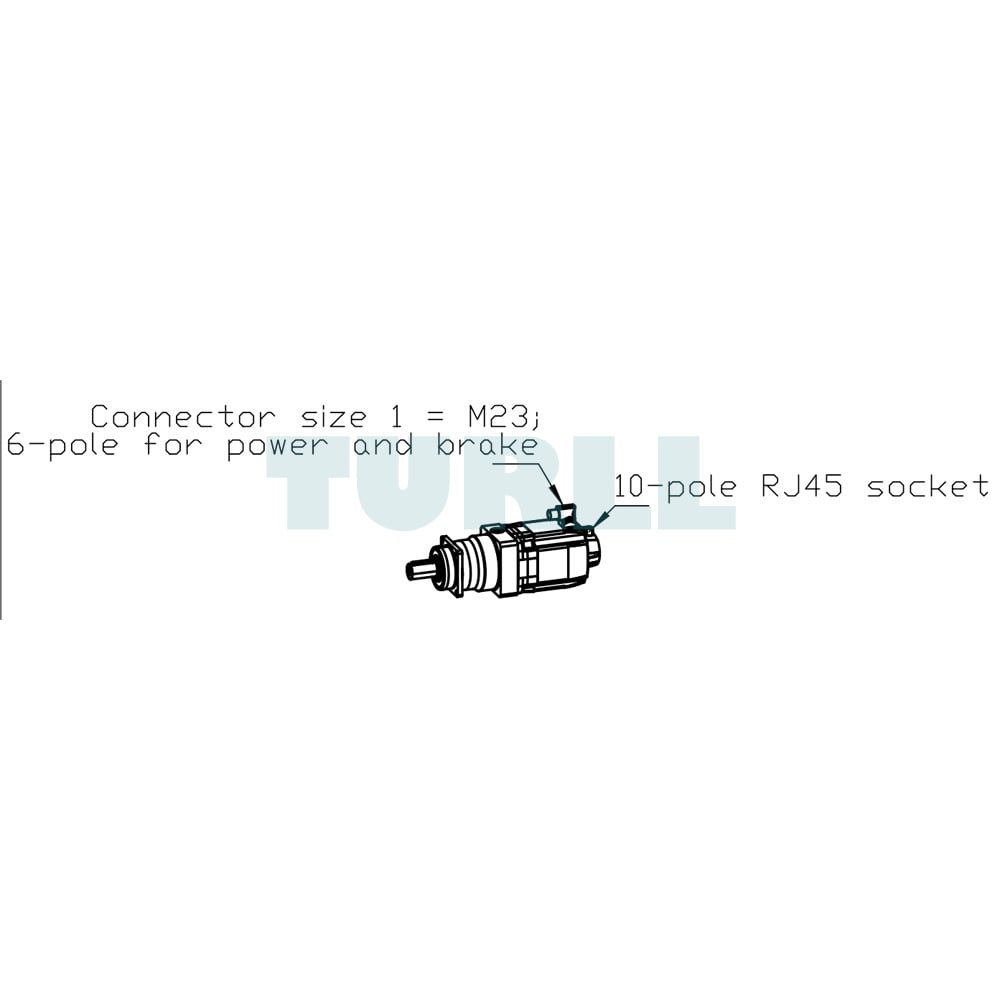

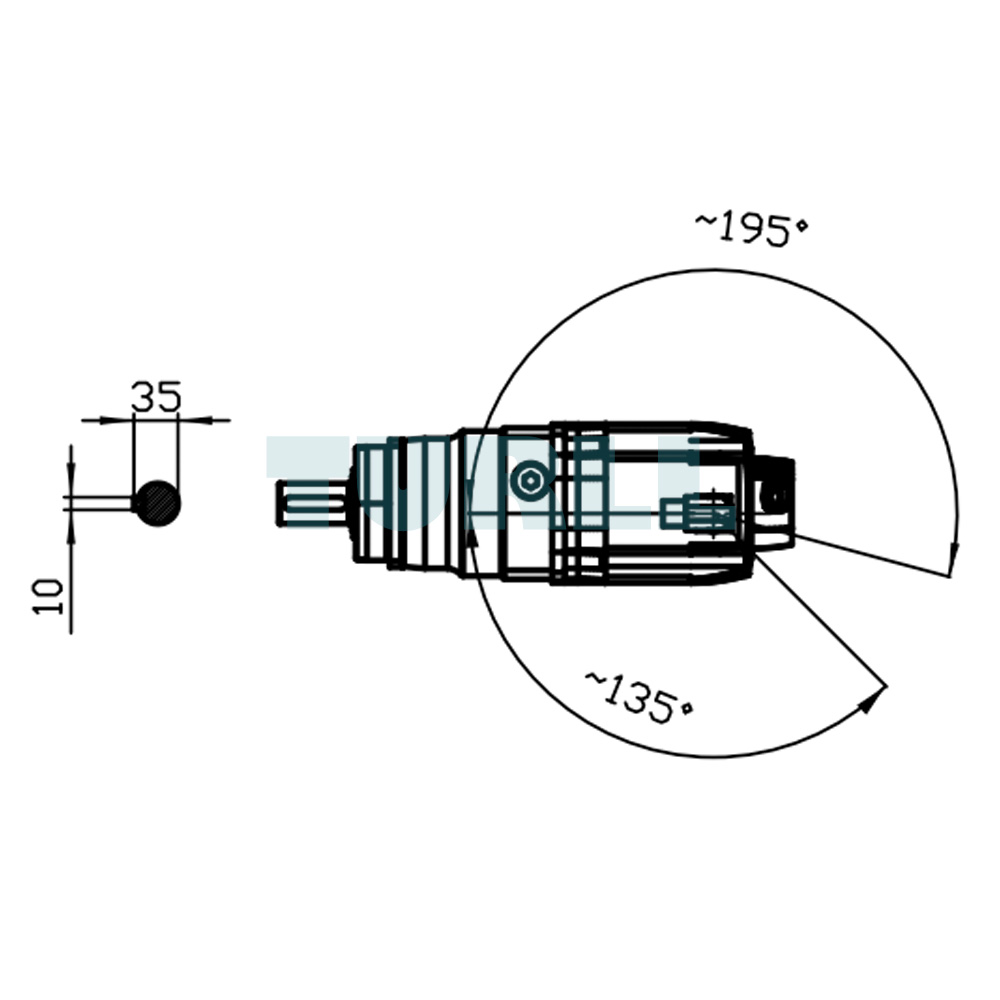

A notable feature of this configuration is the factory-matched ALPHA SP+ planetary gearbox (SP 100S-MF1), offering a single-stage reduction ratio of i=7. This gearing arrangement expands the torque capabilities and broadens the motor’s suitability for applications with high mechanical load demands. Combined with a rotatable power connector, the configuration delivers both functionality and flexibility, making it an attractive solution for integrators seeking adaptability and strong mechanical performance.

Overview

SIMOTICS S-1FK7 motors are permanent-magnet synchronous units designed for adaptable integration into modern machines. The series supports a broad selection of encoders, gearboxes, and mechanical variants, allowing it to accommodate the evolving requirements of advanced automation systems.

When paired with SINAMICS S120 or S220 drive platforms, these motors form a powerful system offering efficient control, dependable feedback accuracy, and reduced commissioning work. Their design supports operation without external cooling and provides a high overload margin for demanding duty cycles.

Key Features

• Compact structure with very high power density
• Flexible adaptation through multiple motor variants
• High dynamic behavior due to low rotor inertia
• Stable closed-loop control for varying load conditions
• Reduced optimization effort for fast machine integration

Applications

• Machine tools
• Robots and automated handling processes
• Glass, stone, wood, and ceramic processing
• Packaging equipment and textile machinery
• Printing systems and auxiliary industrial axes

Download

Data Sheet (PDF)

Product Code:1FK7062-2AF71-1CG1-ZJ05
