1FK7062-2AF71-1CG1-ZJ13 SIEMENS Exclusive Synchronous Motor Original Brand New

1FK7062-2AF71-1CG1-ZJ13 SIEMENS Exclusive Synchronous Motor Original Brand New

The 1FK7062-2AF71-1CG1-ZJ13 SIEMENS synchronous motor is part of the SIMOTICS S-1FK7 series, an established range known for its precision, stability, and efficient mechanical performance. Engineered for modern automation environments, this model offers a 1.9 kW power rating and an excellent torque profile, making it suitable for machines that require consistent motion control with high reliability. Its naturally cooled structure enables effective heat dissipation through the motor surface, supporting continuous operation without external cooling devices. This design improves overall system durability and simplifies integration within complex industrial layouts.

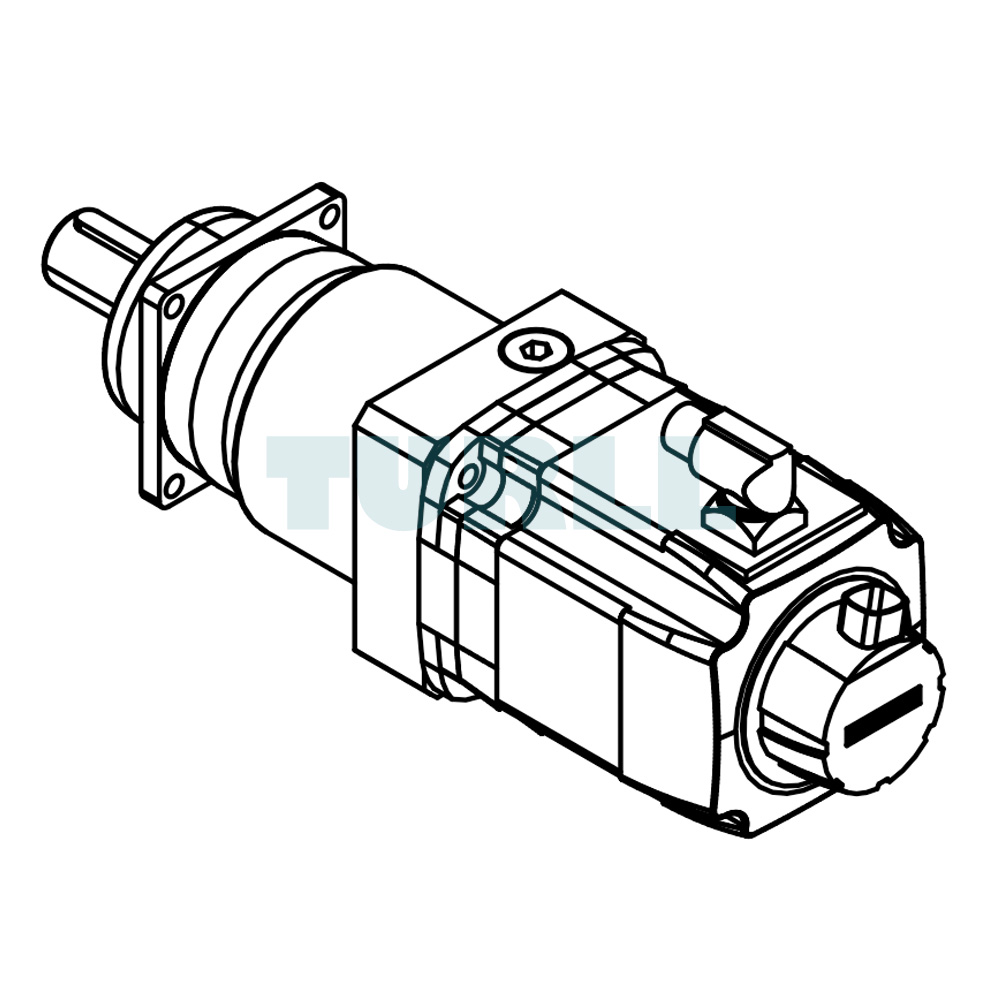

Equipped with an absolute encoder featuring 24-bit resolution plus 12-bit multi-turn capability using the DRIVE-CLiQ interface, the motor provides accurate positional feedback essential for advanced motion control. The smooth shaft with tolerance class N ensures stable mechanical coupling, while the compact IMB 5 design allows versatile mounting. The included ZJ13 configuration integrates the ALPHA SP+ planetary gearbox SP 100S-MF2 with two stages and a reduction ratio of i=20, broadening its usability for high-performance applications that demand controlled speed, dependable transmission characteristics, and minimal backlash sensitivity.

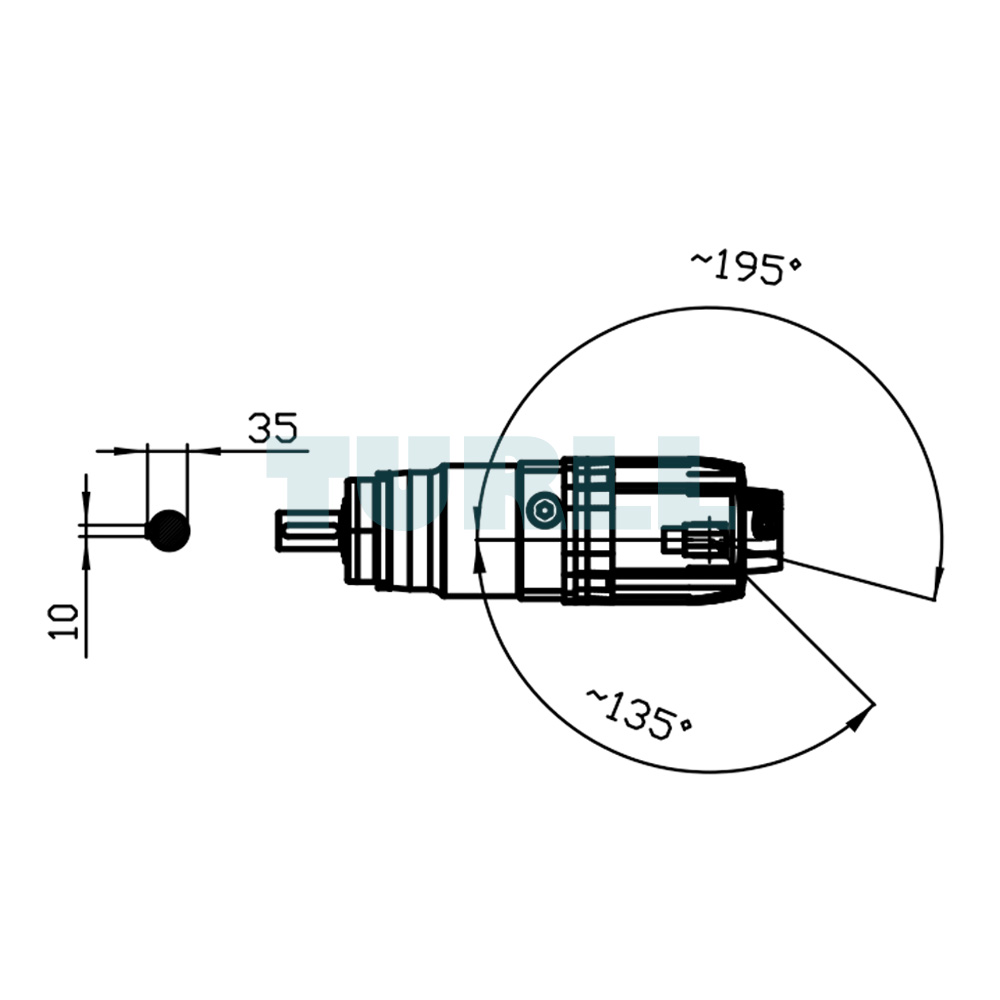

This synchronous motor is optimized for use with SINAMICS S120 and S220 drive systems, forming a responsive and adaptable motion platform. Because of its robust closed-loop control properties, it handles dynamic load changes while retaining smooth drive performance. Its stable construction, high overload capability, and rotatable power connector add convenience during installation and routine service operations. These attributes make the model a suitable option for automation engineers seeking long-term reliability and consistent output.

Overview

SIMOTICS S-1FK7 motors are compact, permanent-magnet synchronous solutions engineered for accuracy and flexibility. With a range of compatible encoders, gear units, and optional configurations, they adapt well to a broad selection of industrial applications. When paired with SINAMICS drives, the series forms a complete control system with excellent responsiveness.

These motors operate without external cooling and are built with a high overload margin. Their design supports modern machinery demands involving frequent acceleration cycles, precise positioning, and efficient thermal handling.

Key Features

• High power density in a compact mechanical form
• Wide selection of compatible options and variants
• Extremely dynamic performance due to low rotor inertia
• Stable control behavior for variable load conditions
• Reduced commissioning efforts with minimal adjustment needs

Applications

• Machine tools
• Robotic systems and automated handling
• Wood, glass, ceramic, and stone processing
• Packaging and textile machinery
• Printing systems
• Auxiliary mechanical axes

Download

Data Sheet (PDF)

Product Code: 1FK7062-2AF71-1CG1-ZJ13
