1FK7062-2AF71-1CH2 SIEMENS Exclusive Synchronous Motor Original Brand New

1FK7062-2AF71-1CH2 SIEMENS Exclusive Synchronous Motor Original Brand New

The 1FK7062-2AF71-1CH2 SIEMENS synchronous motor is part of the advanced SIMOTICS S-1FK7 series, engineered to deliver stable motion performance, consistent torque output, and reliable efficiency for demanding industrial environments. With a power rating of 1.9 kW, a DC link voltage of 600 V, and a nominal speed of 3000 rpm, this motor supports a wide range of machine configurations requiring accuracy and durability. Its naturally cooled design allows heat to dissipate through the motor frame, enabling continuous operation without additional cooling elements. This construction also contributes to improved long-term stability and simplified integration into existing equipment layouts.

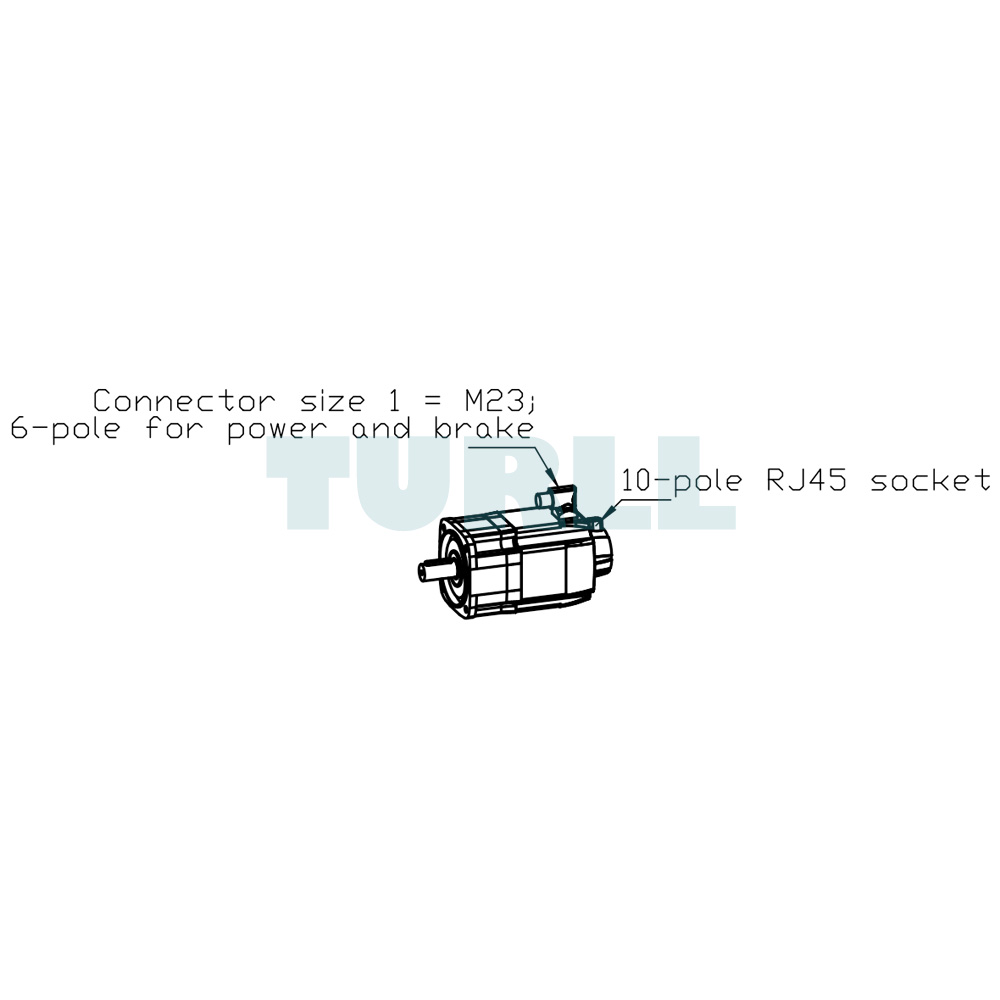

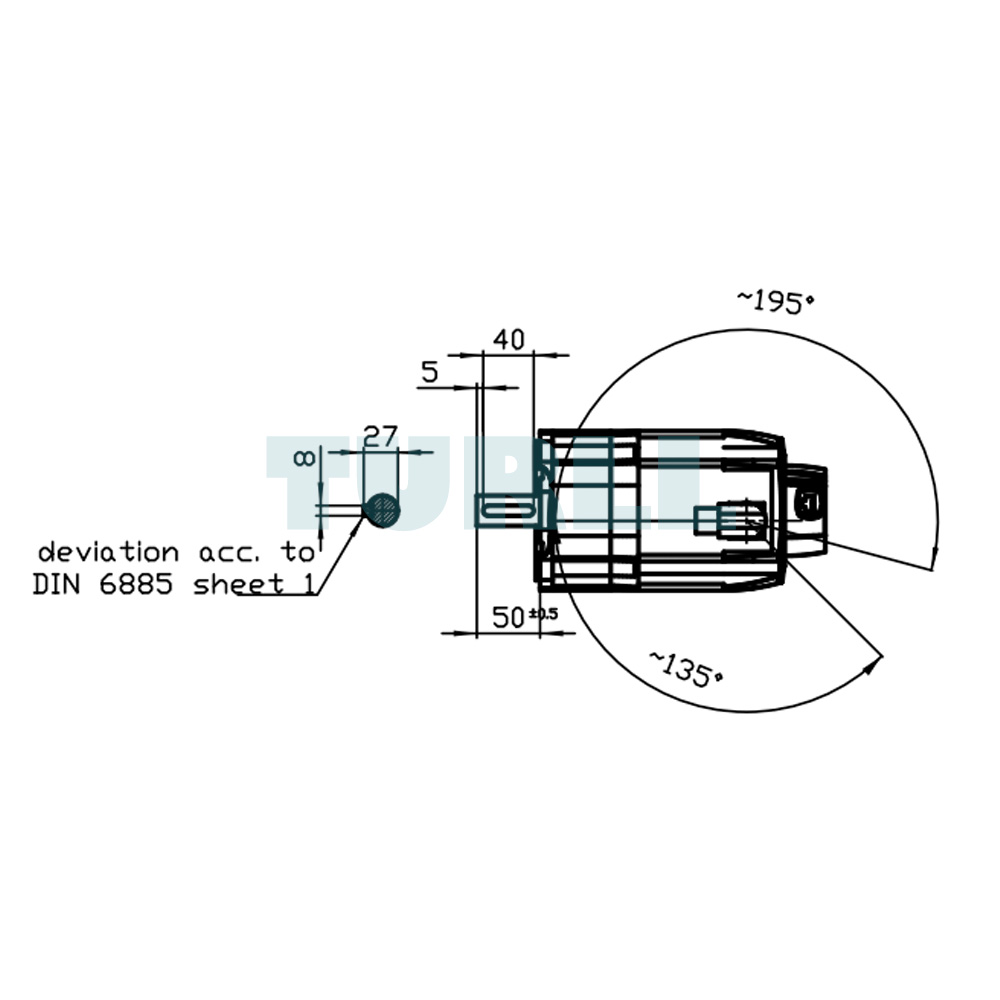

The 1FK7062-2AF71-1CH2 features a rotatable power connector, a smooth shaft with standard tolerance, and a holding brake, making it suitable for applications where secure load positioning is essential. The Drive-CLiQ absolute encoder AM24DQI provides a 24-bit resolution with an additional 12-bit multi-turn capability, supporting high-precision feedback and dependable control performance. These characteristics help ensure responsive behavior across a range of operational speeds, making this model a strong option for automated processes requiring repeatability and accuracy.

Designed to combine seamlessly with SINAMICS S120 or S220 drive platforms, the motor forms a flexible and powerful drive system with enhanced motion capabilities. Its mechanical robustness and protection class of IP65, with IP67 at the drive-end flange, make it suitable for industrial environments where resistance to dust and moisture is essential. This combination of features makes the motor adaptable for machine builders and system integrators seeking dependable performance with minimal commissioning effort.

Overview

SIMOTICS S-1FK7 motors are compact synchronous motors using permanent-magnet technology. The broad selection of encoders, gear units, and mechanical variants ensures that the series can be adapted to many automated systems. When paired with SINAMICS drive systems, they deliver responsive speed control, efficient power usage, and high functional versatility.

These motors are developed for operation without external cooling and offer high overload capability. They are designed to meet the growing demands of modern automated machinery, supporting applications that require fast cycle times and consistent precision.

Key Features

• High power density for compact installations
• Wide portfolio for universal industrial applications
• High dynamic performance with low rotor inertia
• Stable closed-loop behavior with varying load inertia
• Reduced commissioning time and simplified optimization

Applications

• Machine tools
• Robotics and handling systems
• Wood, glass, ceramics, and stone machining
• Packaging and material processing machinery
• Printing, plastics, and textile equipment
• Auxiliary industrial axes

Download

Data Sheet (PDF)

Product Code: 1FK7062-2AF71-1CH2
