1FK7062-2AF71-1RH0 SIEMENS Exclusive Synchronous Motor Original Brand New

1FK7062-2AF71-1RH0 SIEMENS Exclusive Synchronous Motor Original Brand New

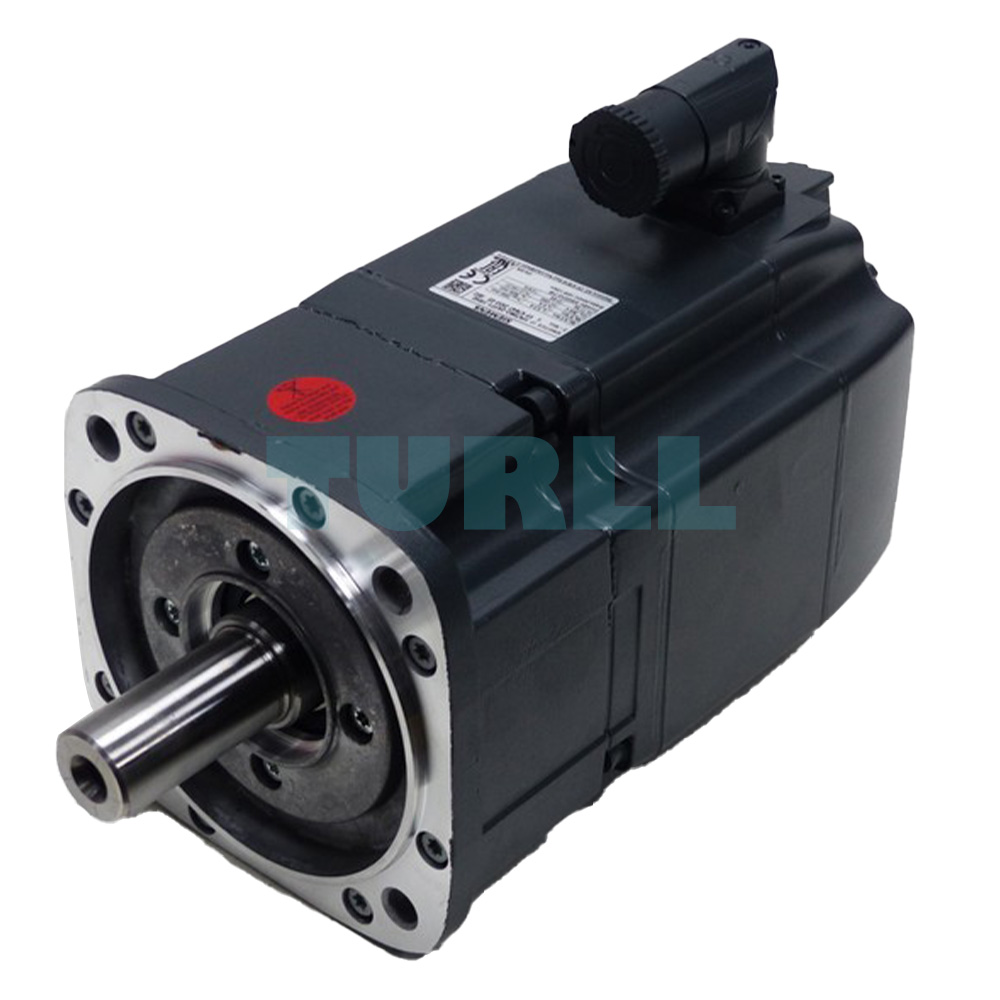

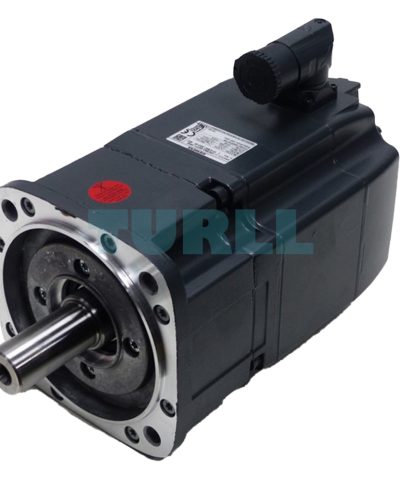

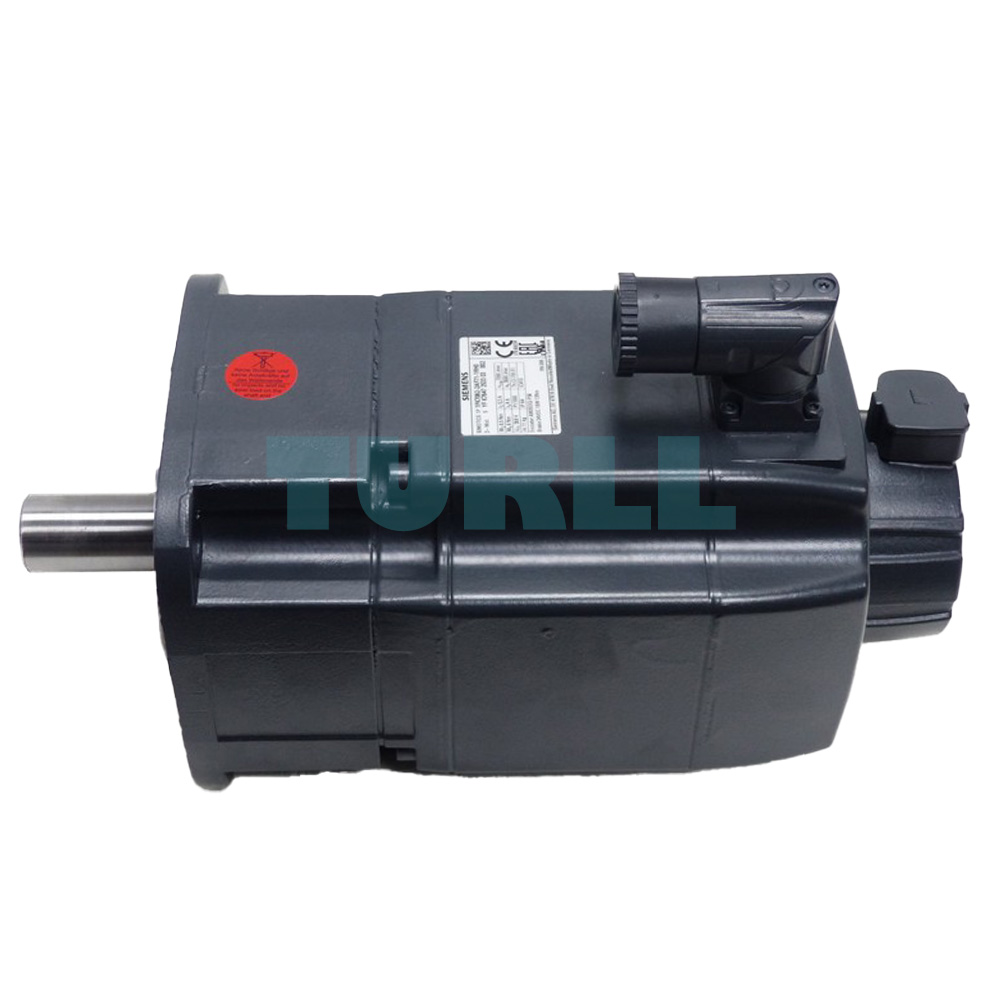

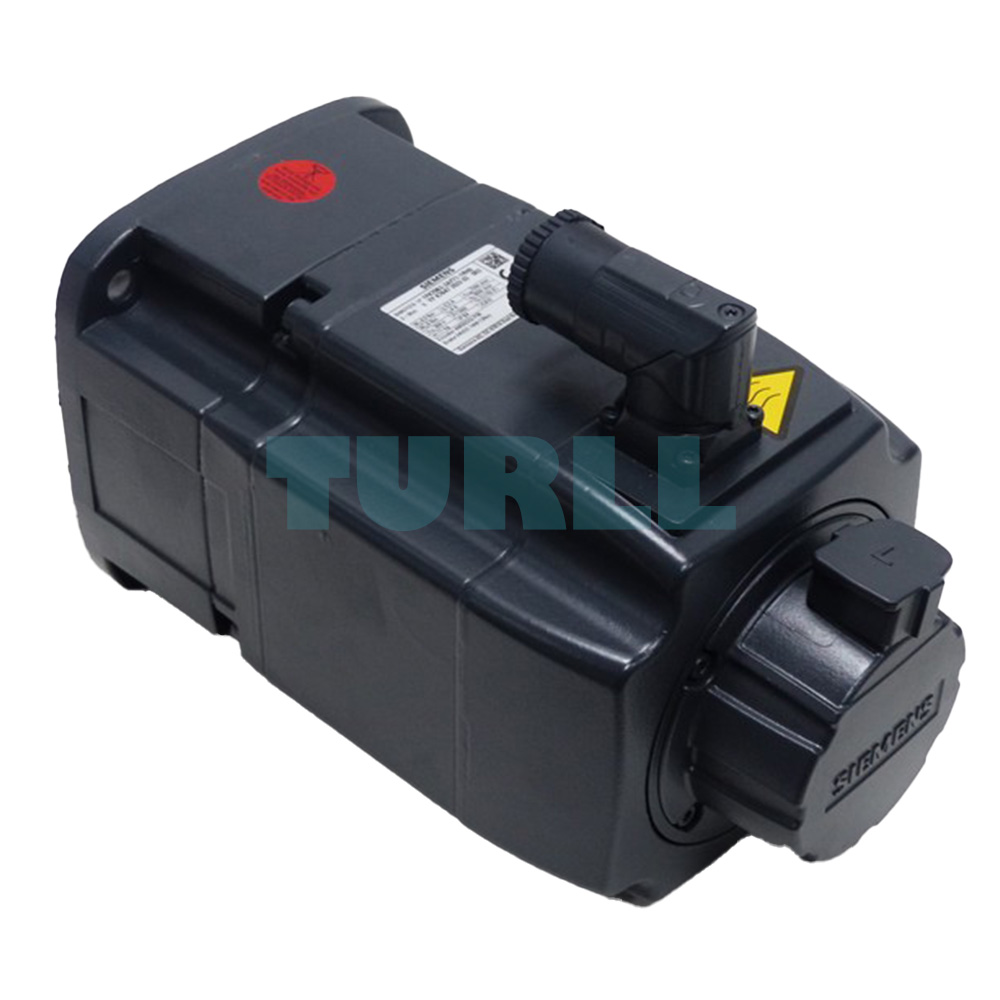

The 1FK7062-2AF71-1RH0 SIEMENS synchronous motor is part of the advanced SIMOTICS S-1FK7 portfolio, offering dependable performance for modern automation environments that require accuracy, efficiency, and long operating life. Designed with a naturally cooled structure, this model transfers heat through the motor surface, maintaining stable thermal behavior without external cooling components. Its compact IMB 5 design enables smooth integration into various mechanical layouts while maintaining a robust level of protection for demanding industrial settings.

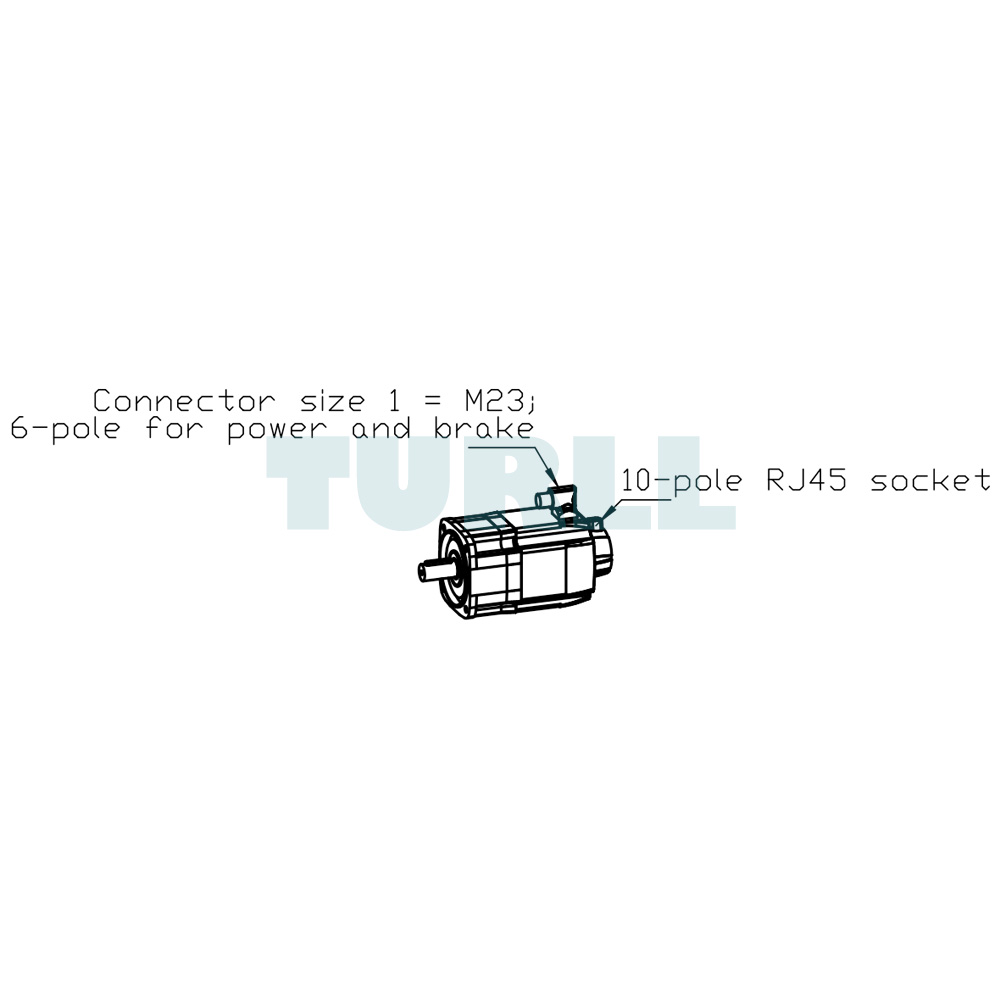

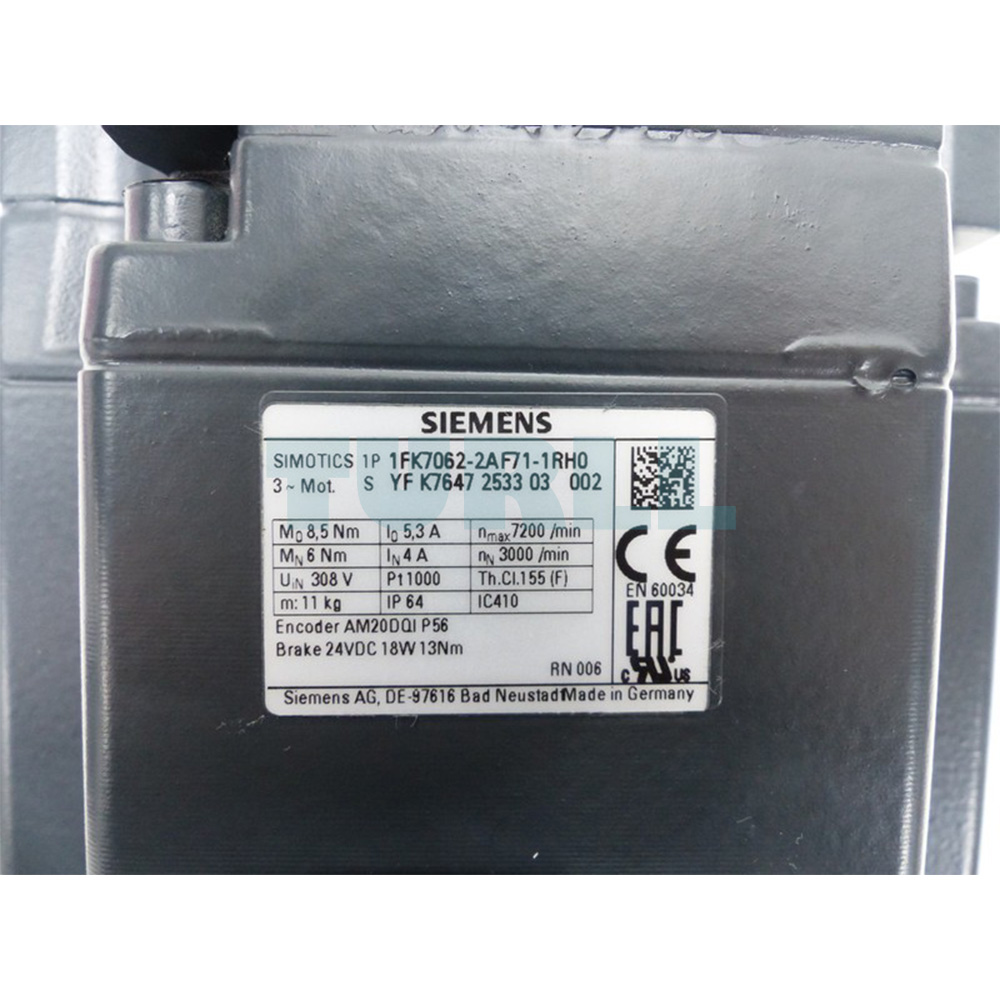

This model provides a power rating of 1.9 kW and delivers a continuous torque of 8.5 Nm, making it suitable for applications that involve repeated motion cycles and rapid positioning. With a nominal speed of 3000 rpm, it supports high-precision control and excellent dynamic stability. The integrated AM20DQI absolute encoder offers detailed multi-turn and single-turn position feedback, ensuring exceptional accuracy for advanced motion tasks. A rotatable power connector simplifies installation where space constraints are present, while the smooth shaft and integrated holding brake contribute to dependable performance under different load conditions.

The 1FK7062-2AF71-1RH0 pairs seamlessly with SINAMICS S120 or S220 drive systems, forming a complete motion solution that supports precise synchronization and consistent torque delivery. Its construction emphasizes reliability, reduced commissioning adjustments, and compatibility with a wide range of industrial machines. With IP64 protection, the motor operates safely in environments exposed to dust or occasional splashes.

Overview

SIMOTICS S-1FK7 motors utilize compact permanent-magnet technology to support evolving requirements across numerous automation fields. They offer a broad selection of encoders and mechanical options that allow users to adapt the motor to specific performance needs. The motor series handles load variations effectively, benefiting from strong overload capability and stable operation without additional cooling hardware.

Key Features

• High power density suitable for compact machine layouts
• Versatile mechanical and encoder configurations
• Low rotor inertia for dynamic acceleration behavior
• High-inertia variants available for variable load conditions
• Reduced commissioning and tuning effort

Applications

• Machine tools
• Robotics and automated handling
• Glass, ceramics, wood, and stone processing
• Packaging and material-forming systems
• Textile, plastics, and printing machinery
• Auxiliary axis applications

Download

Data Sheet (PDF)

Product Code: 1FK7062-2AF71-1RH0
