1FK7062-2AF71-1RH2 SIEMENS Exclusive Synchronous Motor Original Brand New

1FK7062-2AF71-1RH2 SIEMENS Exclusive Synchronous Motor Original Brand New

The 1FK7062-2AF71-1RH2 SIEMENS synchronous motor is part of the renowned SIMOTICS S-1FK7 lineup, a series known for consistent precision, stable performance, and long-term reliability in advanced automation environments. This motor is engineered to deliver smooth torque, dependable operation, and high-grade mechanical robustness across numerous industrial applications. With its naturally cooled structure, heat is dissipated evenly through the motor surface, enabling continuous-duty performance even under challenging conditions. This design minimizes thermal stress while supporting consistent efficiency throughout extended operation cycles.

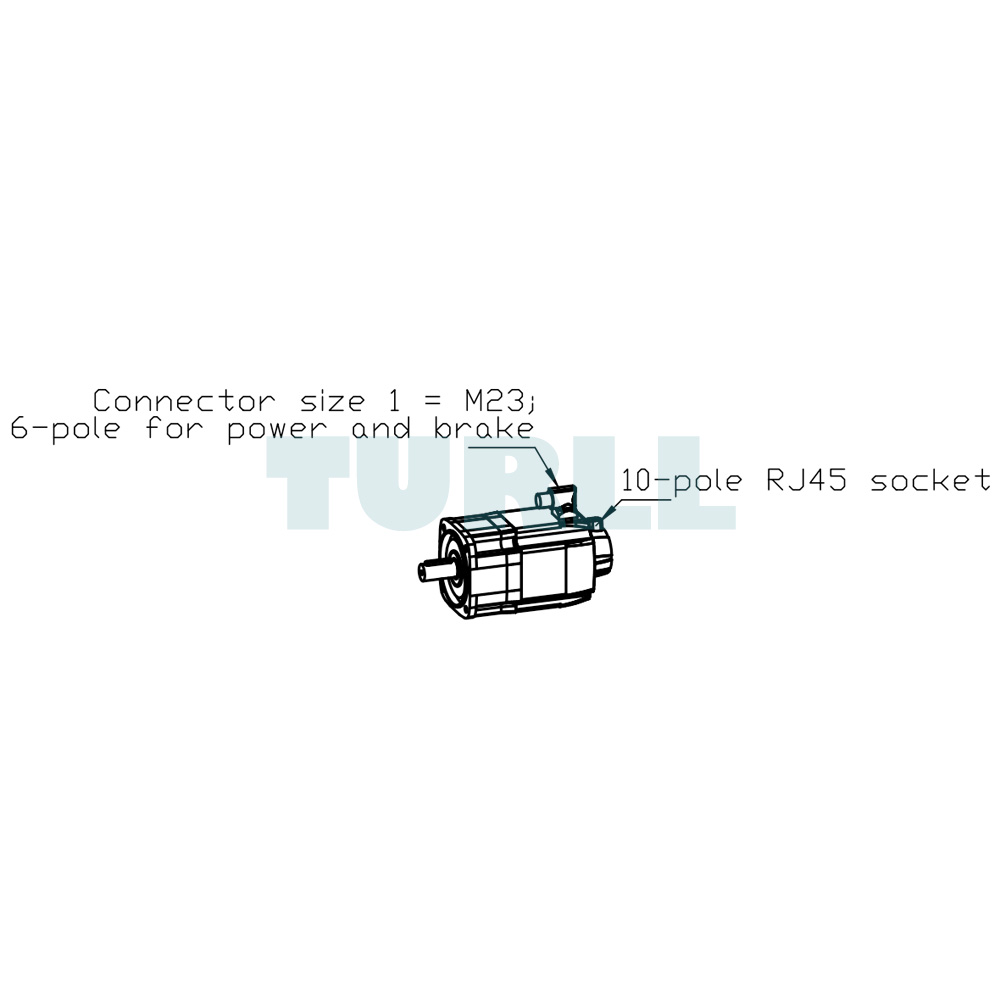

Built with a 1.9 kW power rating and designed for a 600 V DC link, the motor offers a refined balance of speed, torque, and structural integrity. The 8.5 Nm torque rating at 100K and a nominal speed of 3000 rpm provide the responsiveness needed for motion tasks requiring accurate rotational behavior. A rotatable power connector simplifies integration in compact machine spaces, and the DRIVE-CLiQ encoder system ensures high-resolution feedback for coordinated drive control. The AM20DQI encoder combines a 20-bit absolute single-turn resolution with a 12-bit multi-turn capability, contributing to accurate and consistent positioning.

The 1FK7062-2AF71-1RH2 is designed for compatibility with SINAMICS S120 and S220 drive systems, creating a unified solution that optimizes dynamics, positioning accuracy, and energy use. This motor supports various industries where precision and repeatability are essential. Its smooth shaft and integrated holding brake further expand the potential configurations, providing flexibility for designers and machine builders. Industrial environments requiring stability under frequent acceleration cycles benefit greatly from its construction and overload reserve.

Overview

SIMOTICS S-1FK7 motors feature compact permanent-magnet synchronous technology. The broad combination of encoders, gear units, and mechanical variants allows these motors to be matched to multiple machine concepts. Their compatibility with SINAMICS drive systems results in a powerful and flexible automation platform that meets the requirements of modern production.

Benefits

• High power density enabling space-efficient installation
• Wide configuration range for numerous applications
• Dynamic performance due to optimized rotor mass
• Robust closed-loop control for varying inertia loads
• Minimal commissioning effort and reduced optimization demands

Applications

• Machine tools
• Robotics and automated handling
• Glass, stone, metal, and wood processing
• Packaging, plastics, and textile machinery
• Printing equipment
• Auxiliary industrial axes

Download

Data Sheet (PDF)

Product Code: 1FK7062-2AF71-1RH2
