Siemens Contactor AC-3 95A/45kW 400V 1NO1NC, 48 VAC, 50 Hz 3-pole, Size S3 Screw terminal
Backorder available · Factory lead time 2–3 weeks.
Siemens Contactor AC-3 95A/45kW 400V 1NO1NC, 48 VAC, 50 Hz 3-pole, Size S3 Screw terminal

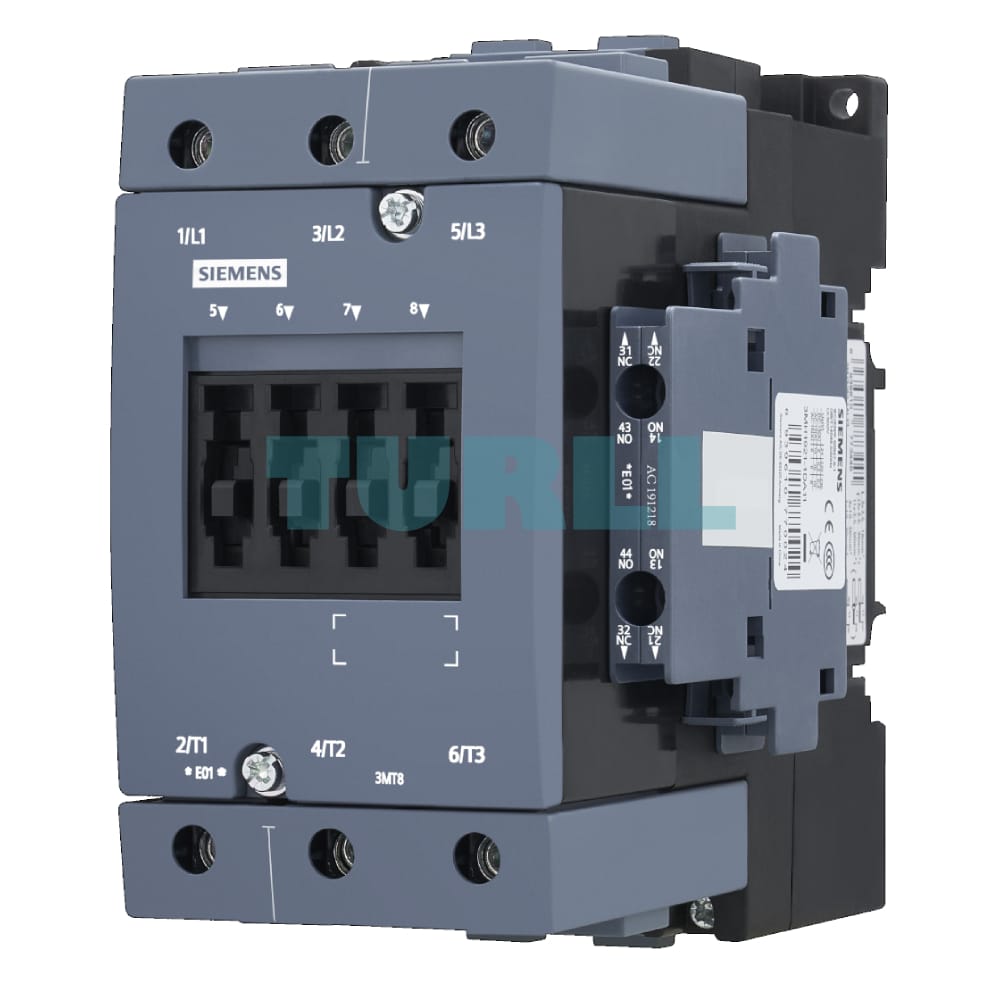

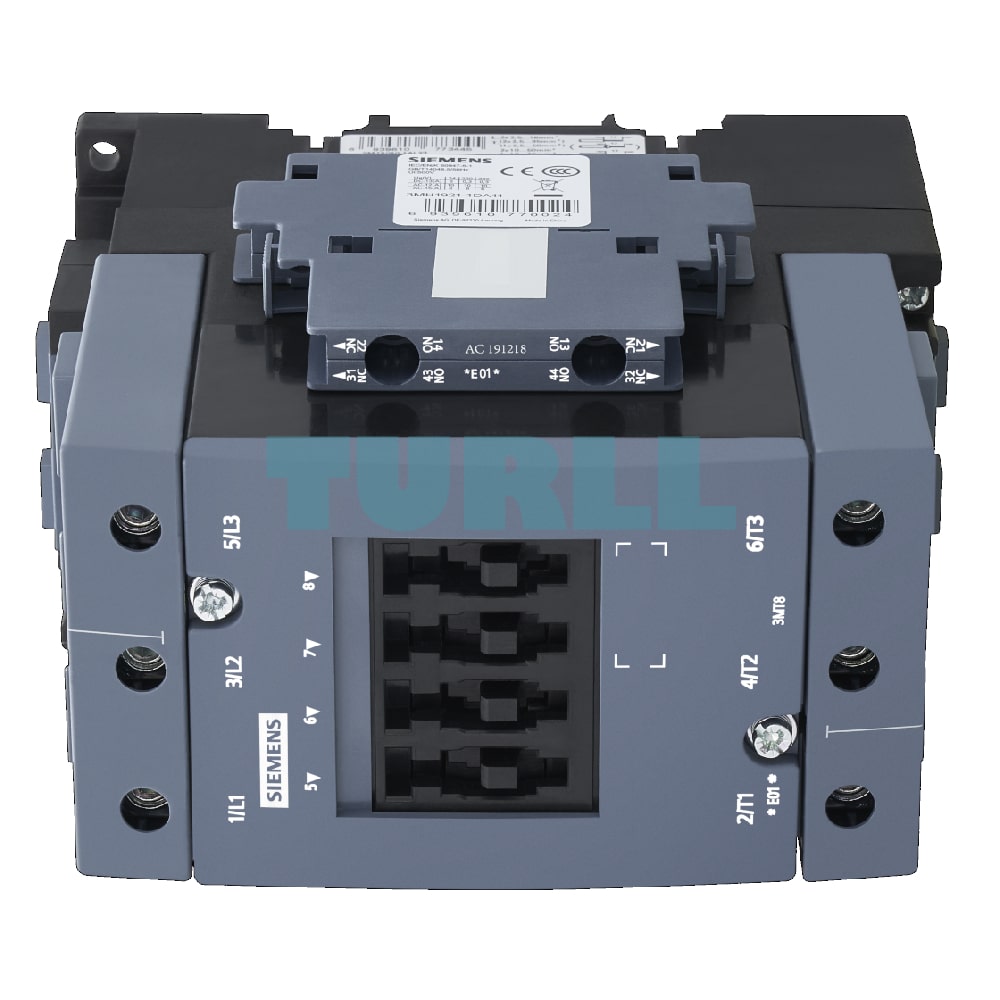

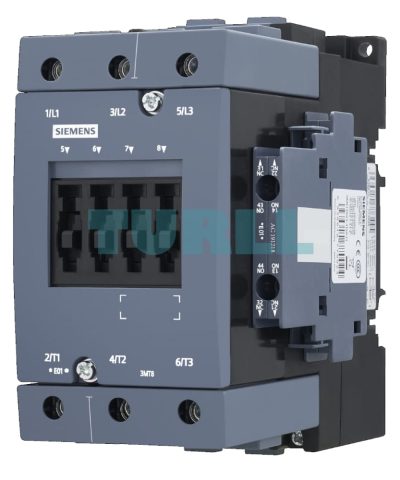

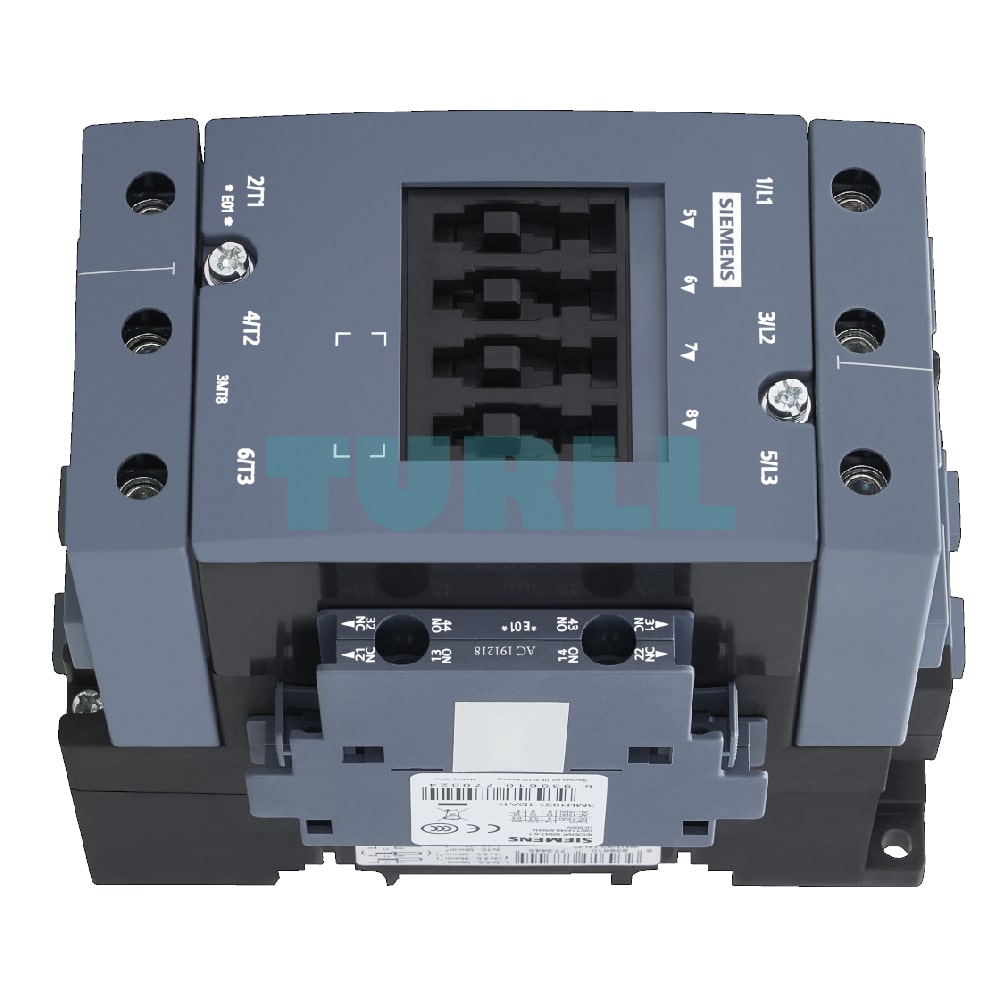

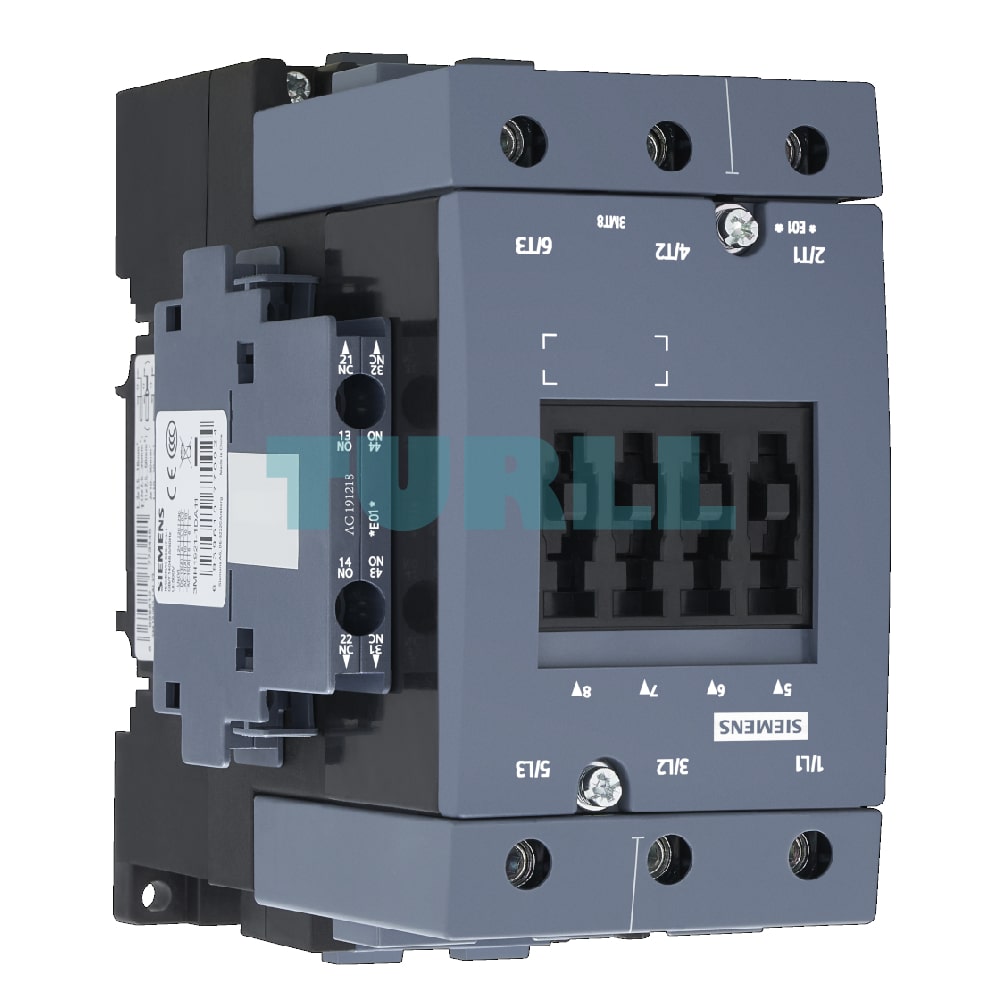

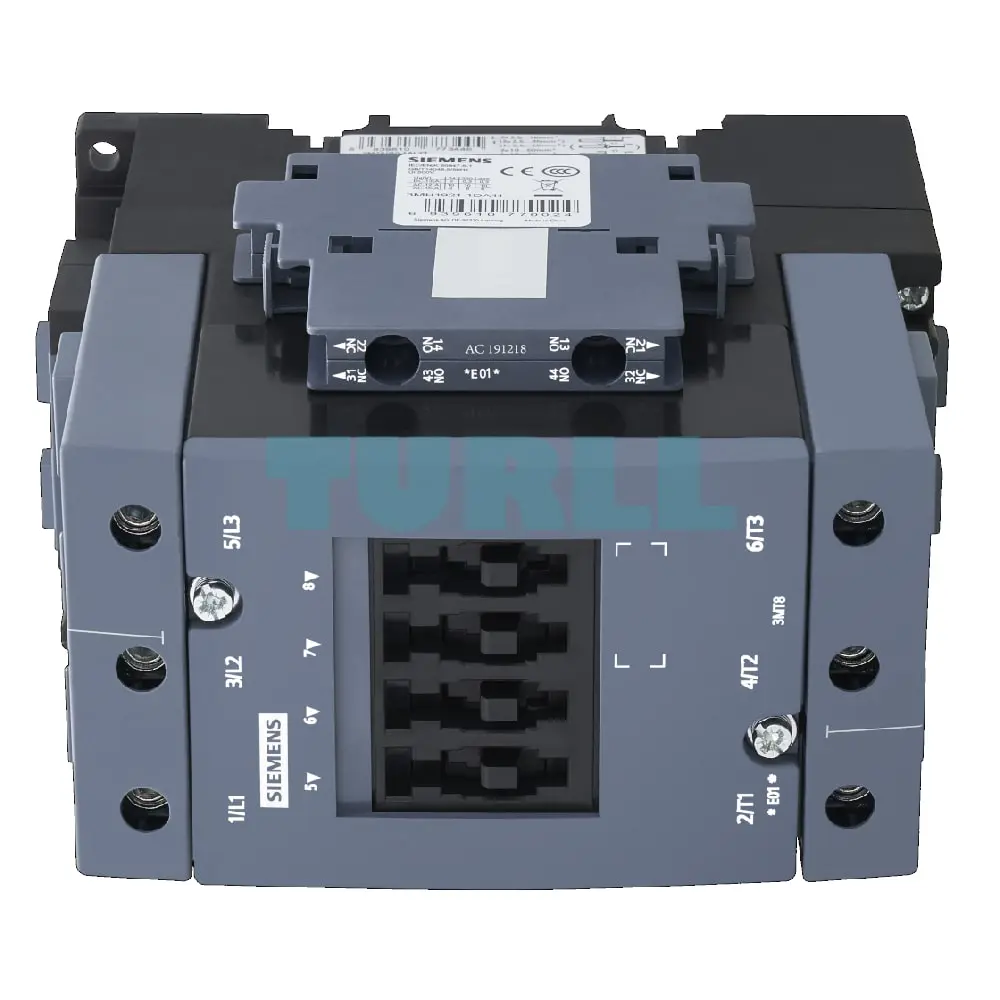

Siemens 3MT8095‑1AH03 is a robust, high-capacity SIRIUS power contactor (Size S3, long housing) engineered for industrial motor control. Rated for AC‑3 switching at 95 A, it can manage 45 kW at 400 V, making it ideal for medium-to-large three-phase motor applications. The device features a 3-pole configuration with secure screw-terminals for reliable connections, and includes 2 NO + 2 NC auxiliary contacts, allowing integration with control circuits or feedback systems. Designed for demanding environments, it adheres to IEC 60947-4-1 standards, offering a 1,000 V insulation rating, pollution degree 3, and a surge voltage resistance of 6 kV. The long-frame housing not only simplifies wiring but also provides space for accessories like mechanical interlocks, varistors, and supplemental auxiliaries. With a mechanical service life of around 10 million cycles, it's built to withstand frequent, heavy-duty switching
Visit 3MT8095-1AH03
For more our products visit turll.com
| SKU / Model | 3MT8095-1AH03 |
|---|---|
| Weight | 1.68 kg |
| Dimensions | 90 × 160 × 167 mm |
