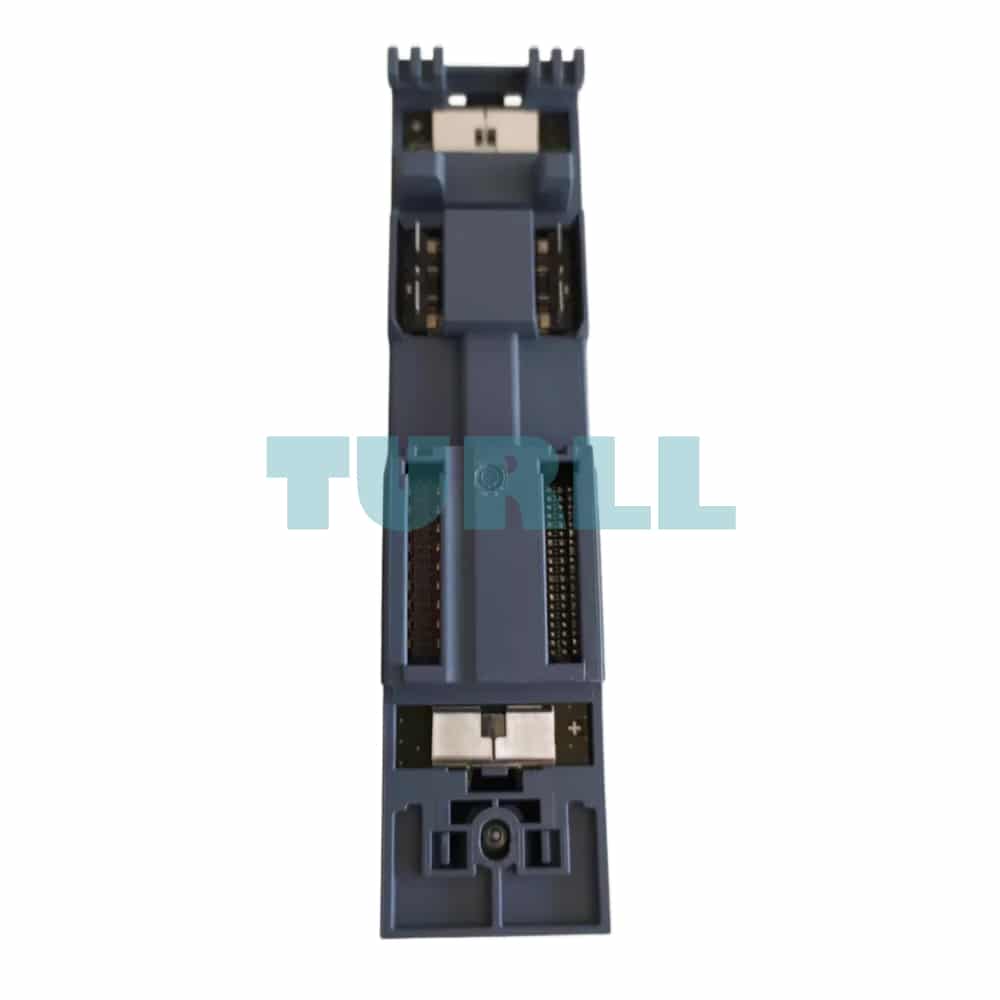

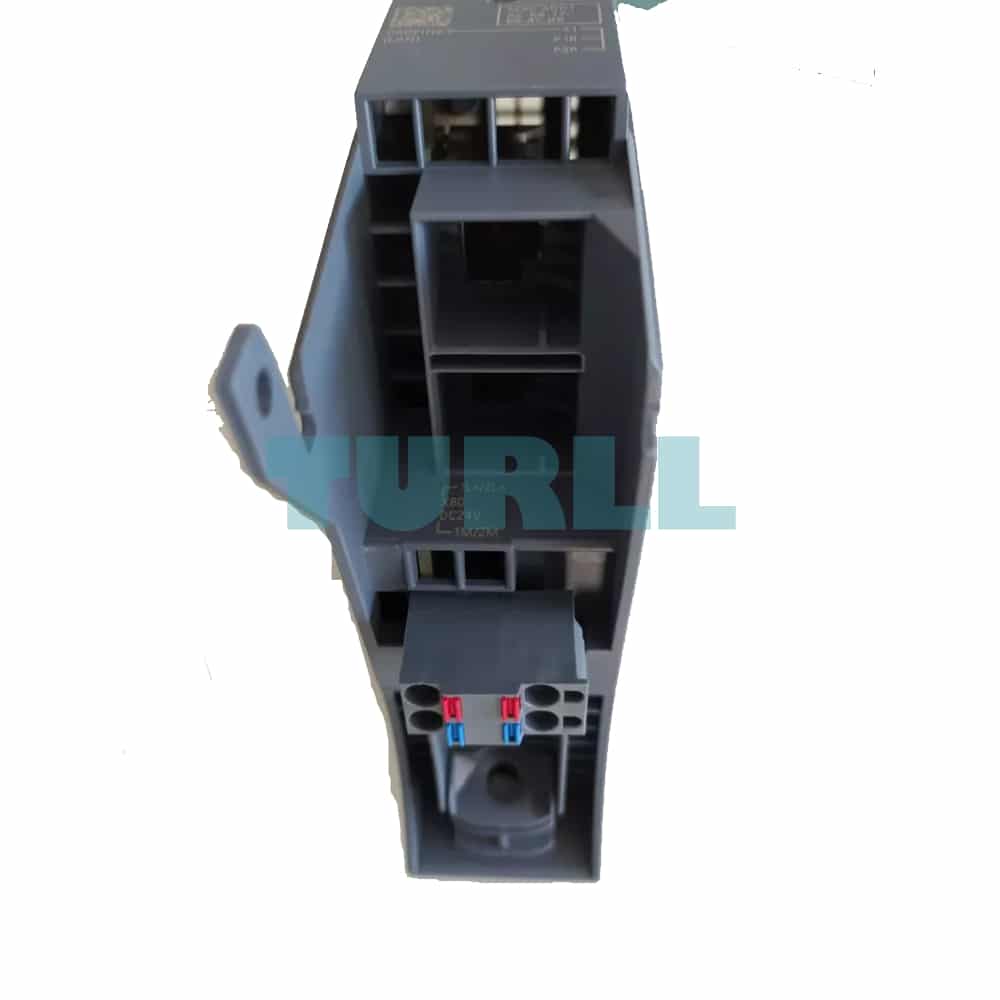

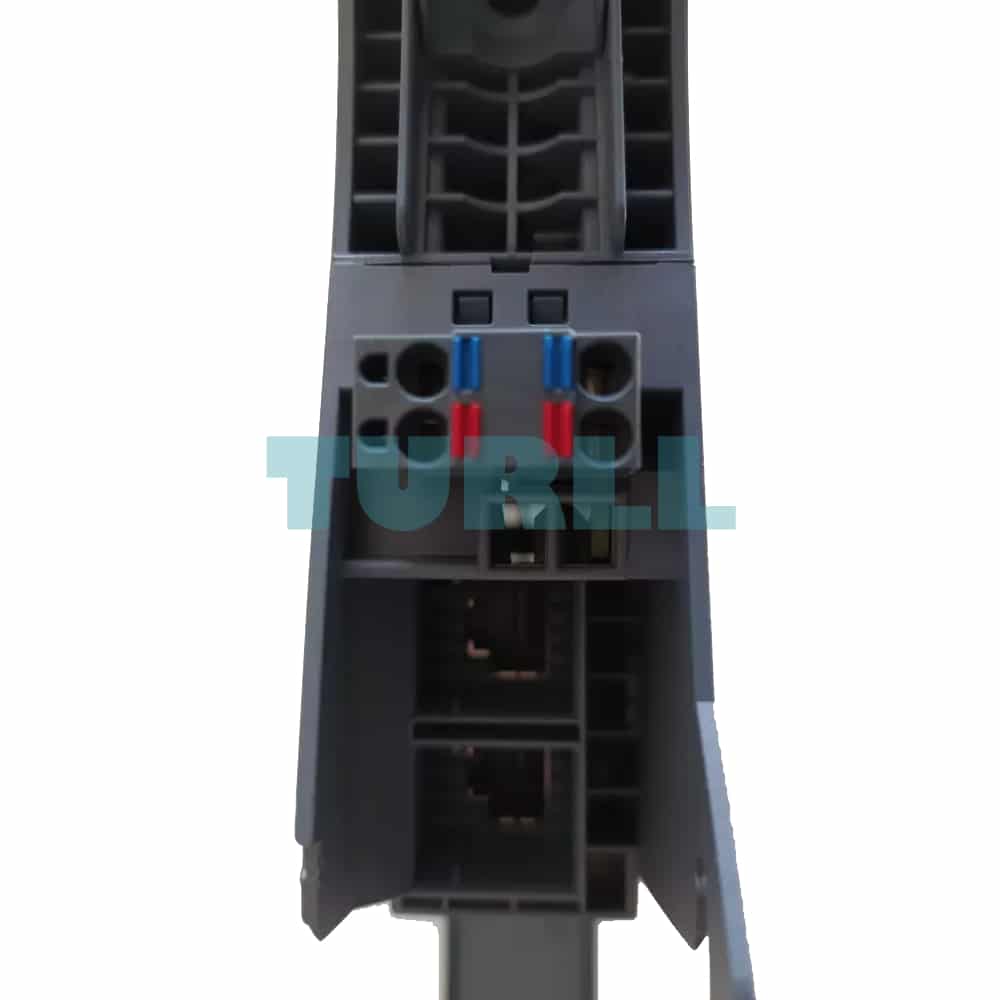

6AG1155-5BA00-2AB0 Siemens SIPLUS ET 200MP IM155-5 DP ST
6AG1155-5BA00-2AB0 Siemens SIPLUS ET 200MP IM155-5 DP ST
6AG1155-5BA00-2AB0 Siemens SIPLUS ET 200MP IM155-5 DP ST
6AG1155-5BA00-2AB0 Siemens SIPLUS ET 200MP IM155-5 DP ST

6AG1155-5BA00-2AB0 Siemens SIPLUS ET 200MP IM155-5 DP ST Original Brand New

Model / SKU6AG1155-5BA00-2AB0

6AG1155-5BA00-2AB0

Siemens SIPLUS ET 200MP IM155-5 DP ST based on 6ES7155-5BA00-0AB0 with conformal coating, -40…+60 °C, start up -25 °C, PROFIBUS connection for max. 12 S7-1500 modules

$1,775.17
Available on backorder
  • ConditionOriginal Brand New
  • Warranty12 months

Backorder available · Factory lead time 2–3 weeks.

Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

[ez-toc]

Overview

  • Interface module for linking the ET 200MP to PROFIBUS
  • Handles data exchange with the PROFIBUS device in the PLC
  • Max. 12 I/O modules
  • Automatic detection of baud rate 9.6 kBd ... 12 MBd
  • PROFIBUS addresses 1 ... 125; adjustable using DIP switches
  • Identification and maintenance data IM0 ... IM3

Note:

SIPLUS extreme products are based on SIMATIC standard products. The contents listed here were taken from the respective standard products. SIPLUS extreme-specific information was added.

Application

The IM 155-5 DP ST interface module enables the connection of ET 200MP to PROFIBUS and handles the communication between the modules and the higher-level PROFIBUS master autonomously in the PLC.

Design

The IM 155-5 DP ST interface module is screwed directly onto the S7-1500 mounting rail. The IM 155-5 DP ST features the following:

  • Diagnostics display for error (Error), operation (RUN), and maintenance (MAINT).
  • Connection to PROFIBUS using 9-pin SUB-D-connector; one PROFIBUS connector of type 6ES7972-0BB70-0XA0 is included in the delivery scope.
  • 24 V DC supply unit for looping through the supply voltage.
  • Protection of interface module against unauthorized access possible using lock, seal or cable tie.

6AG1155-5BA00-2AB0

Siemens SIPLUS ET 200MP IM155-5 DP ST based on 6ES7155-5BA00-0AB0 with conformal coating, -40…+60 °C, start up -25 °C, PROFIBUS connection for max. 12 S7-1500 modules

Visit 6AG1155-5BA00-2AB0

For more our products visit turll.com

Specifications

SKU / Model6AG1155-5BA00-2AB0
Weight0.419 kg
Dimensions150 × 150 × 45 mm
