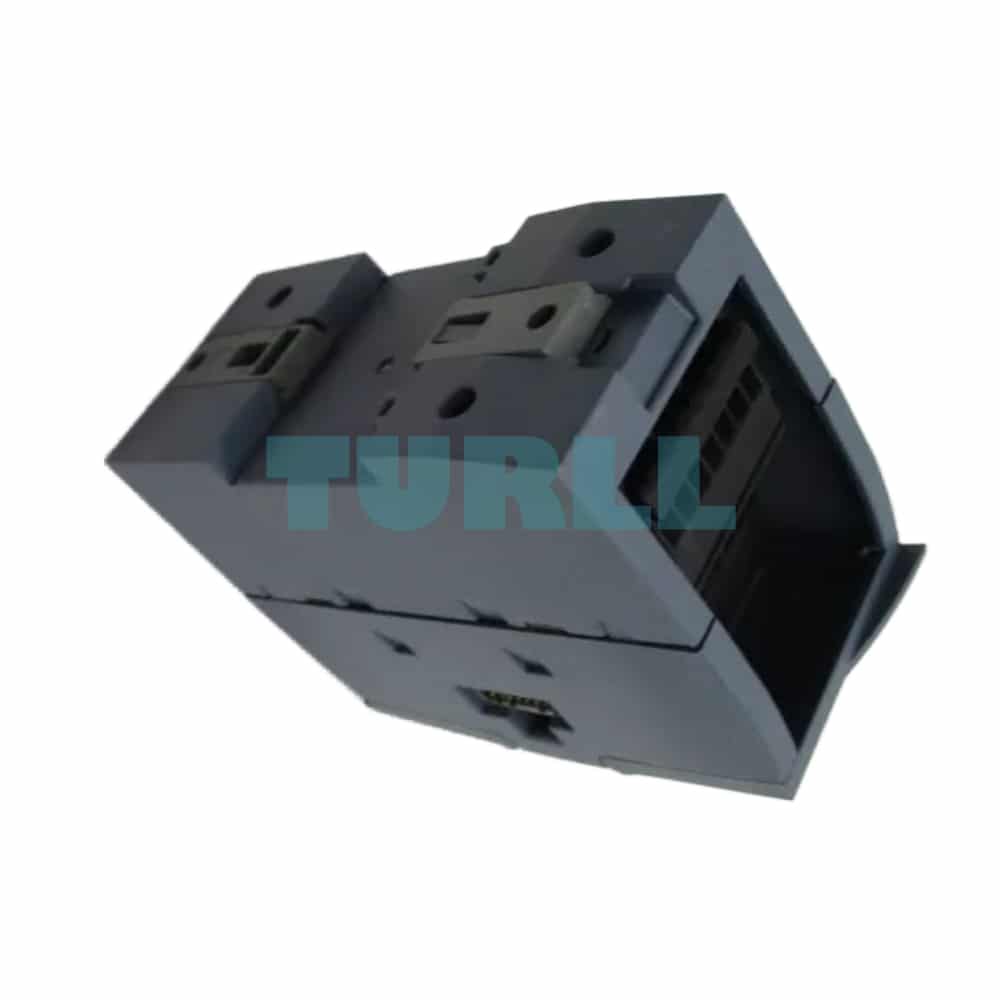

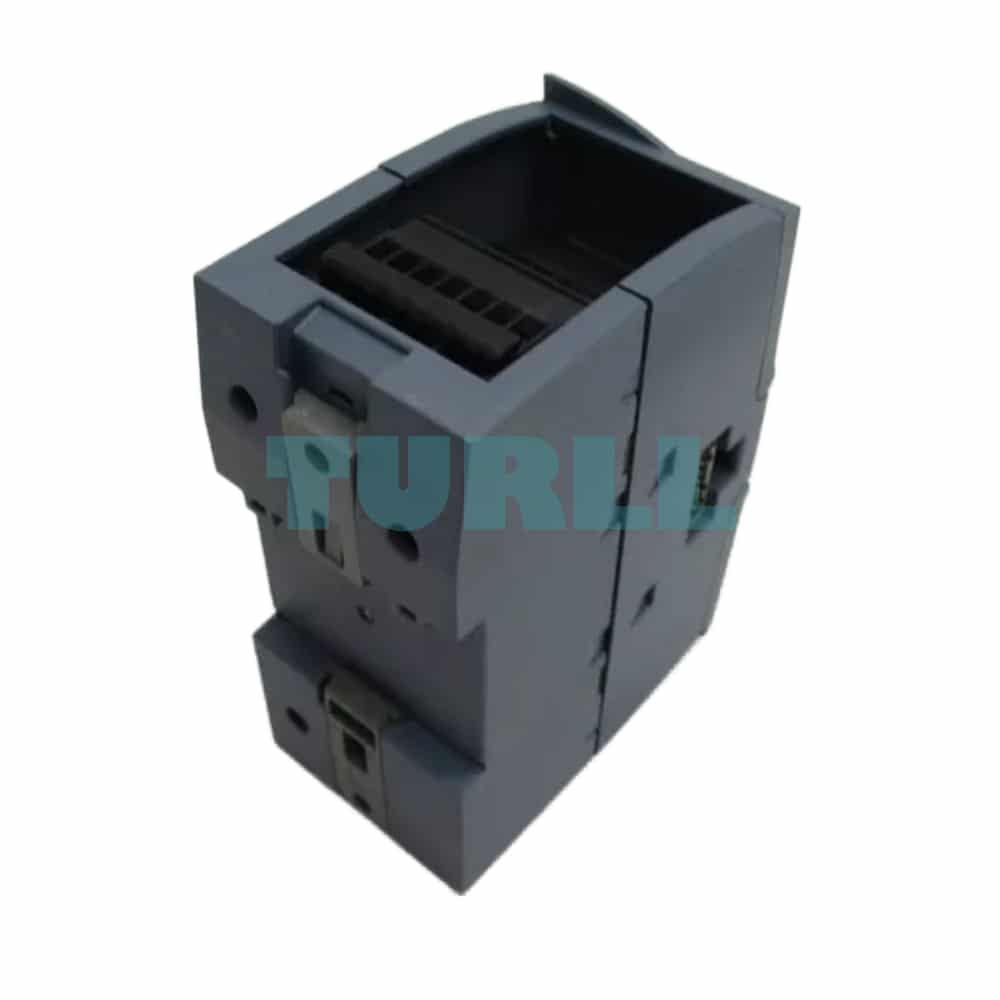

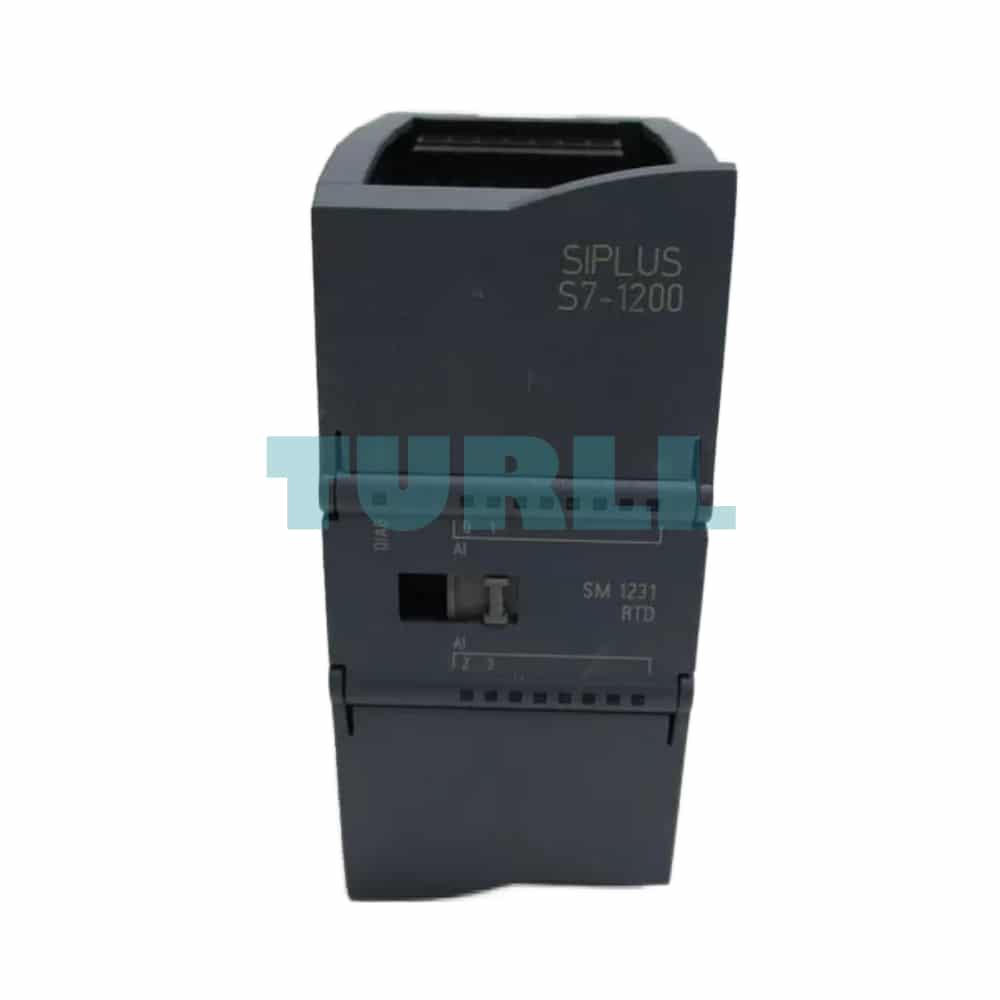

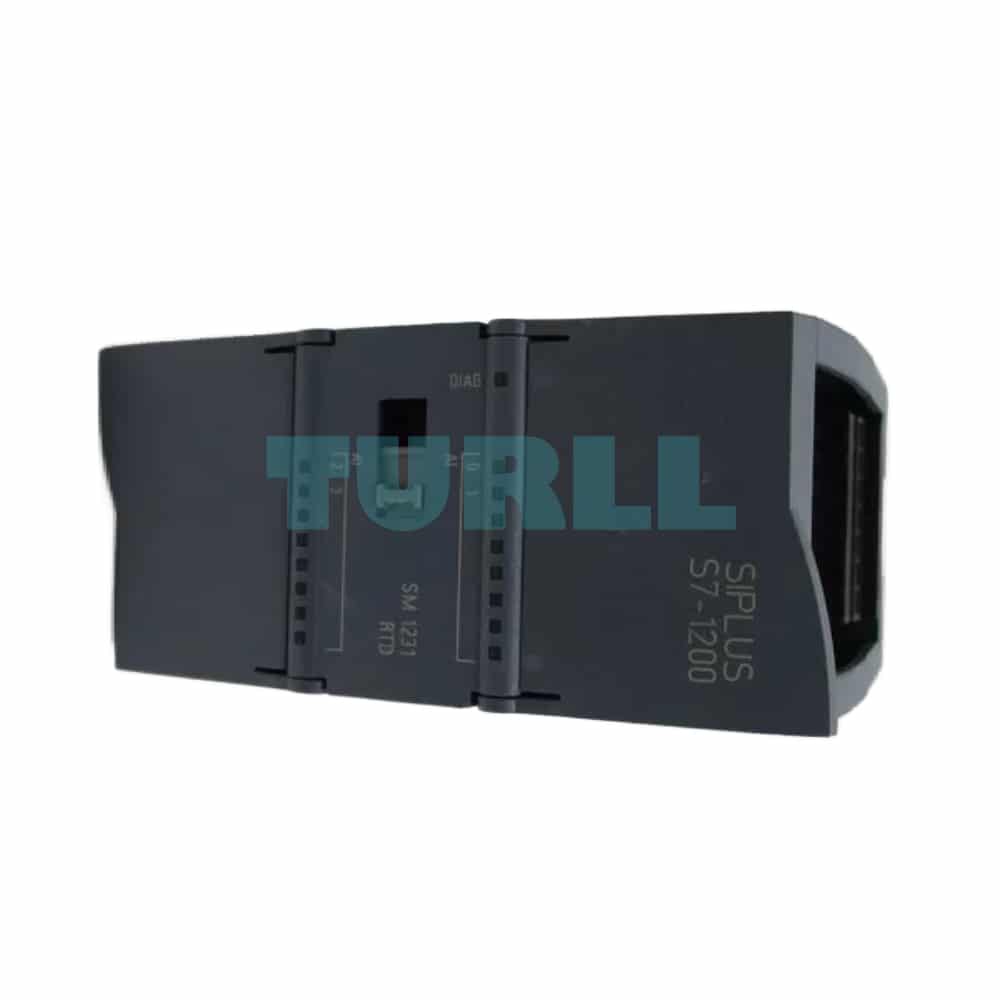

6AG1231-5PF32-4XB0 Siemens SIPLUS S7-1200 SM 1231 RTD 8AI Original Brand New
$1,900.83
6AG1231-5PF32-4XB0
Siemens SIPLUS S7-1200 SM 1231 RTD 8AI based on 6ES7231-5PF32-0XB0 with conformal coating, -20…+60 °C, analog input, SM 1231 RTD, 8xAI RTD module
[ez-toc]
Overview
- For the convenient recording of temperatures with great accuracy
- 4 inputs
- Most popular resistance temperature detectors can be used
- Can easily be retrofitted to existing plant
Note:
SIPLUS extreme products are based on SIMATIC standard products. The contents listed here were taken from the respective standard products. SIPLUS extreme specific information was added.
Application
The SM 1231 RTD modules enable temperatures to be measured with high precision using established resistance temperature detectors.
Design
The SM 1231 RTD modules exhibit the same structural features as the other modules of the S7-1200 series:
- Mounting on a DIN rail:
The modules are snapped onto the rail just to the right of the CPU and connected to one another and with the CPU 12xx by means of the integral backplane bus. - Direct mounting:
Drilled holes permit the module to be bolted directly to walls. This type of mounting is recommended for applications subject to strong vibrations. - Resistance temperature detectors:
The most popular resistance temperature detectors can be used: Pt 100, Pt 200, Pt 500, Pt 1000, Pt 10000, Ni 100, Ni 120, Ni 1000, Cu 10, FS 150, FS 30, FS 600. They are connected directly to the module without amplifiers and all RTDs must be of the same type. The detectors can be connected with 2, 3 or 4 cables. - Mounting location:
For maximum possible measurement and repeat accuracy, the RTD module should be mounted in locations with low temperature variations. - DIP switches:
Required settings, e.g. selection of the connected RTDs, should be made using the DIP switches on the module.
Function
- Different measurement ranges:
Resistance temperature detectors of types Pt 100, Pt 200, Pt 500, Pt 1000, Pt 10000, Ni 100, Ni 120, Ni 1000, Cu 10, FS 150, FS 30, FS 600. - Temperature scaling:
The measured temperature can be shown in °C or °F.
6AG1231-5PF32-4XB0
Siemens SIPLUS S7-1200 SM 1231 RTD 8AI based on 6ES7231-5PF32-0XB0 with conformal coating, -20…+60 °C, analog input, SM 1231 RTD, 8xAI RTD module
Visit 6AG1231-5PF32-4XB0
For more our products visit turll.com
| Weight | 0.286 kg |
|---|---|
| Dimensions | 83 × 105 × 88 mm |
