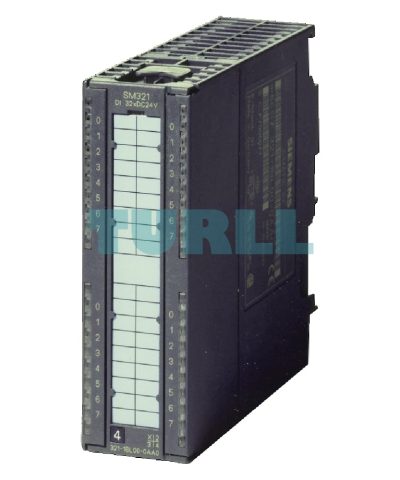

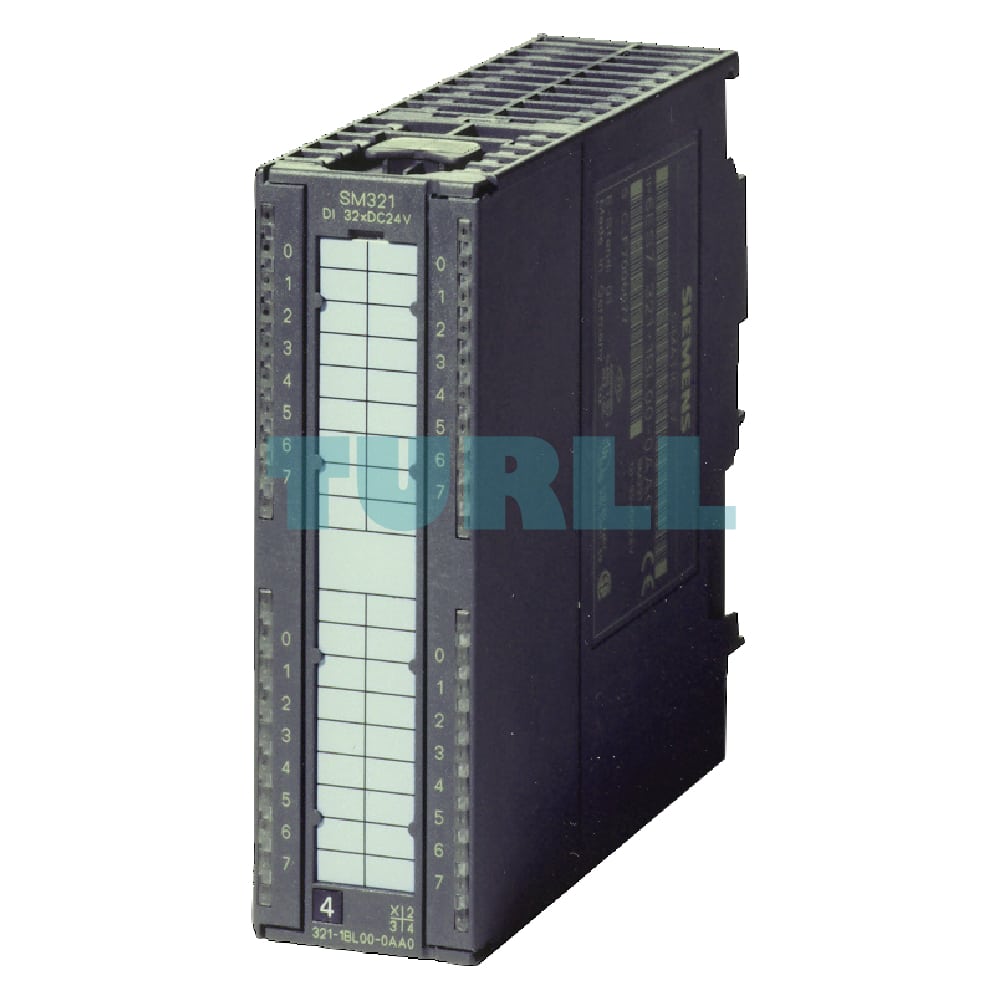

6AG1321-7TH00-4AB0 Siemens SIPLUS PCS 7 SM 321 16DI Original Brand New
$2,770.85
6AG1321-7TH00-4AB0
Siemens SIPLUS PCS 7 SM 321 16DI based on 6ES7321-7TH00-0AB0 with conformal coating, 0…+60 °C, digital input 16 DI; 24 V DC, 1x 40-pole, diagnostics-capable, for contacts (wired/ not wired), NAMUR encoder, 3/4-wire BERO, with chatter monitoring; pulse stretching, open-circuit detection connection IM 153-2 required
[ez-toc]
Overview
- Digital inputs
- For connection of switches and 2-wire proximity switches (BEROs)
Note:
SIPLUS extreme products are based on SIMATIC standard products. The contents listed here were taken from the respective standard products. SIPLUS extreme-specific information was added.
Application
Digital input modules can be used to connect the PLC to digital process signals. They are suitable for connecting standard switches and two-wire proximity switches (BERO).
Design
Digital input modules feature the following mechanical characteristics:
- Compact design:

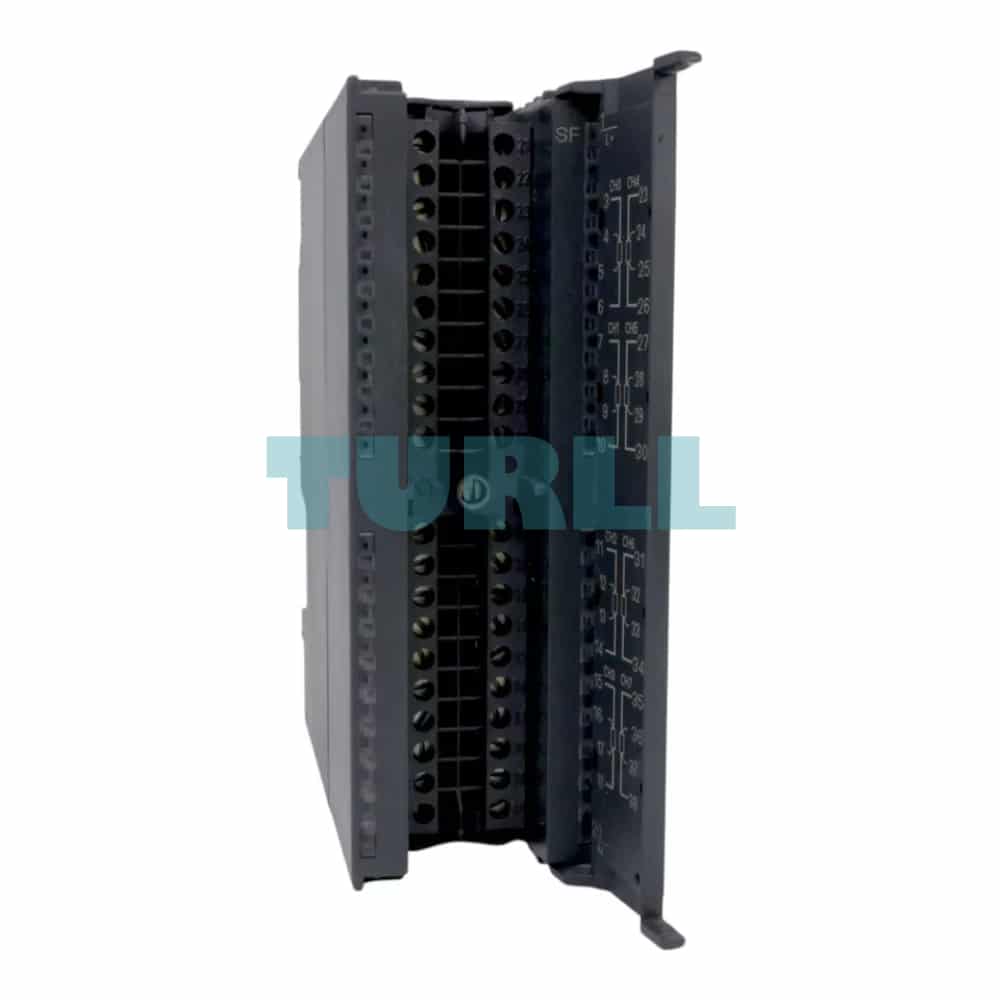

The rugged plastic housing contains:- Green LEDs for indicating the signal status at the inputs.
- Socket for the front connector, protected, behind the front door.
- Labeling field on the front door.
- Connector pin assignment for the wiring on the inside of the front door.
- Easy installation:
There are no slot rules, the addresses of the inputs are determined by the slot.
When used in ET 200M in combination with active bus modules, hot swapping is possible without any reaction. - User-friendly wiring.
The modules are available with 8, 16, 32, or 64 channels.
Function
Digital input modules convert the level of the external digital signals from the process to the internal signal level (logical “0” or “1”) of the controller.
Various input voltages support the connection of different process signals:
- 24 V DC
- 48 to 125 V DC
- 120/230 V AC
Apart from cost-effective, easy-to-handle modules, modules with special functions are also available:
- For use in isochronous mode
- Process and diagnostic alarms
- Use for current sourcing or current sinking
Special modules are also available for process engineering which, for example, support the NAMUR standard.
6AG1321-7TH00-4AB0
Siemens SIPLUS PCS 7 SM 321 16DI based on 6ES7321-7TH00-0AB0 with conformal coating, 0…+60 °C, digital input 16 DI; 24 V DC, 1x 40-pole, diagnostics-capable, for contacts (wired/ not wired), NAMUR encoder, 3/4-wire BERO, with chatter monitoring; pulse stretching, open-circuit detection connection IM 153-2 required
Visit 6AG1321-7TH00-4AB0
For more our products visit turll.com
| Weight | 0.388 kg |
|---|---|
| Dimensions | 150 × 130 × 50 mm |
