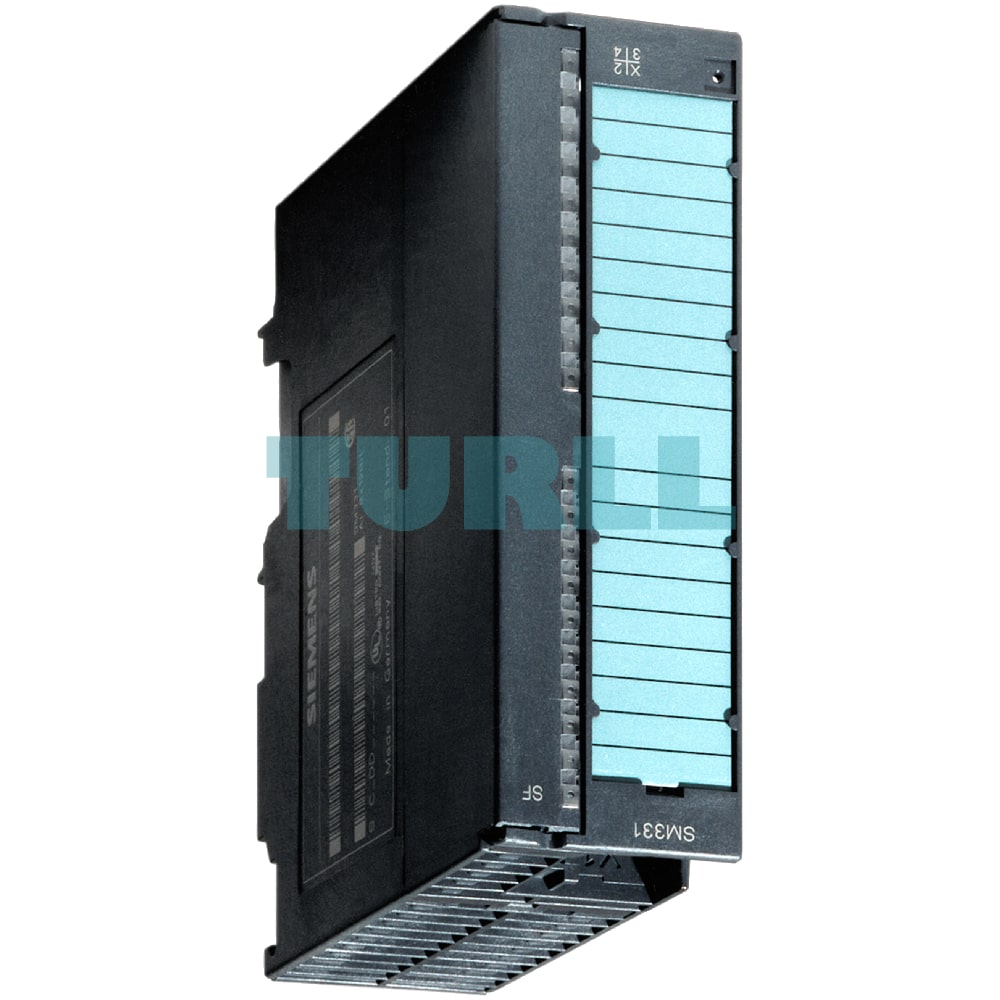

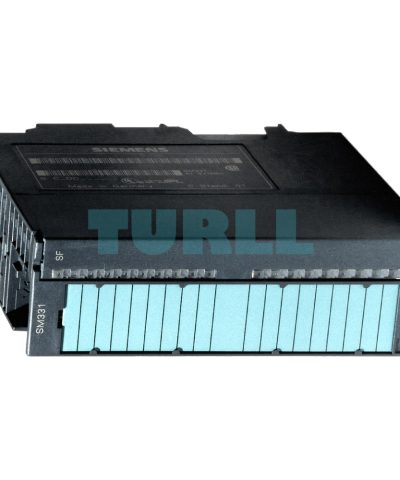

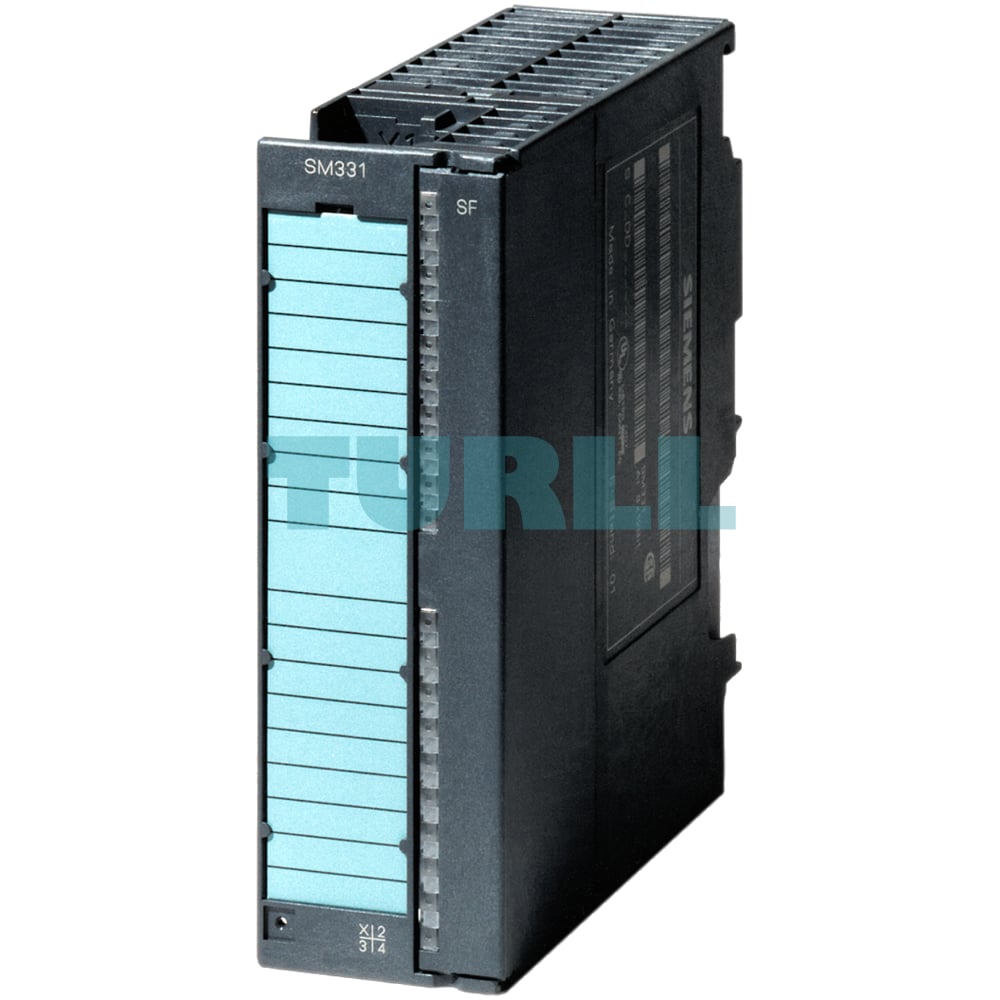

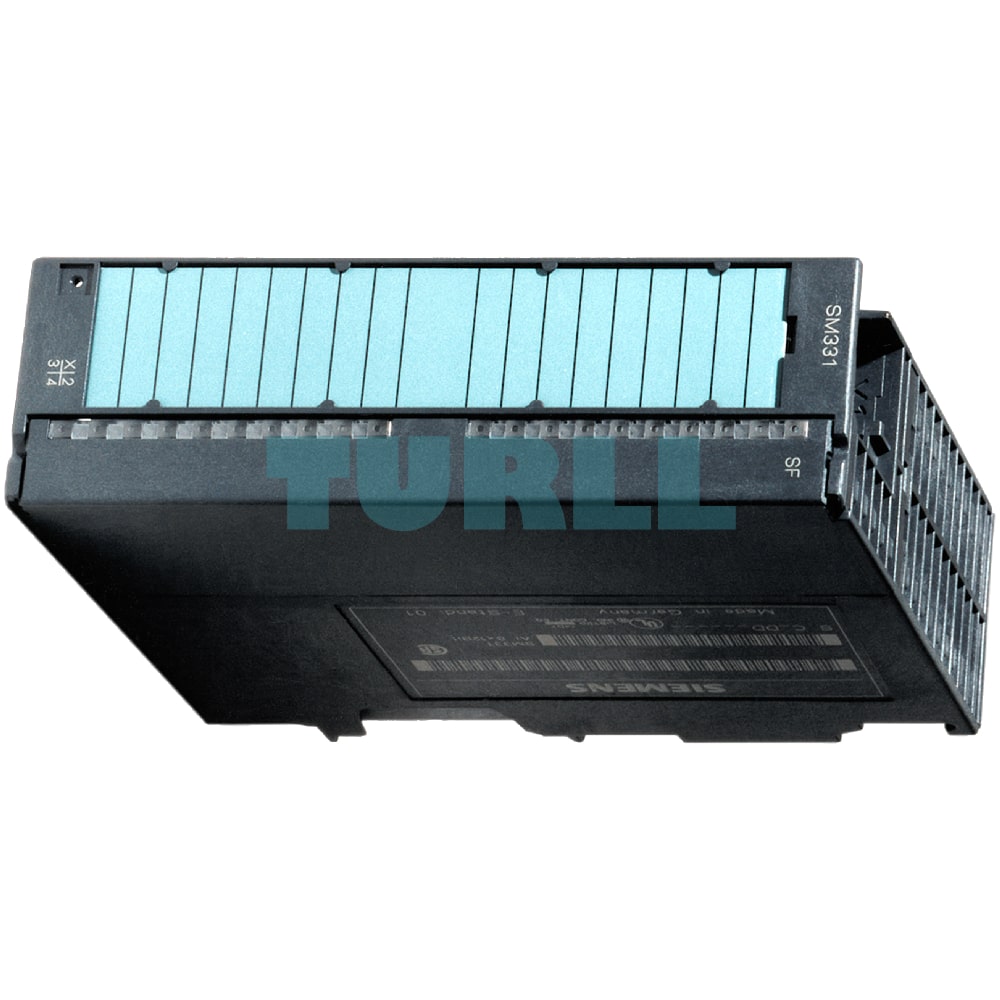

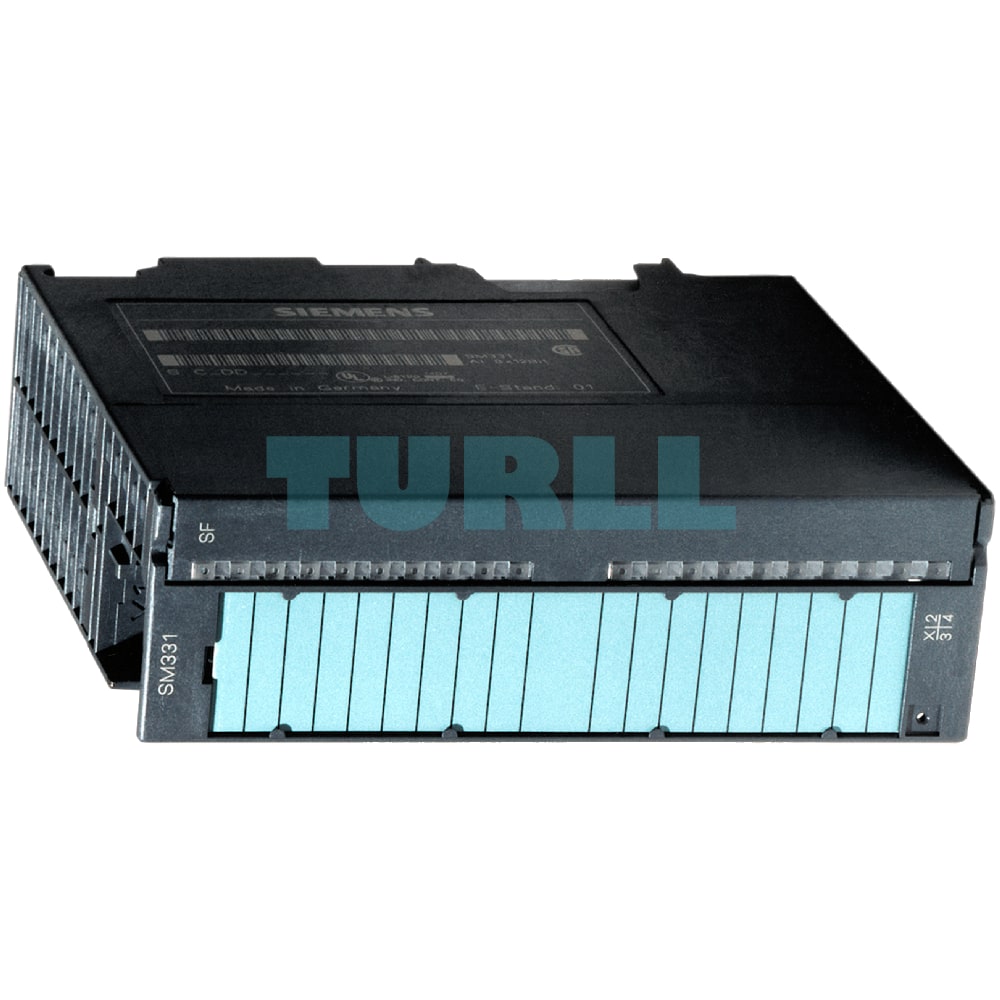

6AG1331-7PF11-4AB0 Siemens SIPLUS S7-300 SM 331 8AI Original Brand New
$3,598.46
6AG1331-7PF11-4AB0
Siemens SIPLUS S7-300 SM 331 8AI 40-pole based on 6ES7331-7PF11-0AB0 with conformal coating, 0…+60 °C, analog input isolated, 8 AI thermocouples type B, E, J, K, L, N, R, S, T TXK/TXK (L) according to GOST 16-bit, 50 ms, 1x 40-pole
[ez-toc]
Overview
- Analog inputs
- For connecting voltage sensors and current sensors, thermocouples, resistors and resistance thermometers
Note:
SIPLUS extreme products are based on SIMATIC standard products. The contents listed here were taken from the respective standard products. SIPLUS extreme specific information was added.
Application
Analog input modules allow the connection of the PLC to analog signals of the process. They are suitable for connection of voltage transmitters and current transmitters, thermo elements, resistors and resistance thermometers.
Function
The analog input modules convert analog signals from the process into digital signals for internal processing in the PLC.
The modules feature:
- Resolution from 9-bit to 15-bit + sign (with different conversion times), can be parameterized.
- Different measurement ranges;
the default setting of the current/voltage ranges is set mechanically using measuring range modules, the fine adjustment is performed with STEP 7 “Hardware configuration” via PG. - Interrupt capability;
the module sends diagnostic and limit-value interrupts to the CPU of the PLC. - Diagnostics;
the module sends extensive diagnostics information to the CPU.
6AG1331-7PF11-4AB0
Siemens SIPLUS S7-300 SM 331 8AI 40-pole based on 6ES7331-7PF11-0AB0 with conformal coating, 0…+60 °C, analog input isolated, 8 AI thermocouples type B, E, J, K, L, N, R, S, T TXK/TXK (L) according to GOST 16-bit, 50 ms, 1x 40-pole
Visit 6AG1331-7PF11-4AB0
For more our products visit turll.com
| Weight | 0.336 kg |
|---|---|
| Dimensions | 150 × 130 × 50 mm |
