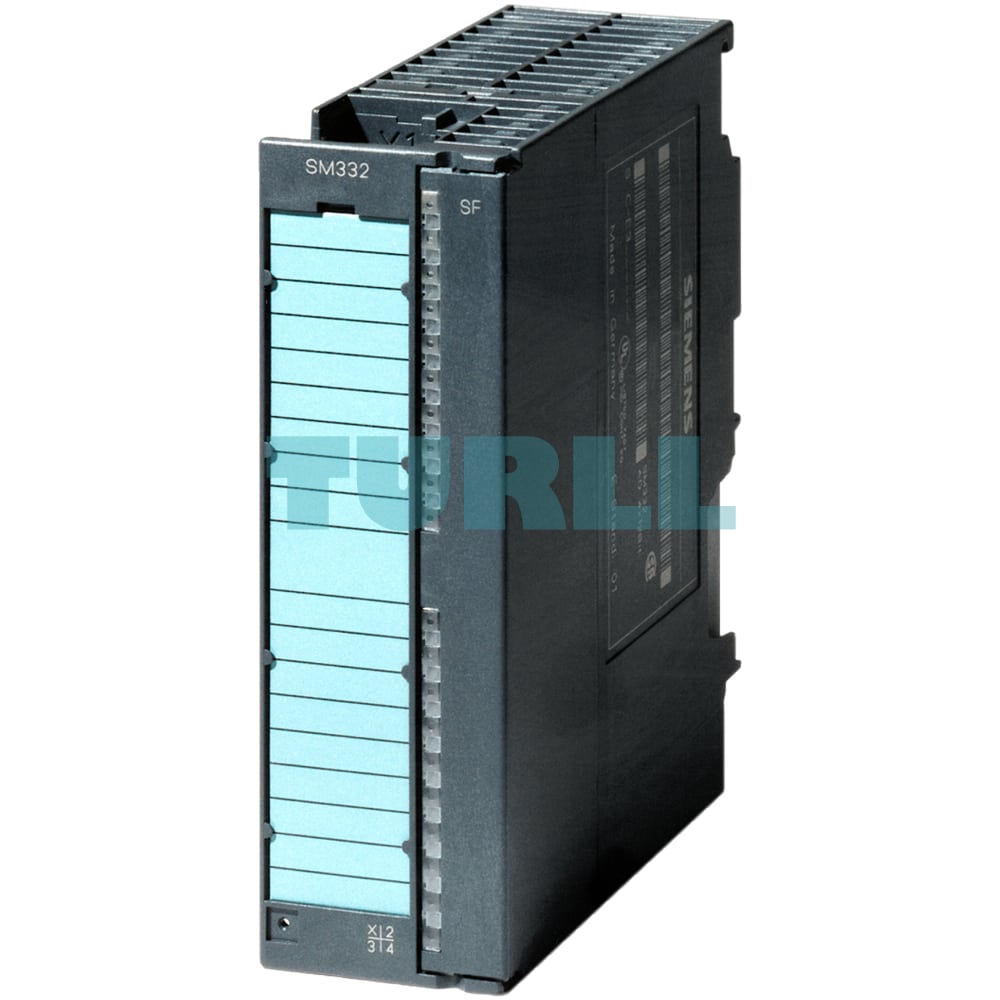

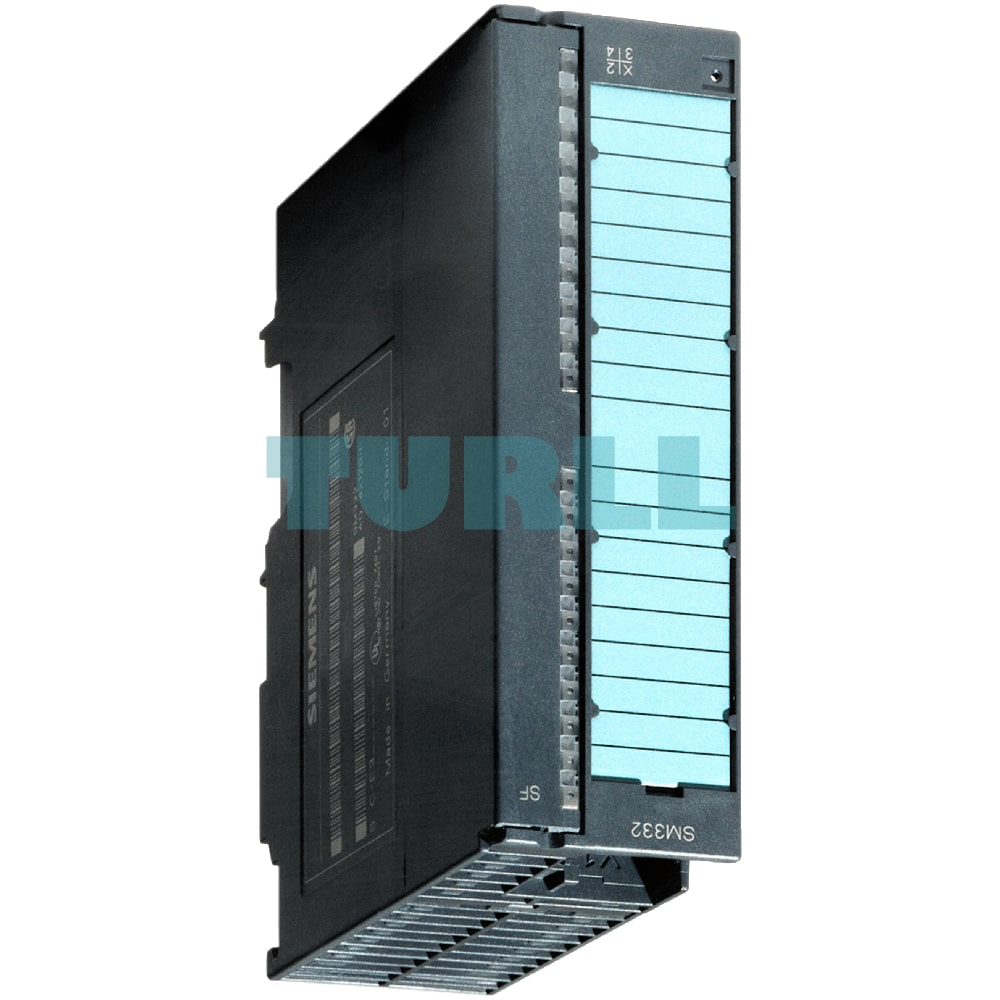

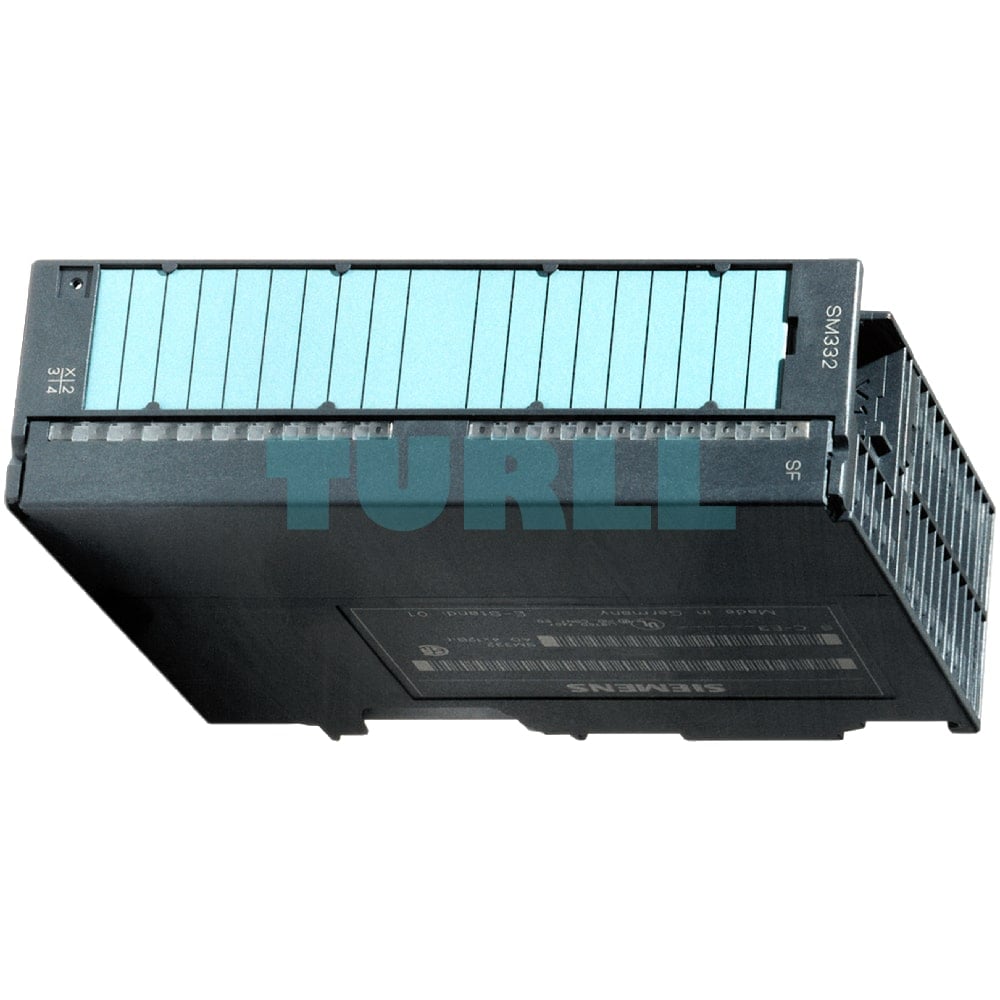

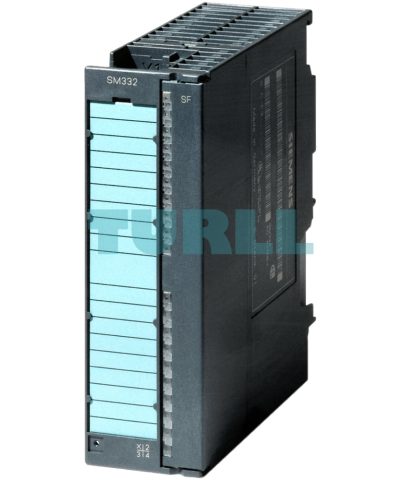

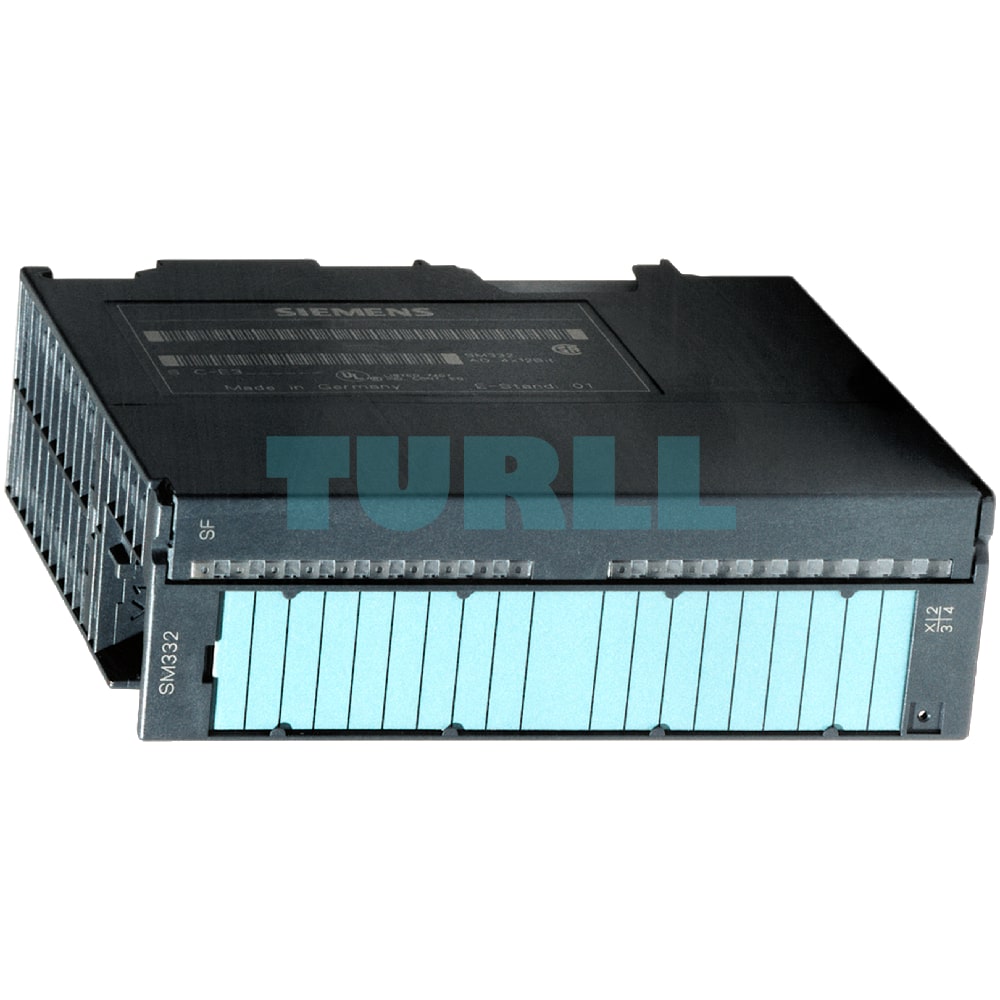

6AG1332-8TF01-2AB0 Siemens SIPLUS S7-300 SM 332 8AQ HART
6AG1332-8TF01-2AB0 Siemens SIPLUS S7-300 SM 332 8AQ HART
6AG1332-8TF01-2AB0 Siemens SIPLUS S7-300 SM 332 8AQ HART
6AG1332-8TF01-2AB0 Siemens SIPLUS S7-300 SM 332 8AQ HART

6AG1332-8TF01-2AB0 Siemens SIPLUS S7-300 SM 332 8AQ HART Original Brand New

Model / SKU6AG1332-8TF01-2AB0

6AG1332-8TF01-2AB0

Siemens SIPLUS S7-300 SM 332 8AQ HART based on 6ES7332-8TF01-0AB0 with conformal coating, -25…+60 °C, analog output 8 AQ 0/4 – 20 mA HART, for ET 200M with IM 153-2, IM 153-2, 20-pole functions: firmware update, HART auxiliary variables, redundancy, local diagnostic buffer with time stamping, requirement: PCS 7 V7.0, SP1

$4,269.34
In stockShips in 1–3 business days
  • ConditionOriginal Brand New
  • Warranty12 months
Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

[ez-toc]

Overview

  • Can only be plugged onto ET 200M with IM 153-2 and IM 153-2 FO
  • 8 AO HART
  • Redundant connection
  • Firmware update
  • HART secondary variables
Note:

SIPLUS extreme products are based on SIMATIC standard products. The contents listed here were taken from the respective standard products. SIPLUS extreme-specific information was added.

For technical documentation on SIPLUS, see:

http://www.siemens.com/siplus-extreme

Design

  • 8 analog channels per module
  • Selectable output range per channel:
    • 0 to 20 mA (with/without HART function);
    • 4 to 20 mA (with/without HART function)

Function

  • 8 outputs (current)
  • Type of output can be selected for each channel
  • Channel-by-channel configuration using parameter data record 1 or HART data records 131-138
  • Configurable diagnosis (per channel) and diagnostic alarm (for entire assembly)
  • Analog outputs can be read back
  • The assembly can be dynamically reconfigured channel by channel in RUN (CiR-capable)
  • Configuration of HART ancillary variables 1)
  • Redundant operation1)
  • Discrepancy analysis when used in automation system S7-400H

1) Possible from IM153-2 (6ES7 153-2BAx2-0XB0) onwards

6AG1332-8TF01-2AB0

Siemens SIPLUS S7-300 SM 332 8AQ HART based on 6ES7332-8TF01-0AB0 with conformal coating, -25…+60 °C, analog output 8 AQ 0/4 - 20 mA HART, for ET 200M with IM 153-2, IM 153-2, 20-pole functions: firmware update, HART auxiliary variables, redundancy, local diagnostic buffer with time stamping, requirement: PCS 7 V7.0, SP1

Visit 6AG1332-8TF01-2AB0

For more our products visit turll.com

Specifications

SKU / Model6AG1332-8TF01-2AB0
Weight0.268 kg
Dimensions150 × 130 × 50 mm
