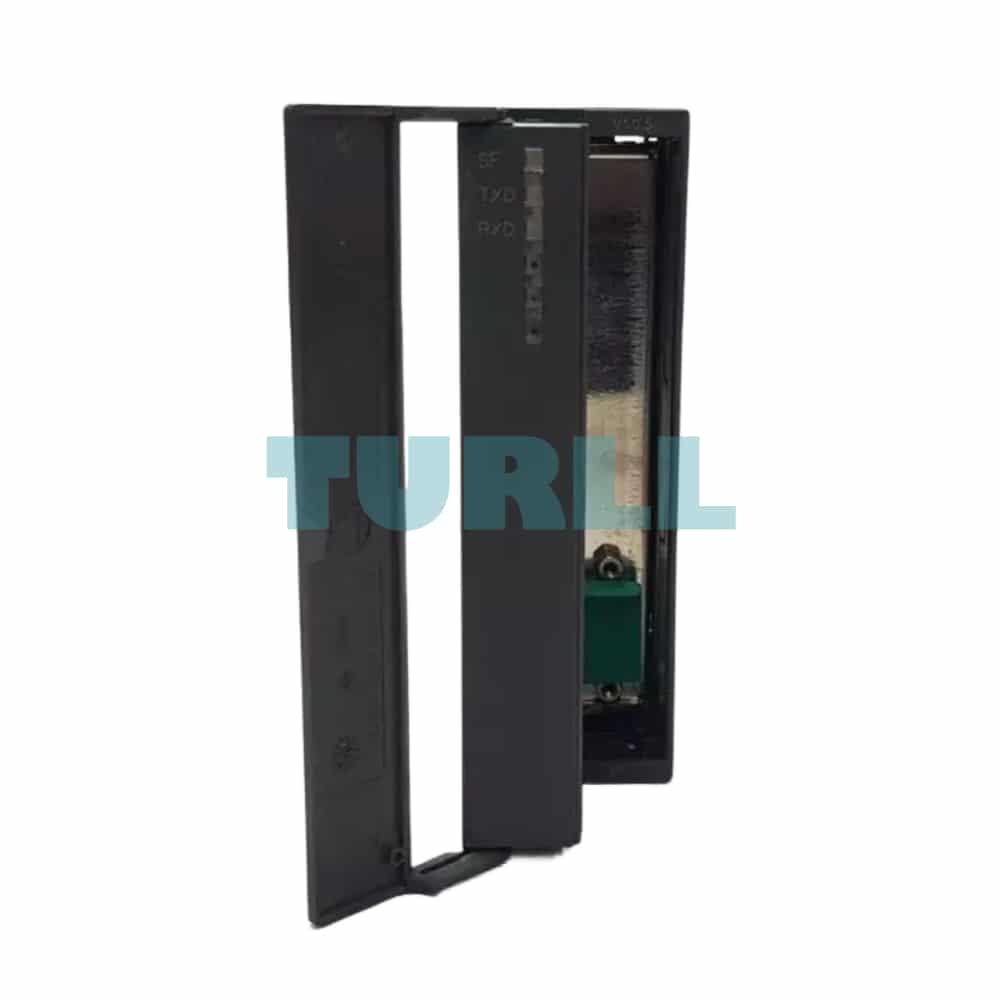

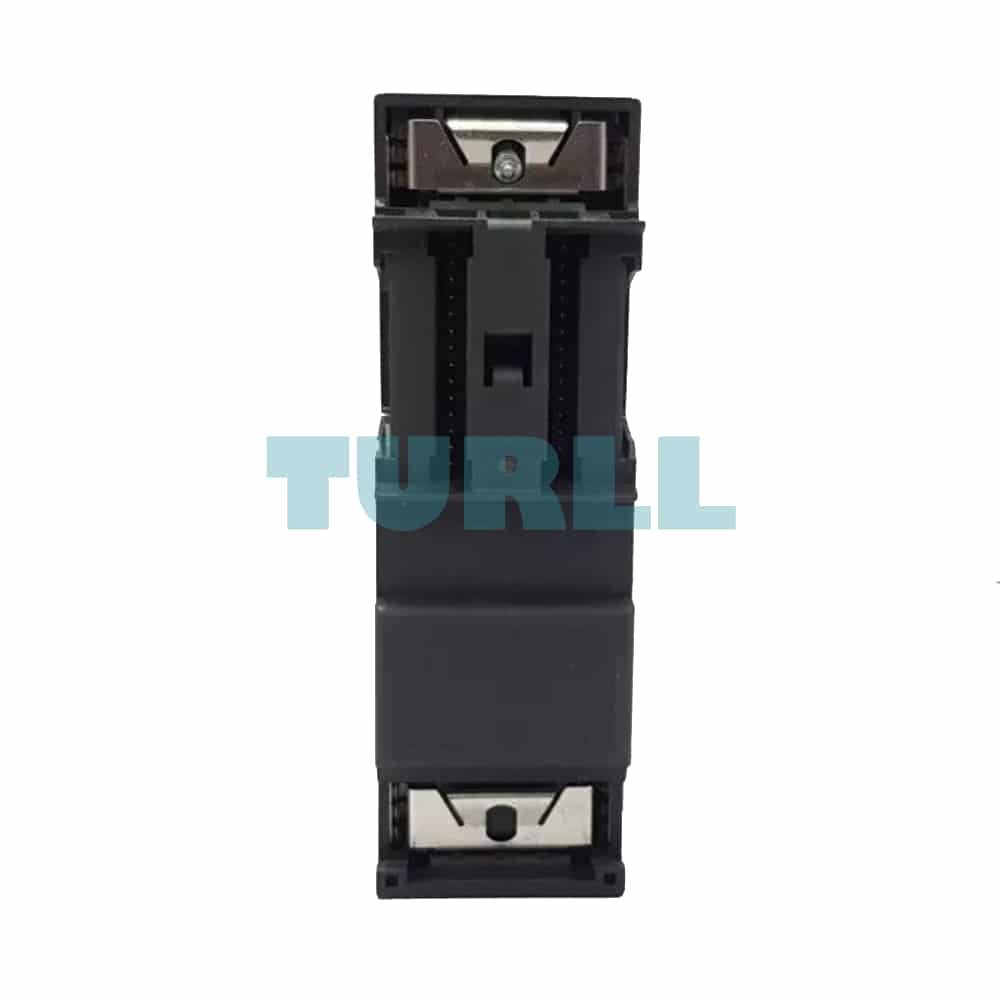

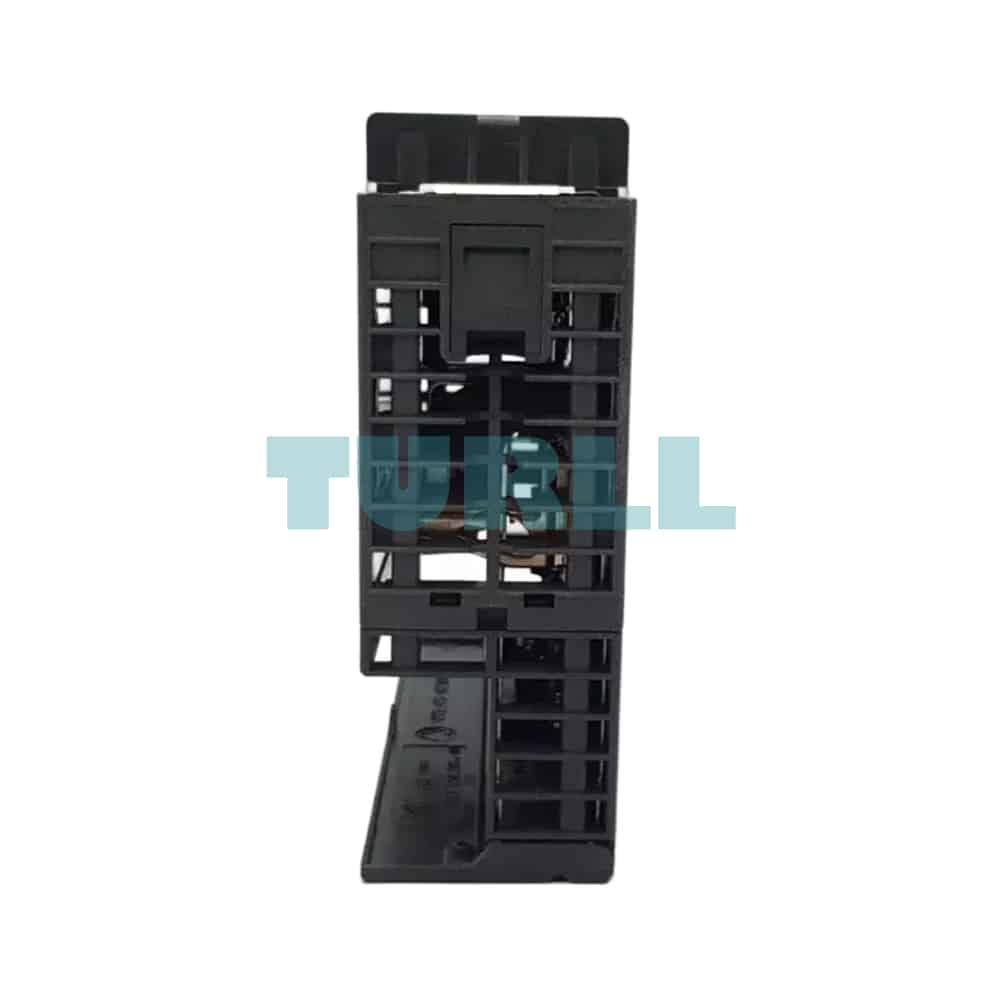

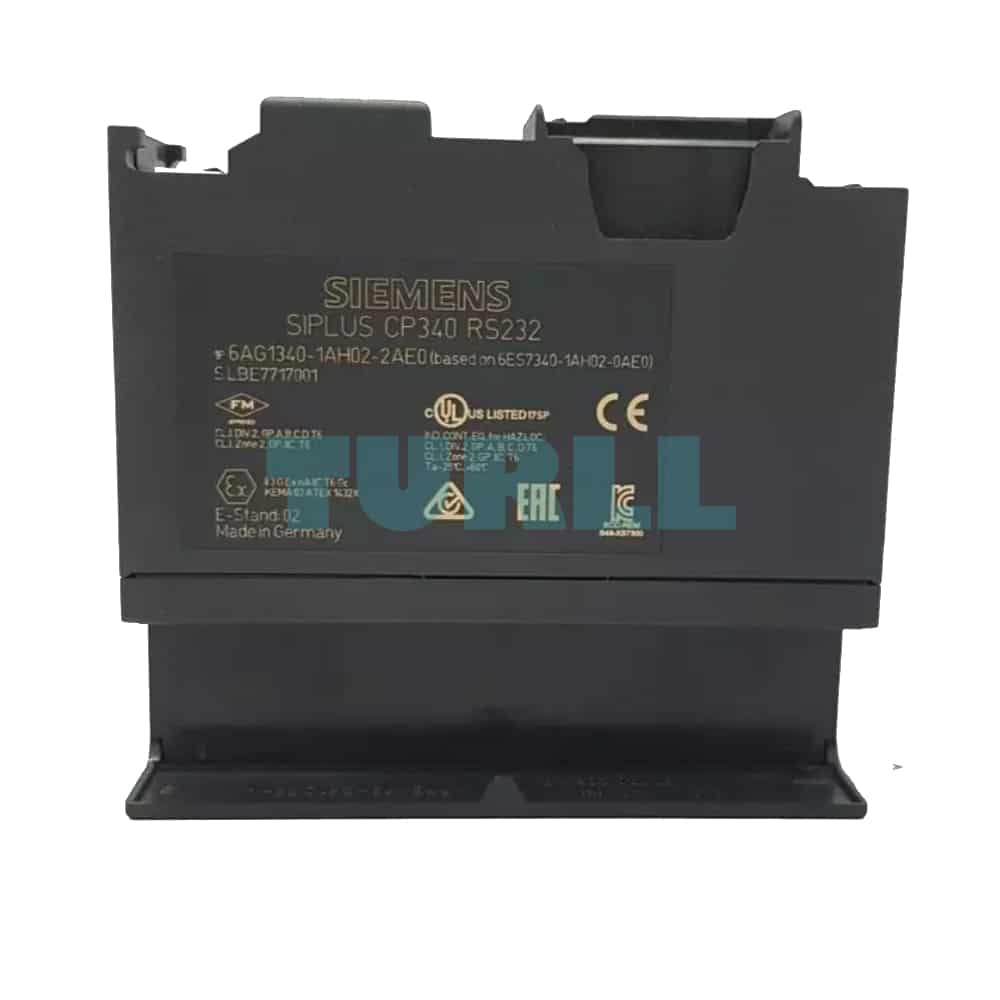

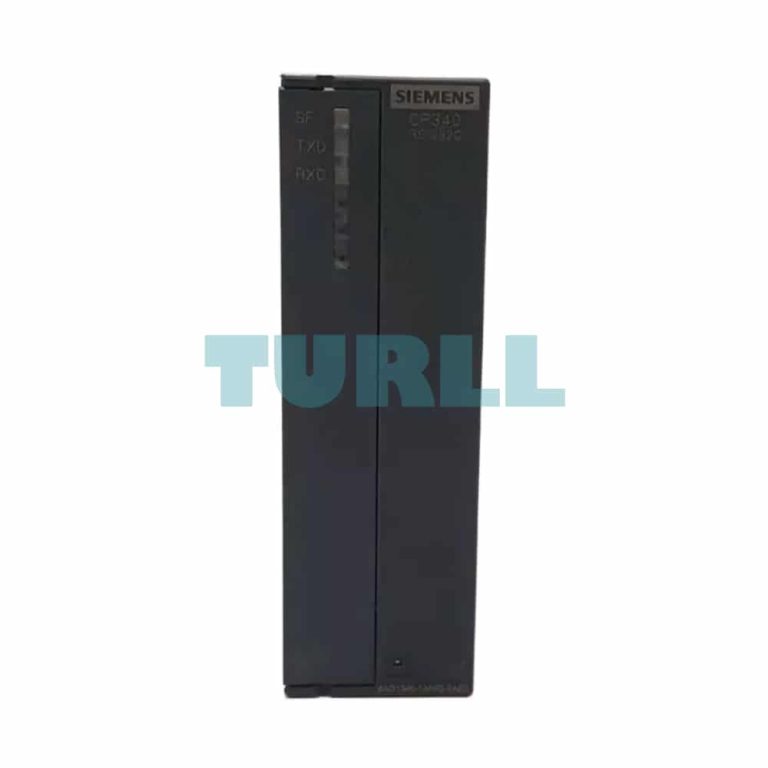

6AG1340-1AH02-2AE0 Siemens SIPLUS S7-300 CP 340 RS-232 Original Brand New
$2,529.30
6AG1340-1AH02-2AE0
Siemens SIPLUS S7-300 CP 340 RS-232 based on 6ES7340-1AH02-0AE0 with conformal coating, -25…+60 °C, communications processor with RS-232C interface (RS-232-C) incl. configuration package on CD-ROM
[ez-toc]
Overview
- The low-cost, complete solution for serial communication over a point-to-point connection
- RS 232C (V.24) and RS 422/485 (X.27)
- Implemented protocols:
- ASCII
- 3964 (R) (not for RS 485)
- Printer driver
- Simple parameterization using tool integrated in STEP 7
Note:
SIPLUS extreme products are based on SIMATIC standard products. The contents listed here were taken from the respective standard products. SIPLUS extreme specific information was added.
Application
The SIPLUS CP 340 communications module is the cost-effective and complete solution for serial communication. It can be used in SIMATIC S7-300 and ET 200M (with S7 as master device).
Point-to-point coupling is possible e.g. to:
- SIMATIC S7 and SIMATIC S5 automation systems and the systems of many other manufacturers,
- Printers
- Robot PLCs
- Modems
- Scanners, bar code readers etc.
Design
The communications processor is characterized by the following mechanical features:
- Rugged plastic housing
- LEDs:
for “Send”, “Receive” and “Fault” - Communications interface
Function
A number of implemented standard protocols facilitate data exchange with a wide variety of partners:
- ASCII:
For interfacing to third-party systems with simple transmission protocols, e.g. protocols with start and end characters or with block check characters. The interface handshake signals can be queried and controlled via the user program. - Printer driver:
For logging process states and events on a printer. - 3964 (R) (not for RS 485):
For interfacing to Siemens devices or third-party components via the standardized and open Siemens protocol 3964(R). A 3964(R) driver with standard values as well as a parameterizable 3964(R) driver are implemented.
Parameterization
Parameterization of the SIPLUS CP 340 communications module is especially user-friendly and simple:
- The user assigns the module characteristics via a parameterization tool integrated in STEP 7, e.g.
- which implemented protocol drivers should be used or
- which driver-specific characteristics should be used.
- Parameterization via CPU:
The programming device is simply connected to the CPU. The configuration data is stored in a system block that is saved in the CPU. When modules are replaced, the new module is therefore immediately ready for use. - Configuration package (on CD):
With electronic manual, parameterization screen forms and standard function blocks for communicating with the CP.
6AG1340-1AH02-2AE0
Siemens SIPLUS S7-300 CP 340 RS-232 based on 6ES7340-1AH02-0AE0 with conformal coating, -25…+60 °C, communications processor with RS-232C interface (RS-232-C) incl. configuration package on CD-ROM
Visit 6AG1340-1AH02-2AE0
For more our products visit turll.com
| Weight | 0.362 kg |
|---|---|
| Dimensions | 150 × 130 × 47 mm |
