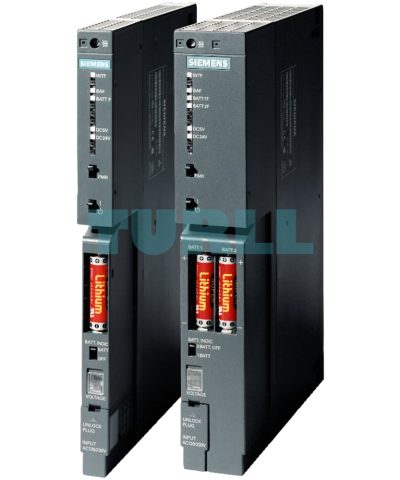

6AG1405-0KR02-7AA0 Siemens SIPLUS S7-400 PS 405 Original Brand New
$5,234.76
6AG1405-0KR02-7AA0
Siemens SIPLUS S7-400 PS 405 10 A based on 6ES7405-0KR02-0AA0 with conformal coating, -25…+70 °C, 10 A, wide range, 24/48/60 V DC; 5 V DC/10 A, for redundant use
[ez-toc]
Overview
- Power supplies for SIPLUS S7-400
- For conversion of AC or DC line voltages to the 5 V DC and 24 V DC operating voltages required
- 4 A, 10 A and 20 A output currents
Note:
SIPLUS extreme products are based on SIMATIC standard products. The contents listed here were taken from the respective standard products. SIPLUS extreme specific information was added.
Technical documentation on SIPLUS can be found here:
http://www.siemens.de/siplus-extreme
Application
The power supplies supply the S7-400 modules with their 5 V DC and 24 V DC operating voltages via the backplane bus.
Power supplies are available for AC line voltages of 85 to 264 V and for DC voltages of 19.2 to 300 V.
One power supply module is required per rack.
Exception:
With interfaces with current transfer, the power supply module in the central controller also supplies all modules in the expansion units.
The load voltage for supplying sensors and actuators must be made available separately.
There are also power supplies to make both the standard system and the H system fail-safe (redundant power supplies).
Design
The power supply modules are inserted at the far left in the rack (starting from slot 1). Depending on the version, they occupy slots 1 to 3. The modules are enclosed and are cooled via natural convection.

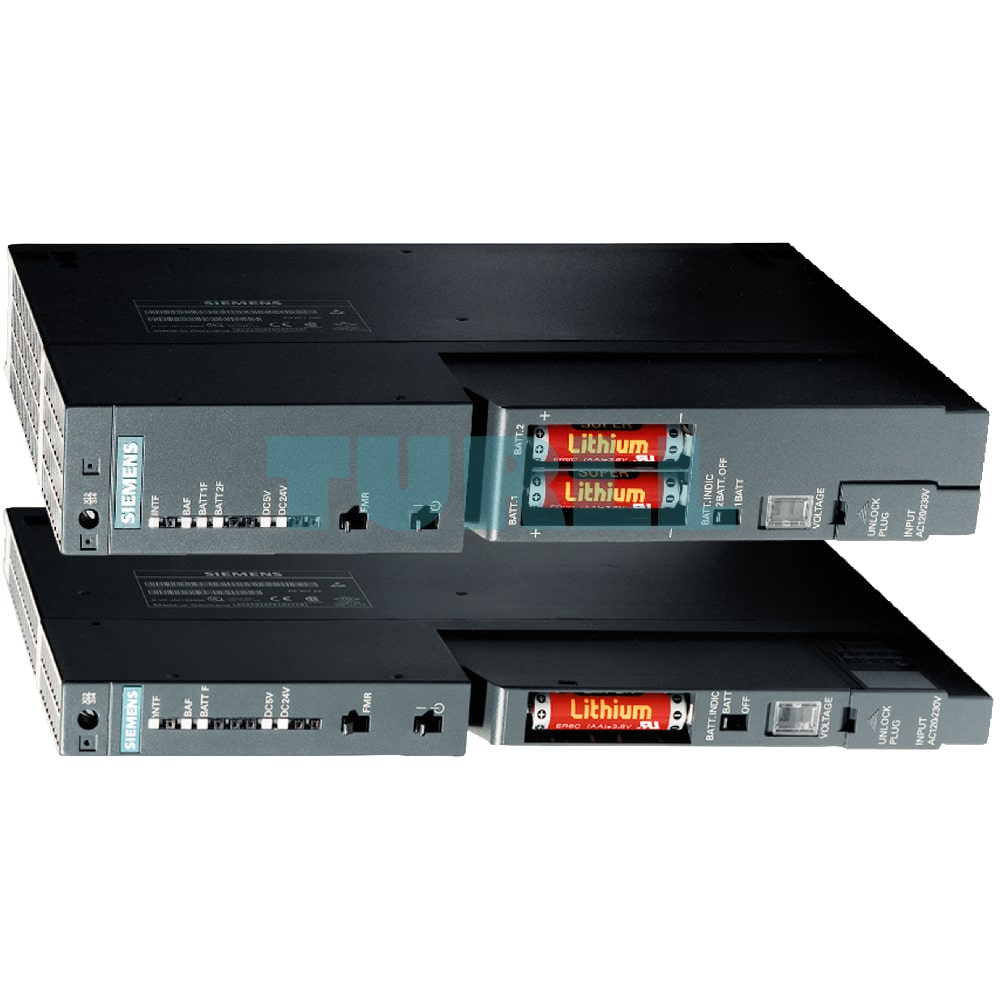

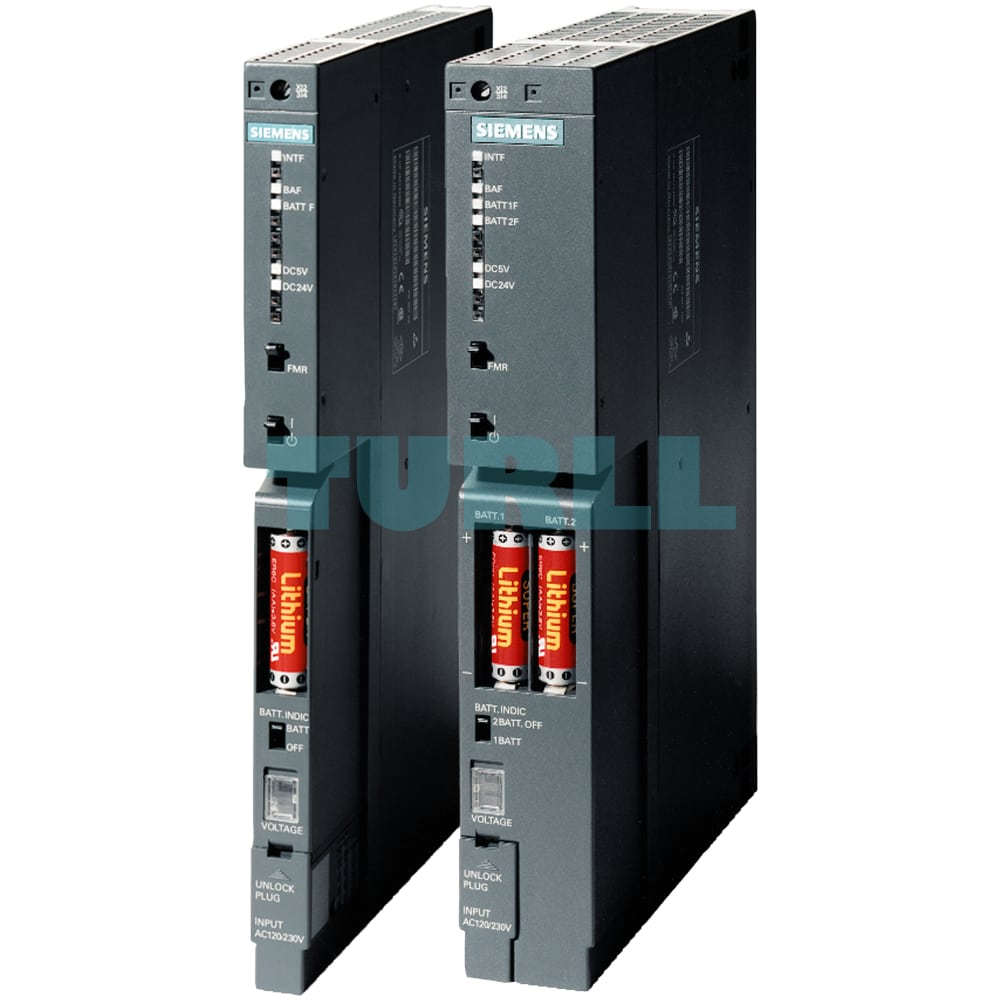

The front of the module contains:
- LED displays:
LEDS indicate internal faults, correct output voltages 5 V DC, 24 V DC, and correct back-up battery voltage. - Pushbutton for fault acknowledgment.
- On/off switch for output voltages.
- Battery compartment for back-up battery (batteries).
- Switch for battery monitoring.
- Supply voltage selector switch (not for wide-range power supplies).
- Power supply connection.
The back-up battery is optional and must be ordered in addition. For power supplies at and above 10 A, two back-up batteries are recommended.
6AG1405-0KR02-7AA0
Siemens SIPLUS S7-400 PS 405 10 A based on 6ES7405-0KR02-0AA0 with conformal coating, -25…+70 °C, 10 A, wide range, 24/48/60 V DC; 5 V DC/10 A, for redundant use
Visit 6AG1405-0KR02-7AA0
For more our products visit turll.com
| Weight | 1.385 kg |
|---|---|
| Dimensions | 230 × 300 × 60 mm |
