Overview
- Digital outputs for SIMATIC S7-400
- For connecting solenoid valves, contactors, small-power motors, lamps and motor starters
Note:
SIPLUS extreme products are based on SIMATIC standard products. The contents listed here were taken from the respective standard products. SIPLUS extreme specific information was added.
Technical documentation on SIPLUS can be found here:
http://www.siemens.de/siplus-extreme
Application
Digital output modules can be used to output digital signals from the control to the process. They are suitable, for example, for connecting solenoid valves, contactors, low-power motors, lamps and motor starters.
Design
Digital output modules are characterized by the following mechanical features:
- Compact configuration:
The rugged plastic housing contains:- Green LEDs for indicating the signal statuses at the outputs
- One red LED each to indicate internal and external faults or errors, and to display blown fuses and the absence of the load voltage
- Labeling strips
- Simple assembly
- User-friendly wiring:
The modules are wired by means of a plug-in front connector.
Function
Digital output modules convert the internal signal levels of the S7-400 in the external signal levels required for the process.
6AG1422-1BL00-2AA0

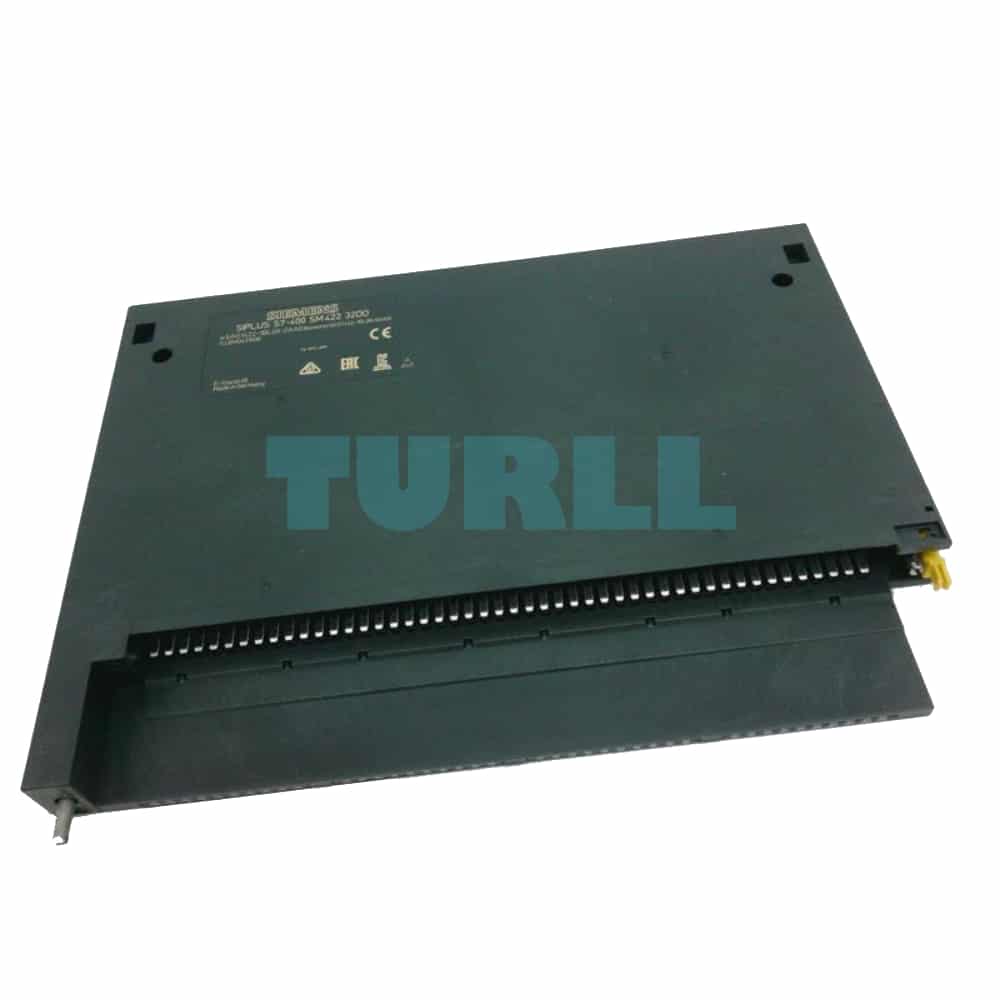

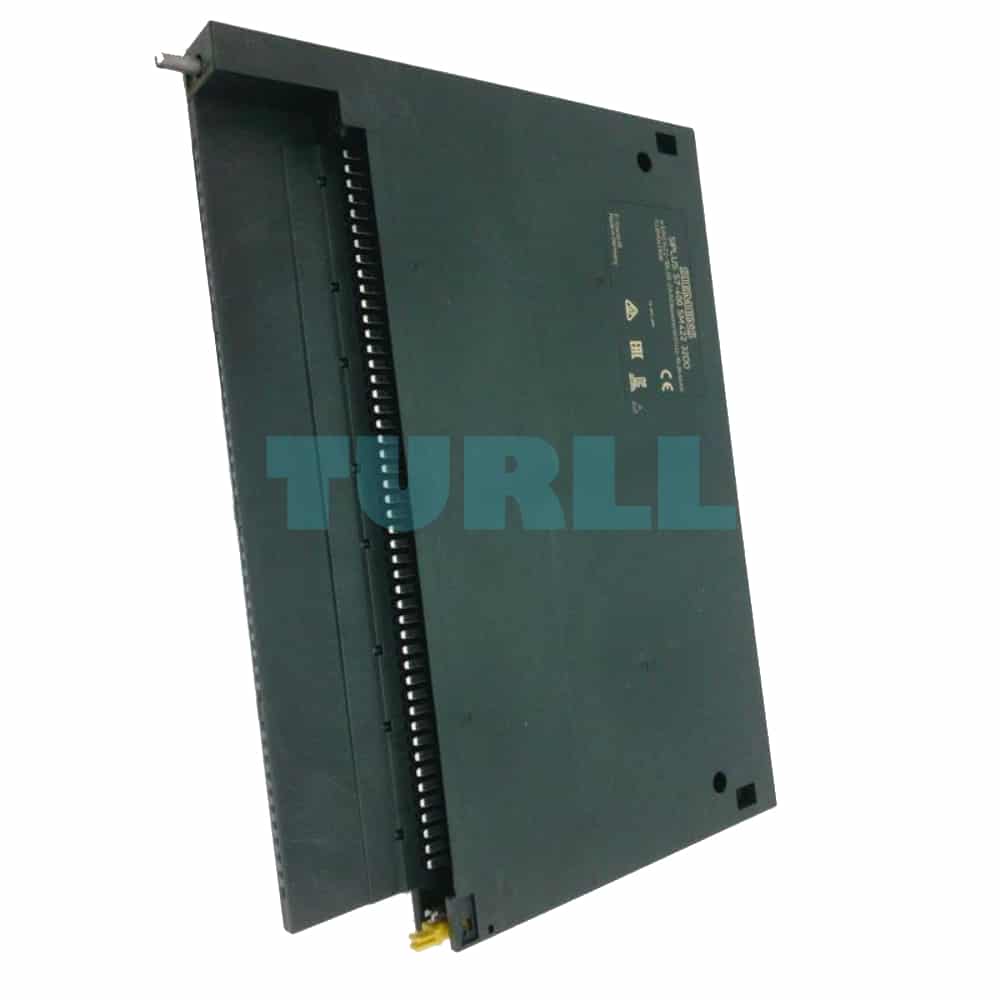

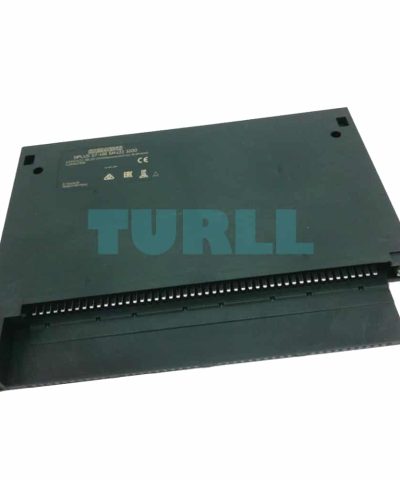

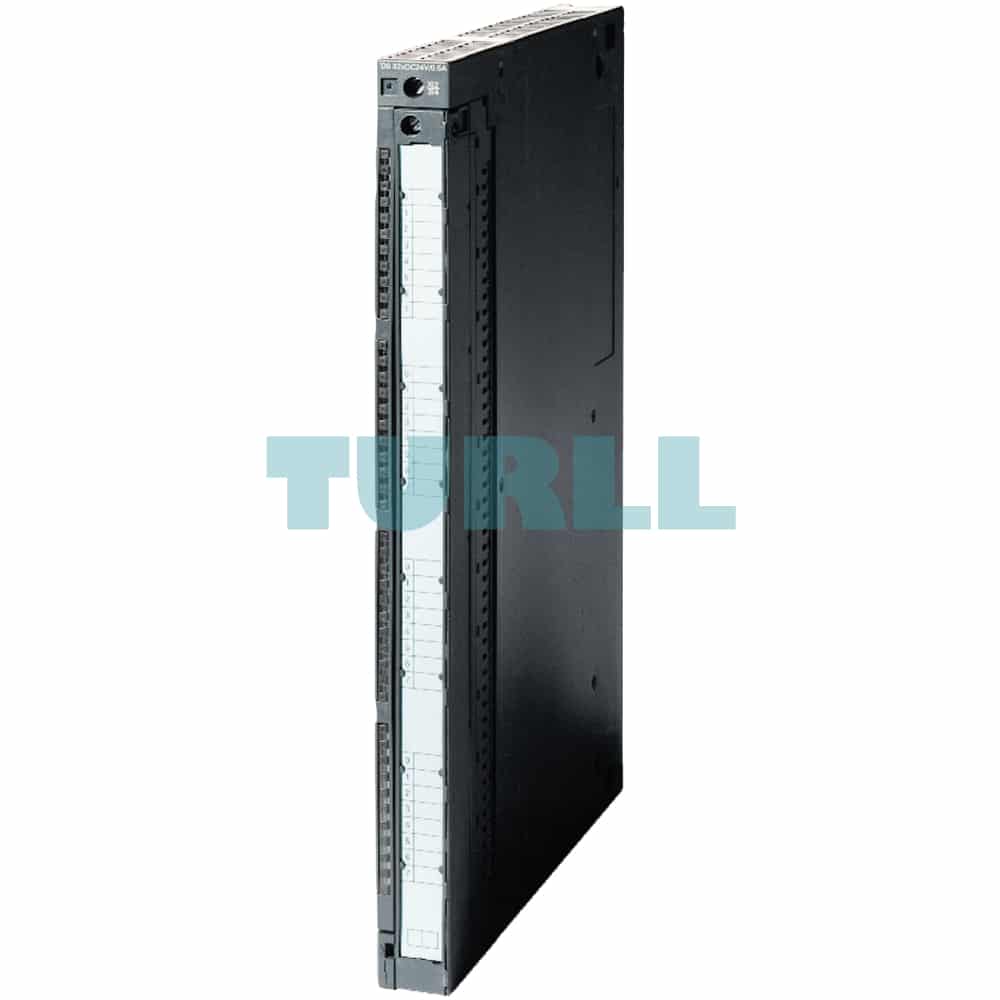

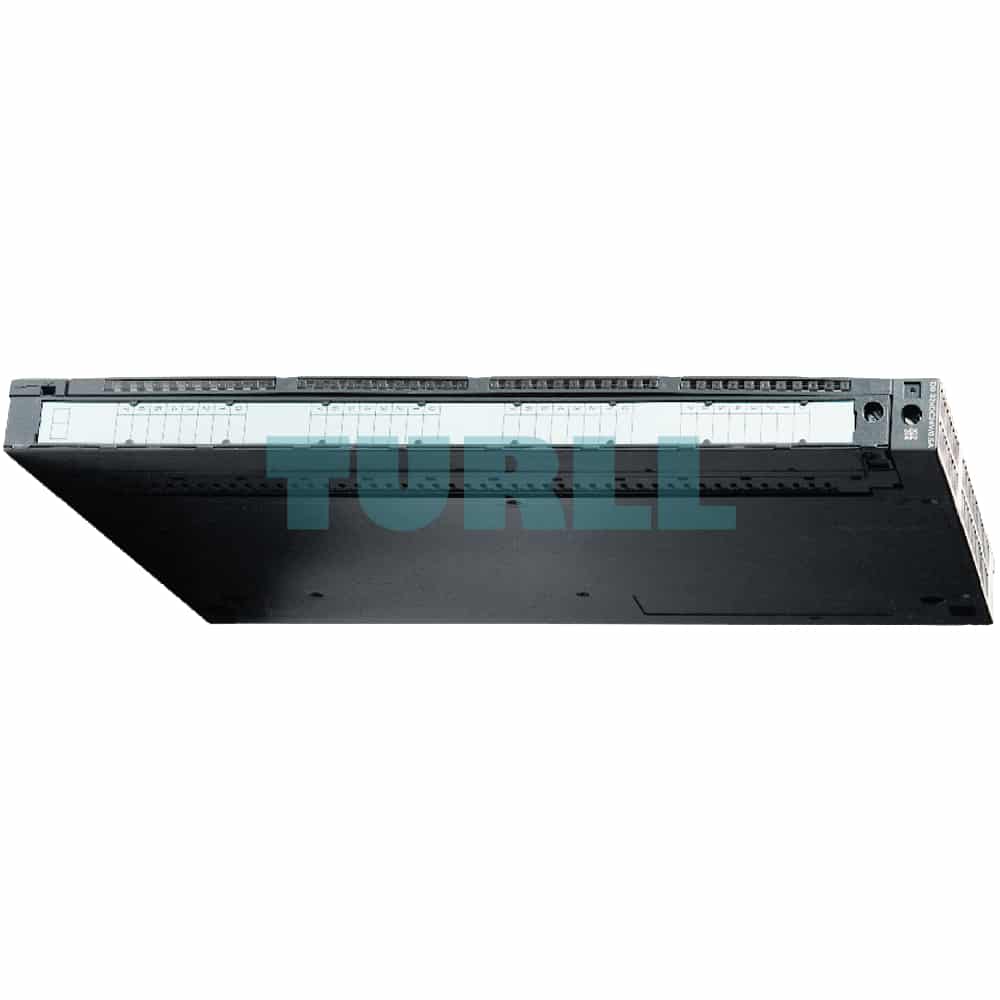

Siemens SIPLUS S7-400 SM 422 32DA based on 6ES7422-1BL00-0AA0 with conformal coating, -25…+60 °C,
Visit 6AG1422-1BL00-2AA0
