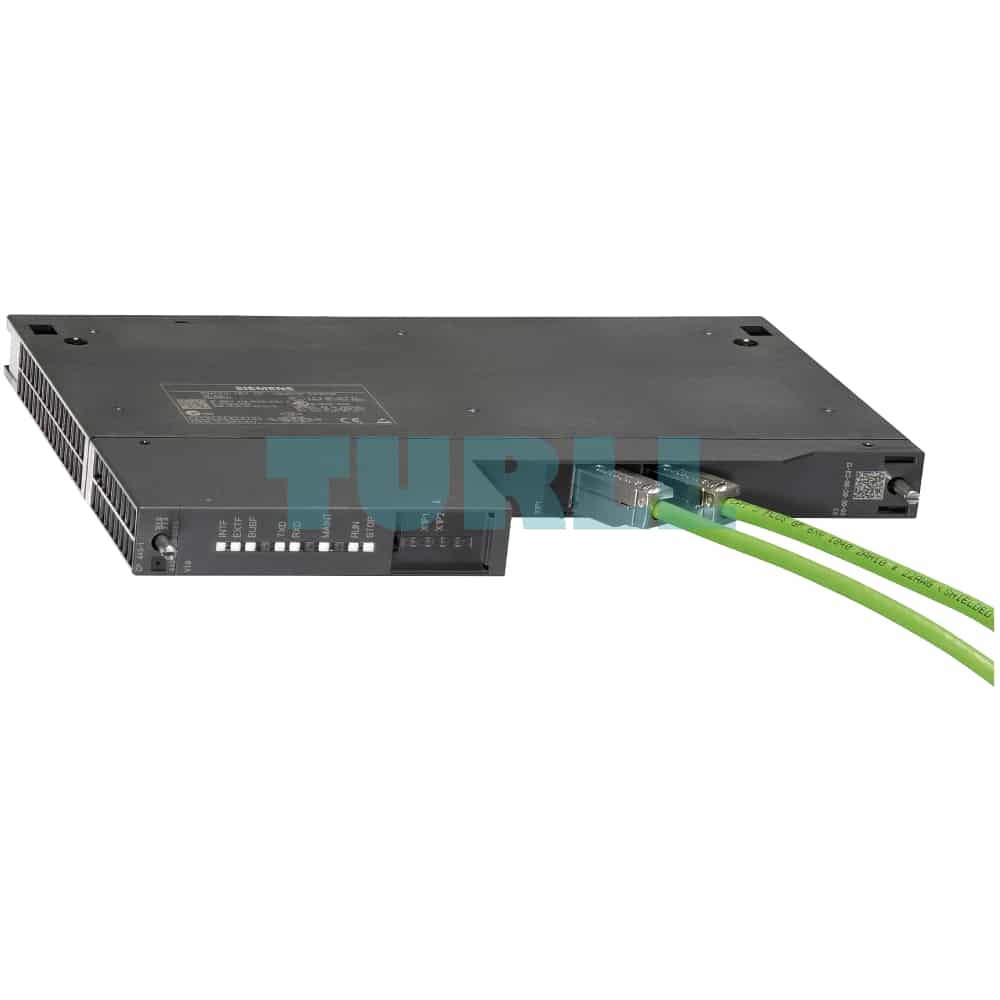

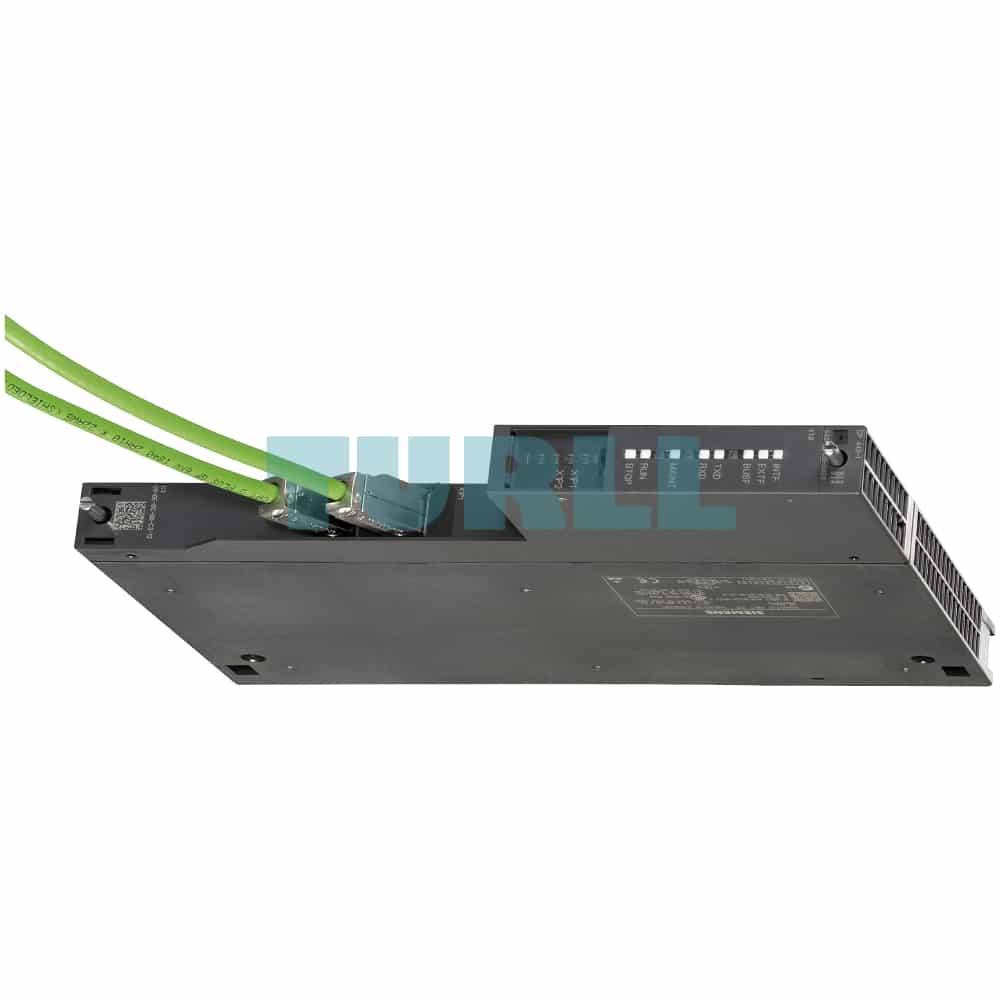

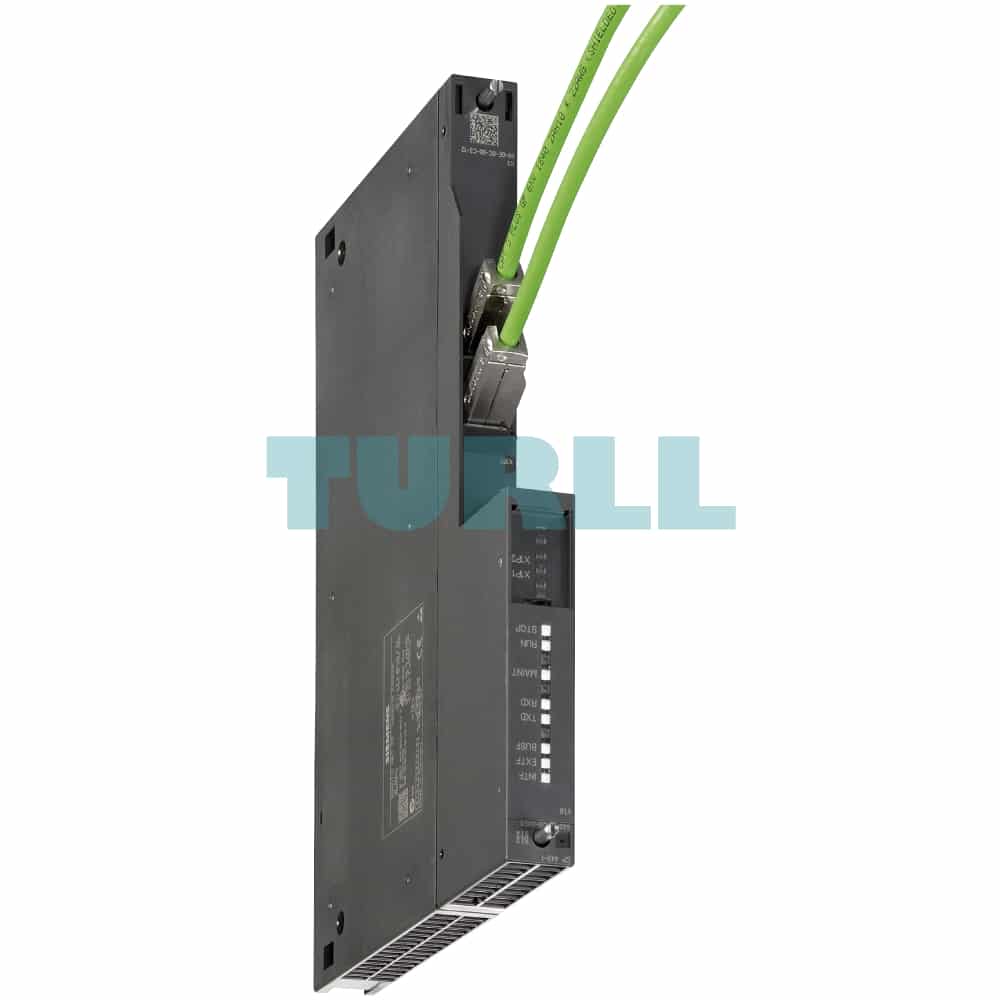

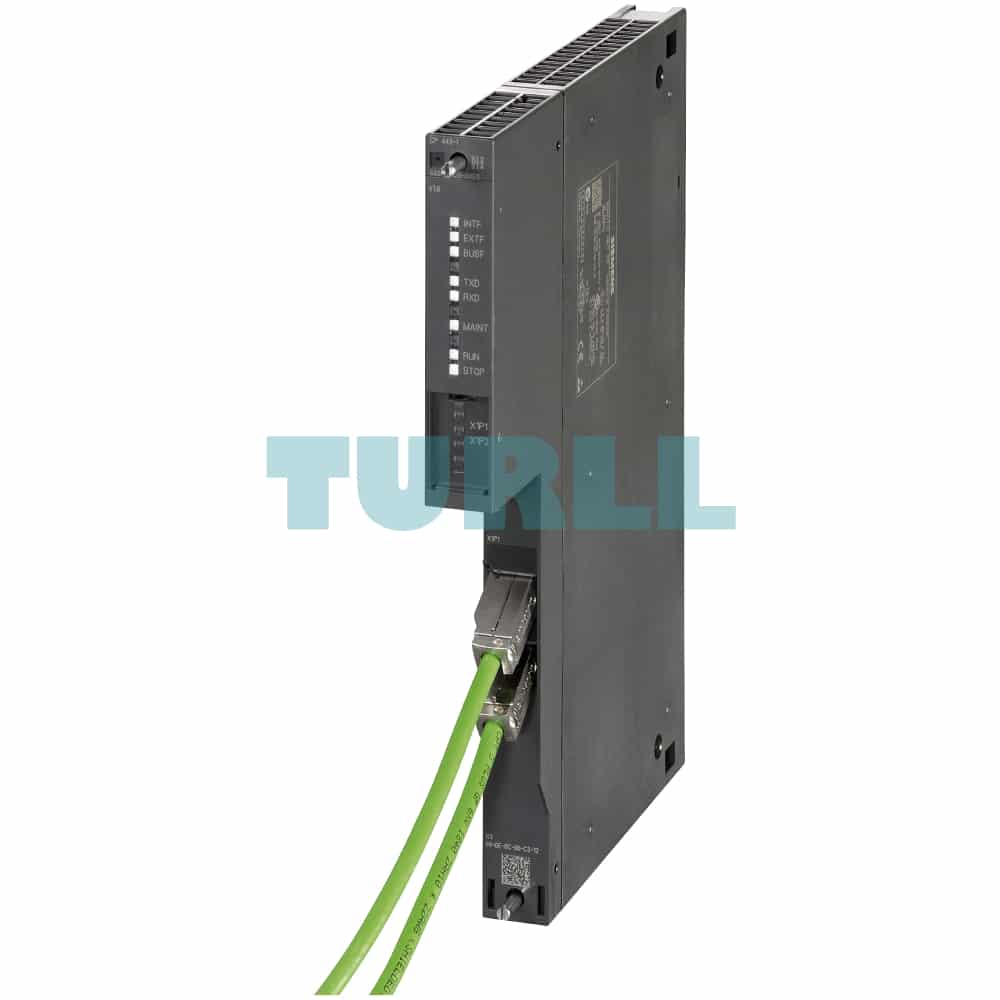

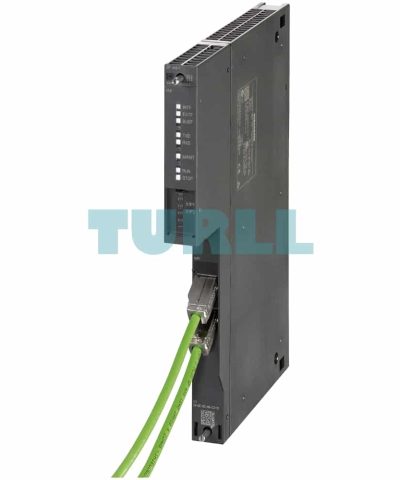

6AG1443-1EX30-4XE0 SIEMENS SIPLUS NET CP 443-1 Original Brand New
$8,438.70
6AG1443-1EX30-4XE0
Siemens SIPLUS NET CP 443-1 based on 6GK7443-1EX30-0XE0 with conformal coating, 0…+60 °C, 2x 10/100 Mbps (IE switch); RJ 45 ports; ISO; TCP; UDP; PROFINET IO controller S7 communication; open communication (send/ receive); S7 routing; IP configuration via DHCP/block; IP access control list; time- -of-day synchronization; extended Web diagnostics; fast start up; support for PROFIenergy
[ez-toc]
Overview
Communications processor for connecting a SIMATIC S7-400 to Industrial Ethernet networks, also as PROFINET IO controller or in SIMATIC H systems.
The CP supports:
- PG/OP communication
- S7 communication
- Open communication (SEND/RECEIVE)
- PROFINET communication
- IT communication
The communications processor can also be used for redundant S7 communication in SIMATIC H systems and for fail-safe applications (PROFIsafe) in connection with an S7-400 F-CPU.
Note:
SIPLUS extreme products are based on SIMATIC standard products. The contents listed here were adopted from the respective standard products. SIPLUS extreme-specific information was added.
Benefits
- High plant availability through the support of media redundancy (MRP) and use in the SIMATIC S7-400 H system
- Optimum support of maintenance through
- Web-based diagnostics
- Remote programming via WAN or telephone network (ISDN)
- Monitoring with IT network management tools (SNMP)
- Module replacement without a PG
- Securing the system against unauthorized access by means of:
- Central access protection for any devices within an automation cell, e.g. by means of strong authentication of network stations
- Investment protection thanks to later connection of existing SIMATIC S7 systems to Industrial Ethernet using the CP 443-1
Application
- The CP 443-1 is used to connect the SIMATIC S7-400 to Industrial Ethernet networks. With its own processor, it relieves the CPU of communications tasks and facilitates additional connections.
The CP 443-1 offers communication options with
- PGs/PCs
- Host computers
- HMI systems
- SIMATIC S5/S7/C7 systems
- PROFINET IO devices
Design
The CP 443-1 features all the advantages of the SIMATIC S7-400 design:
- Compact design:
- Two RJ45 sockets for connecting to Industrial Ethernet; automatic data rate detection by means of the autosensing/autocrossover function; the connection is made via the IE FC RJ45 Plug 180 with 180° cable outlet or via a standard patch cable
- Diagnostics LEDs for indicating the operational and communication status
- Easy installation:
The CP 443-1 is mounted on the S7-400 rack and connected to the other modules via the backplane bus. No slot rules apply. - The CP 443-1 can be operated without a fan
- The CP 443-1 can also be operated in the expansion rack (ER) in conjunction with the IM 460/461
- The module can be replaced without the need for a programming device
Function
- Two RJ45 ports with 10/100 Mbps full/half duplex with autosensing and autocrossover functionality via integrated 2-port switch
- Communications services of the interface:
- Open communication (TCP/IP and UDP): Multicast with UDP, including routing between both interfaces
- PG/OP communication: Inter-network with S7 routing
- S7 communication (client, server, multiplexing) including routing between both interfaces
- S7 H communication for S7-400 H systems, now also across network boundaries (ISO-on-TCP)
- Certified PROFINET IO controller with real-time properties (RT and IRT)
- IP address assignment via DHCP, simple PC tool or via program block (e.g. for HMI)
- Media redundancy (MRP):
- Within an Ethernet network with ring topology, the CP supports the media redundancy procedure MRPMRP as an MRP Manager and as an MRP Client
- Diagnostics and network management:
- Comprehensive diagnostics functions for all modules in the rack (including graphical diagnostics, e.g. topology)
- Integration in network management systems due to support of SNMP V1/V3
- Security mechanisms:
- Access protection by means of configurable IP access list
- Secure firmware update
- Plagiarism detection
- Certification according to the Achilles Level II Standard
http://www.wurldtech.com/product_services/certifications/certified_products/
- Configuration of all functions with STEP 7 V5.5 SP2;
configuration with STEP 7 Professional V11 only possible with a limited range of functions of the predecessor CP 443-1 (6GK7 443-1EX20-0XE0) - When using the blocks AG_SSEND (FC53), AG_SRECV(FC63), TSEND(FB63), TRCV(FB64), TCON(FB65), TDISCON(FB66), please note the information in the following entry:
http://support.automation.siemens.com/WW/view/en/60037071 - Module replacement without programming device: All information can be stored on the CPU
- Note: For communication via Modbus TCP, read the information at the following link
https://support.industry.siemens.com/cs/ww/en/view/22660304
6AG1443-1EX30-4XE0
Siemens SIPLUS NET CP 443-1 based on 6GK7443-1EX30-0XE0 with conformal coating, 0…+60 °C, 2x 10/100 Mbps (IE switch); RJ 45 ports; ISO; TCP; UDP; PROFINET IO controller S7 communication; open communication (send/ receive); S7 routing; IP configuration via DHCP/block; IP access control list; time- -of-day synchronization; extended Web diagnostics; fast start up; support for PROFIenergy
Visit 6AG1443-1EX30-4XE0
For more our products visit turll.com
| Weight | 0.866 kg |
|---|---|
| Dimensions | 230 × 300 × 35 mm |
