6AG1500-0HP00-4AB0 Siemens SIPLUS S7-1500 CPU 1517H System Bundle Original Brand New
$39,521.98
6AG1500-0HP00-4AB0

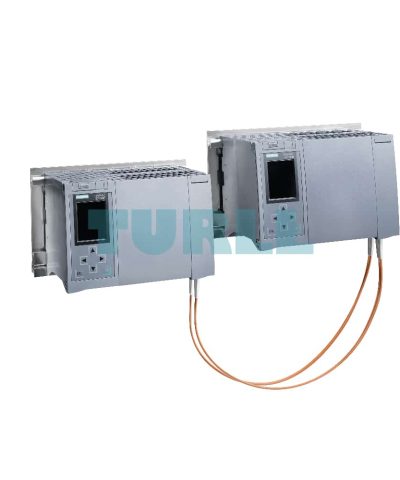

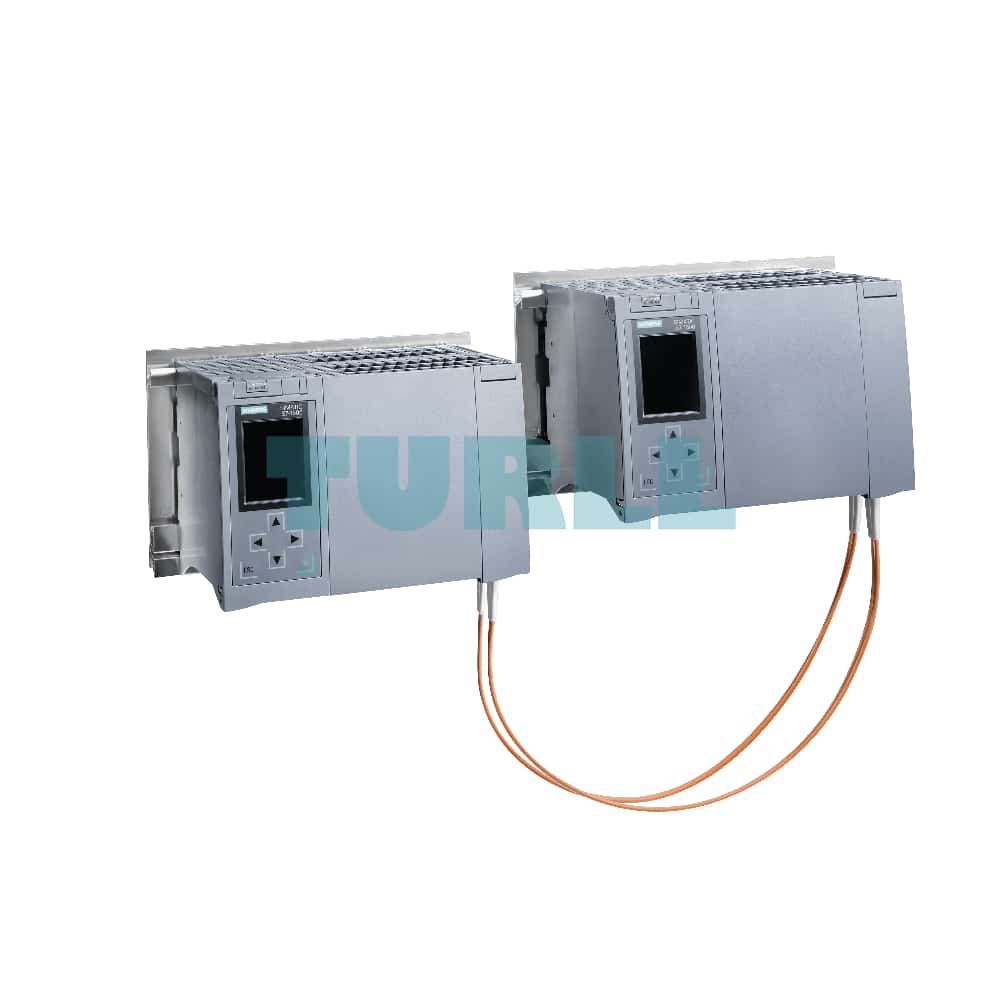

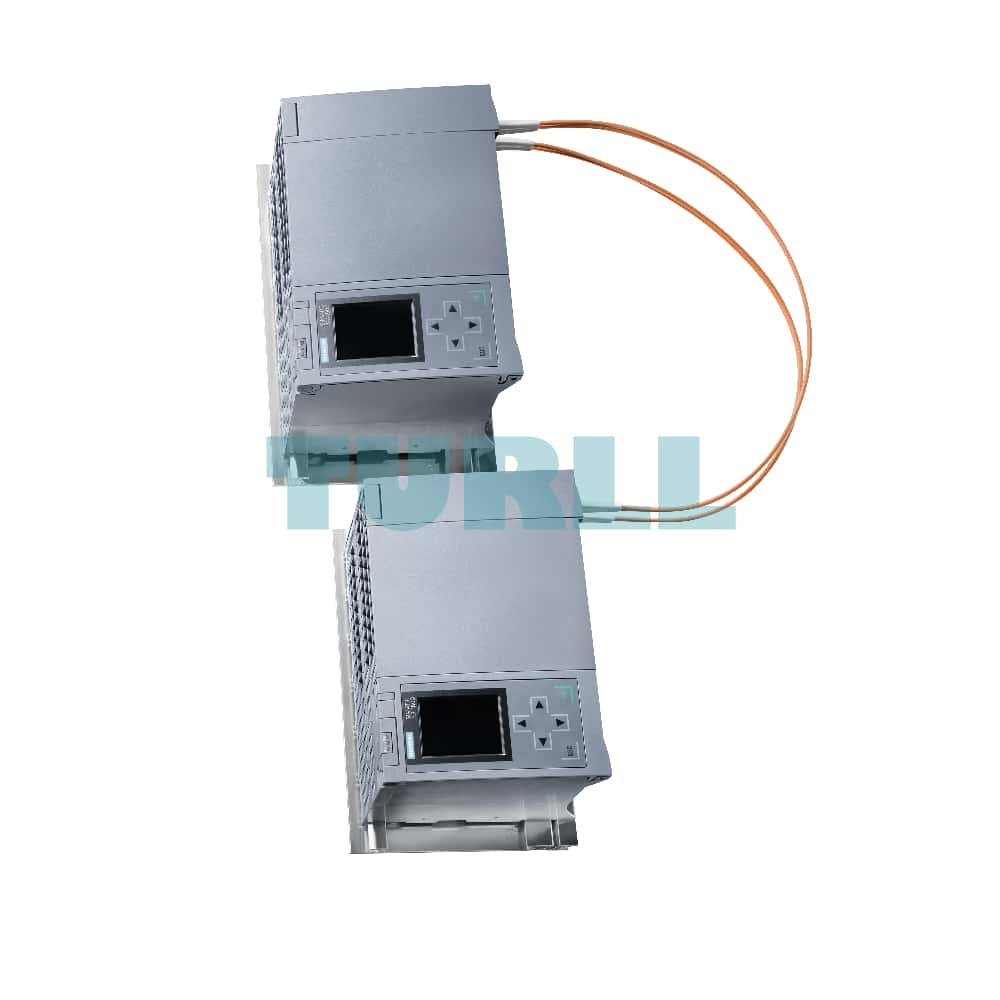

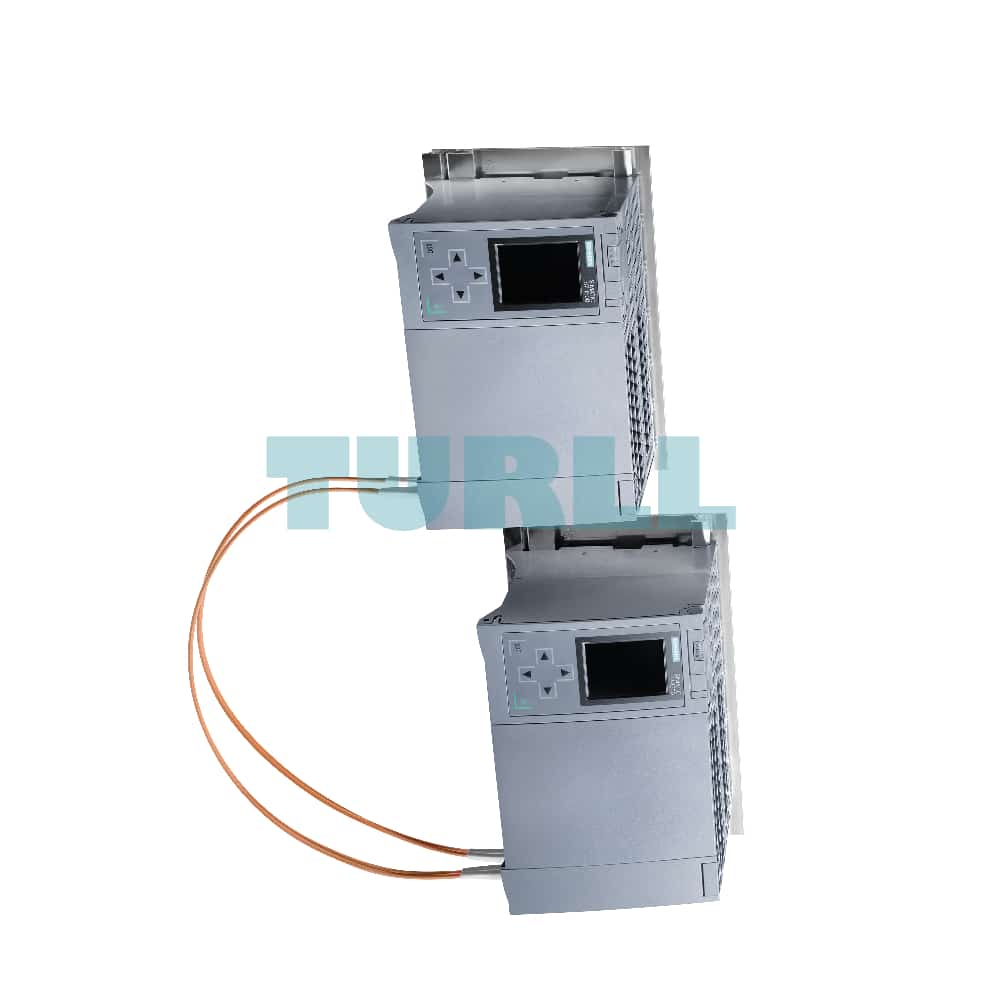

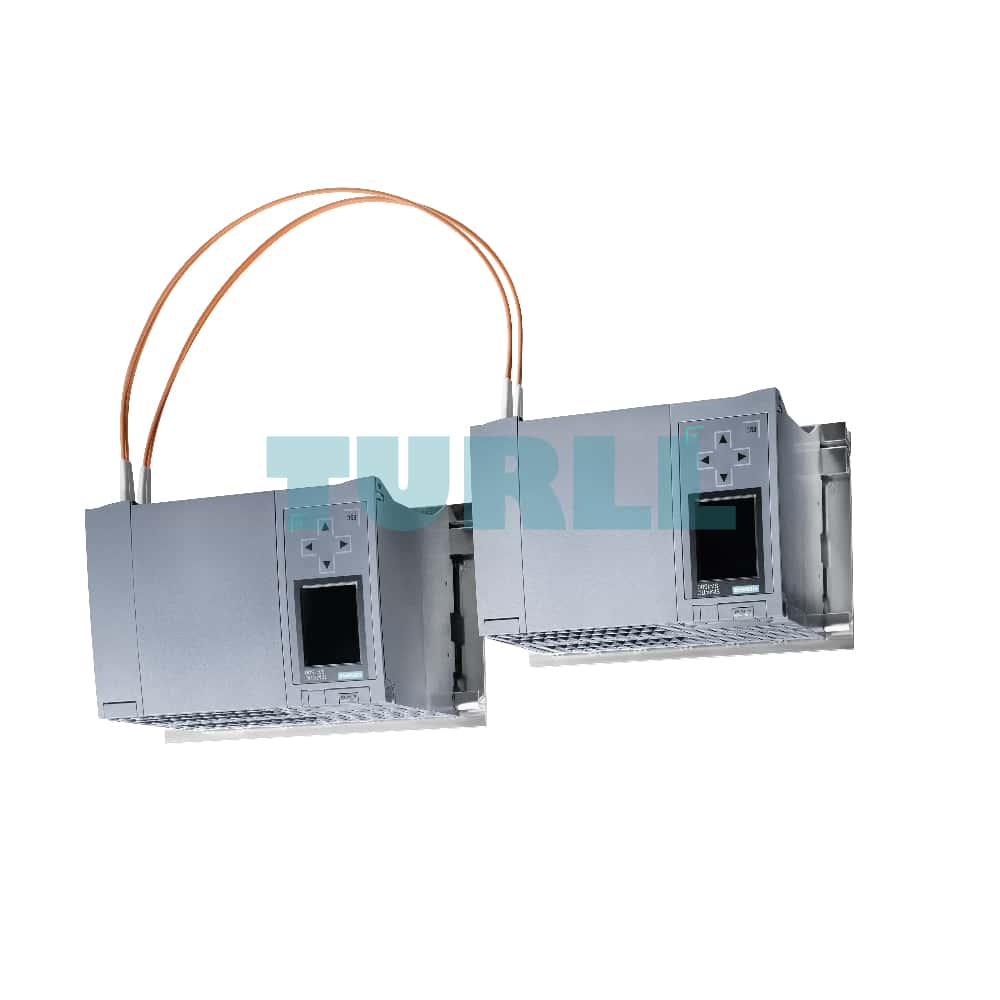

Siemens SIPLUS S7-1500 CPU 1517H System Bundle based on 6ES7500-0HP00-0AB0 with conformal coating, 0…+60 °C, system bundle consisting of: 2 x CPU 1517H-3 PN, 4 sync modules up to 10 m. 2 x sync cables 1 m without memory card
[ez-toc]
Overview
- The CPU for applications with high requirements for availability, very high requirements for program scope and networking, and very high requirements for processing speed.
- High processing speed for binary and floating-point arithmetic
- Used as central controller with distributed I/O
- PROFINET IO RT interface with 2-port switch
- Additional PROFINET interface with separate IP address
- PROFINET IO controller for operating distributed I/O on PROFINET
Note:
SIMATIC Memory Card required for operation of the CPU.
SIPLUS extreme products are based on SIMATIC standard products. The contents listed here were taken from the respective standard products. SIPLUS extreme-specific information was added.
Application
SIPLUS CPU 1517H-3 PN is the CPU with an extremely large program and data memory for applications which have higher requirements for availability compared with standard CPUs. It can be used as the PROFINET IO controller. The integrated PROFINET IO RT interface is designed as a 2-port switch, enabling a ring topology to be set up in the system. The additional integrated PROFINET interface with separate IP address can be used, for example, for network separation.
Design
SIPLUS CPU 1517H-3 PN features:
- A powerful processor:
The CPU achieves a command execution time as low as 4 ns per binary command. - Large work memory:
2 MB for program, 8 MB for data - SIMATIC Memory Cards as load memory
- Display with functions for
- Displaying overview information such as station name, plant designation, location identifier, etc.
- Displaying diagnostic information
- Displaying module information
- Showing display settings
- Setting IP addresses
- Setting the date and time
- Displaying operating mode (redundant or non-redundant)
- Displaying status (stop, primary or backup)
- Resetting the CPU to factory settings
- Disabling/enabling the display
- Enabling protection levels
- PROFINET IO RT interface for connecting distributed I/O via PROFINET
Function
- Performance
- Faster command processing, depending on the CPU type, language extensions and new data types
- Even shorter response times of the CPUs due to considerably faster backplane bus
- Powerful network connection:
Each CPU is equipped with PROFINET IO RT (2-port switch) as standard interface.
- Security Integrated
- Password-based know-how protection against unauthorized read-out and modification of program blocks
- Copy protection for tying individual blocks to the serial number of the SIMATIC Memory Card: The block can only run if the configured memory card is inserted in the CPU.
- 4-level authorization concept:
Communication to the operator panels can also be restricted. - Manipulation protection:
The controller recognizes changed or unauthorized transmissions of the engineering data.
- Design and handling
- Display of overview information:
E.g. Station name, plant designation, location identifier, etc., diagnostic information, module information, display settings. - Operator control options on the display:
set addresses, set date and time, select operating mode of CPU, reset CPU to factory settings, disable/enable display, activate protection levels.
- Display of overview information:
- Integrated system diagnostics
- System diagnostics information is displayed consistently and in plain text in the display, TIA Portal, operator panels and web server, even for messages from the drives, and updated even if the CPU is in STOP mode.
- Integrated in the firmware of the CPU, no special configuration is required
- SIMATIC Memory Card (required for operation of the CPU)
- Used as a plug-in load memory or for updating the firmware.
- Also for storing additional documents or csv files (for recipes and archives)
- Programming of the standard program section
- Programming with STEP 7 V15.1
6AG1500-0HP00-4AB0
Siemens SIPLUS S7-1500 CPU 1517H System Bundle based on 6ES7500-0HP00-0AB0 with conformal coating, 0…+60 °C, system bundle consisting of: 2 x CPU 1517H-3 PN, 4 sync modules up to 10 m. 2 x sync cables 1 m without memory card
Visit 6AG1500-0HP00-4AB0
For more our products visit turll.com
| Weight | 4.8 kg |
|---|---|
| Dimensions | 10 × 10 × 10 mm |
