6AG1505-0RA00-7AB0 Siemens SIPLUS S7-1500 PS 1505 Original Brand New
$2,245.67
6AG1505-0RA00-7AB0

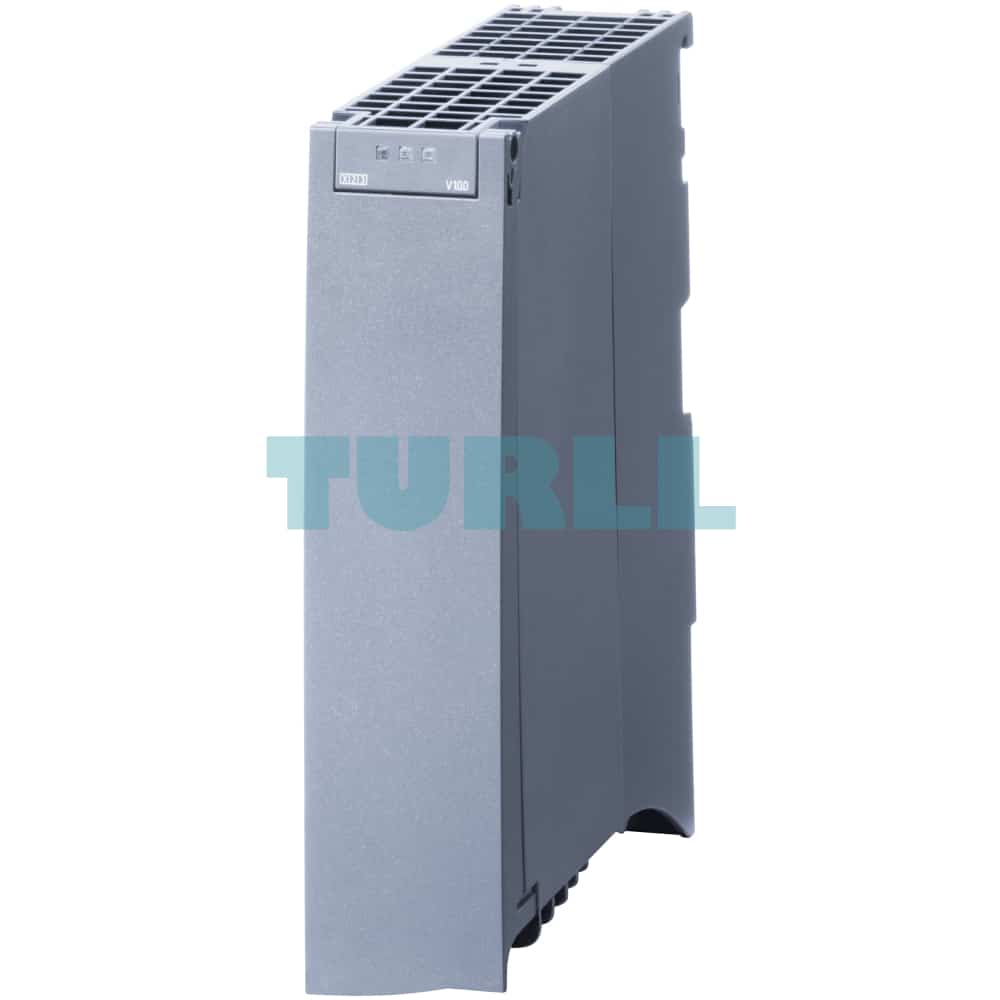

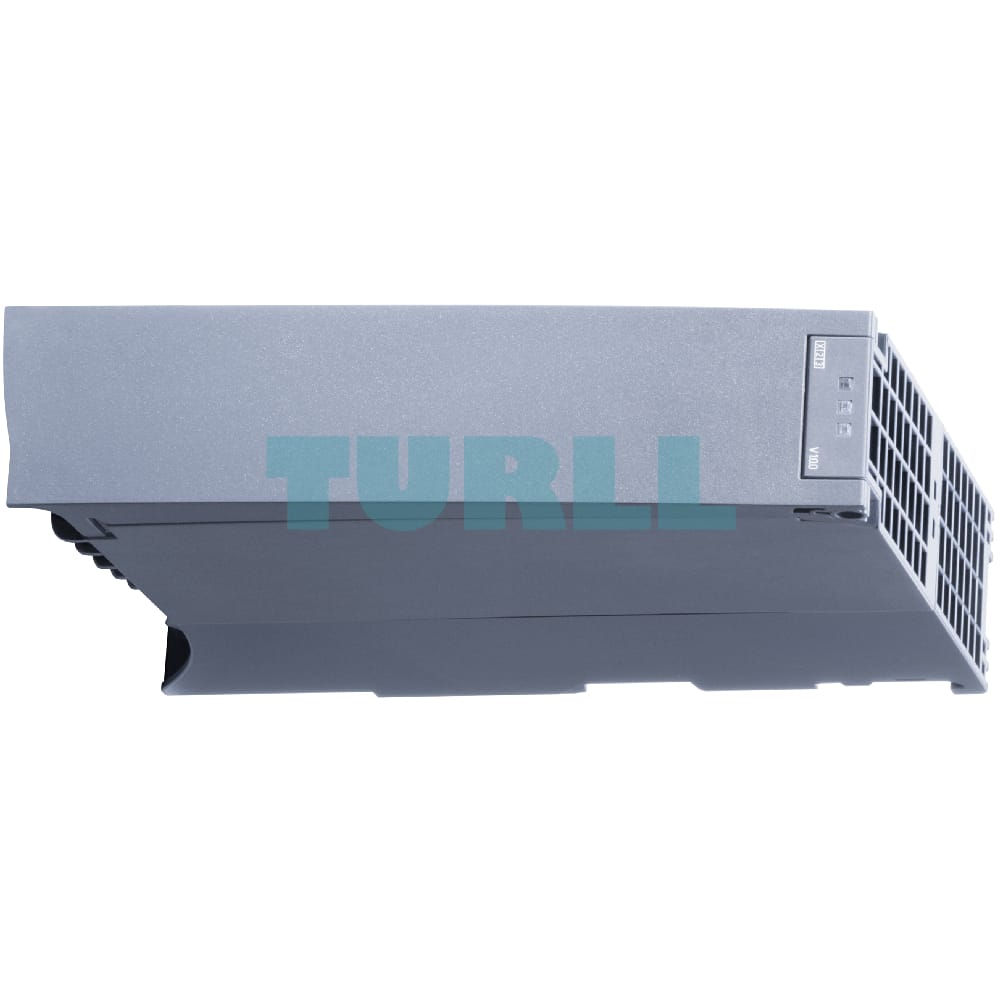

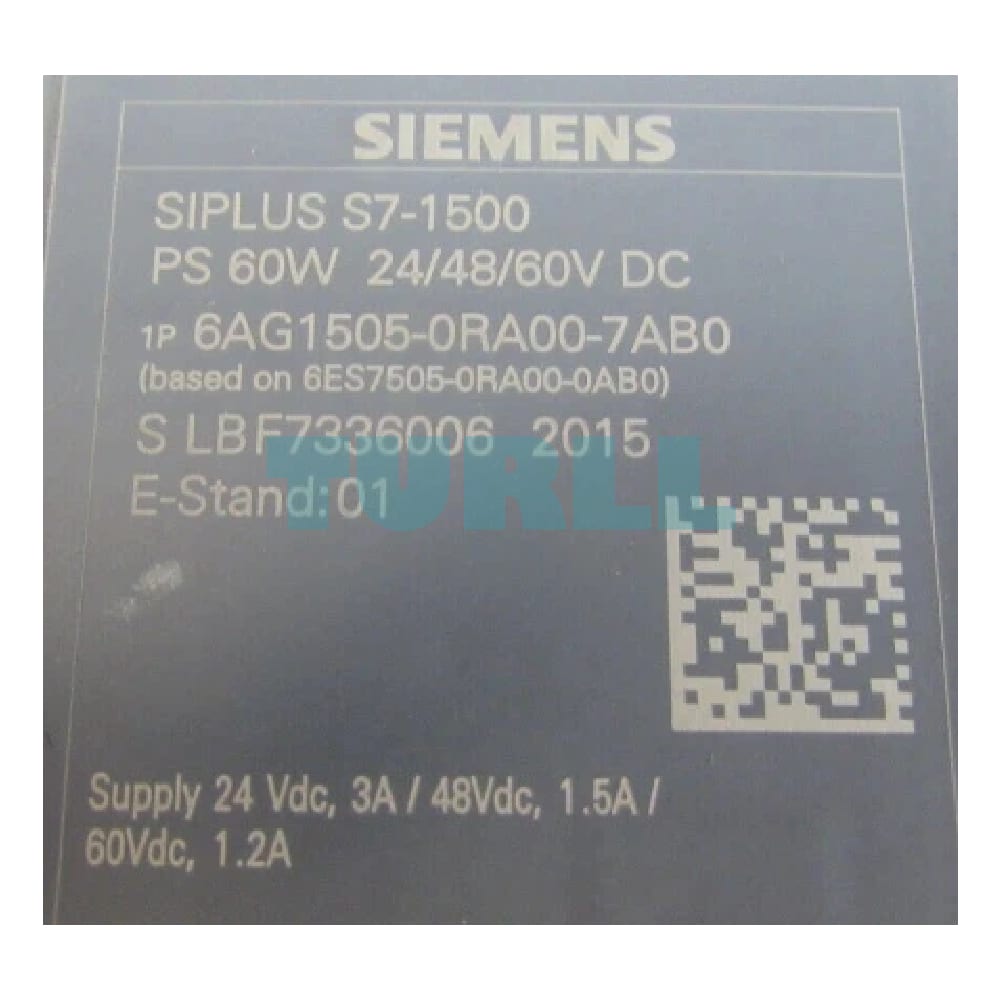

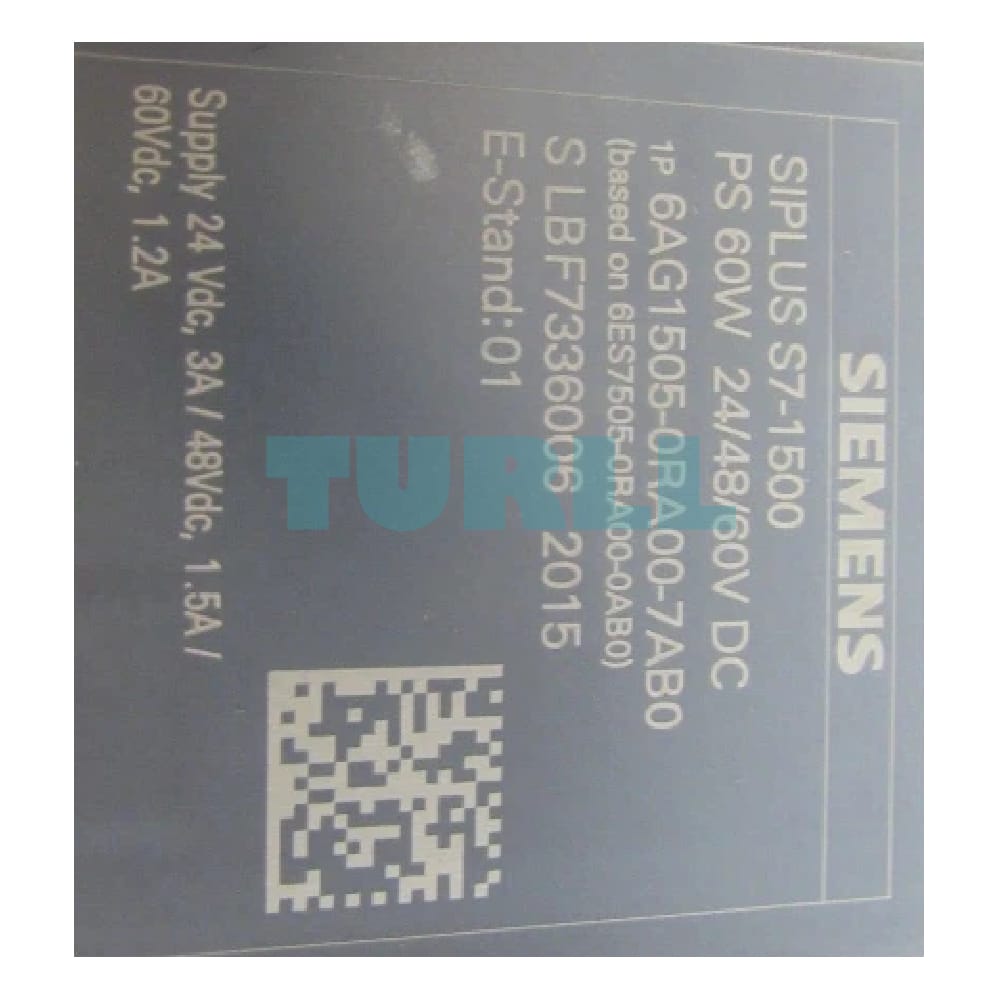

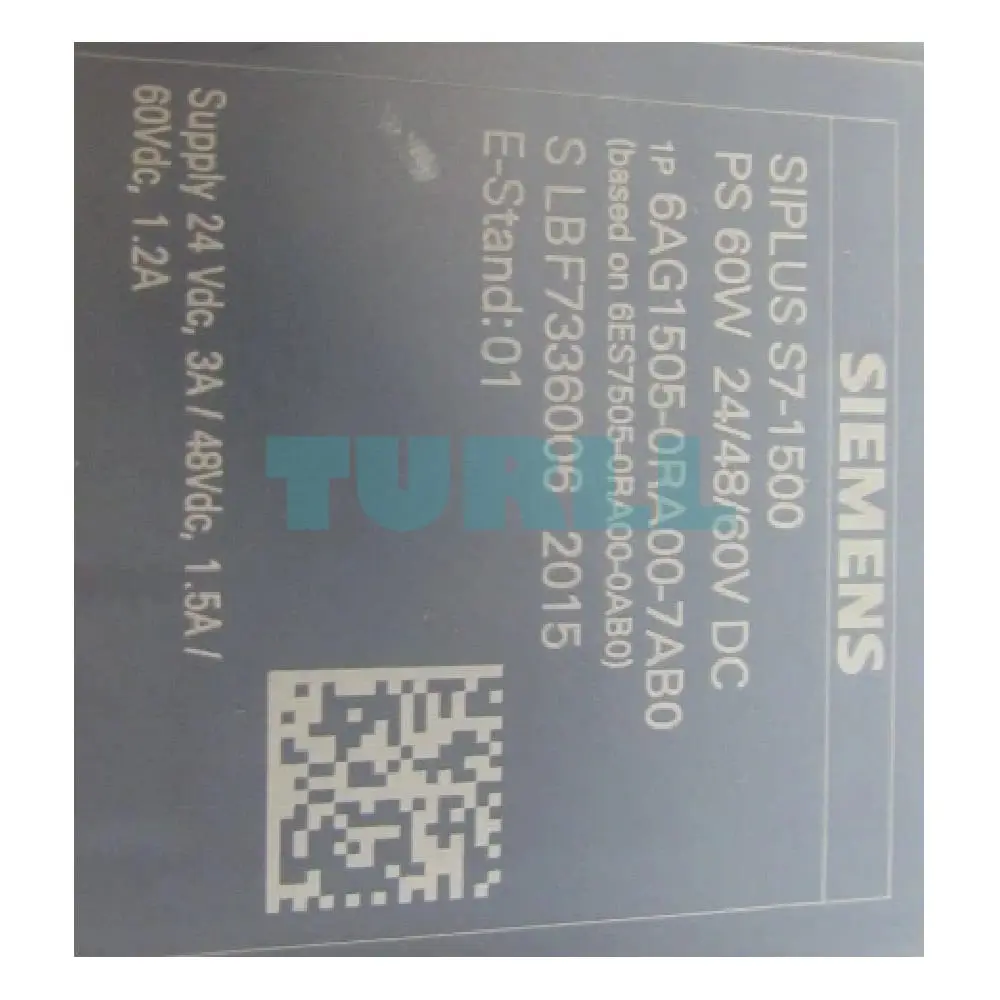

Siemens SIPLUS S7-1500 PS 1505 60W 24/48/60V DC based on 6ES7505-0RA00-0AB0 with conformal coating, -40…+70 °C, start up -25 °C, system power supply supplies the backplane bus of the S7-1500 with operating voltage
[ez-toc]
Overview
- System power supplies for the SIMATIC S7-1500
- For conversion of AC or DC line voltages to the operating voltages required for the internal electronics
- 25 or 60 W output power
- Can be used for S7-1500 or ET 200MP
- Engineering and configuration via STEP 7 V12
Note:
SIPLUS extreme products are based on SIMATIC standard products. The contents listed here were taken from the respective standard products. SIPLUS extreme-specific information was added.
Design
Power supplies are screwed directly to the S7-1500 mounting rail and are connected with the upstream or downstream module via a U connector.
The front of the power supply contains:
- Diagnostics LEDs to indicate status and errors:
Error (Error), operation (RUN), maintenance (MAINT)
The power supplies also include:
- On/off switch
- Power supply terminals
Function
Properties:
- Rated input voltage dependent on the type of module
- Output power dependent on the type of module
- Mains buffering
- Galvanic isolation from the bus
The following functions are supported by the power supply modules:
- Firmware update
- Identification and maintenance data I&M0 to I&M3
- Configuring in RUN
- Diagnostic messages
- Diagnostics interrupts
6AG1505-0RA00-7AB0
Siemens SIPLUS S7-1500 PS 1505 60W 24/48/60V DC based on 6ES7505-0RA00-0AB0 with conformal coating, -40…+70 °C, start up -25 °C, system power supply supplies the backplane bus of the S7-1500 with operating voltage
Visit 6AG1505-0RA00-7AB0
For more our products visit turll.com
| Weight | 0.5 kg |
|---|---|
| Dimensions | 156 × 158 × 80 mm |
