6AG1550-1AA01-7AB0 Siemens SIPLUS S7-1500 TM Count Original Brand New
$2,155.51
6AG1550-1AA01-7AB0

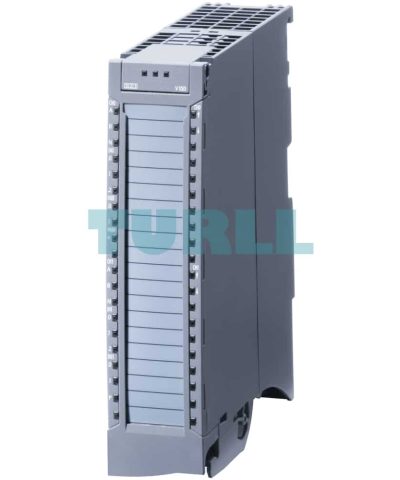

Siemens SIPLUS S7-1500 TM count 2×24 V based on 6ES7550-1AA01-0AB0 with conformal coating, -40…+70 °C, counter module, 2 channels for 24 V incremental encoder or pulse generator, 3 DI, 2 DQ per channel
[ez-toc]
Overview
- 2-channel high-speed counter module
- With comprehensive parameterization options for an optimum adaptation to the task and reduction of control load
- Speed and time period measuring
- Storage and comparison functions
- Connection of 24 V encoders
Note:
SIPLUS extreme products are based on SIMATIC standard products. The contents listed here were taken from the respective standard products. SIPLUS extreme-specific information was added.
Application
In particular, counter modules detect quick signals with high frequencies and return the counter reading and the current speed to the PLC. The counter control ensures a precise counter result and rapid response in the system via digital input and output signals. Comprehensive parameterization options provide optimum adaptation to the task at hand and reduce control load.
- TM Count 2x24V:
Fast counter module, 2 channels; counting function up to 200 kHz; hardware and software gate; connection of 24 V encoders; 3 digital inputs (in addition to the counter inputs) and 2 digital outputs per channel; measurement of frequency, speed and time period; storage and comparison functions; 24 V encoder supply; isochronous mode
Design
- Mounting on the S7-1500 DIN rail using one single screw
- Standardized 40-pole front connector with screw-type or push-in system
- Connectable core cross-sections: 0.25 mm2 to 1.5 mm2 (AWG24 to 16)
- Prewiring position of the front connector
- Front flap with expandable cable compartment, even if fully wired
- Integrated shielding concept
Included in the scope of delivery:
- One labeling strip for manual labeling
- One U connector
- Printed front door
- Infeed element, shield clamp, and shield terminal
Function
- Uniform display and diagnostics concept:
- Module status display for ERROR (red LED) and RUN (green LED)
- Channel status display for signal state log. “0” and log. “1” (green LED) or diagnostics display (red LED)
- Display for monitoring the 24 V DC supply voltage (green LED)
- Supported functions:
- High-speed counting up and counting down
- Counting range adjustable up to +/- 31 bits
- Integrated digital inputs and outputs for high-speed response
- Measuring of the current signal frequency
- Position detection with incremental encoder
- 2 comparators per channel for controlling the digital outputs
- Saving or setting of the count with digital input
- Hardware interrupts, parameterizable
- Isochronous mode
- Fast Mode with reduced function for particularly short cycle times
- User-friendly configuration through instructions and technology objects
- Uniform system functions of SIMATIC S7-1500 and ET 200MP:
- Identification and maintenance data
- Firmware update
- Unambiguous labeling on front of module
- Uniform front connector
6AG1550-1AA01-7AB0
Siemens SIPLUS S7-1500 TM count 2×24 V based on 6ES7550-1AA01-0AB0 with conformal coating, -40…+70 °C, counter module, 2 channels for 24 V incremental encoder or pulse generator, 3 DI, 2 DQ per channel
Visit 6AG1550-1AA01-7AB0
For more our products visit turll.com
| Weight | 0.359 kg |
|---|---|
| Dimensions | 164 × 191 × 41 mm |
