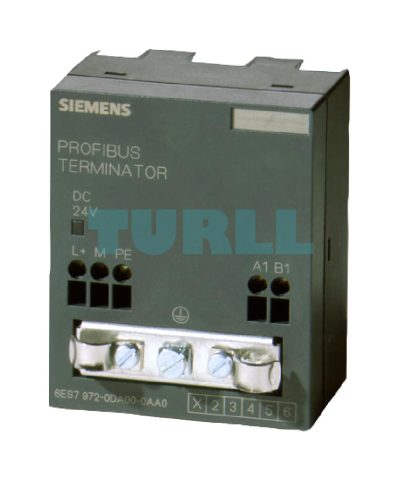

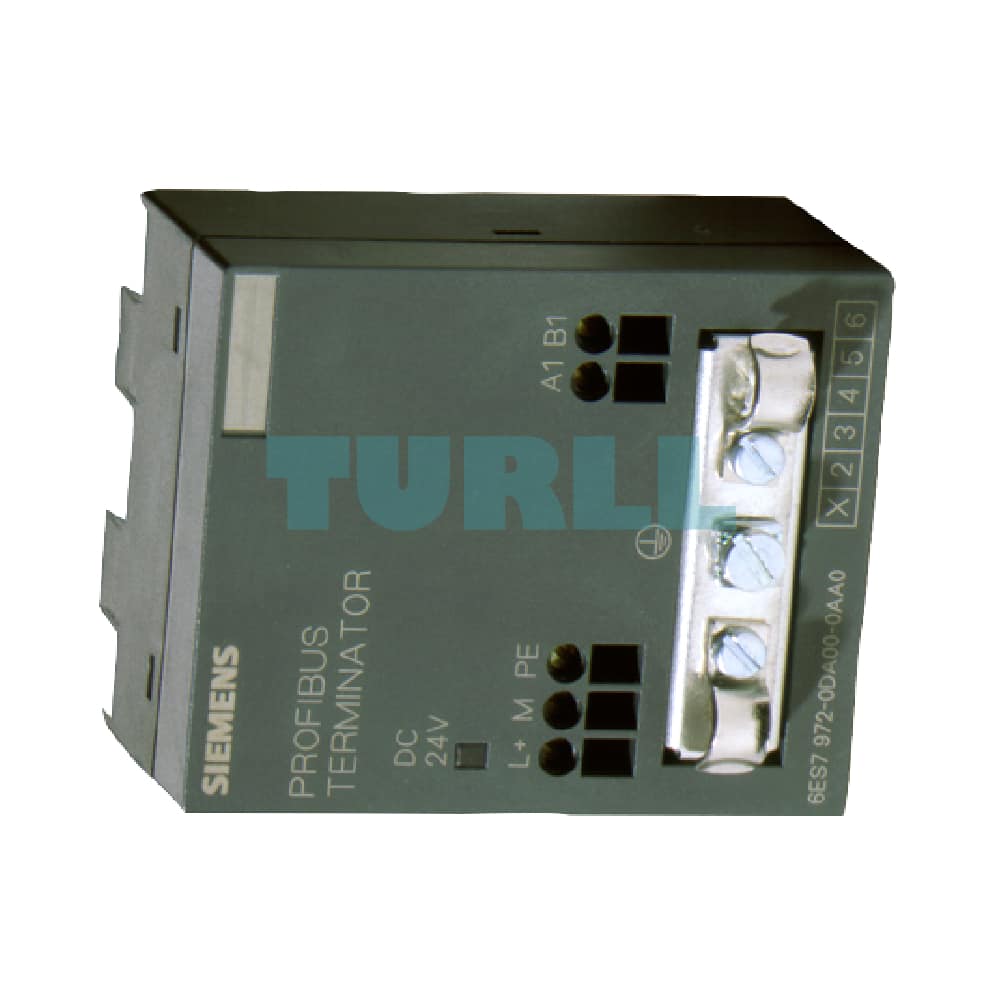

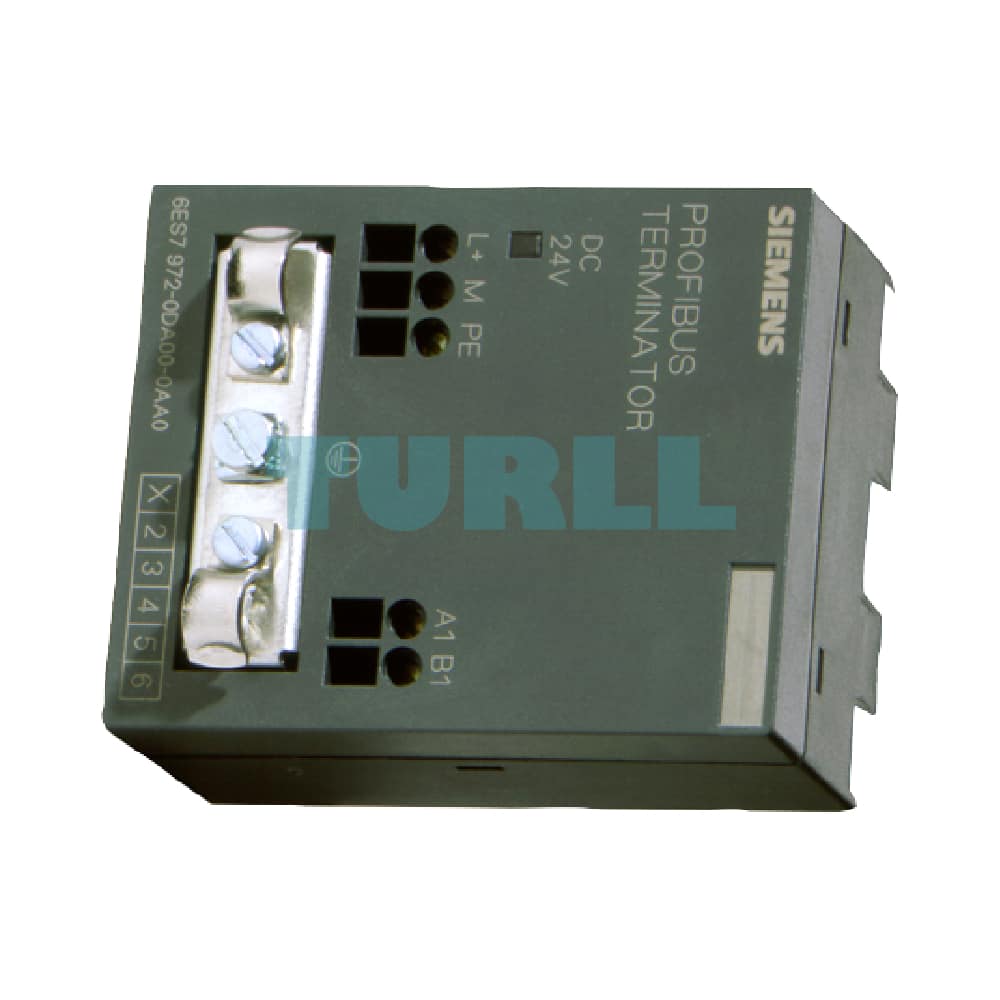

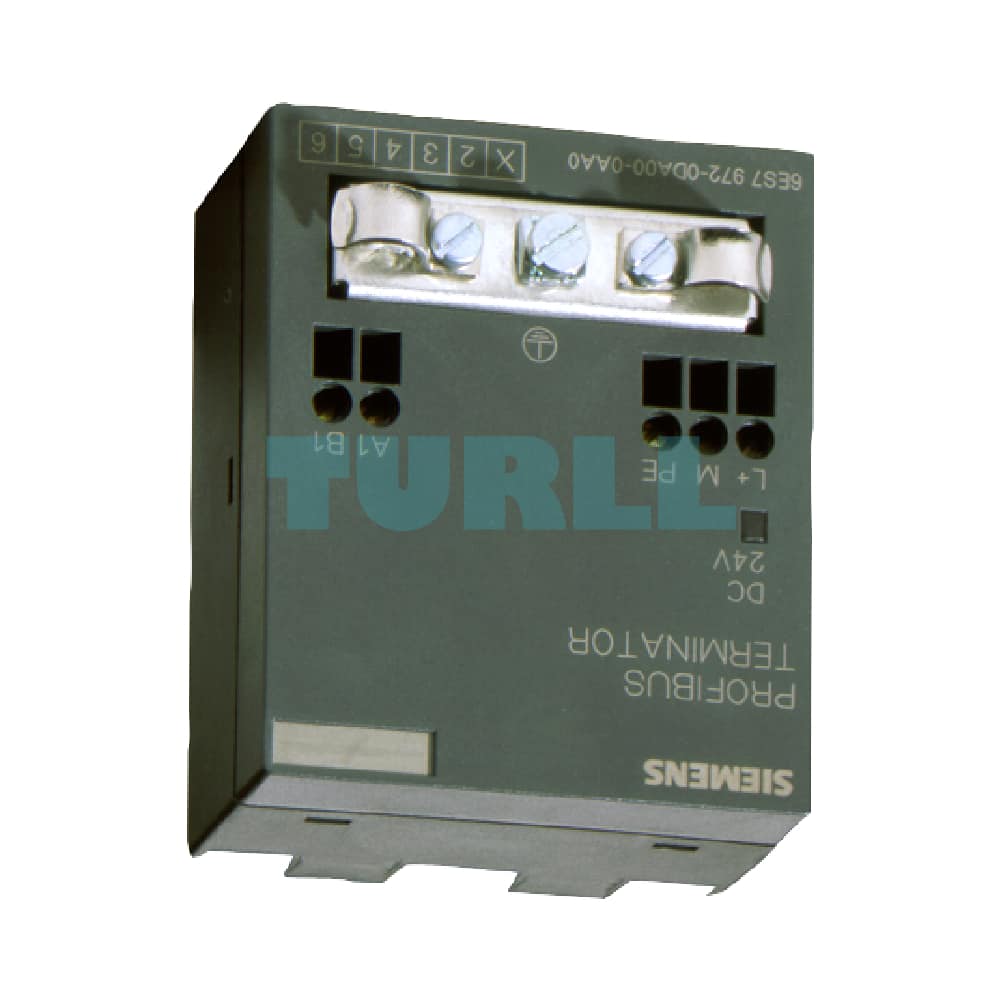

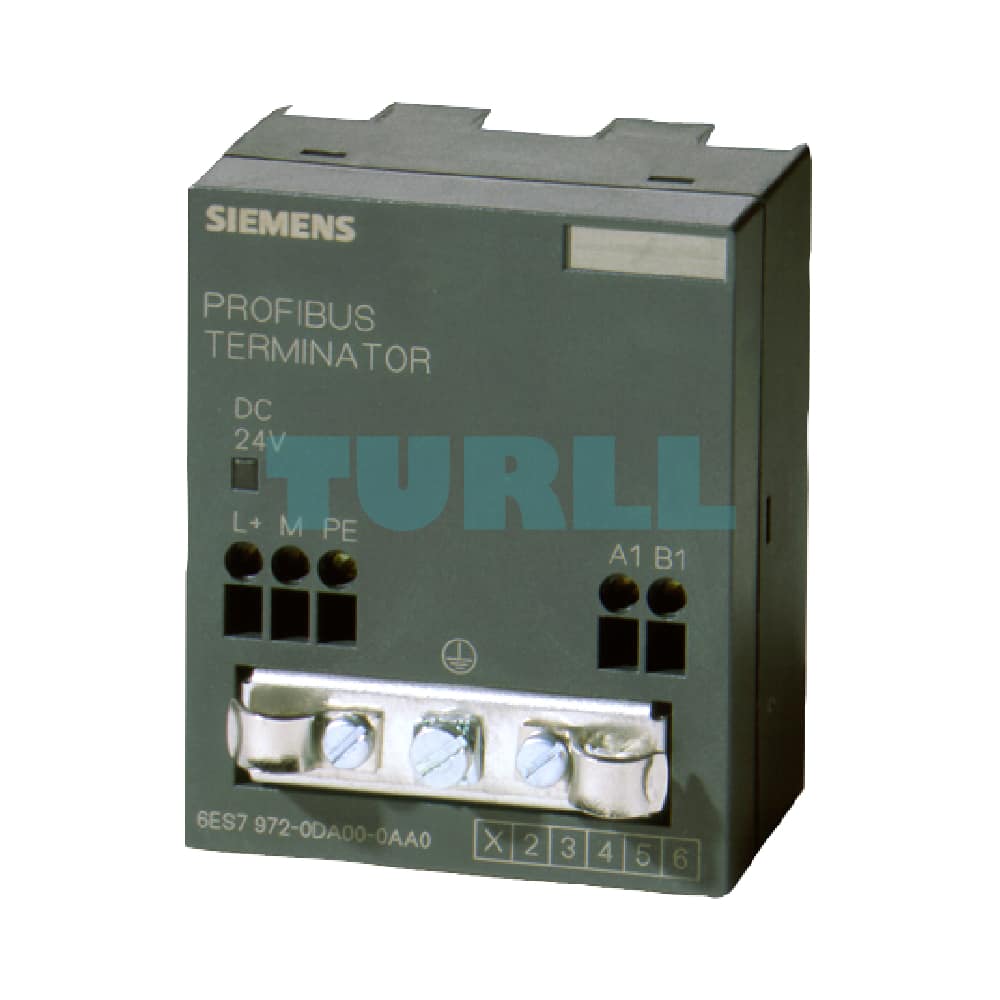

6AG1972-0DA00-2AA0 Siemens SIPLUS DP Terminator RS-485 Original Brand New
$461.20
6AG1972-0DA00-2AA0
Siemens SIPLUS DP Terminator RS-485 based on 6ES7972-0DA00-0AA0 with conformal coating, -25…+60 °C,
[ez-toc]
Overview
- Used to terminate bus segments at rates of 9.6 kbps to 12 Mbps
- Power supply independent of the bus participants
Designed for Industry
- End-device independent bus termination thanks to own power supply
Note:
SIPLUS extreme products are based on SIMATIC standard products. The contents listed here were taken from the respective standard products. SIPLUS extreme-specific information was added.
For technical documentation on SIPLUS, see:
http://www.siemens.com/siplus-extreme
Application
The active RS 485 terminating resistor is used to terminate bus segments. The resistor is supplied with power independently of the bus nodes. The terminating resistor is hereby supplied separately from the other I/O components with a permanent voltage or with a voltage switched upstream of the I/O. By terminating the bus system, the nodes (e.g. ET 200SP) can be freely connected and disconnected without malfunctions.
Design
- 1 terminal block for the segment connection
- Terminal block for power supply (24 V DC external)
Function
The active RS 485 terminating element terminates the PROFIBUS and therefore ensures a defined level of the RS 485 signal and suppression of reflections on the line. Since it is operated independently of the field devices, they can be decoupled from the bus without reactions.
6AG1972-0DA00-2AA0
Siemens SIPLUS DP Terminator RS-485 based on 6ES7972-0DA00-0AA0 with conformal coating, -25…+60 °C,
Visit 6AG1972-0DA00-2AA0
For more our products visit turll.com
| Weight | 0.106 kg |
|---|---|
| Dimensions | 72 × 85 × 58 mm |
