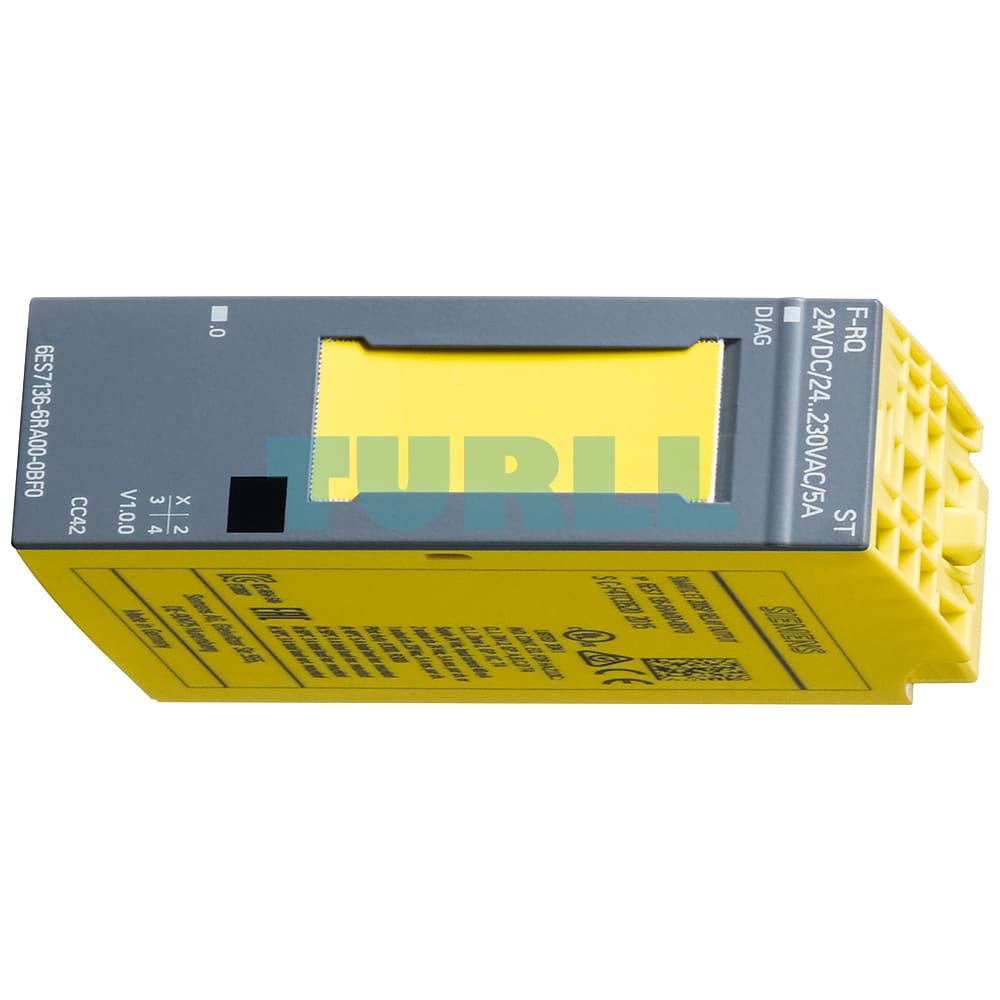

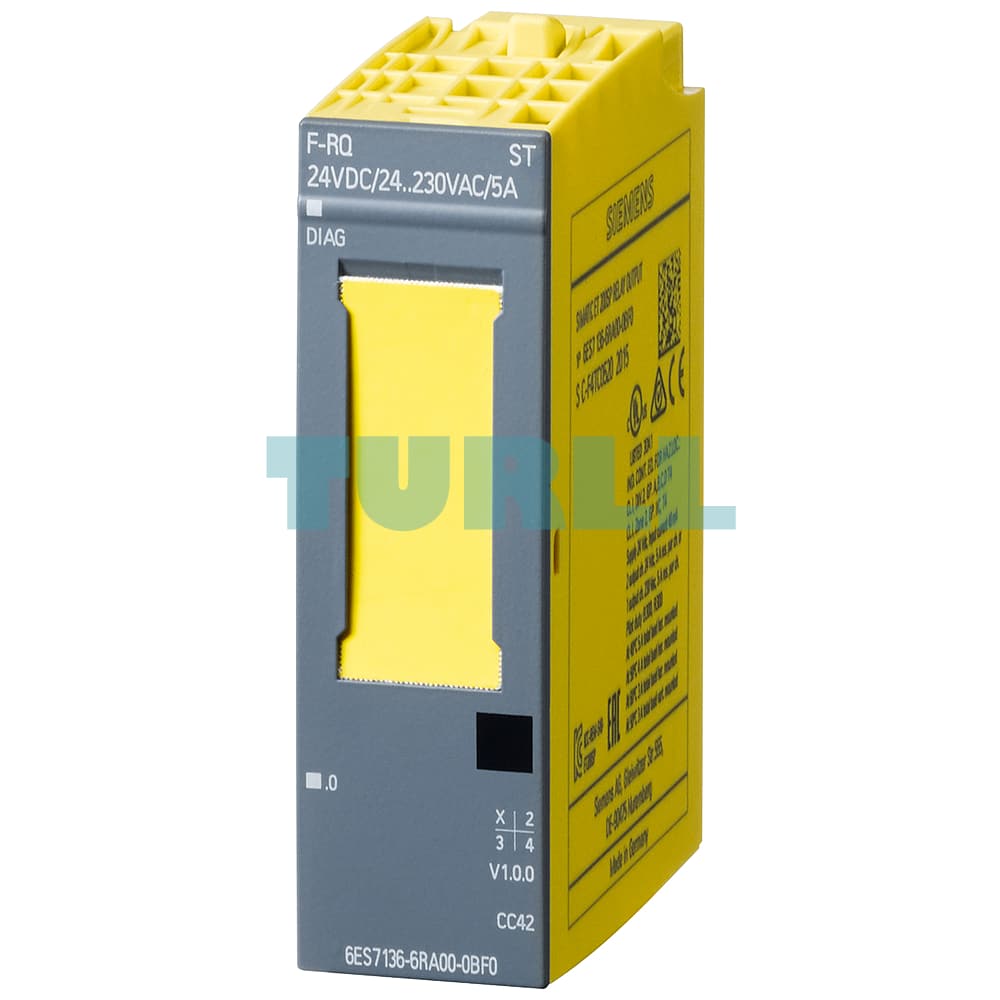

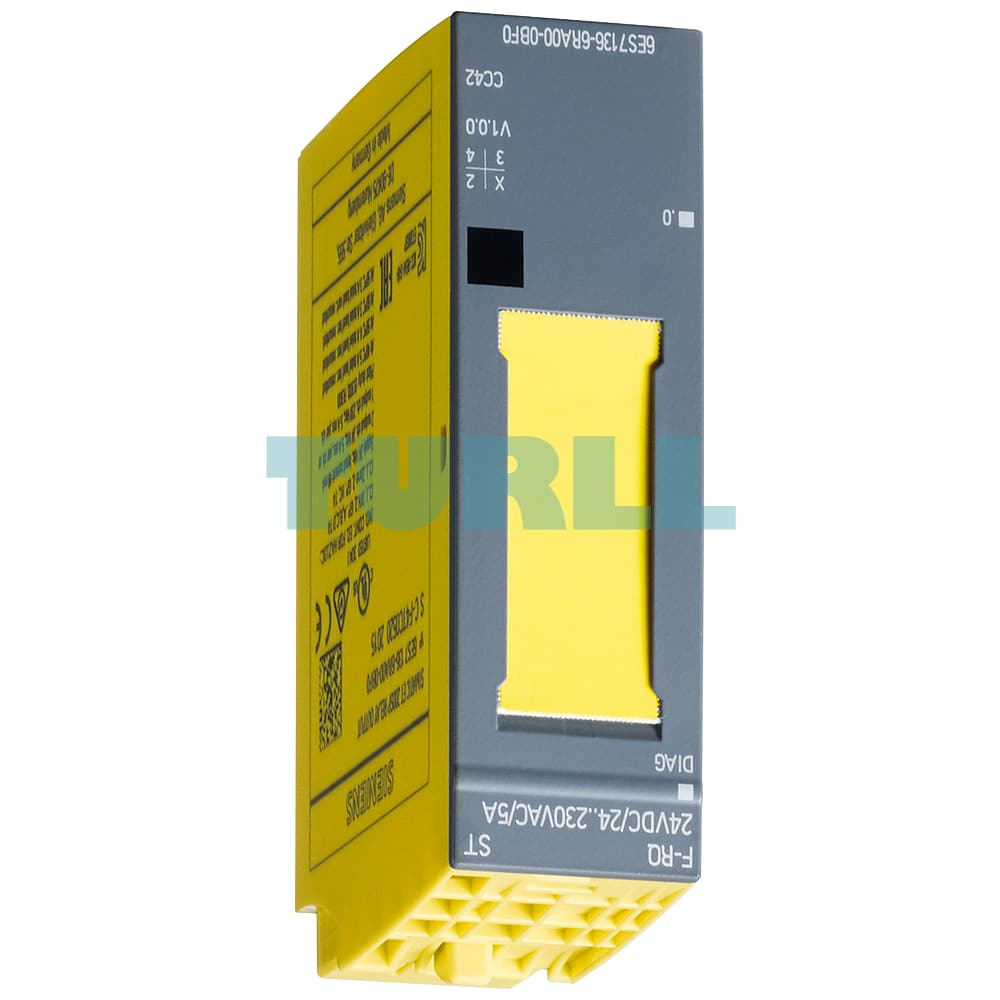

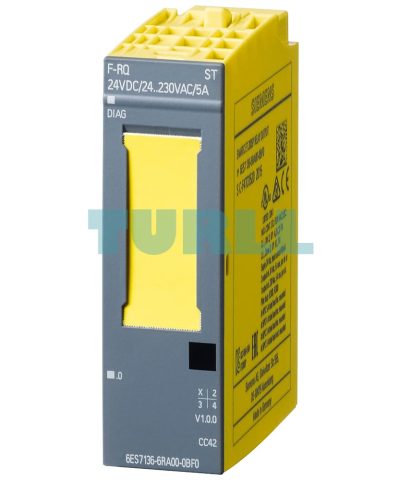

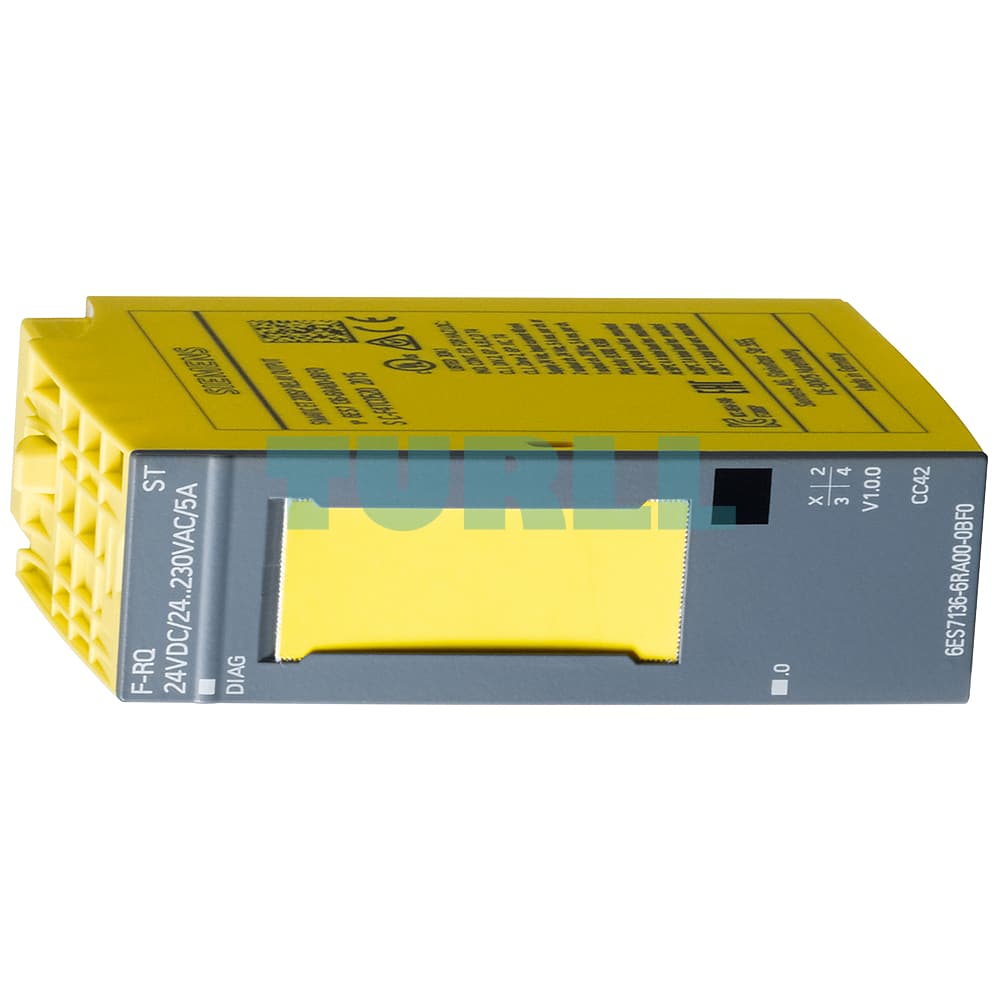

6AG2136-6RA00-1BF0 Siemens SIPLUS ET 200SP F-RQ Original Brand New
$667.84
6AG2136-6RA00-1BF0
Siemens SIPLUS ET 200SP F-RQ 24VDC230VAC/5A rail based on 6ES7136-6RA00-0BF0 with conformal coating, -30…+60 °C, OT1 with ST1/2 (+70 °C für 10 minutes), 20 mm overall width, 1 relay output (2 NO) summation output current 5 A, load voltage 24 V DC and 24 … 230 V AC, can be used up to PL e (ISO 13849-1: 2008)/ SIL 3 (IEC 61508: 2010) if controlled by F-DQ (e.g. 6AG2136-6DB00-1CA0)
[ez-toc]
Overview
The digital F-electronic module SIPLUS ET 200SP F-RQ 24VDC230VAC/5A RAIL has the following properties:
- Approved in accordance with the EN 50155, EN 15121, EN 50124, EN 50125 and EN 45545 railway standards for use in rail traffic
- 1 relay output (2 NO contacts)
- Total output current 5 A
- Rated load voltage 24 V DC and 24 … 230 V AC
- The control circuit of the two safety relays must be routed from the outside to the respective terminals.
The attainable safety integrity level is SIL 3 (IEC 61508) when the control of the F-RQ module is implemented via a fail-safe output (e.g. of SIPLUS ET 200SP F-DQ 4x24VDC High Feature T1 RAIL).
Application
The 1 F-RQ module is very versatile and can be used in multiple ways, e.g.
- for switching of external voltages,
- when floating signals are needed,
- for controller releases,
- when higher switching capacities (> 2 A) or other voltage levels are needed.
Design
Control must be carried out from the outside via a fail-safe electronic module to the respective IN P and IN M terminals. The ET 200SP 4 F-DQ (6AG2136-6DB00-1CA0) can be used for this, for example.
One channel of the 4 F-DQ module can be used to control a further 1 F-RQ module. The output signal can be looped through for this purpose: OUT P and OUT M of the first 1F-RQ module are wired to IN P and IN M of the second 1F-RQ module.
6AG2136-6RA00-1BF0
Siemens SIPLUS ET 200SP F-RQ 24VDC230VAC/5A rail based on 6ES7136-6RA00-0BF0 with conformal coating, -30…+60 °C, OT1 with ST1/2 (+70 °C für 10 minutes), 20 mm overall width, 1 relay output (2 NO) summation output current 5 A, load voltage 24 V DC and 24 … 230 V AC, can be used up to PL e (ISO 13849-1: 2008)/ SIL 3 (IEC 61508: 2010) if controlled by F-DQ (e.g. 6AG2136-6DB00-1CA0)
Visit 6AG2136-6RA00-1BF0
For more our products visit turll.com
| Weight | 0.068 kg |
|---|---|
| Dimensions | 68 × 79 × 30 mm |
