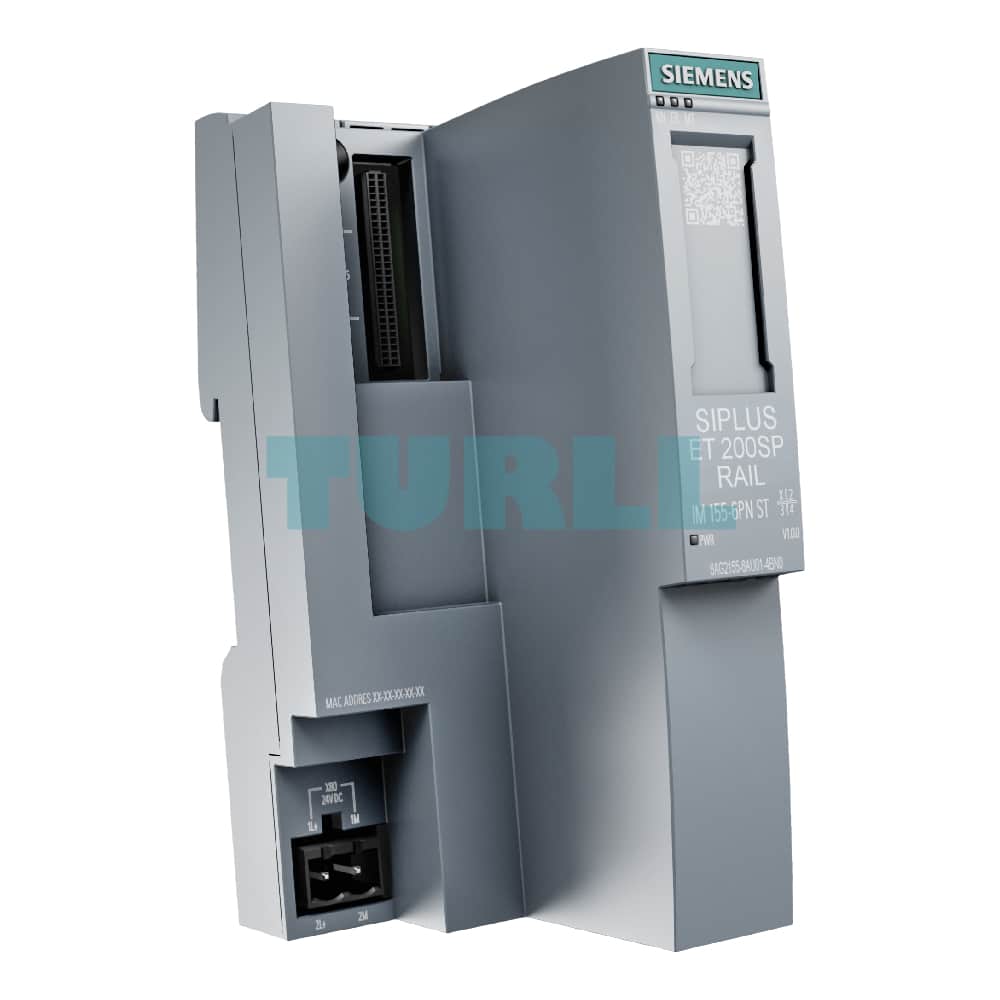

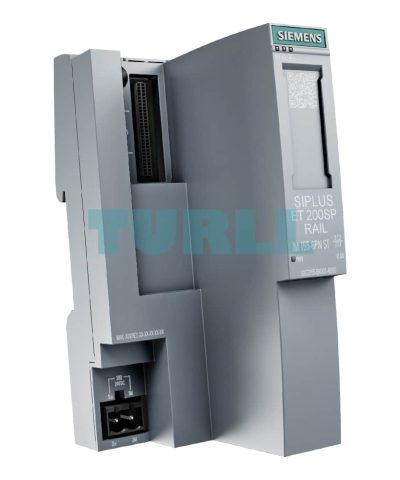

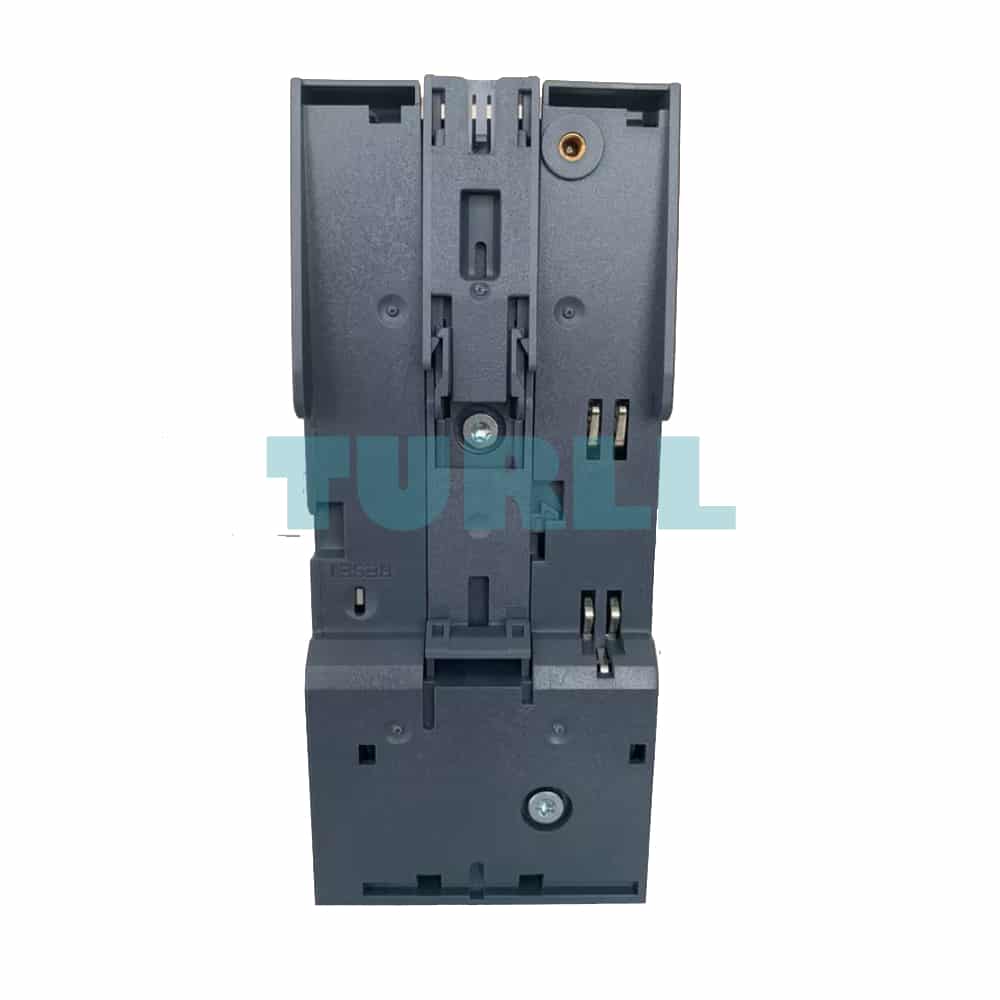

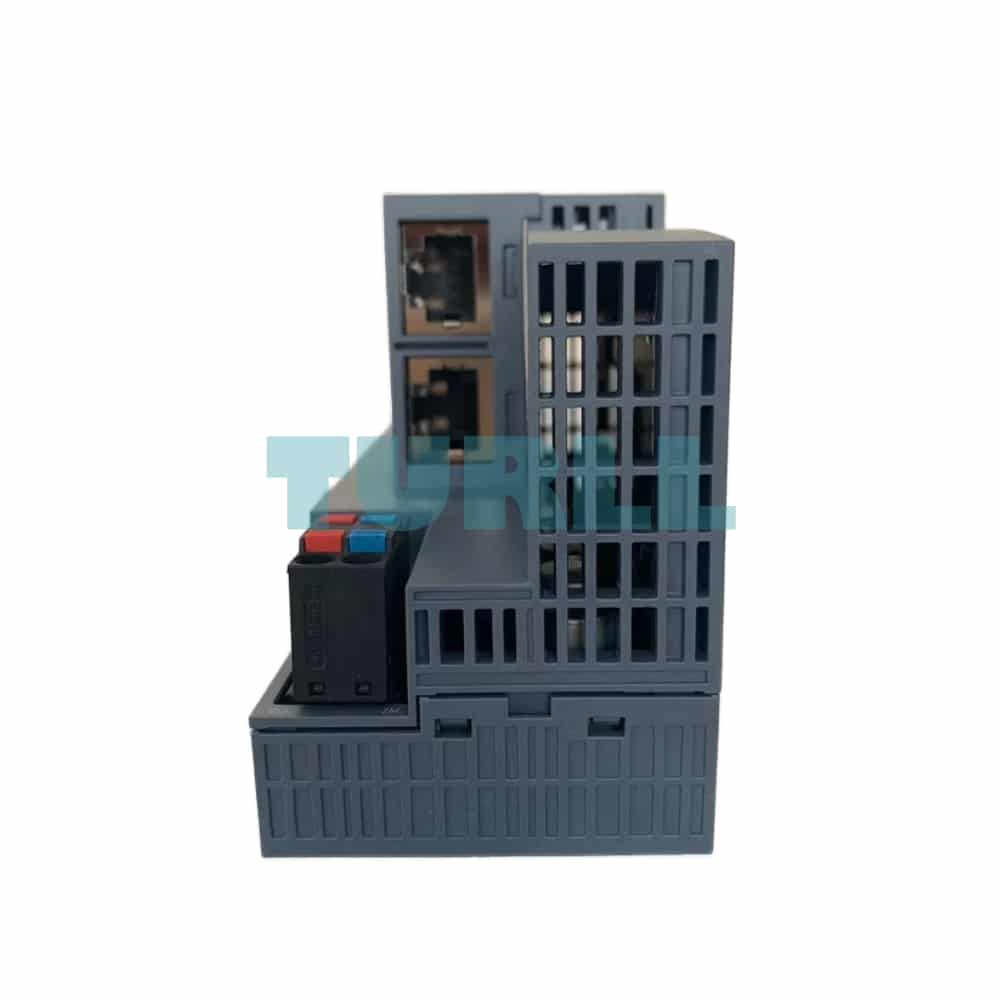

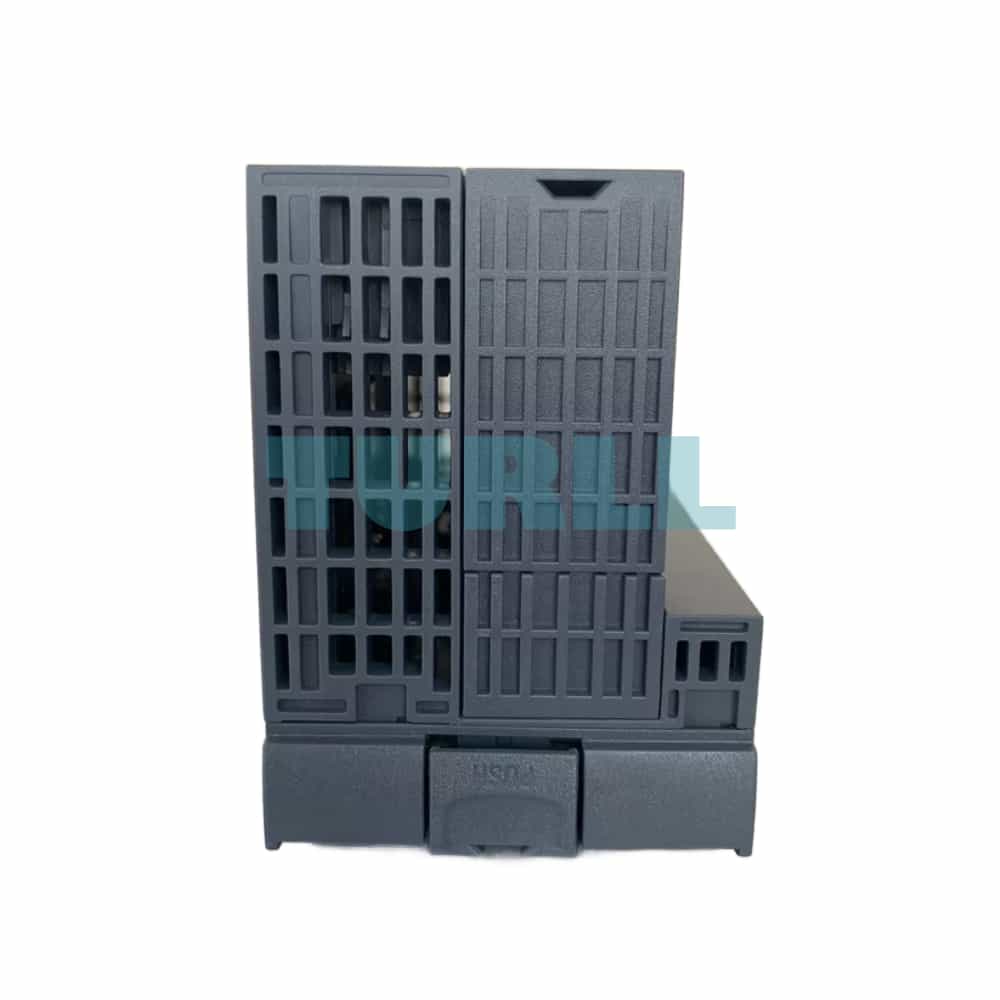

6AG2155-6AA01-4BN0 Siemens SIPLUS ET 200SP IM155-6PN ST BA TX Rail Original Brand New
$1,797.80
6AG2155-6AA01-4BN0
Siemens SIPLUS ET 200SP IM155-6PN ST BA TX rail based on 6ES7155-6AA01-0BN0 with conformal coating, -40…+70 °C, OT4 with ST1/2 (+85 °C for 10 minutes), bundle PROFINET IM, 1 slot for BusAdapter, max. 32 I/O modules and 16 ET 200AL modules, single hot swap, bundle consists of: interface module (6AG2155-6AU01-4BN0), server module (6AG1193-6PA00-7AA0), BusAdapter BA 2xRJ45 (6AG2193-6AR00-4AA0)
[ez-toc]
Overview
Thanks to their wide scope of functions, the interface modules of the scalable SIPLUS extreme RAIL ET 200SP I/O system, even in their basic versions, cover a wide range of applications. The basic functions of the interface modules include:
- Approved in accordance with EN 50155, EN 15121, EN 50124, EN 50125 and EN 45545 railway standards for use in rail traffic
- Short data update times of typically 1 ms
- Single Hot Swap (withdrawing and insertion of an I/O module during operation without impairing the communication with the remaining modules)
- Operation with gaps (empty BaseUnits)
- Complete diagnostic support, extending to channel-by-channel diagnostics
- Configuration control / option handling (adaptation of the actual configuration via user software)
- Device replacement without PG I&M data 0 to 3 (electronic rating plate with non-volatile storage of plant data)
- Firmware update
- Pluggable 24 V DC supply connection
- Network / power failure bridging time of 5 ms
- Labeling option via optional labeling strips and equipment labeling plates
When using PROFINET interface modules, the following basic functions are also included:
- Media redundancy (MRP) integrated 2-port switch
- Freely selectable connection method via SIMATIC BusAdapter
- Reset button for simple return to factory settings without the need for programming device
- Replacement without programming device even in case of non-topological configuration with subsequent automatic launching
- Automatic synchronization of the backplane bus to the PROFINET cycle to minimize the response time fluctuations (jitter)
SIPLUS ET 200SP IM 155-6PN ST BA TX RAIL with PROFINET interface
- Max. 32 I/O modules, also PROFIsafe modules, with complete diagnostic support
- Expansion option with max. 16 modules from the ET 200AL series using the BU-Send BaseUnit and the BA-Send BusAdapter
- Max. 256 bytes in each case for input and output data per module and max. 512 bytes per station (depending on configuration)
- Data update time: typ. 1 ms
- Selection of the type of connection of the PROFINET by means of SIMATIC BusAdapter (BusAdapter for copper cables only)
SIPLUS ET 200SP IM 155-6PN ST TX RAIL with PROFINET interface
- Max. 32 I/O modules, also PROFIsafe modules, with complete diagnostic support
- Expansion option with max. 16 modules from the ET 200AL series using the BU-Send BaseUnit and the BA-Send BusAdapter
- Max. 256 bytes in each case for input and output data per module and max. 512 bytes per station (depending on configuration)
- Data update time: typ.1 ms
- Selection of the type of connection of the PROFINET by means of SIMATIC BusAdapter (BusAdapter for copper cables only)
SIPLUS ET 200SP IM 155-6PN HF T1 RAIL and
SIPLUS ET 200SP IM 155-6PN HF TX RAIL with PROFINET interface
- Max. 64 I/O modules, also PROFIsafe modules, with complete diagnostic support
- Expansion option with max. 16 modules from the ET 200AL series using the BU-Send BaseUnit and the BA-Send BusAdapter
- Max. 288 bytes in each case for input and output data per module and max. 1440 bytes per station (depending on configuration)
- Fast data refresh time: from 250 µs, also in isochronous mode
- S2 system redundancy
- Choice of connection type and physical connection of the PROFINET by means of SIMATIC BusAdapter. All BusAdapters with a connection for copper and/or fiber-optic cables can be used; BusAdapter must be ordered separately
- Package inclusive of server module
Application
IM 155-6 MF High Feature MultiFieldbus interface module
Due to support of the PROFINET, EtherNet/IP and Modbus protocols, the IM 155-6 MF High Feature is designed for use on a wide range of Ethernet controllers. It supports applications with a high, flexible demand for functions, as well as a large station expansion of up to 64 modules (max. 1 024 IO signals). In addition, the station can be expanded by as many as 16 IP67 modules of the SIMATIC ET 200AL series using BA-Send/BU-Send.
PROFINET interface module IM 155-6 PN Basic
The IM 155-6 PN BA is designed mainly for simple PROFINET applications with moderate station expansion of up to 12 modules (max. 192 IO signals) and 32 bytes each for input data and output data. All I/O modules apart from PROFIsafe can be used. It is therefore the economical solution for simple machine and retrofit tasks.
PROFINET interface module IM 155-6 PN Standard
The IM 155-6 PN Standard is designed mainly for standard PROFINET applications with average station expansion of up to 32 modules (max. 512 IO signals). All I/O modules, including PROFIsafe, can be used. In addition, the station can be expanded with as many as 16 IP67 modules of the SIMATIC ET 200AL series using BA-Send/BU-Send. All SIMATIC BusAdapters with Cu interface can be used.
PROFINET interface module IM 155-6 PN High Feature
The IM 155-6 PN High Feature is designed mainly for PROFINET applications with a high, flexible demand for functions, as well as a large station expansion of up to 64 modules (max. 1024 IO signals). All I/O modules, including PROFIsafe, can be used. In addition, the station can be expanded with as many as 16 IP67 modules of the SIMATIC ET 200AL series using BA-Send/BU-Send.
Unlike the other interface modules, the IM 155-6 PN/2 HF supports the following additional functions:
- Use of BusAdapters, also with fiber-optic cable connection
- Increased data volume of up to 1440 bytes for both input and output data and up to 288 bytes per module
- Multi Hot Swap (withdrawing and insertion of any number of I/O modules during operation without impairing the communication with the remaining modules)
- S2 redundancy
- Isochronous mode from 250 µs
- Oversampling
- MSI/MSO
- Shared device with up to four controllers
- Up to four subslots per module
With its third port, the 3-port IM 155-6 PN/3 HF interface module allows the expansion of the PROFINET topology by a spur line. Typical applications are:
- Connection to a higher-level network
- Programming device access in the field
- Cable outlet via festoon cable system
The local IO data coupling allows data to be exchanged between up to 4 controllers quickly, deterministically, and without elaborate configuring.
PROFINET interface module IM 155-6 PN High Speed
The IM 155-6 PN High Speed is designed mainly for PROFINET applications with very short response times. All I/O modules, including PROFIsafe, can be used.
Compared to the IM 155-6 PN HF, the IM 155-6 PN HS has the following functional differences:
- For input and output data with up to 32 bytes per module, max. 30 modules per station
- Isochronous mode from 125 µs
- MRPD
- PROFINET Performance Upgrade (Fast Forwarding, Dynamic Frame Packaging, Fragmentation)
PROFIBUS interface module IM 155-6 DP High Feature
The IM 155-6 DP High Feature is designed mainly for PROFIBUS applications with average station expansion of up to 32 modules (max. 512 IO signals). All I/O modules, including PROFIsafe, can be used. In addition, the station can be expanded with as many as 16 IP67 modules of the SIMATIC ET 200AL series using BA-Send/BU-Send.
Redundant IM 155-6 PN R1 interface module
The IM 155-6 PN R1 can especially be used for high availability applications in combination with SIMATIC S7-1500H and the TIA Portal. It enables the integration of ET 200SP standard modules into the high availability system and also requires little space.
Redundancy is ensured by the use of two identical interface modules on a special BaseUnit, which are switched between in the event of a fault. The interface modules can be changed from the front during operation.
The IM 155-6 PN R1 can be operated with all BusAdapters and I/O modules of the SIMATIC ET 200SP available up to now. When using the IM 155-6 PN R1, the SIMATIC system rail is mandatory.
Design
The SIPLUS ET 200SP IM 155-6PN RAIL interface module is snapped directly onto the DIN rail (7.5 x 35 mm or 15 x 35 mm).
- Optional labeling using light gray or yellow labeling strips. There is a choice of 2 materials:
- Film strips on a roll with 500 strips, for thermal transfer roll printer
- Card (180 g/m2), DIN A4 sheets with 100 strips each, for laser printer
- Optional equipment marking using slide-in equipment labeling plates
- Different connection types of the PROFINET by means of SIMATIC BusAdapter
- Under ambient conditions in accordance with SIMATIC standard using BA 2xRJ45 for connection via RJ45 plug
- In the case of mechanical loading during operation and/or an increased EMC requirements BA 2xFC for direct connection of the PROFINET cable
6AG2155-6AA01-4BN0
Siemens SIPLUS ET 200SP IM155-6PN ST BA TX rail based on 6ES7155-6AA01-0BN0 with conformal coating, -40…+70 °C, OT4 with ST1/2 (+85 °C for 10 minutes), bundle PROFINET IM, 1 slot for BusAdapter, max. 32 I/O modules and 16 ET 200AL modules, single hot swap, bundle consists of: interface module (6AG2155-6AU01-4BN0), server module (6AG1193-6PA00-7AA0), BusAdapter BA 2xRJ45 (6AG2193-6AR00-4AA0)
Visit 6AG2155-6AA01-4BN0
For more our products visit turll.com
| Weight | 0.246 kg |
|---|---|
| Dimensions | 122 × 83 × 63 mm |
