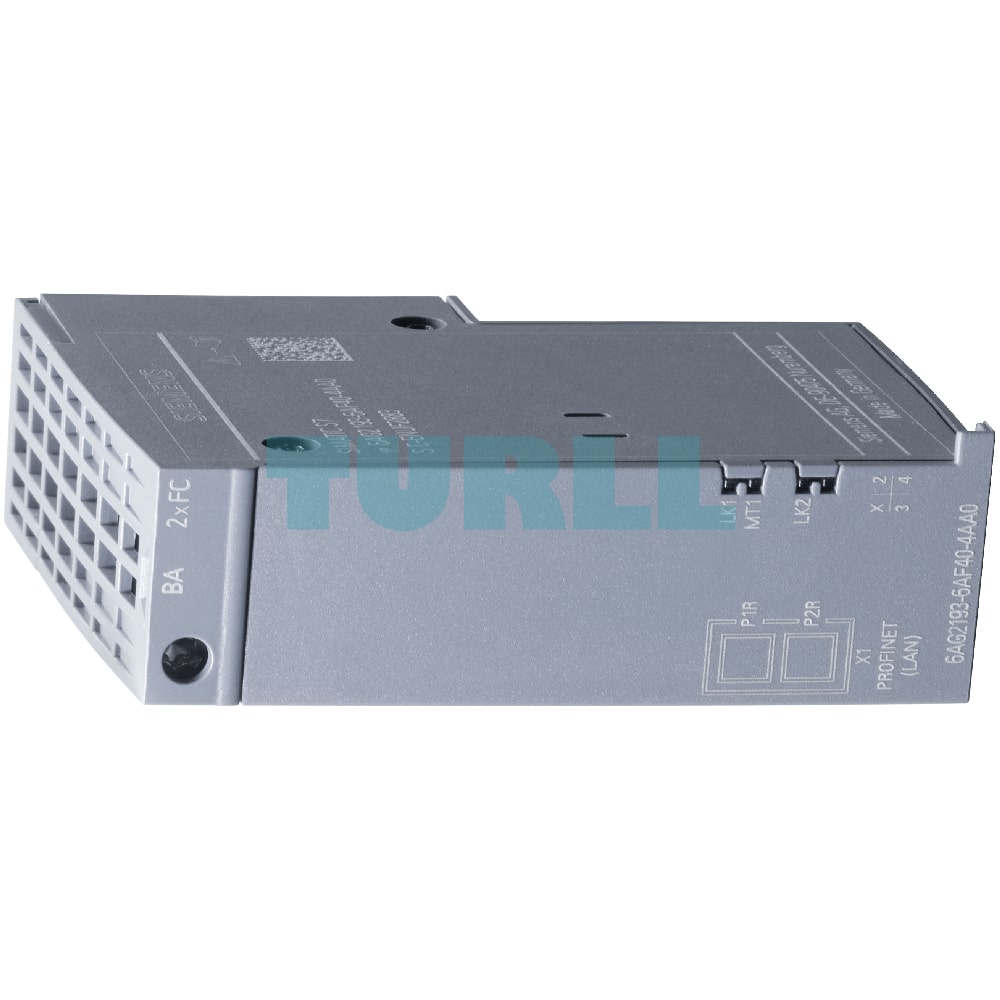

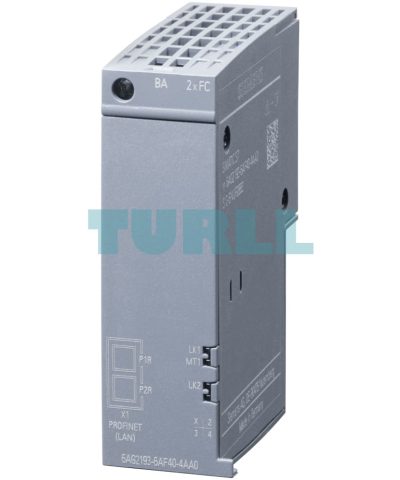

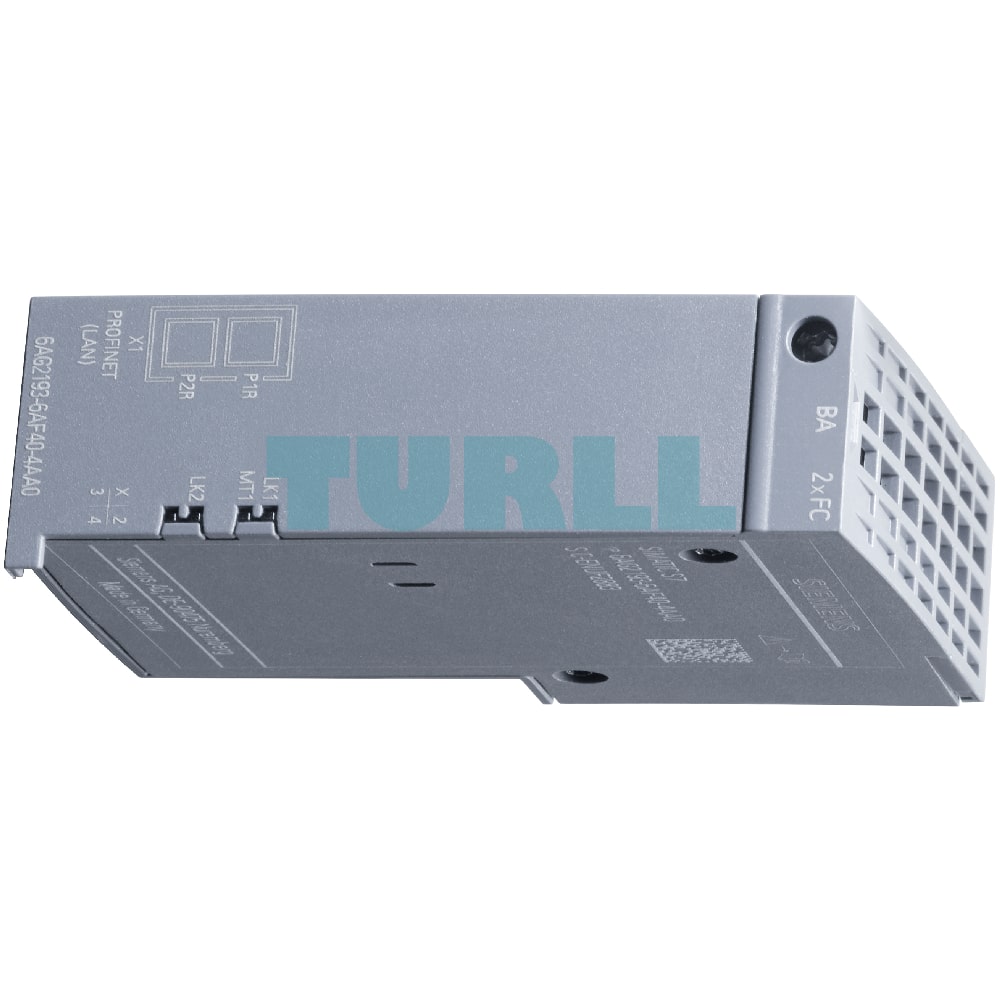

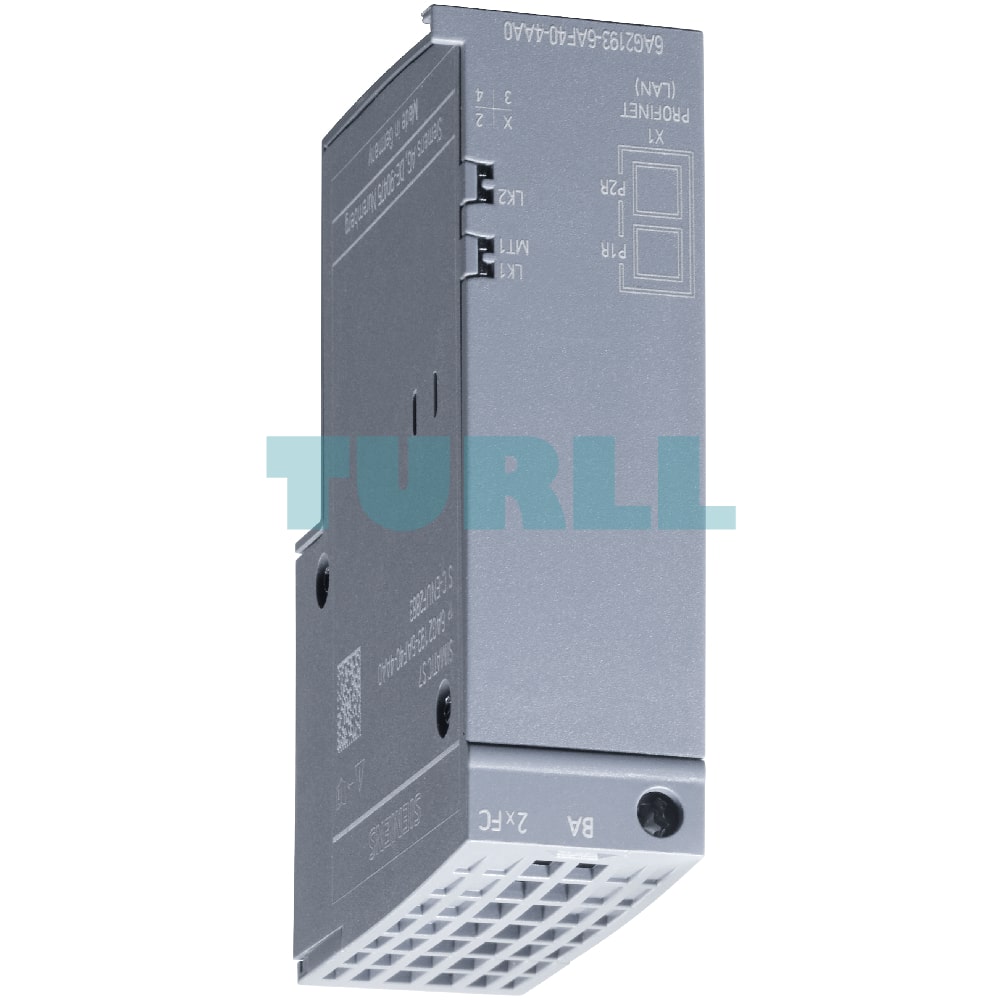

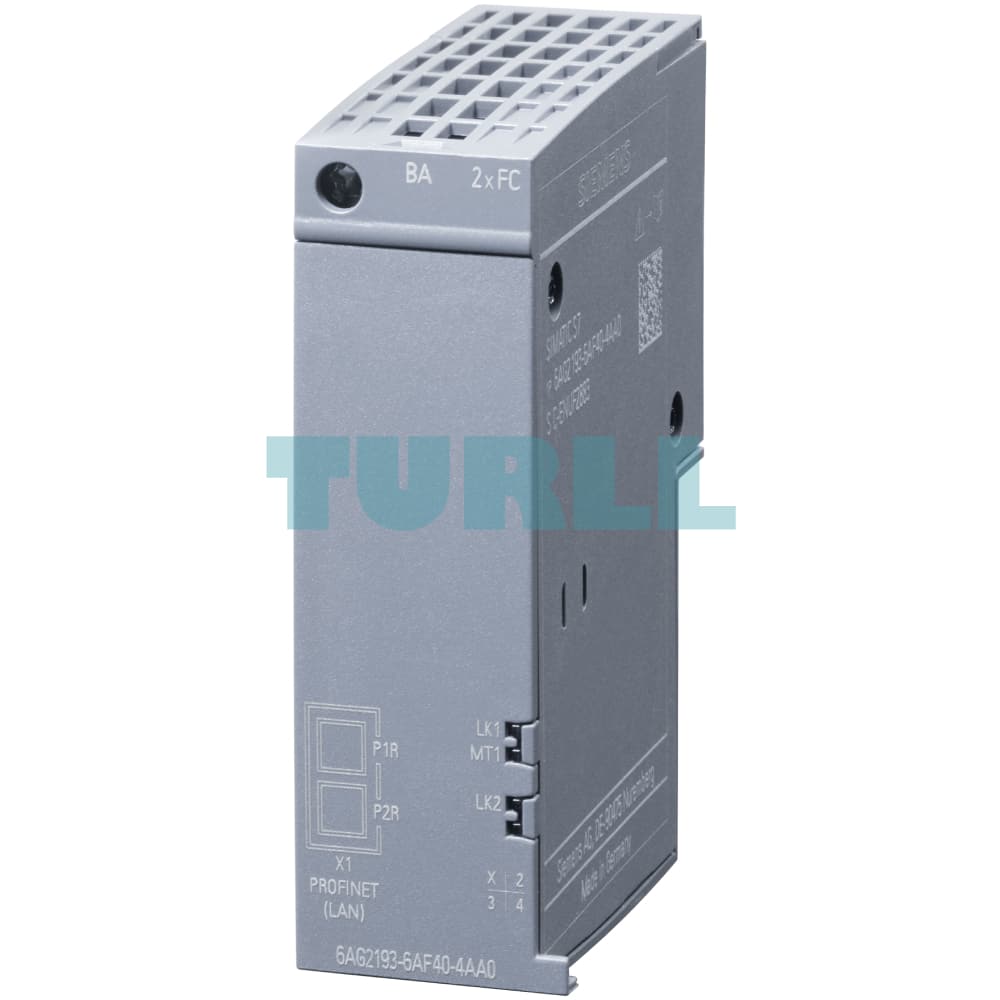

6AG2193-6AF00-4AA0 Siemens SIPLUS ET 200SP BA 2xFC TX Rail Original Brand New
$531.46
6AG2193-6AF00-4AA0
Siemens SIPLUS ET 200SP BA 2xFC TX rail based on 6ES7193-6AF00-0AA0 with conformal coating, -40…+70 °C, OT4 with ST1/2 (+85 °C for 10 minutes), BusAdapter 2x FastConnect connections for PROFINET
[ez-toc]
Overview
BusAdapters (BA) are available for the SIPLUS extreme RAIL ET 200SP:
- SIPLUS extreme RAIL BusAdapter for the free selection of the connection system (pluggable or direct connection) of PROFINET to devices with a SIPLUS extreme RAIL BusAdapter interface. Another benefit of the SIPLUS extreme RAIL BusAdapter: only the adapter needs to be replaced for subsequent conversion to the rugged FastConnect technology or to repair defective RJ45 sockets.
Application
SIPLUS extreme RAIL BusAdapter
In standard applications with moderate mechanical and EMC loads, SIMATIC BusAdapters with an RJ45 interface can be used, e.g. the BusAdapter BA 2xRJ45.
For machines and systems in which higher mechanical and/or EMC loads act on the devices, a SIMATIC BusAdapter with connection via FastConnect (FC) or fiber-optic cable (SCRJ or LC) is recommended.
Design
SIPLUS extreme RAIL BusAdapter
- Are plugged onto the device with SIMATIC BusAdapter interface and can be equipped with an equipment labeling plate for identification of the equipment.
- BusAdapters with a copper interface can be used on all devices with a SIPLUS extreme RAIL BusAdapter interface.
- BusAdapter with FOC interface can be used on selected devices with SIMATIC BusAdapter interface (e.g. ET 200SP interface modules with High Feature function class or above, CPU 1512SP (F), etc.)
- Versions with two PN copper interfaces (RJ45 or FastConnect (FC)):
- BA 2xRJ45 with 2 RJ45 sockets
- BA 2xFC with 2 FastConnect connections
Assembly
FastConnect (FC)
Using the FastConnect stripping tool, the outer sheath and braided shielding can be quickly and conveniently removed from Industrial Ethernet FastConnect cables in one simple operation. The detached PN bus cable is connected directly to the FC connector by means of the FastConnect terminals – in a similar way to the PROFIBUS connector, tried and tested in millions of applications. It is then only necessary to close the cover and lock it with the slider (no tools required).
RJ45
In principle, all industry standard RJ45 Ethernet connectors can be used here. If the PN cable is to be assembled on site, the FastConnect stripping tool can also be used here in connection with the “Industrial Ethernet FastConnect RJ45 Plug 180” connector.
6AG2193-6AF00-4AA0
Siemens SIPLUS ET 200SP BA 2xFC TX rail based on 6ES7193-6AF00-0AA0 with conformal coating, -40…+70 °C, OT4 with ST1/2 (+85 °C for 10 minutes), BusAdapter 2x FastConnect connections for PROFINET
Visit 6AG2193-6AF00-4AA0
For more our products visit turll.com
| Weight | 0.064 kg |
|---|---|
| Dimensions | 65 × 77 × 23 mm |
