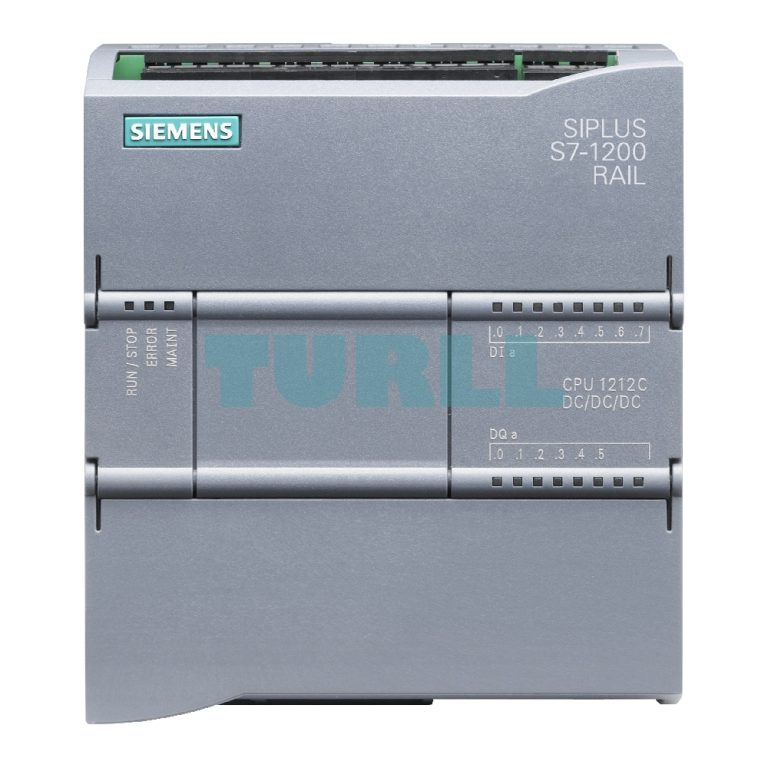

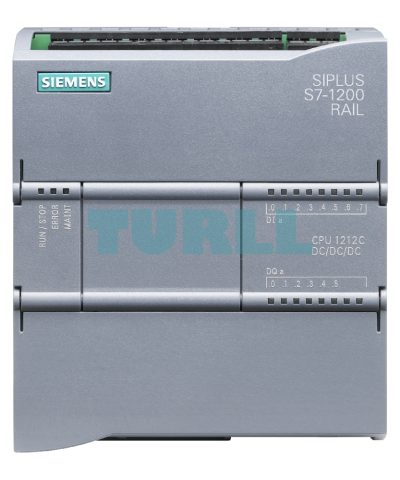

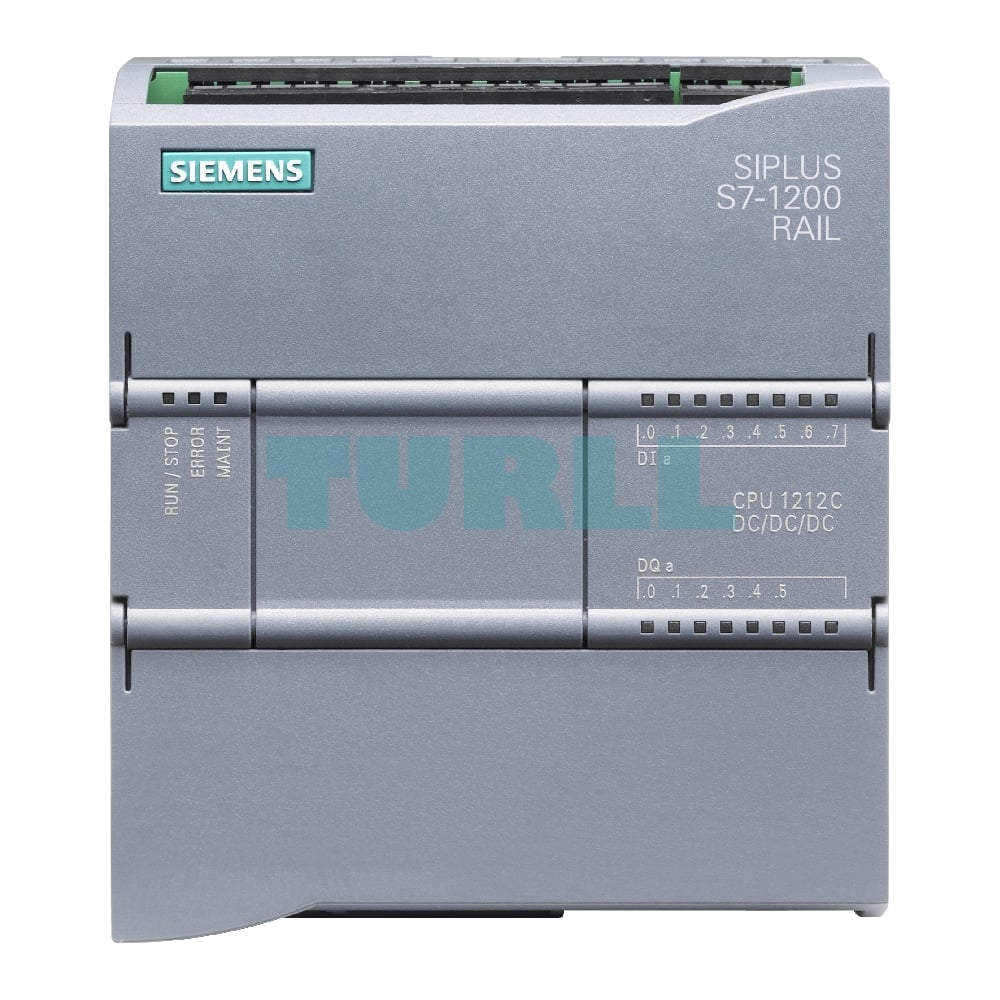

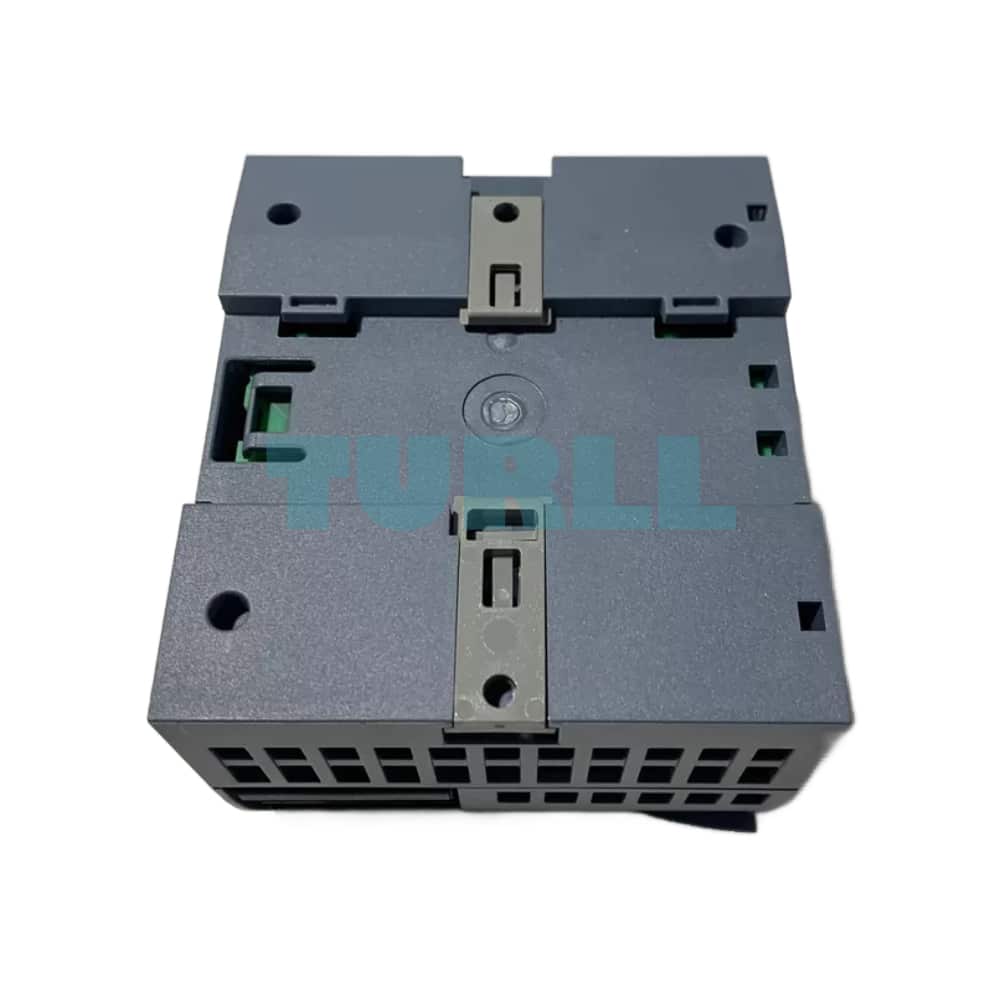

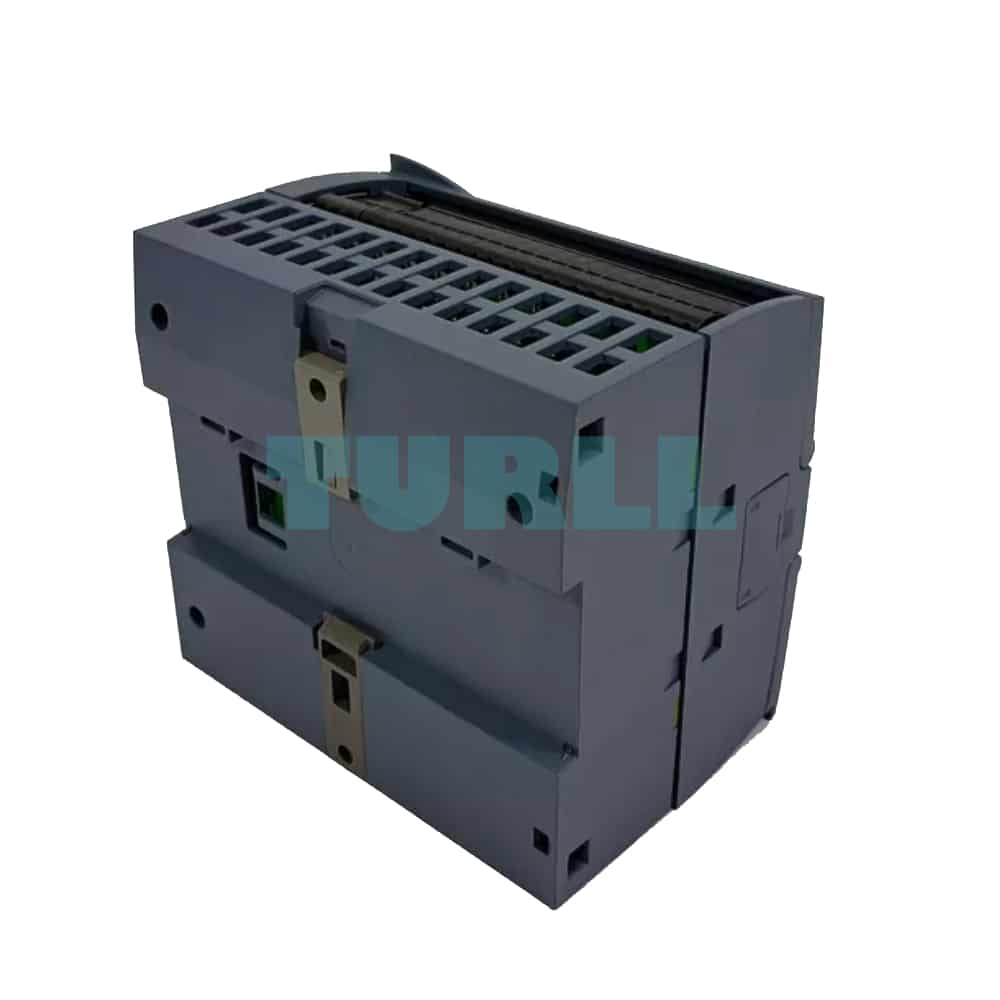

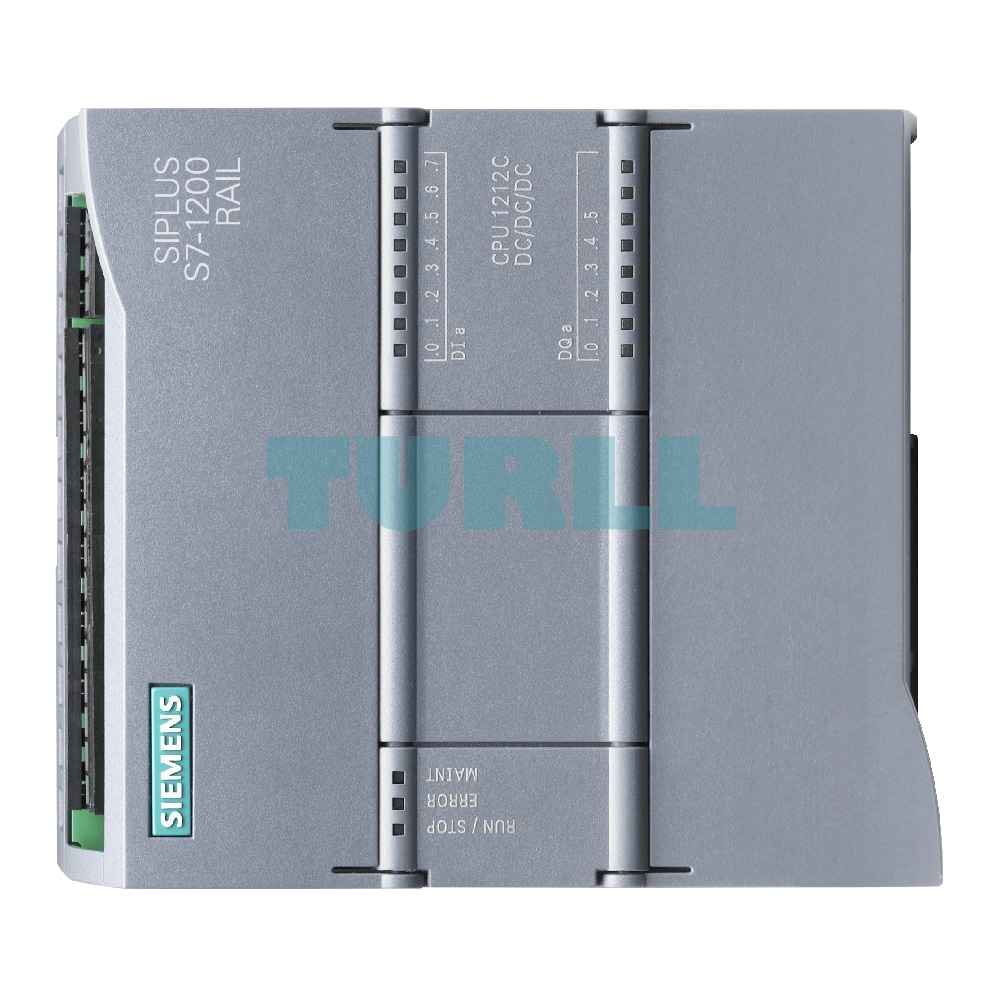

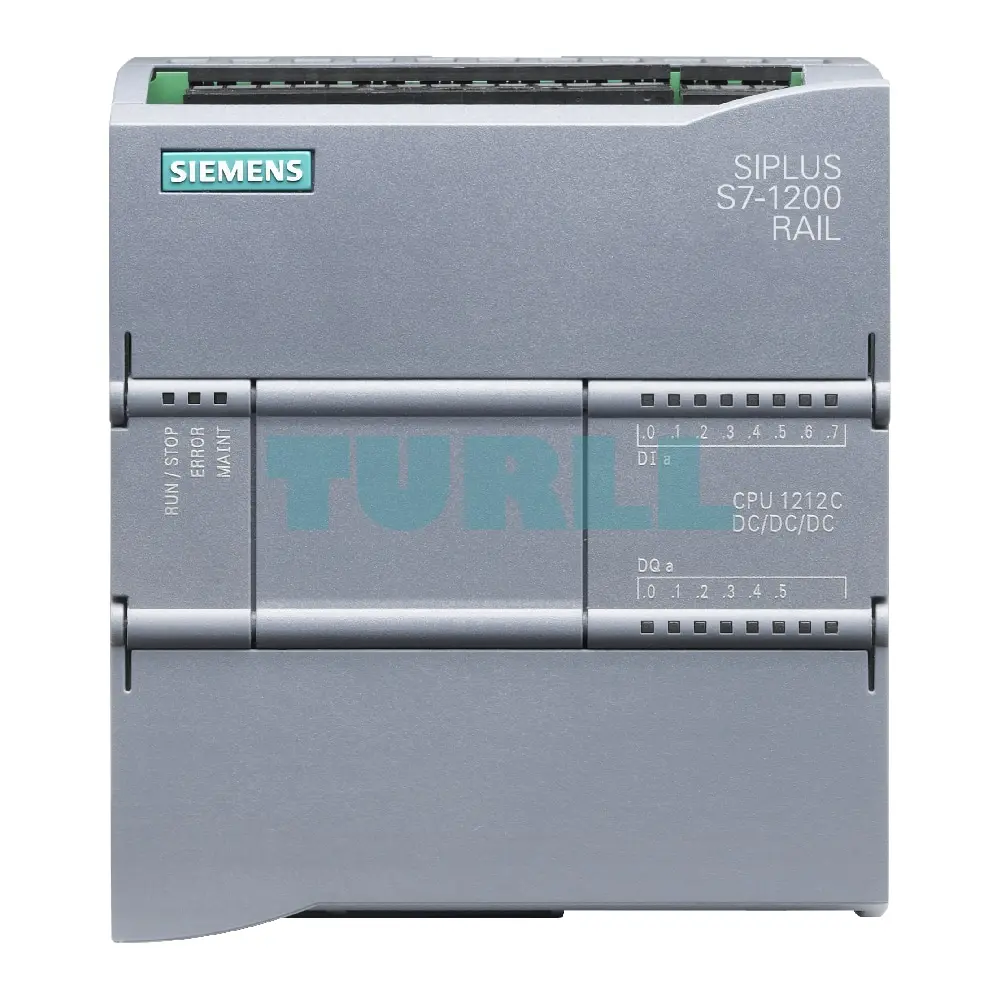

6AG2212-1AE40-1XB0 Siemens SIPLUS S7-1200 CPU 1212C T1 Rail Original Brand New
$1,694.28
6AG2212-1AE40-1XB0
Siemens SIPLUS S7-1200 CPU 1212C DC/DC/DC T1 rail based on 6ES7212-1AE40-0XB0 with conformal coating, -25…+60 °C, OT1 with ST1/2 (+70 °C für 10 minutes), compact CPU, DC/DC/DC, onboard I/O: 8 DI 24 V DC 6 DQ 24 V DC 2 AI 0-10 V DC, power supply: 20.4-28.8 V DC program/data memory 50 KB
Global Express Shipping
DHL / FedEx / UPS
100% Original & Brand New
Factory Sealed Box with 1-Year Warranty
Secure Payment
SSL ENCRYPTED
[ez-toc]
Overview
- The superior compact solution
- Approved in accordance with the EN 50155, EN 15121, EN 50124, EN 50125 and EN 45545 railway standards for use in rail traffic
- With 14 integral input/outputs
- Expandable by:
- 1 signal board (SB) or communication board (CB)
- 2 signal modules (SM)
- Max. 3 communications modules (CM)
Design
The compact CPU 1212C has:
- Integrated power supply, either as wide-range AC or DC power supply (24 V DC).
- Integrated 24 V encoder/load current supply:
For direct connection of sensors and encoders. With 300 mA output current also for use as load power supply. - 8 integrated digital inputs 24 V DC (current sinking/current sourcing (IEC type 1 current sinking)).
- 6 integrated digital outputs, 24 V DC.
- 2 integrated analog inputs 0 … 10 V.
- 2 pulse outputs (PTO) with a frequency of up to 100 MHz.
- Pulse-width modulated outputs (PWM) with a frequency of up to 100 kHz.
- Integrated Ethernet interface (TCP/IP native, ISO-on-TCP).
- 4 fast counters (3 with max. 100 kHz; 1 with max. 30 kHz), with configurable enable and reset inputs, can be used simultaneously as up and down counters with 2 separate inputs or for connecting incremental encoders.
- Expansion by additional communication interfaces, e.g. RS485 or RS232.
- Expansion by analog or digital signals directly on the CPU via signal board (with retention of CPU mounting dimensions).
- Expansion by a wide range of analog and digital input and output signals via signal modules.
- Optional memory expansion (SIMATIC Memory Card).
- PID controller with auto-tuning functionality.
- Integral real-time clock.
- Interrupt inputs:
For extremely fast response to rising or falling edges of process signals. - Removable terminals on all modules.
- Simulator (optional):
For simulating the integrated inputs and for testing the user program.
Function
- Comprehensive instruction set:
A wide range of operations facilitates programming:- Basic operations such as binary logic operations, result allocation, save, count, create times, load, transfer, compare, shift, rotate, create complement, call subprogram (with local variables),
- integral communication commands (e.g. USS protocol, Modbus RTU, S7 communication “T-Send/T-Receive” or Freeport),
- user-friendly functions such as pulse-width modulation, pulse sequence function, arithmetic functions, floating point arithmetic, PID closed-loop control, jump functions, loop functions and code conversions,
- mathematical functions, e.g. SIN, COS, TAN, LN, EXP.
- Counting:
User-friendly counting functions in conjunction with integrated counters and special commands for high-speed counters open up new application areas for the user. - Interrupt processing:
- Edge-triggered interrupts (activated by rising or falling edges of process signals on interrupt inputs) support a rapid response to process events.
- Time-triggered interrupts.
- Counter interrupts can be triggered when a setpoint is reached or when the direction of counting changes.
- Communication interrupts allow the rapid and easy exchange of information with peripheral devices such as printers or bar code readers.
- Password protection
- Test and diagnostics functions:
Easy-to-use functions support testing and diagnostics, e.g. online/offline diagnostics. - “Forcing” of inputs and outputs during testing and diagnostics:
Inputs and outputs can be set independently of the cycle and thus permanently, for example, to test the user program. - Motion Control in accordance with PLCopen for simple control of movement
- Library functionality
Programming
The STEP 7 Basic programming package permits complete programming of all S7-1200 controllers and the associated I/O.
6AG2212-1AE40-1XB0
Siemens SIPLUS S7-1200 CPU 1212C DC/DC/DC T1 rail based on 6ES7212-1AE40-0XB0 with conformal coating, -25…+60 °C, OT1 with ST1/2 (+70 °C für 10 minutes), compact CPU, DC/DC/DC, onboard I/O: 8 DI 24 V DC 6 DQ 24 V DC 2 AI 0-10 V DC, power supply: 20.4-28.8 V DC program/data memory 50 KB
Visit 6AG2212-1AE40-1XB0
For more our products visit turll.com
| Weight | 0.34 kg |
|---|---|
| Dimensions | 106 × 108 × 86 mm |
