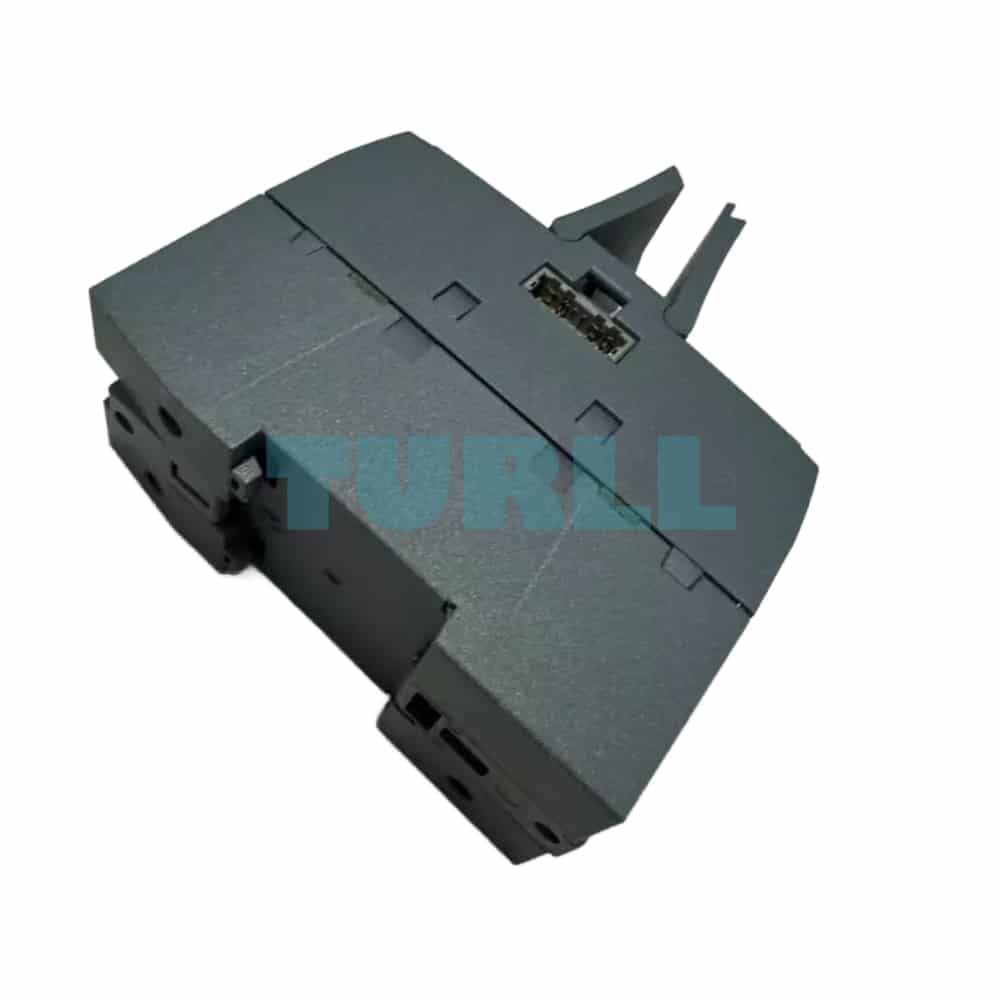

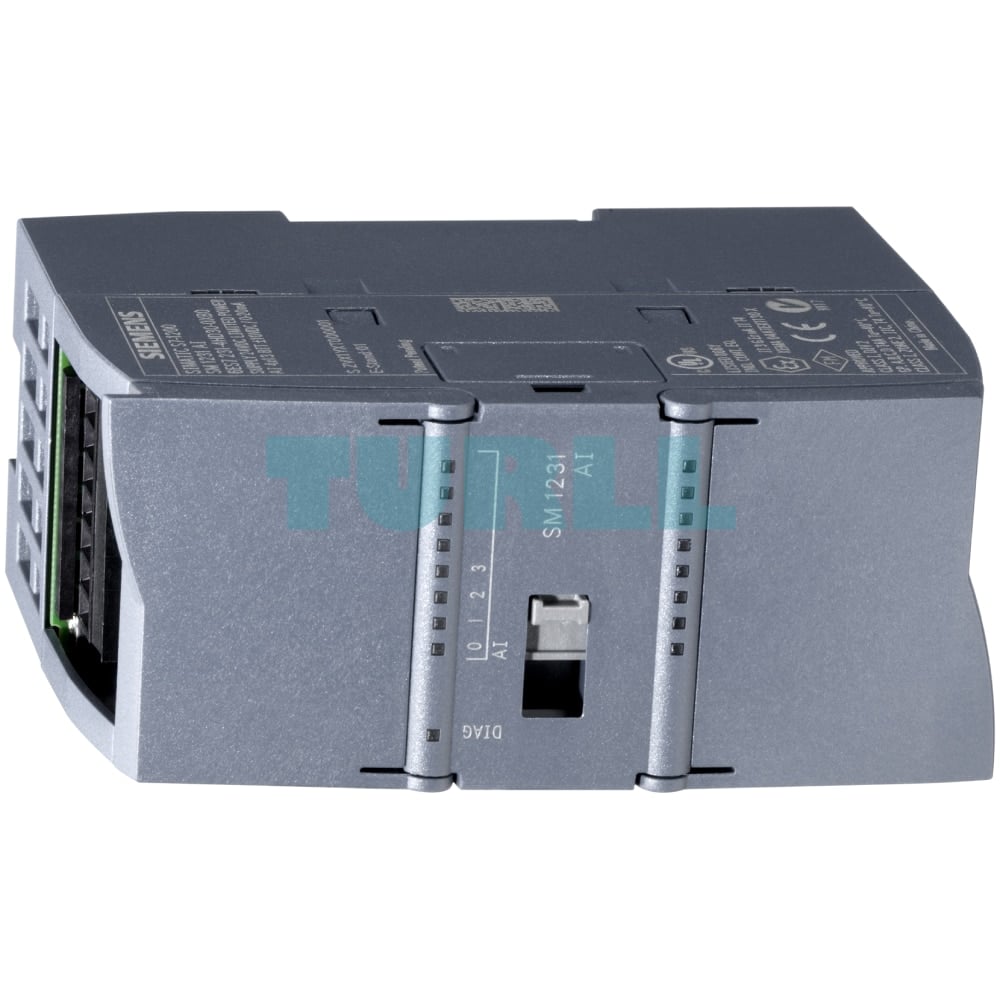

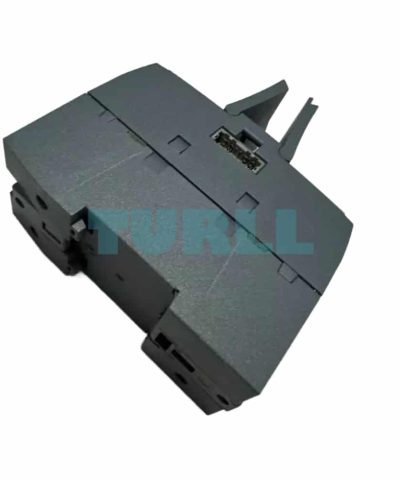

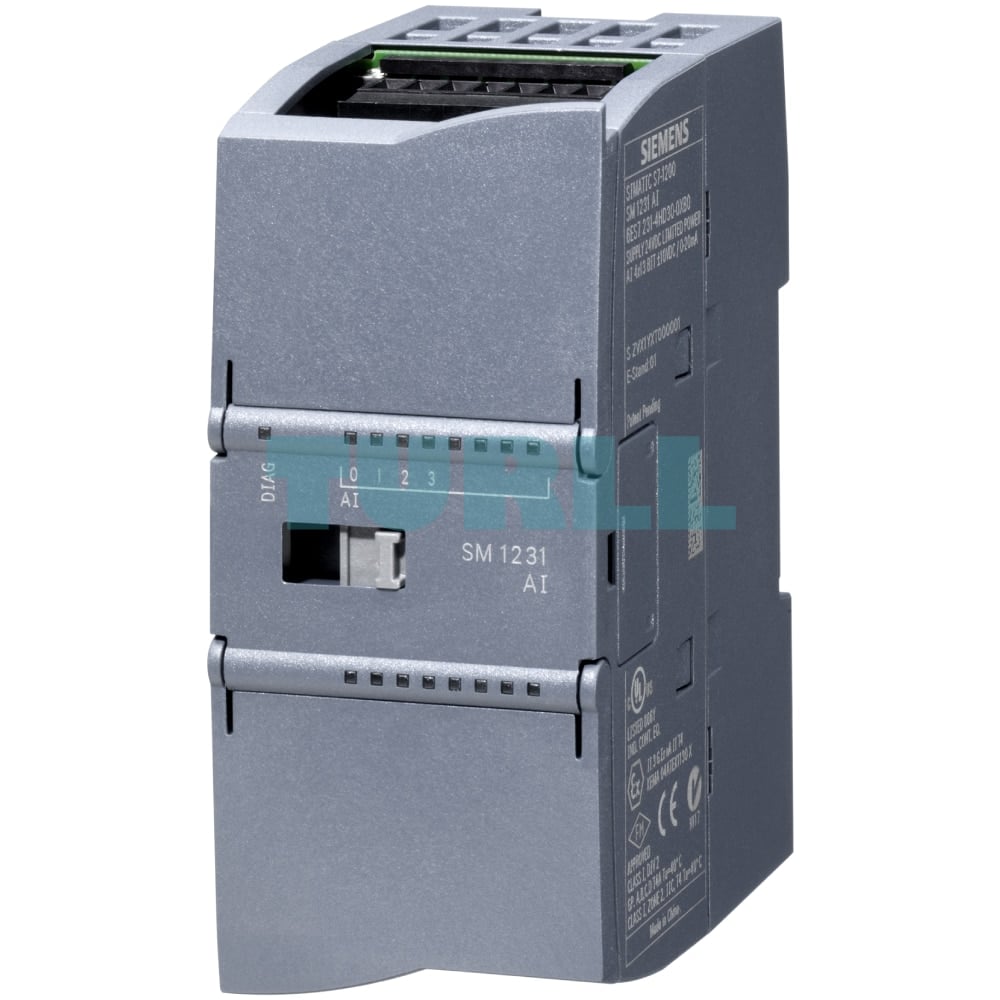

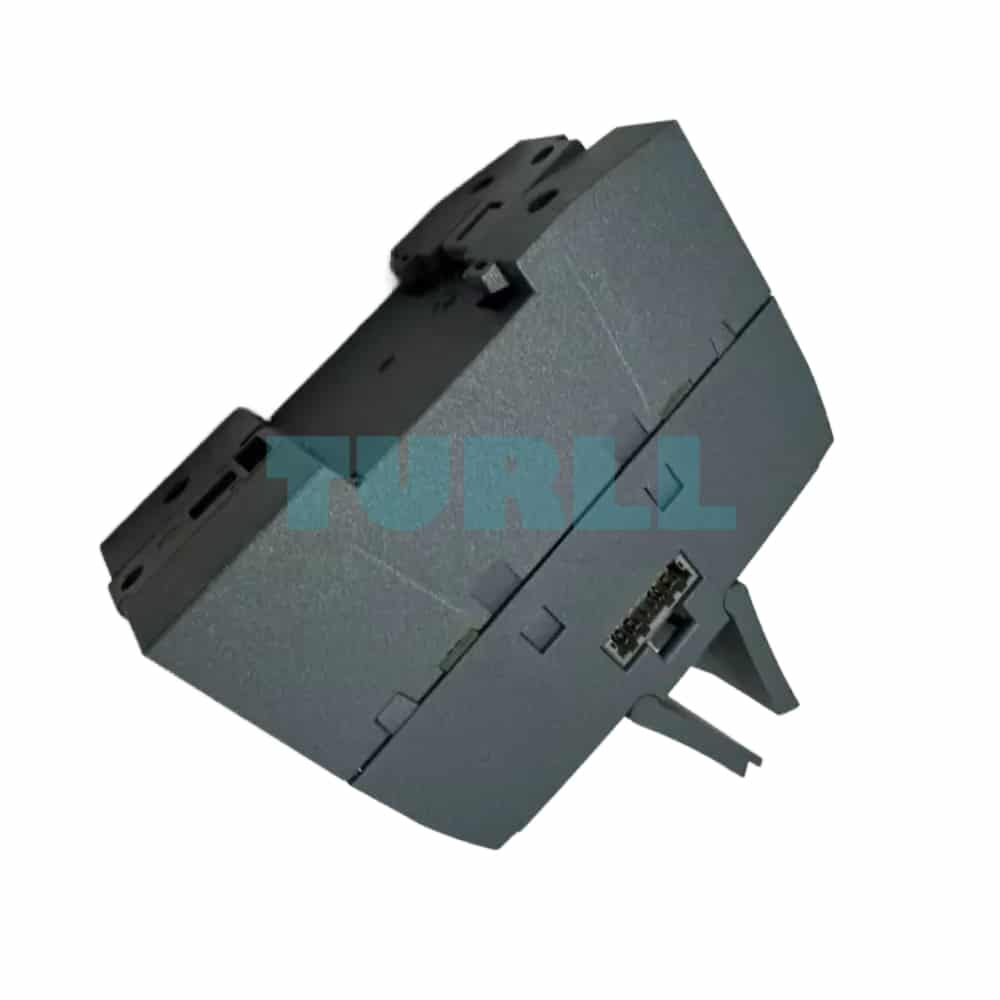

6AG2231-5PD32-1XB0 Siemens SIPLUS S7-1200 SM 1231 RTD T1 Rail Original Brand New
$1,844.99
6AG2231-5PD32-1XB0
Siemens SIPLUS S7-1200 SM 1231 RTD T1 rail based on 6ES7231-5PD32-0XB0 with conformal coating, -25…+60 °C, OT1 with ST1/2 (+70 °C für 10 minutes), SIMATIC S7-1200, analog input, SM 1231 RTD, 4xAI RTD module
[ez-toc]
Overview
- For the convenient recording of temperatures with great accuracy
- Approved in accordance with the EN 50155, EN 15121, EN 50124, EN 50125 and EN 45545 railway standards for use in rail traffic
- 4 inputs
- Most popular resistance temperature detectors can be used
- Can easily be retrofitted to existing plant
Application
The SM 1231 RTD modules enable temperatures to be measured with high precision using established resistance temperature detectors. They can be used with CPU 1211, 1212 and 1214.
Design
The SM 1231 RTD modules exhibit the same structural features as the other modules of the S7-1200 series:
- Mounting on a DIN rail:
The modules are snapped onto the rail just to the right of the CPU and connected to one another and with the CPU 12xx by means of the integral backplane bus. - Direct mounting:
Drilled holes permit the module to be bolted directly to walls. This type of mounting is recommended for applications subject to strong vibrations. - Resistance temperature detectors:
The most popular resistance temperature detectors can be used: Pt 100, Pt 200, Pt 500, Pt 1000, Pt 10000, Ni 100, Ni 120, Ni 1000, Cu 10, FS 150, FS 30, FS 600. They are connected directly to the module without amplifiers and all RTDs must be of the same type. The detectors can be connected with 2, 3 or 4 cables. - Mounting location:
For maximum possible measurement and repeat accuracy, the RTD module should be mounted in locations with low temperature variations. - DIP switches:
Required settings, e.g. selection of the connected RTDs, should be made using the DIP switches on the module.
Function
- Different measurement ranges:
Resistance temperature detectors of types Pt 100, Pt 200, Pt 500, Pt 1000, Pt 10000, Ni 100, Ni 120, Ni 1000, Cu 10, FS 150, FS 30, FS 600. - Temperature scaling:
The measured temperature can be shown in °C or °F.
6AG2231-5PD32-1XB0
Siemens SIPLUS S7-1200 SM 1231 RTD T1 rail based on 6ES7231-5PD32-0XB0 with conformal coating, -25…+60 °C, OT1 with ST1/2 (+70 °C für 10 minutes), SIMATIC S7-1200, analog input, SM 1231 RTD, 4xAI RTD module
Visit 6AG2231-5PD32-1XB0
For more our products visit turll.com
| Weight | 0.207 kg |
|---|---|
| Dimensions | 88 × 109 × 56 mm |
